Product Description

Demco | Triple Axle Side Dump Trailer | Model Length 34' | Capacity 22.7 Cubic Yards | Weight 17,000 lbs | Horsepower 350–400 HP | For Tractor

DESCRIPTION

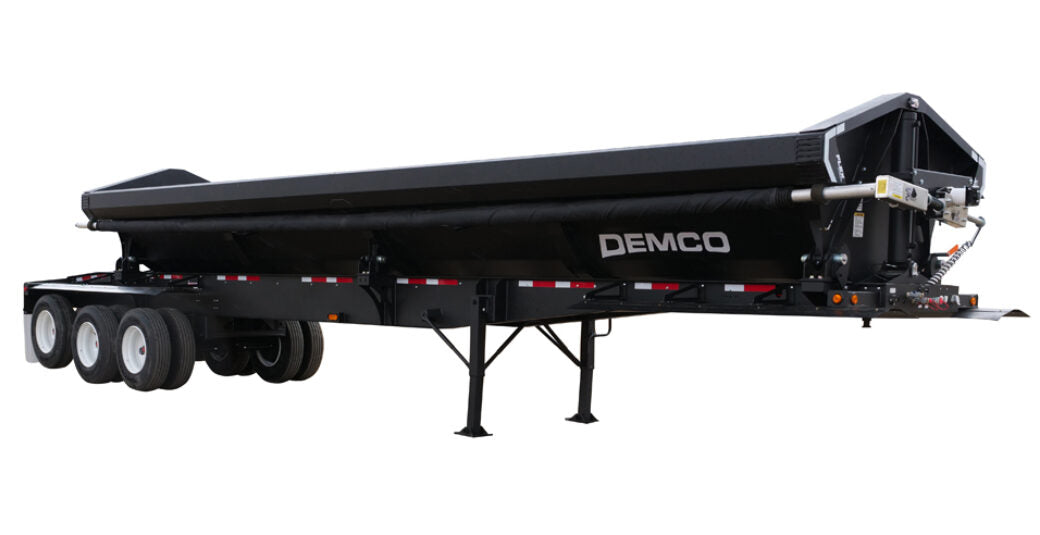

The Demco 9CCR403AR3424 Triple Axle Side Dump Trailer is engineered for professionals who demand performance, durability, and efficiency on every haul. With a 34-foot tub and 22.7 cubic yard capacity, this trailer is ideal for construction crews, aggregate haulers, and demolition contractors who need to move serious material fast.

Built with a low center of gravity and Demco’s exclusive FlexCorner® design, this trailer offers enhanced stability and smoother dumps. The SAF Holland air ride suspension paired with Wabco ABS brakes ensures a safe, comfortable ride even under full load. Whether you're hauling gravel, debris, or bulk materials, this trailer is your go-to workhorse.

Key Features

• 34' Tub / 22.7 Cu. Yd. Volume – Built for high-capacity scrap and bulk hauling
• Triple Axle / 75K GVWR – Heavy-duty configuration for demanding loads
• 350–400 HP Tractor Required – Optimized for semi-class towing power
• ¼" AR450 Steel Tub – Reinforced with FlexCorner® for impact resistance
• SAF Holland CBX23-245 Air Ride – Smooth ride with load-leveling suspension
• 5" Dump Cylinder @ 2,250 psi – Handles up to 43K lb payload with fast cycle
• 20" Deep I-Beam Frame – Maximum chassis strength for rugged conditions
• Rounded Vee Dump Body – Promotes clean material flow and fast emptying
• LED Lighting + Direction Indicators – Sealed system for visibility and safety
• 16.5" x 7" Brakes / Wabco ABS – Reliable stopping power with smart control
• EdgeFlex Fenders + Bolt-On UnderRide – Added protection and modular serviceability
• 20-Second Dump / 30-Second Cycle – Fast turnaround for high-efficiency workflows

Detailed Specifications

Manuals & Documents

• Operator Manual - 8C000001 - All Side Dump Models
• Parts Manual - 8C000301 - 35' & 40' Air Ride
• Parts Manual - 8C000302 - 42' & 44" Air Ride w/ 34' Tub
• Parts Manual - 8C000303 - 44' Air Ride w/ 37' Tub
• Parts Manual - 8C000304 - 46' Air Ride
• Parts Manual - 8C000305 - 44' Air Ride Spread
• Parts Manual - 8C000306 - 47' Air Ride
• Parts Manual - 8C000307 - 35', 40', 42', & 44' Spring Ride
• Aero Tarp Lock Out Kit - 8C010263AC
• Aero Side Kick 2 Installation & Parts List - 20190701131546
• Operator Manual – 8C010259 – Tractor Wiring Instructions for Roll Rite Tarp w/EOH Controls
• Demco Side Dump Trailers - MK11003
