Product Description

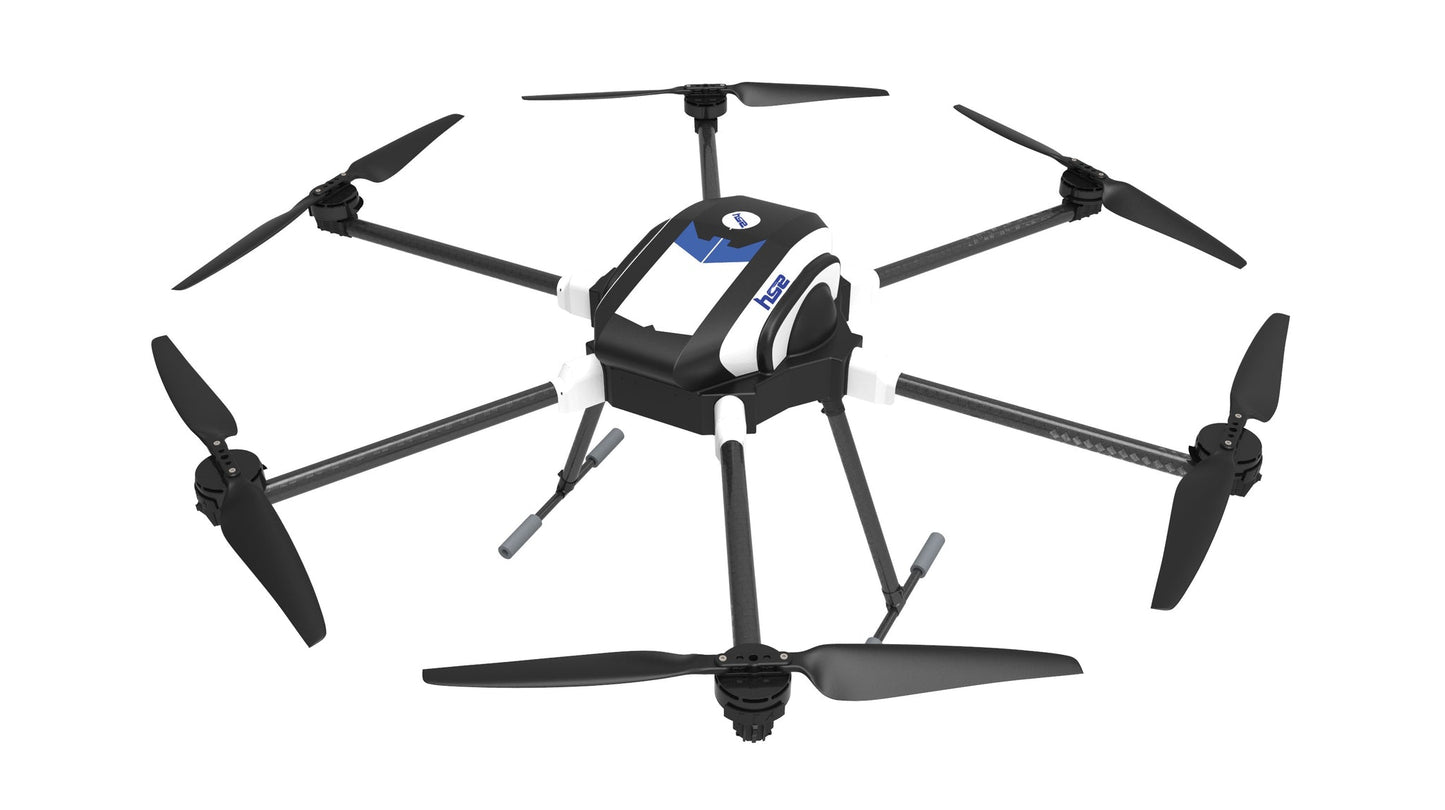

Demo Model: Heavy Payload Drone Frame Only (22lbs) | M6FC Frame | 6-Rotor Frame Size
DESCRIPTION
The M6FC Heavy Payload Drone Frame is a high-performance UAV frame designed for carrying substantial payloads with extended flight times. With the capacity to carry up to 22 lbs (10 kg) and an impressive 30-minute flight duration, the M6FC frame enables thorough and precise missions, making it ideal for security, commercial, and industrial applications. This rugged frame offers versatility, as flight time can increase significantly with lighter payloads.
Built to handle rigorous tasks, the M6FC is equipped to meet the demands of various industries. The frame-only model allows users to customize their payload configurations and propulsion systems, making it adaptable to evolving needs. Constructed from durable materials, this 6-rotor drone frame is optimized for stability, safety, and performance, ensuring efficient operations in challenging environments.
Key Features
- High Payload Capacity: Supports up to 22 lbs (10 kg), ideal for heavy equipment.
- Extended Flight Time: Achieves up to 30 minutes with full payload.
- Durable Construction: Built with high-strength materials for long-lasting use.
- Adaptable Frame: Customizable payload options for different mission needs.
- Efficient Design: Engineered for minimal downtime and reliable operations.
- Stable Performance: 6-rotor configuration ensures balanced and secure flights.
- Versatile Applications: Suitable for security, industrial, and commercial use.
- Long Battery Life: Optimized for prolonged missions with proper battery setup.
- Modular Components: Quick-swap frame for efficient maintenance and upgrades.
- Compact Transport: Foldable frame for easy transport and deployment.
Detailed Specifications
| Category | Specifications |
|---|---|
| Model | M6FC Frame Only |
| Configuration | 6-rotor (VTOL) |
| Flight Time (Full Load) | 30 min (22 lbs / 10 kg payload) |
| Flight Time (No Load) | Up to 60 min |
| Payload Capacity | 22 lbs (10 kg) |
| Weight (Frame Only) | 22 lbs (10 kg) |
| Frame Size | 6-Rotor, foldable |
| Material | Carbon Fiber + Aviation Aluminum |
| Propeller Style | 21-inch, customizable |
| Max Speed | 22 mph (10 m/s) |
| Max Wind Resistance | 25-31 mph (11-13.5 m/s) |
| Altitude Limit | 11,482 ft (3500 m) ASL |
| Control System | Ready for RC, Autopilot Compatible |
In Package
- 1x M6FC Drone Frame Only: No power or payload systems included
- Assembly Tools
- Operator's e-Manual
Available Options
- Customizable Propulsion System
- Multiple Payload Mount Options
- Folding or Fixed Propellers
- Advanced Battery Setup
