Product Description

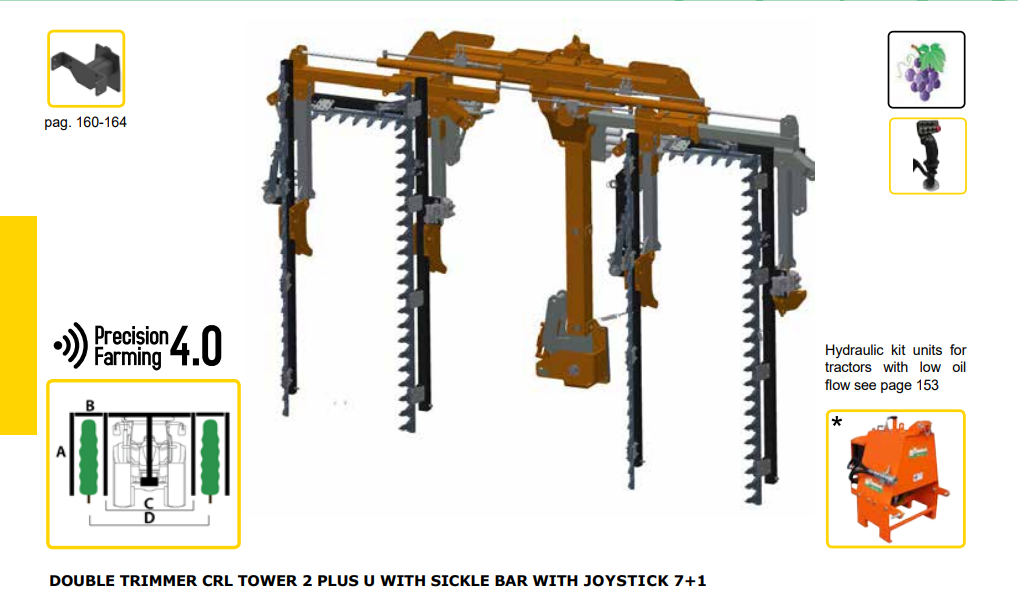

Rinieri Double Trimmer CRL Tower 2 Plus U With Sickle Bar | 59"-83" Cutting Width for Tractor
DESCRIPTION
The DOUBLE TRIMMER CRL TOWER-2 PLUS U with Sickle Bar is designed for robust pruning operations. The TOWER 2 PLUS frame features a durable central structure, equipped with hydraulic tilting and lifting mechanisms. The double-blade cutting bars ensure accurate, clean cuts, while the system allows for easy modifications after purchase. This versatile machine also includes spring safety controls for added protection during operation and transport. The sickle bars and U cutting bars are engineered for precision, making this a highly adaptable tool for professional agricultural use.
Key Features
- Hydraulic Lifting: Vertical lift of 27.5" (70 cm) for convenient height adjustments.
- Vertical Frame Tilt: Hydraulic tilting of +/- 20° for optimal cutting angles.
- Side Shift: Hydraulic side shift for easy positioning.
- Hydraulic Horizontal Bar Adjustment: Horizontal bar height adjustment of 13.8" (35 cm).
- Hydraulic U Cutting Bar Opening: U bars open up to 27.6" (70 cm) for flexible cutting options.
- Manual U Bar Tilt: +/- 12° manual tilting of the U cutting bars for precision trimming.
- Quick Connection PLUS: Easy and fast connection to the tractor.
- Safety Features: Spring-loaded safety mechanisms for vertical bars, safety joints for topping bars, and maximum pressure valve for motor protection.
- Hydraulic Stand for Storage: Ensures safe and easy storage.
Detailed Specifications
| Specification | Details |
|---|---|
| Hydraulic Lifting | 27.5" (70 cm) |
| Vertical Frame Tilt | +/- 20° |
| Hydraulic Side Shift | Yes |
| Hydraulic Horizontal Bar Adjustment | 13.8" (35 cm) |
| Hydraulic U Bar Opening | 27.6" (70 cm) |
| Manual U Bar Tilt | +/- 12° |
| Hydraulic Requirement | 20-30 L/min |
| Electrical Requirement | 12-volt socket |

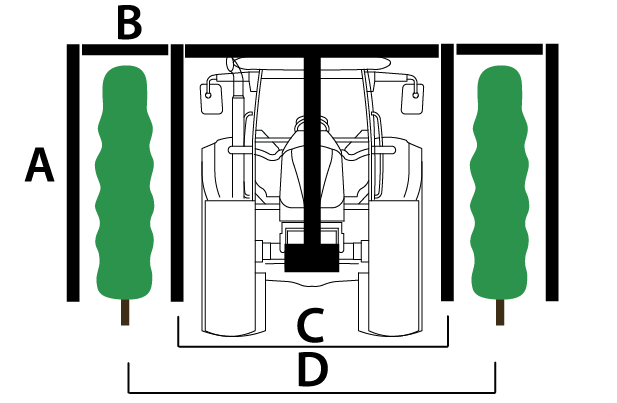

Models
CRL T2 A U 150+80 F & CRL T2 B U 150+80 F
| Attribute | CRL T2 A U 150+80 F | CRL T2 B U 150+80 F |
|---|---|---|
| A (inches) | 59.06" | 59.06" |
| B (inches) | 31.5" | 31.5" |
| C Min - Max (inches) | 39.37" - 59.06" | 53.15" - 88.58" |
| D Min - Max (inches) | 59.06" - 82.68" | 72.83" - 114.17" |
| Oil Demand (L/min) | 20 - 30 | 20 - 30 |
| Closed Machine (inches) | 76.0" | 91.34" |
CRL T2 A U 180+80 F & CRL T2 B U 180+80 F
| Attribute | CRL T2 A U 180+80 F | CRL T2 B U 180+80 F |
|---|---|---|
| A (inches) | 70.87" | 70.87" |
| B (inches) | 31.5" | 31.5" |
| C Min - Max (inches) | 39.37" - 59.06" | 53.15" - 88.58" |
| D Min - Max (inches) | 59.06" - 82.68" | 72.83" - 114.17" |
| Oil Demand (L/min) | 20 - 30 | 20 - 30 |
| Closed Machine (inches) | 76.0" | 91.34" |
CRL T2 A U 210+80 F & CRL T2 B U 210+80 F
| Attribute | CRL T2 A U 210+80 F | CRL T2 B U 210+80 F |
|---|---|---|
| A (inches) | 82.68" | 82.68" |
| B (inches) | 31.5" | 31.5" |
| C Min - Max (inches) | 39.37" - 59.06" | 53.15" - 88.58" |
| D Min - Max (inches) | 59.06" - 82.68" | 72.83" - 114.17" |
| Oil Demand (L/min) | 20 - 30 | 20 - 30 |
| Closed Machine (inches) | 76.0" | 91.34" |
In Package
- DOUBLE TRIMMER CRL TOWER-2 PLUS U with Sickle Bar
- Spring-loaded safety controls for vertical and topping bars
- Hydraulic and manual controls for all adjustments
- Hydraulic stand for safe storage
Available Options
- Hydraulic distributor 4+1 with levers
- Joystick 4+1 and electrovalve
- Joystick 7+1 and electrovalve
- Shoots conveyor for pruning machine
- Back rotation of the external vertical bar
- Pre-pruning head CPL or CPL GUYOT (compact)
- Tunnel sucker remover SRV
