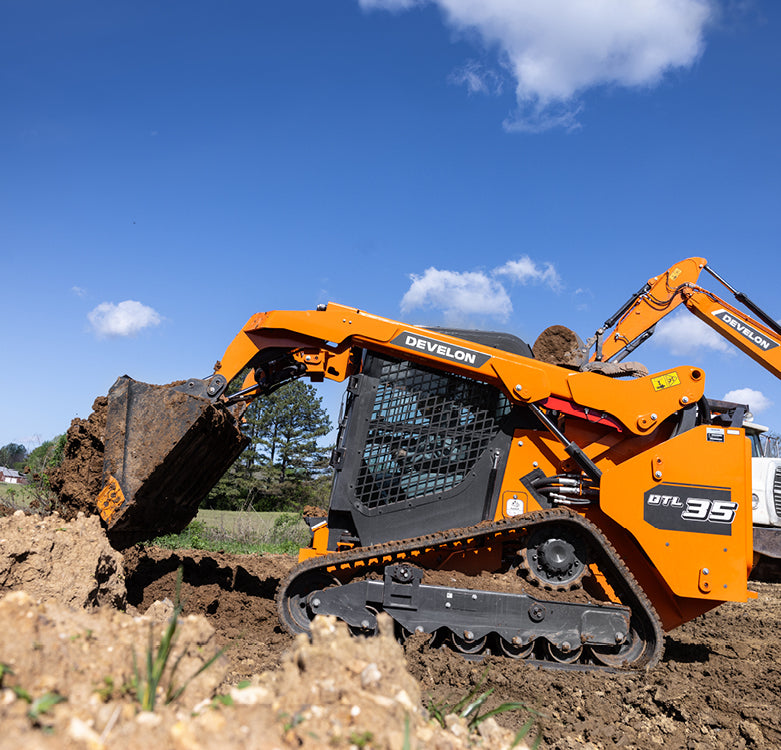

Develon | Compact Track Loader | Model DTL35 | Capacity 1.9 Tons | Horsepower 115.3 HP | For Construction, Landscaping, & Material Handling
Develon | Compact Track Loader | Model DTL35 | Capacity 1.9 Tons | Horsepower 115.3 HP | For Construction, Landscaping, & Material Handling
Couldn't load pickup availability
Couldn't load pickup availability
How To Request A Quote
***Online pricing not available, Please request a quote:***
How To Get A Quote:
Option 1: Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)Step 1. Add the item to your cartStep 2. Checkout or Click on the Chat button box that is at the bottom right of your screenStep 3. Please tell us any info you think we would need to knowStep 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
Product Description
Develon | Compact Track Loader | Model DTL35 | Capacity 1.9 Tons | Horsepower 115.3 HP | For Construction, Landscaping, & Material Handling
DESCRIPTION

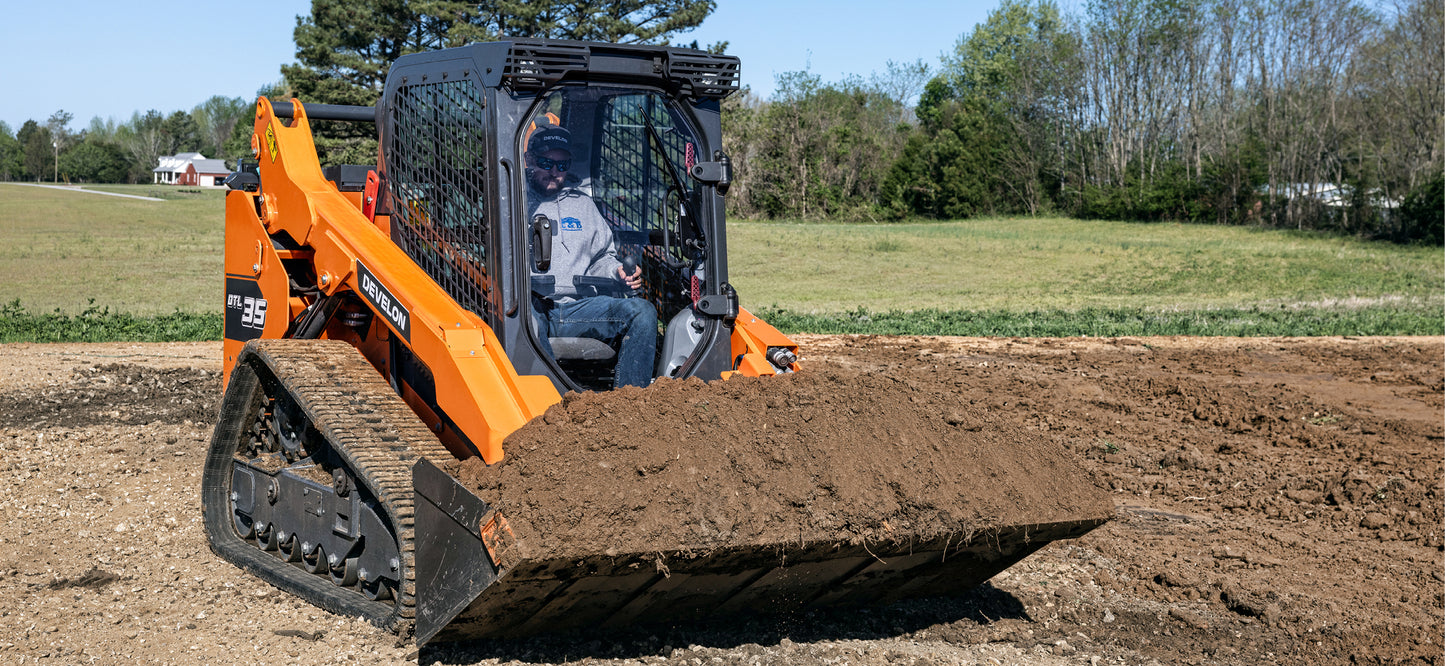

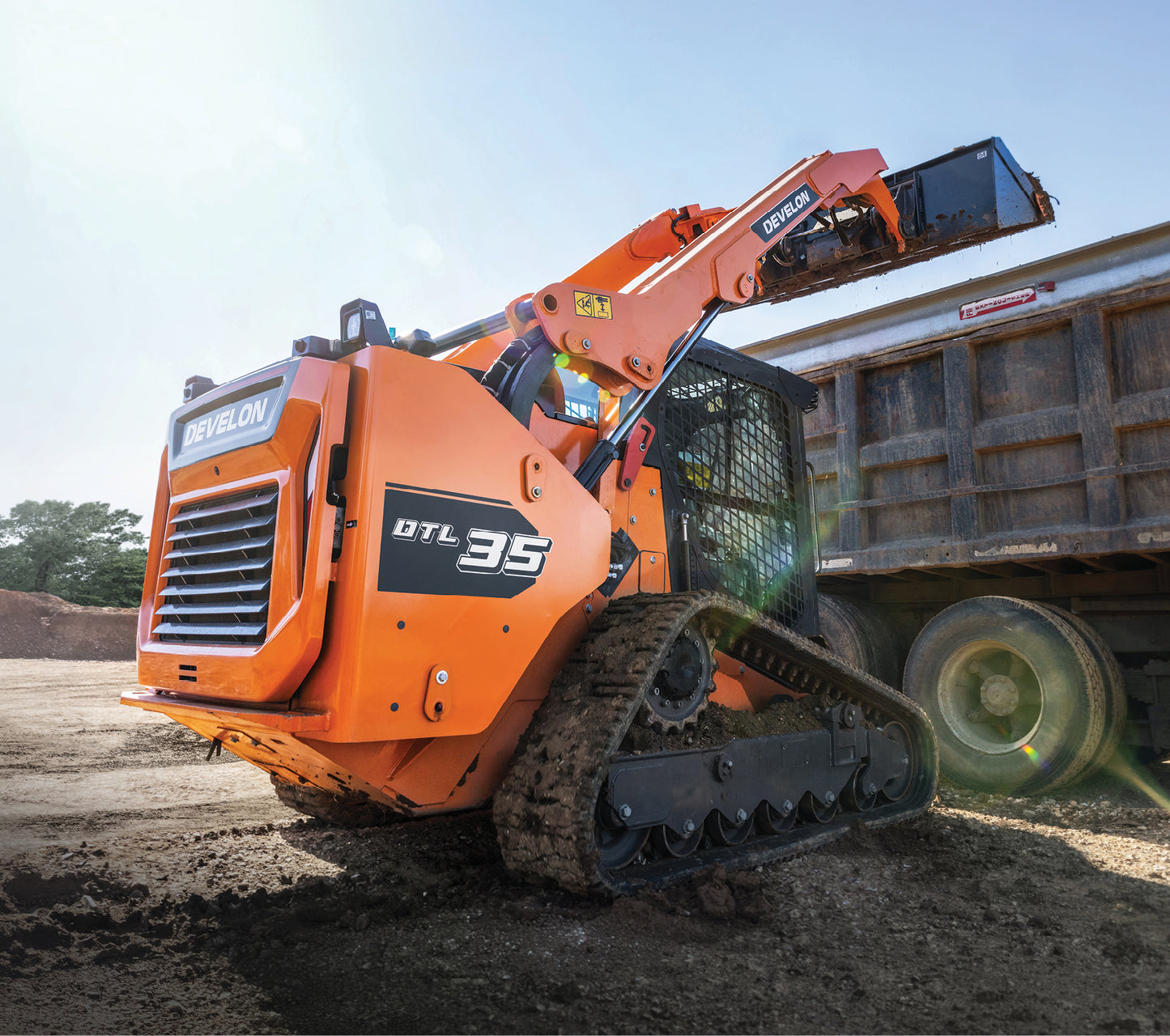

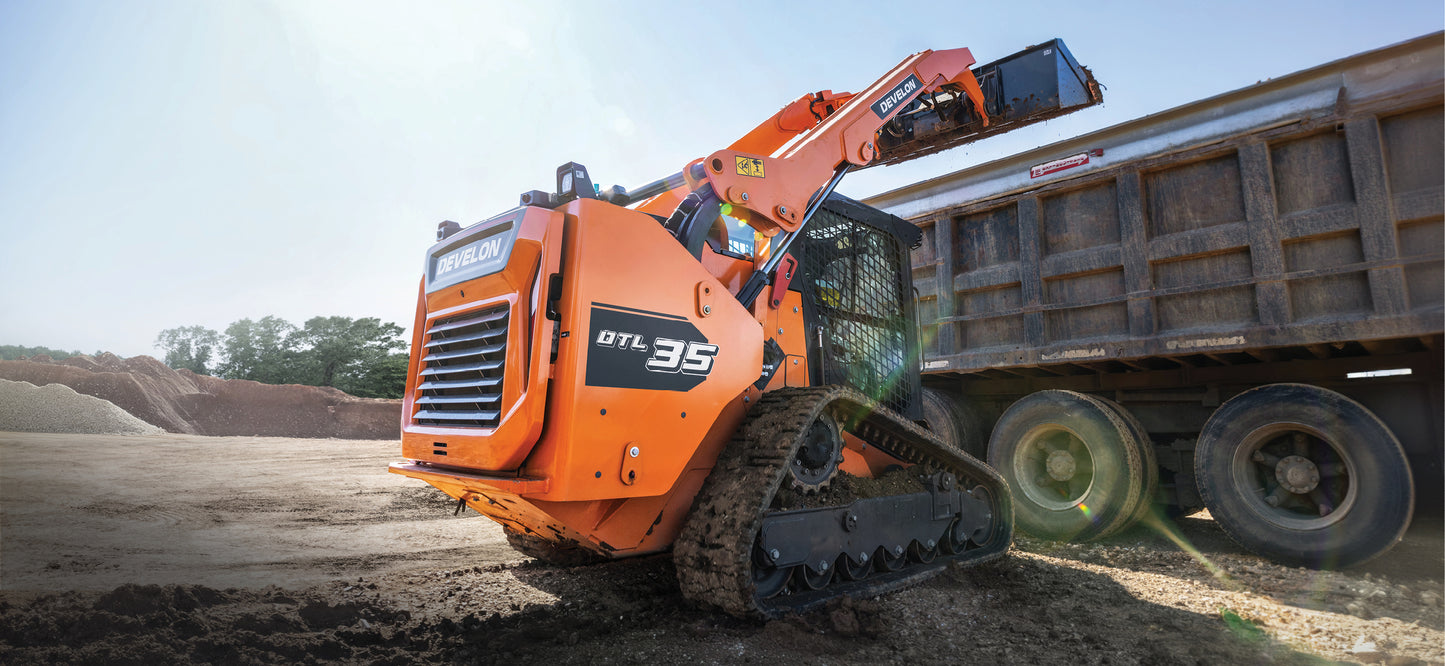

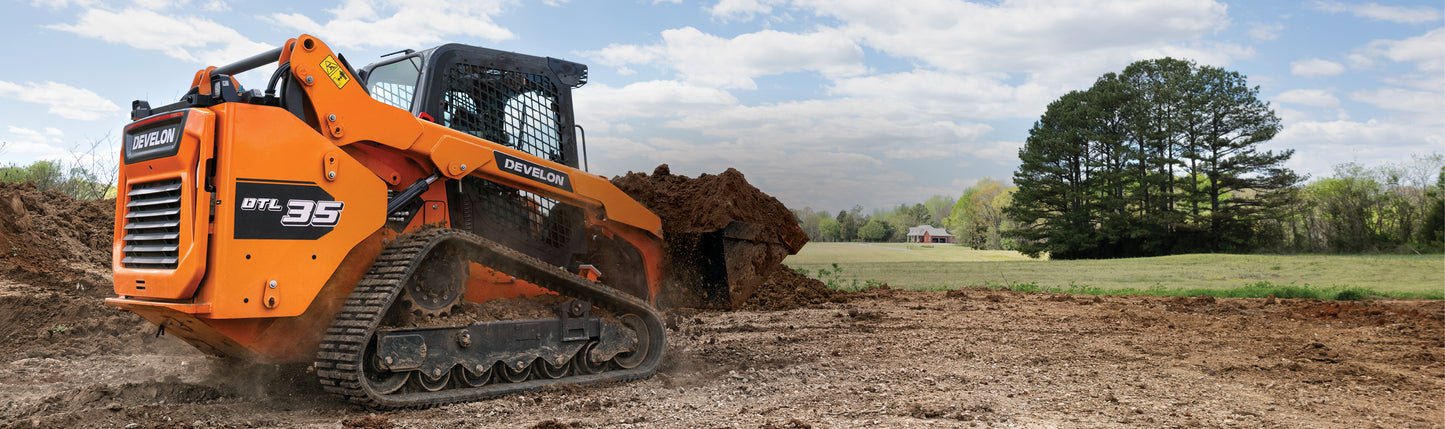

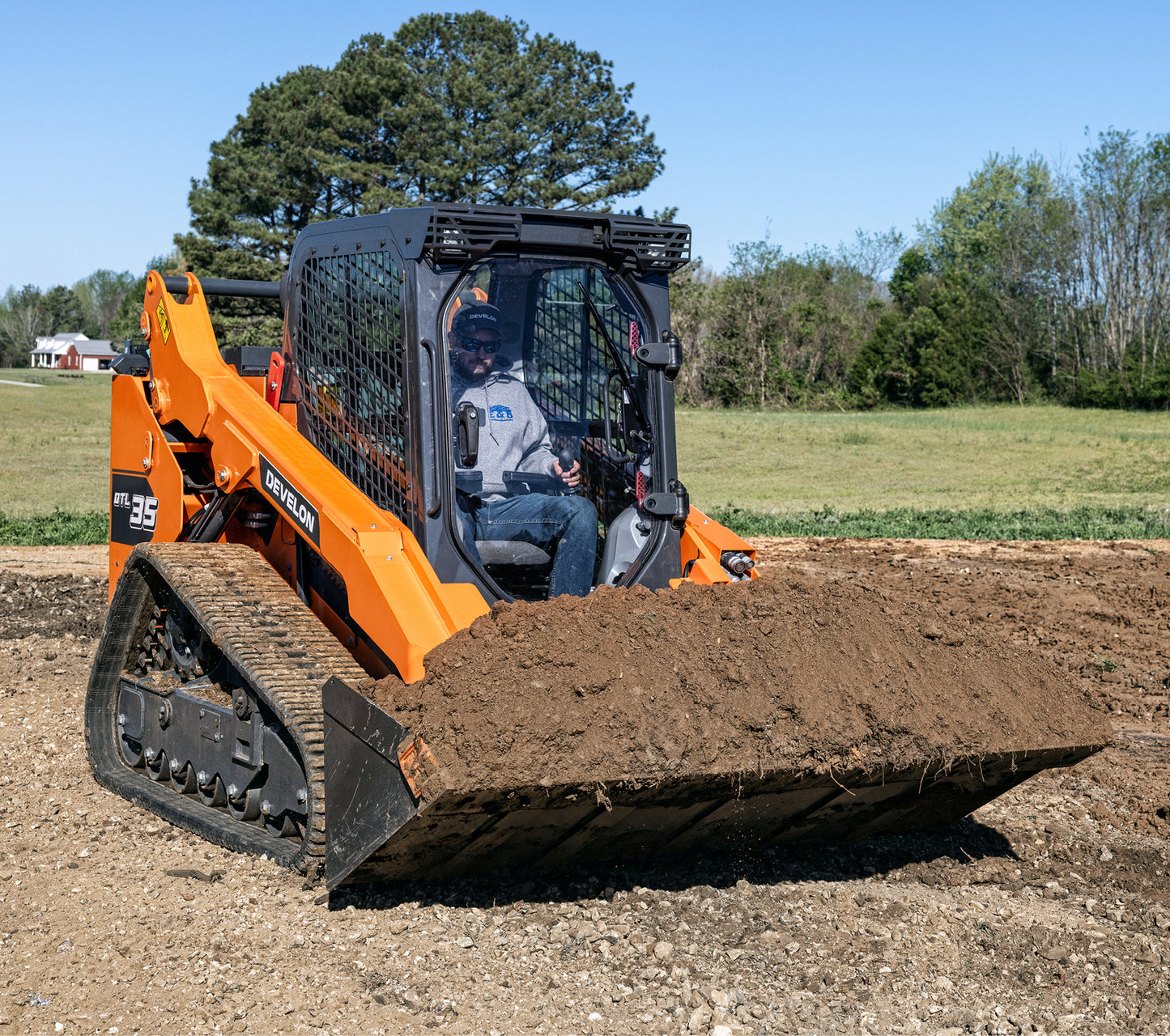

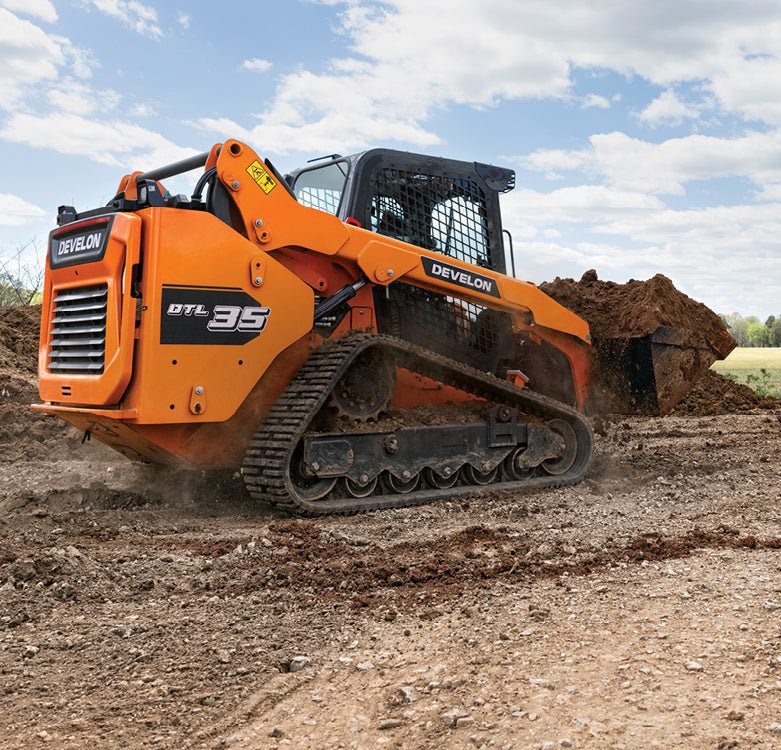

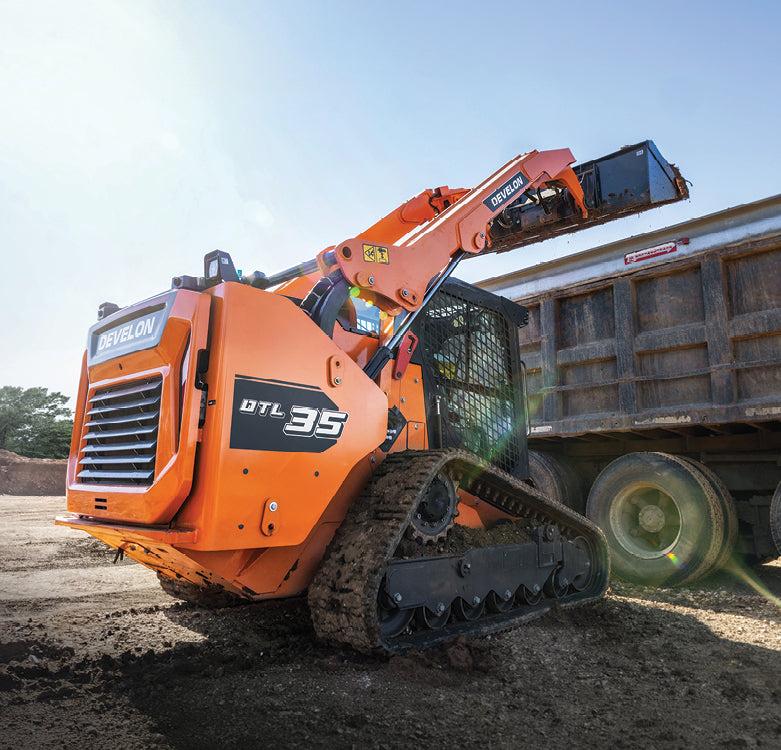

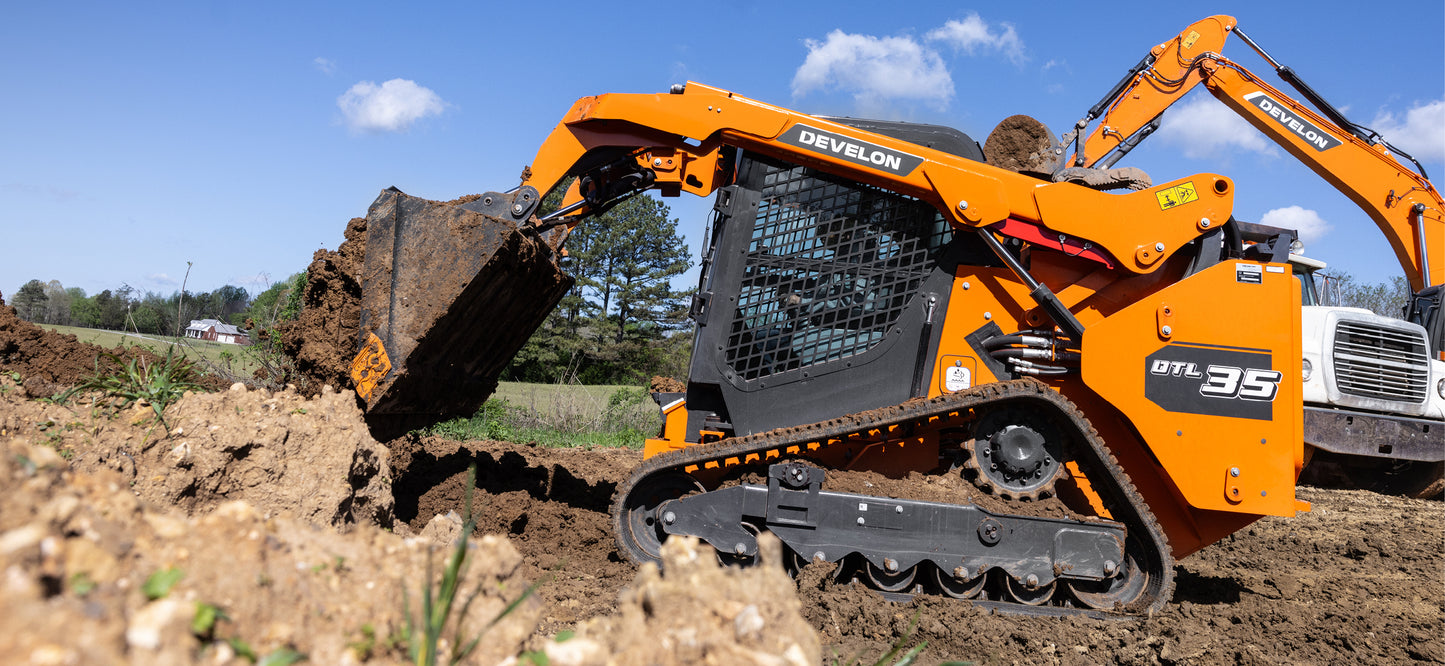

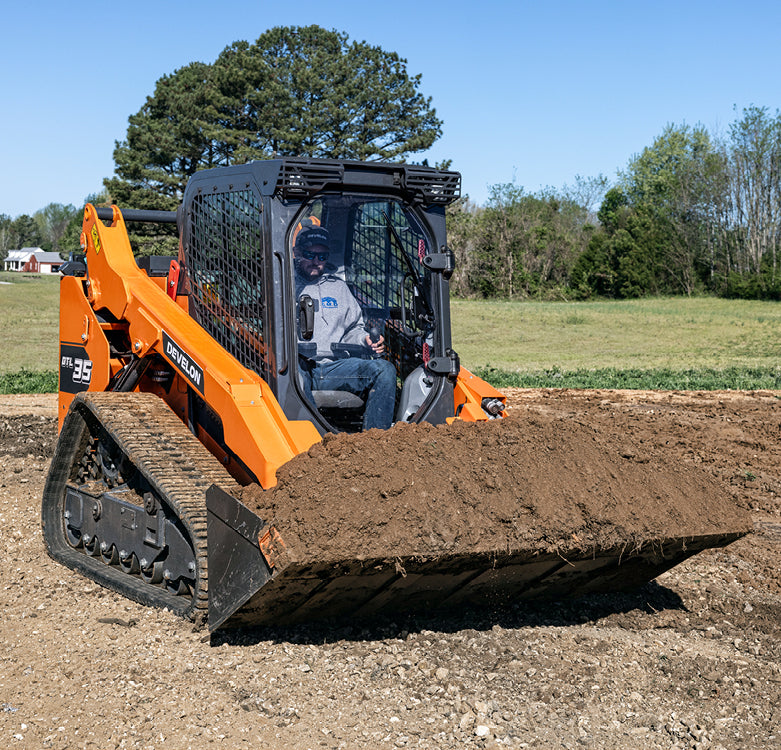

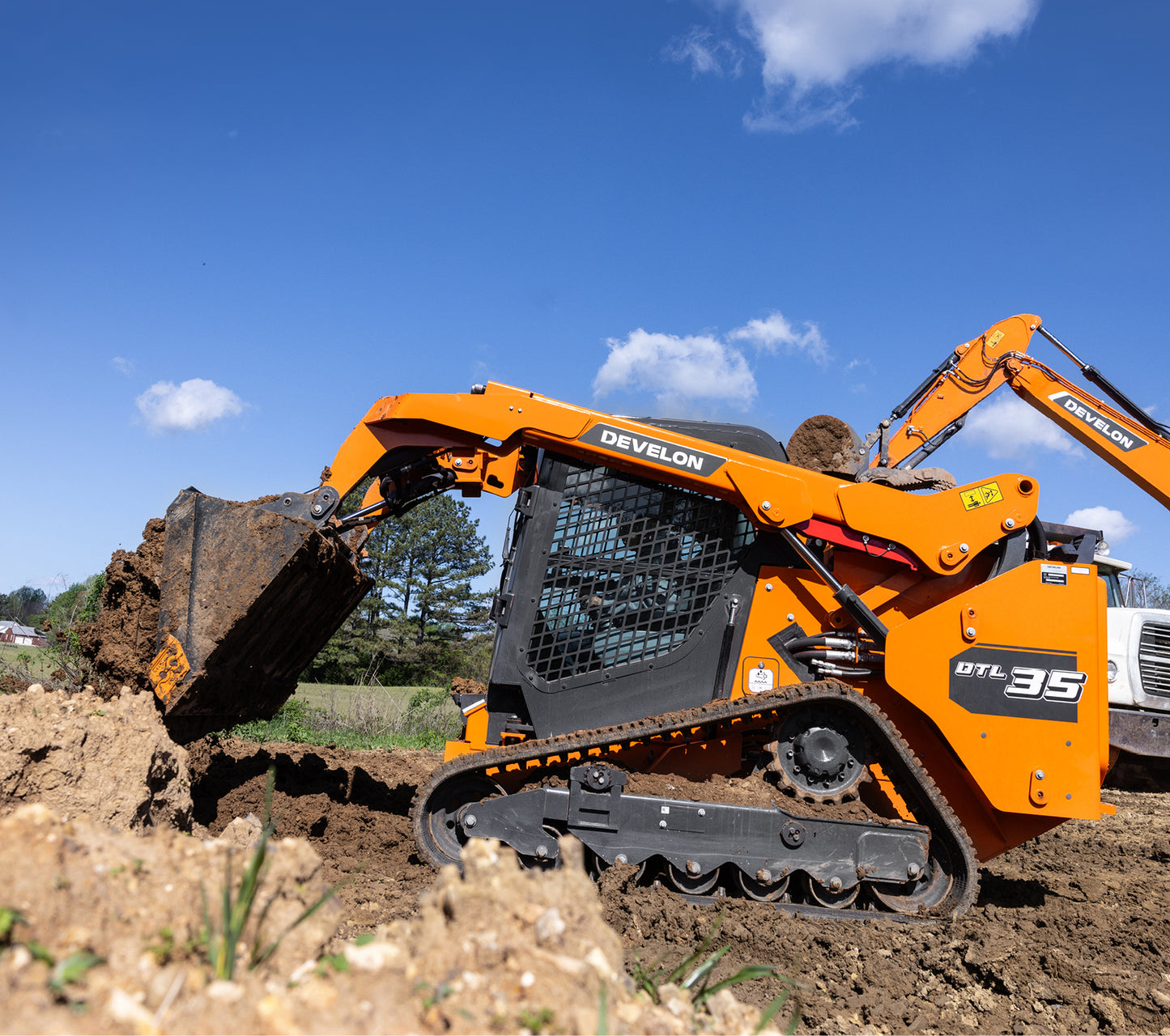

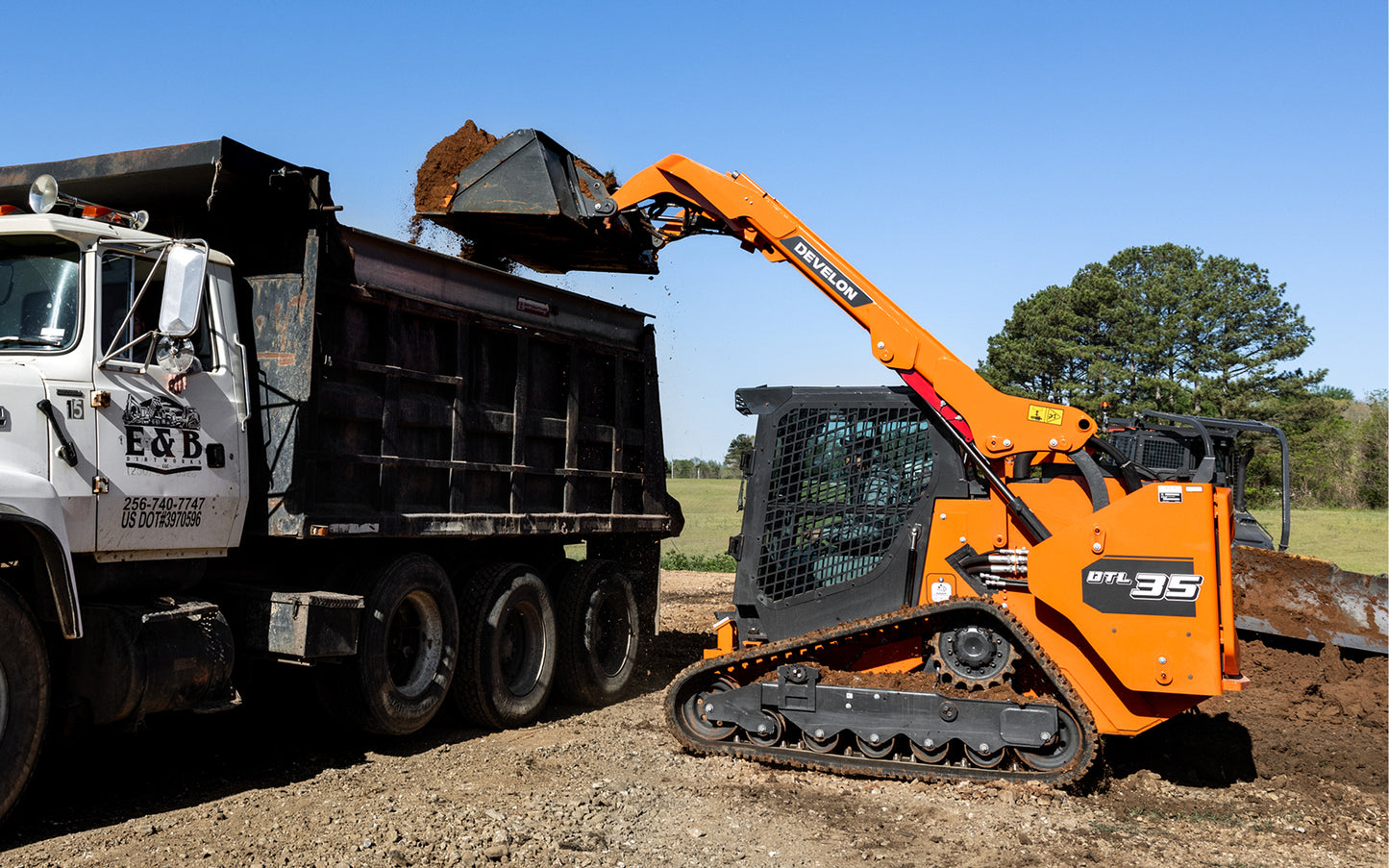

Meet the DTL35 a compact track loader that’s anything but compact when it comes to capability. Powered by a high-output 115.3 hp engine, this machine is designed to help you move more, do more, and finish jobs faster. Its vertical lift path, extended dump reach, and advanced hydraulic systems make it ideal for lifting heavy materials into high-sided trucks or handling complex tasks with pinpoint accuracy.
You’ll love the ride control system, which smooths out bumpy terrain, and the creep mode, designed for precision movement when working at high RPMs. Changing attachments is effortless thanks to the hydraulic quick-coupler-ready design, while auto-return-to-dig and lift-arm float functions save you time on every cycle.
Inside the cab, enjoy a wide and spacious operator area with an adjustable heated air-suspension seat, intuitive controls, and a rearview camera displayed on an 8-inch Smart Touch monitor. Safety and visibility are prioritized, with an optional 270° AVM camera system, making tight worksites feel much more manageable.
When it comes to uptime, the DTL35 doesn’t compromise. With a tilting cab, swing-open tailgate, and tool-free access to service points, maintenance becomes faster and simpler. And with premium features included as standard, this machine provides unmatched value and long-term reliability.
Key Features
- 115.3 hp Turbocharged Engine Delivers powerful, responsive performance in all conditions.
- Vertical Lift Design Offers higher reach and excellent load capacity for elevated dumping and stacking.
- Ride Control System Reduces shock and bounce for smoother operation on rough terrain.
- Creep Mode & Auto Return-to-Dig Enhances precision, efficiency, and digging consistency.
- Hydraulic Quick-Coupler-Ready Fast attachment changes to tackle different tasks effortlessly.
- High-Capacity Auxiliary Hydraulics Standard 22 GPM with up to 40 GPM available for demanding attachments.
- Rugged Undercarriage Torsion axle suspension and dual flange idlers ensure stability and longevity.
- Premium Cab Comfort Heated air-suspension seat, intuitive controls, and rearview camera for a stress-free experience.
- Durable Build One-piece cab, polycarbonate door, and smart cooling systems protect productivity in harsh environments.
- Smart Safety Optional 270° AVM camera system, master ON/OFF switch, and enhanced visibility throughout.
- Easy Maintenance Tilting cab, accessible engine bay, and tool-free daily checks keep you working, not waiting.
Detailed Specifications
| Category | Specification |
|---|---|
| Engine | DEVELON D34, EPA Tier 4 Final |
| Rated Power (Gross/Net) | 115.3 hp @ 2400 rpm / 102.6 hp @ 2400 rpm |
| Max Torque | 339.2 lb-ft @ 1400 rpm |
| Displacement | 208 in³ (3.4 L) |
| Aspiration | Turbocharged |
| Emissions System | DOC, SCR (no DPF) |
| Hydraulic System | 22.2 GPM (Standard) / 39.9 GPM (High Flow) |
| Hydraulic Pressure | 3336 psi (Standard) / 4061 psi (High Flow) |
| Performance | |
| Operating Weight | 12,785 lb |
| Rated Operating Capacity (35%) | 3,807 lb |
| Rated Operating Capacity (50%) | 5,439 lb |
| Tipping Load | 10,875 lb |
| Bucket Breakout Force | 6,649 lb |
| Lift Arm Breakout Force | 6,762 lb |
| Travel Speed (Low/High) | 6.1 9.2 mph |
| Max Traction Force | 10,251 lb |
| Dimensions | |
| Height to Cab | 7 ft |
| Length (No Bucket) | 11 ft 1 in |
| Vehicle Width | 6 ft 5 in (400mm tracks), 6 ft 7 in (450mm tracks) |
| Dump Height / Reach | 96.7 in / 46.3 in |
| Lift Height to Hinge Pin | 10 ft 9 in |
| Ground Pressure | 5.7 psi (15" track), 5.1 psi (17" track) |
| Cab & Environment | |
| Cabin Sound Level | 75 dB(A) |
| External Sound Level | 101 dB(A) |
| Seat | Heated, air-suspension, adjustable armrests |
| Display | 8" Smart Touch |
| Visibility Features | Rearview camera, optional 270° AVM camera system |
| Refill Capacities | |
| Fuel Tank | 29 gal |
| DEF Tank | 4 gal |
| Hydraulic Tank / System | 10.6 gal / 19.2 gal |
| Engine Oil | 3.9 gal |
| Radiator Coolant | 3.7 gal |
| Hydraulic Cylinders | |
| Lift Arm (2x) | 2.8" x 2.0" x 37.9" |
| Bucket (2x) | 3.0" x 1.6" x 12.8" |
| Quick-Coupler (1x) | 1.8" x 1.2" x 7.5" |
| Cylinder Build | High-strength steel with shock-absorbing mechanism |
| Undercarriage | |
| Track Widths | 15.7 in or 17.7 in |
| Idlers | Dual Flange Front / Single Flange Rear |
| Rollers | 5 per side (Triple Flange) |
| Suspension | Torsion Axle |
