Product Description
Develon | Log Loader | Model DX380LL-5 | Reach 43' 4" | Loading Height 38' 5" | 312.5 hp | 56.8 Tons | For Forestry, Road Building & Heavy Log Handling
DESCRIPTION

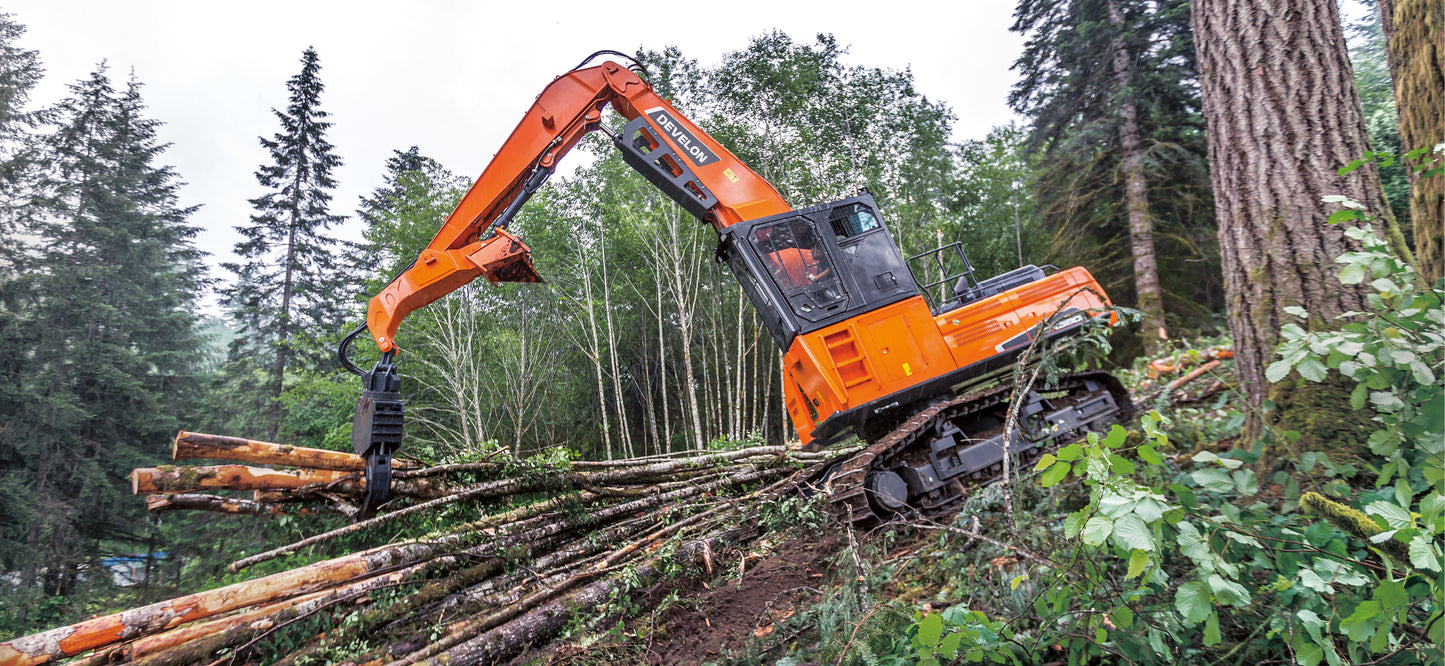

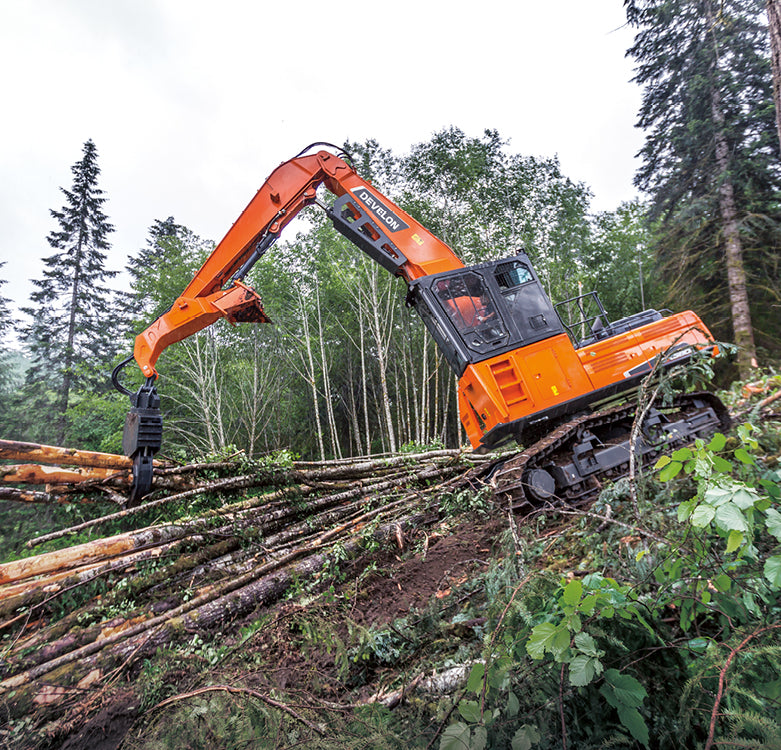

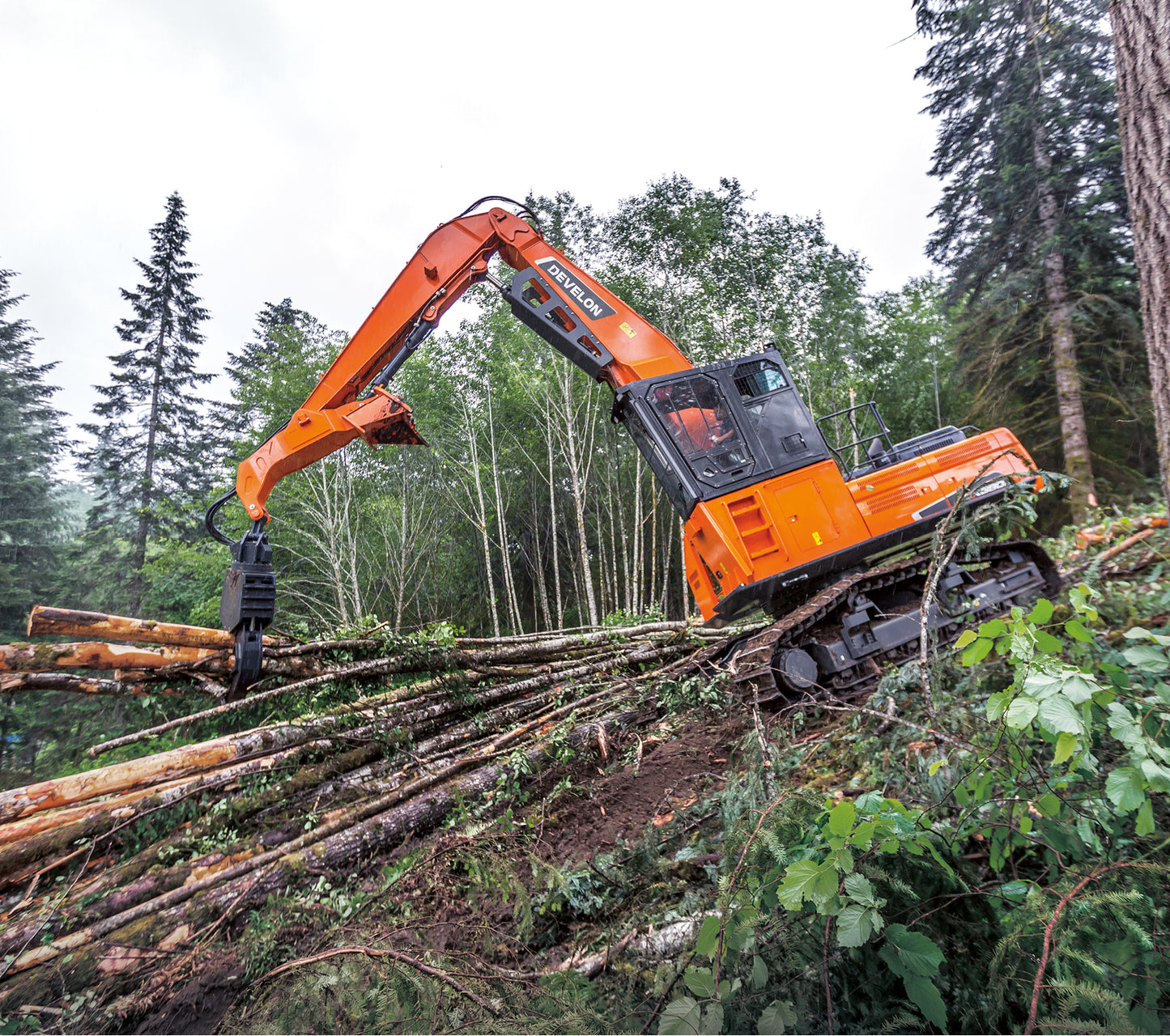

The Develon DX380LL-5 Log Loader is a powerhouse designed to dominate rugged forestry and road-building environments. With an elevated, high-wide undercarriage for maximum ground clearance and stability, this machine doesn’t just survive the forest it thrives in it.

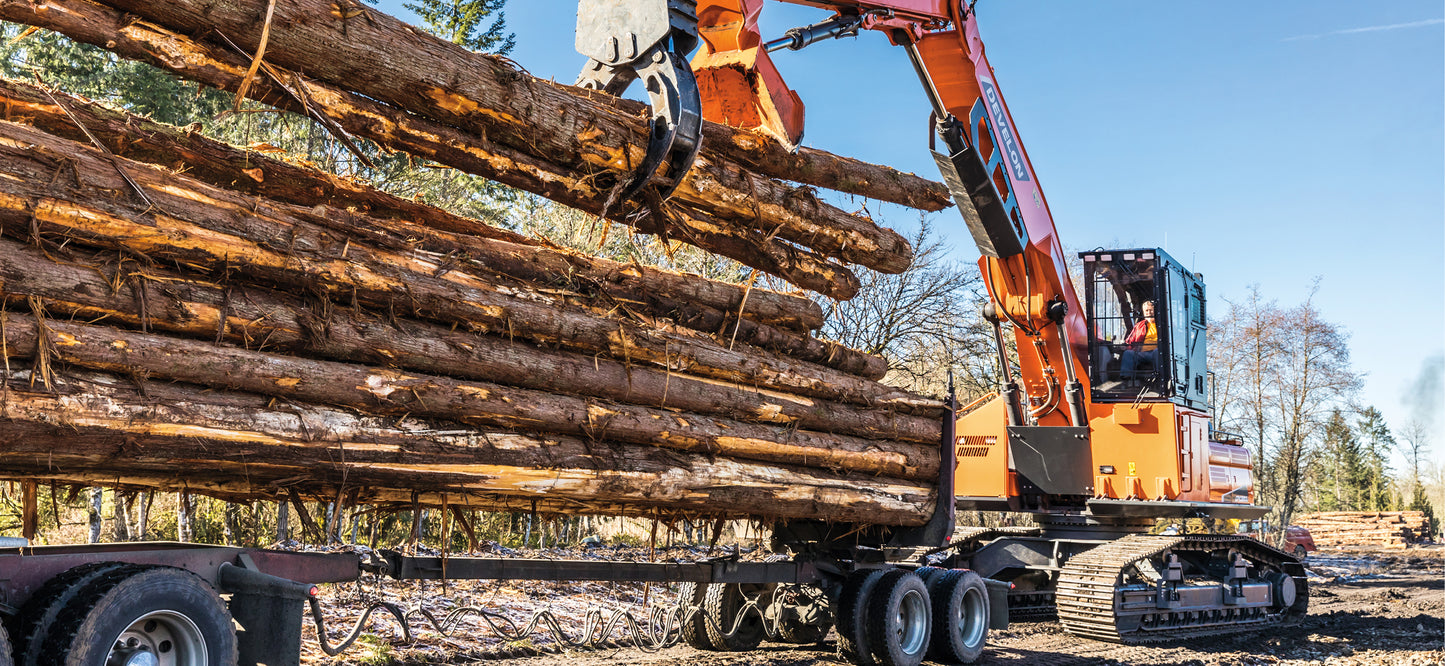

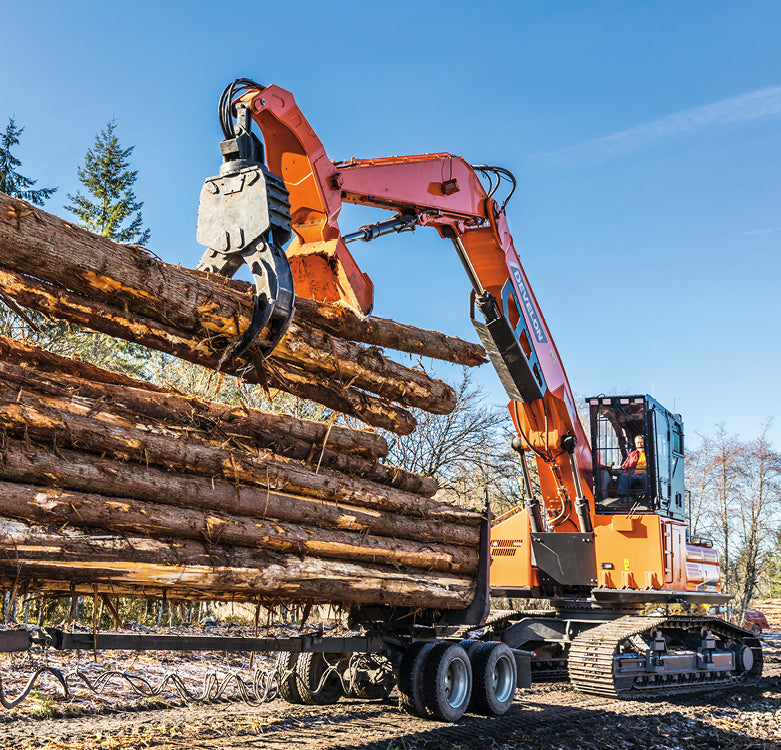

From clearing stumps and climbing over rough terrain to precisely picking and placing heavy logs, the DX380LL-5 is a trusted companion for logging professionals who need strength, precision, and endurance. Built with a robust upper structure, heavy-duty guarding, and industry-leading hydraulic performance, this log loader ensures maximum uptime and performance in extreme conditions.
Operators benefit from a comfort-first, intelligent cab design that meets stringent safety standards, reduces fatigue, and boosts productivity. And with advanced fuel-saving technologies and multiple working modes, you get the performance you need while optimizing fuel consumption.
Whether building roads, loading timber, or working long days in remote conditions, the DX380LL-5 delivers power, reach, and control in one of the most operator-friendly platforms available.
Key Features
- Powerful Scania Engine: 312.5 hp net at 1800 rpm with maximum torque of 976 lbf·ft ensures relentless performance and efficiency.
- High-Wide Undercarriage: Clears stumps and uneven terrain with ease while maintaining superior stability.
- Superior Reach & Height: 43' 4" maximum reach and 38' 5" loading height streamline log handling operations.
- Reinforced Durability: Heavy-duty guards protect all critical components; full-length rock guards, top rollers with clean-out brackets prevent downtime.
- Comfort-Focused Cab: Optional side-entry forestry cab with polycarbonate windows, auto climate control, air suspension seat, and intuitive controls.
- Fuel-Saving Tech: EPOS system and multiple working modes (Standard, Power, Economy) help reduce operating costs.
- Safety-Driven Design: Meets Oregon OSHA and BC WCB forestry cab standards; includes LED lighting, pattern change valve, and secondary exit.

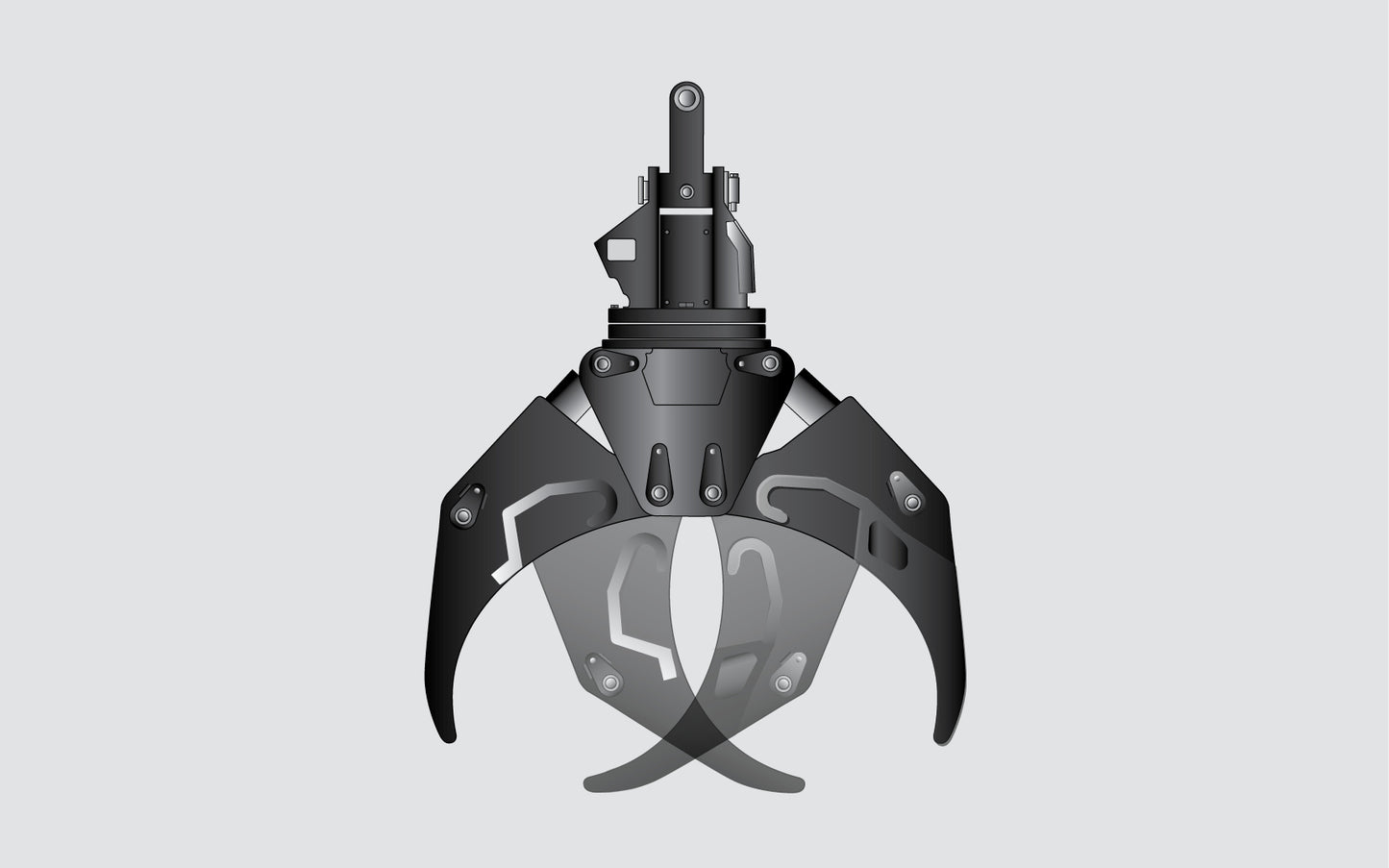

- Adaptable Attachments: Compatible with grapples, buckets, and thumbs for versatile field performance.
Detailed Specifications
| Category | Specification |
|---|---|
| Engine | |
| Make & Model | Scania DC09 089A |
| Rated Power (Net) | 312.5 hp @ 1800 rpm |
| Max Torque | 976 lbf·ft @ 1300 rpm |
| Displacement | 568 in³ (9.3 L) |
| Battery | 2 x 12 V, 200 AH |
| Alternator | 24 V, 100 amp |
| Starter | 24 V, 8.0 hp |
| Air Cleaner | 3-stage filtration |
| Hydraulic System | |
| Main Pumps | 2 x 95.1 gpm |
| Pilot Pump | 6.3 gpm |
| Max Pressure (Boom/Arm/Bucket - Normal) | 4980 psi |
| Max Pressure (Boom/Arm/Bucket - Boost) | 5263 psi |
| Max Pressure (Swing) | 4552 psi |
| Performance | |
| Max Reach (Ground) | 43' 4" |
| Max Loading Height | 38' 5" |
| Swing Speed | 0 – 7.7 rpm |
| Swing Torque | 129,876 lbf·ft |
| Traction Force | 115,081 lbf |
| Max Gradeability | 70% (35°) |
| Travel Speed (Low – High) | 1.8 – 3.23 mph |
| Cab & Environment | |
| Sound Level (Exterior) | 104 dB(A) |
| Cabin Sound Level | 69 dB(A) |
| Forestry Cab | Optional side-entry, OSHA/WCB certified |
| Undercarriage | |
| Track Length | 18' 0" |
| Shoes per Side | 53 |
| Lower Rollers per Side | 9 |
| Upper Rollers per Side | 2 |
| Hydraulic Cylinders | |
| Boom | 6.7 in. x 4.5 in. x 56.3 in. |
| Arm | 7.5 in. x 5.1 in. x 64.4 in. |
| Heel | 5.9 in. x 4.1 in. x 45.3 in. |
| Capacities | |
| Fuel Tank | 158.5 gal |
| DEF Tank | 18.5 gal |
| Cooling System | 12.34 gal |
| Hydraulic Tank | 65 gal |
| Hydraulic System Total | 100 gal |
| Engine Oil | 9.51 gal |
| Swing Reduction Unit | 2 x 1.1 gal |
| Final Drive (each side) | 2.4 gal |
| Weights | |
| Operating Weight | 113,538 lb |
Manuals & Documents
Product Brochure
Road Builder Specification
Log Loader Specification
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information neededabout products and parts you can’t find!
