Product Description
Develon | Material Handler | Model DX250WMH-5 | Reach 35' 1" | Loading Height 39' 8" | 186 hp | 27.4 Tons | For Scrap, Waste & Logging
DESCRIPTION

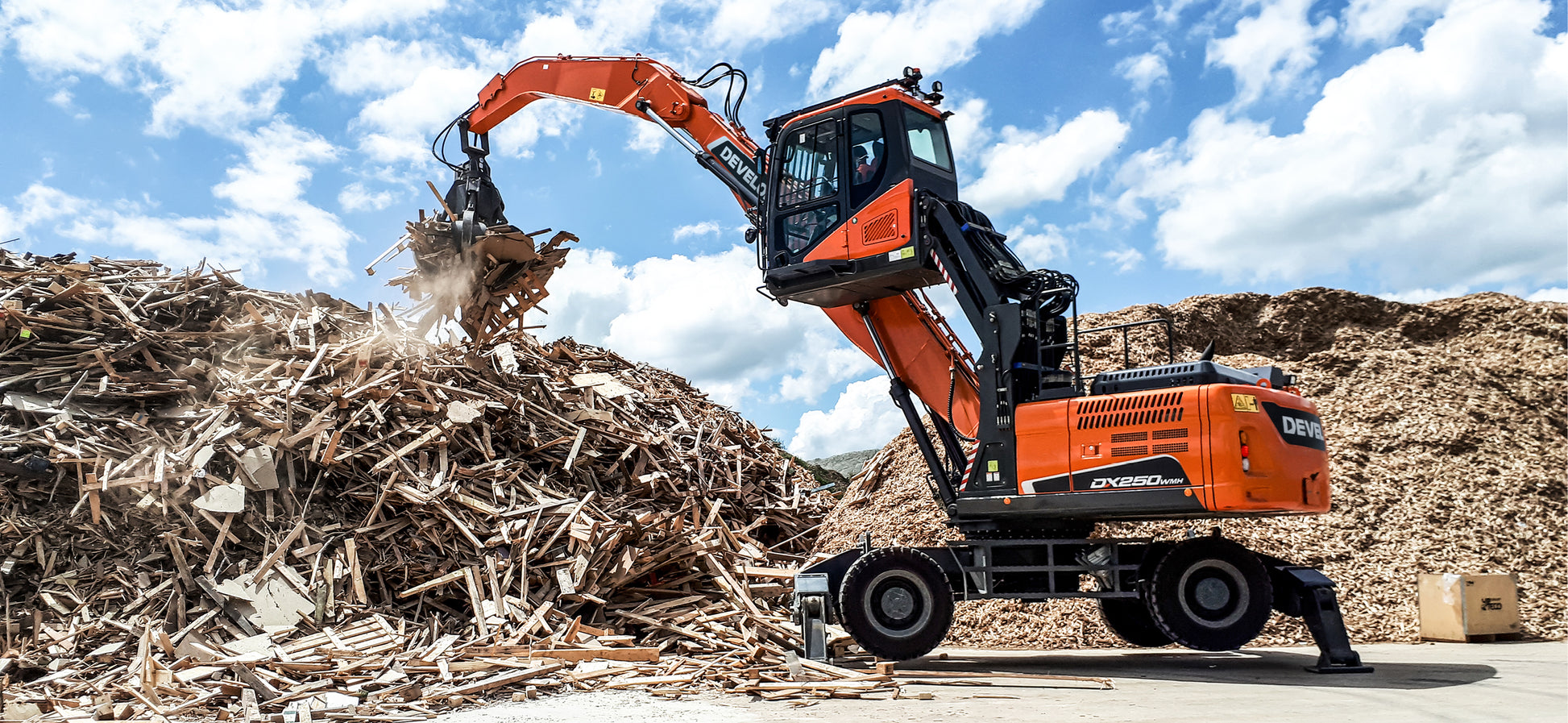

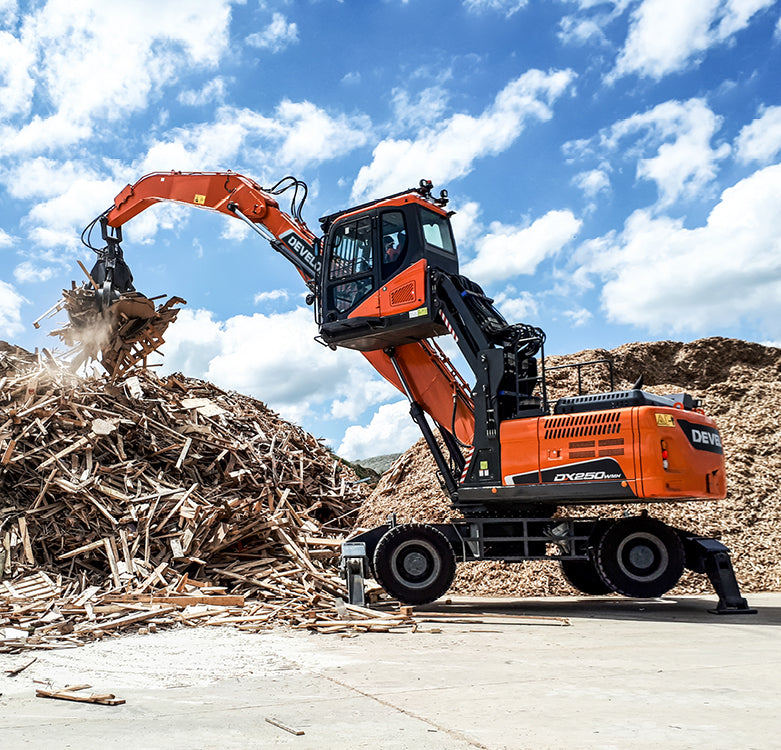

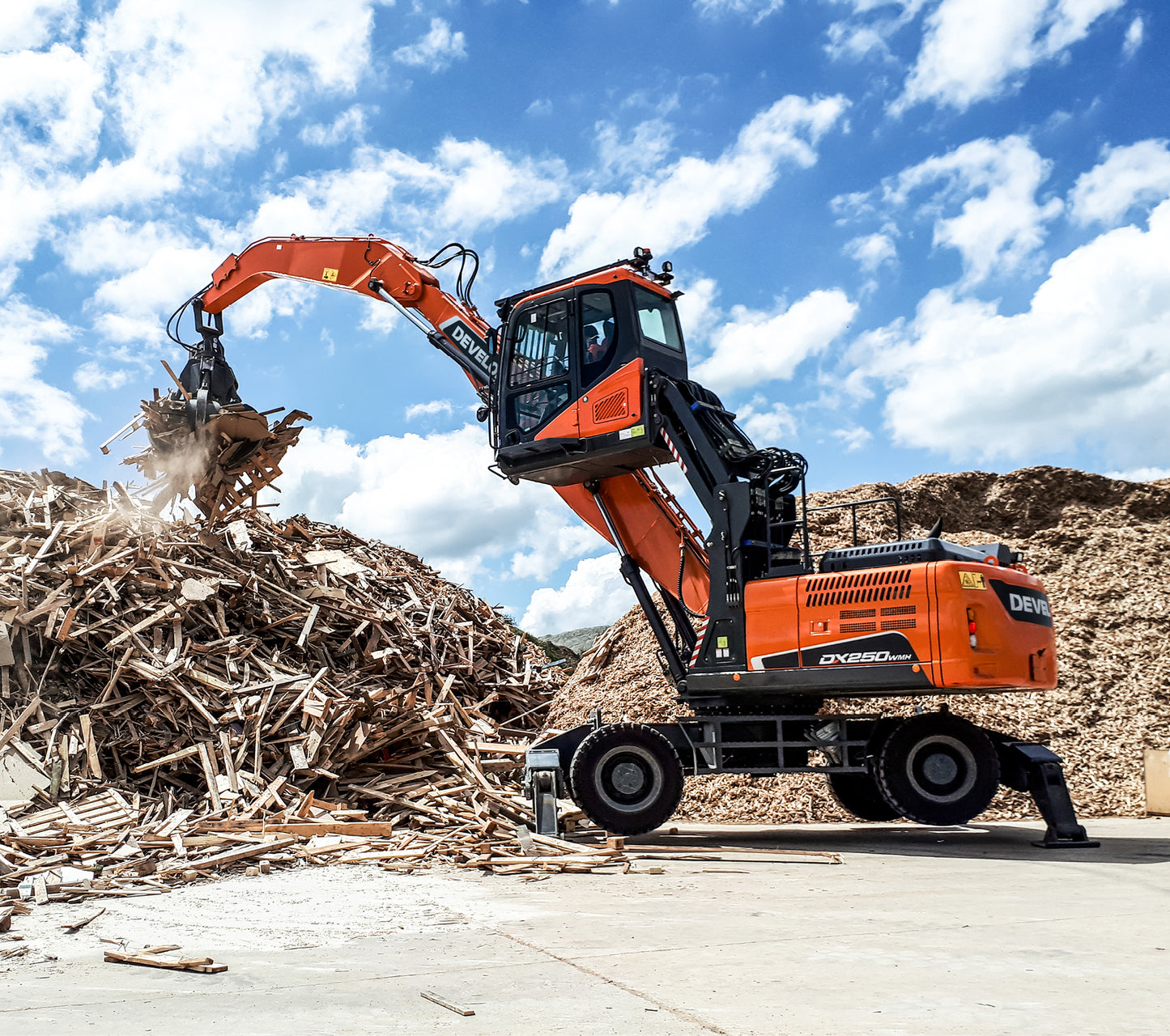

Engineered to thrive in the most demanding work environments, the DEVELON DX250WMH-5 Material Handler is a purpose-built machine that combines raw power, precision, and efficiency. Whether you're handling scrap metal, processing solid waste, or managing forestry tasks, the DX250WMH-5 delivers superior performance and unmatched durability.

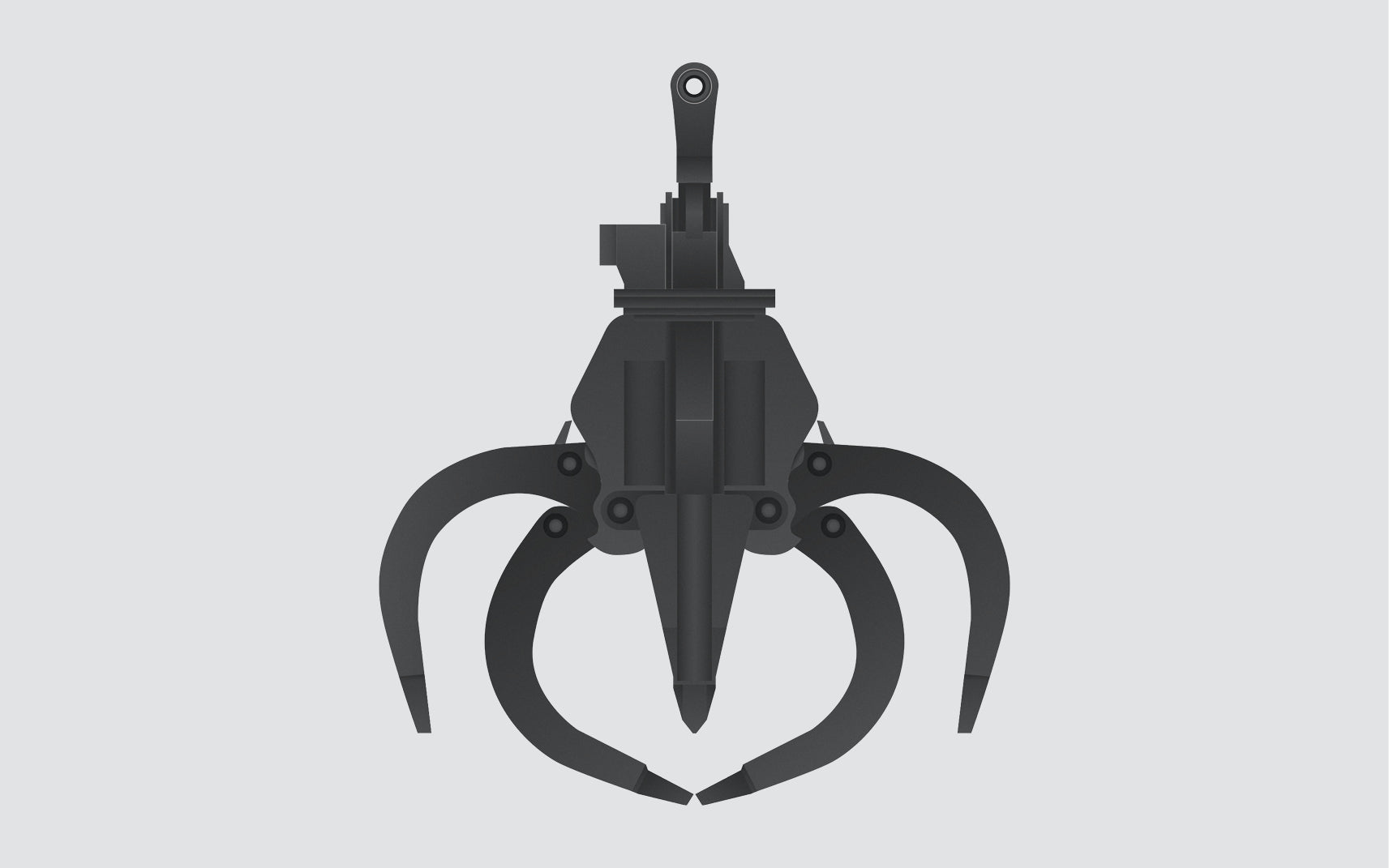

This wheel-based material handler is packed with features tailored for high-volume handling and long working hours. A factory-installed cab riser offers elevated visibility over the job site, while two-way auxiliary and rotate circuit hydraulics let you work with a range of attachments like grapples and magnets without the need for aftermarket customization.
Designed with Smart Power Control (SPC) and Tier 4-compliant technology, the DX250WMH-5 ensures a smart balance between fuel efficiency and powerful hydraulic output. Its specially designed boom, arm, and stabilizers provide rock-solid balance and control, letting you lift and sort with confidence.
Key Features
- Powerful Engine: 186 hp @ 2000 rpm for superior performance in material handling applications.
- Impressive Reach: 35' 1" reach for efficient loading and unloading tasks.
- Smart Power Control: Enhances efficiency with variable speed and pump torque control.
- Comfortable Cab: Ergonomically designed cab with excellent visibility and standard hydraulic cab riser.
- Tier 4 Compliance: Advanced emissions technology for environmentally friendly operation.
- Reduced Maintenance: Built for durability with additional guarding and optional V-guard for enhanced protection.
Detailed Specifications
| Category | Specification |
|---|---|
| Engine | DEVELON DL06P |
| Rated Horsepower (Net) | 186 hp @ 2000 rpm |
| Rated Horsepower (Gross) | 190 hp @ 2000 rpm |
| Number of Cylinders | 6 |
| Displacement | 5.9 L (359 in³) |
| Max Torque | 557 lbf·ft @ 1400 rpm |
| Starter / Alternator | 24V, 8.0 hp / 24V, 80A |
| Battery | 2 x 12V, 150AH |
| Hydraulics | 2 x 62.3 gal/min (236 L/min) |
| Hydraulic System Pressure (Boom/Arm/Bucket – Normal) | 4,694 psi |
| Hydraulic System Pressure (Power Boost) | 4,978 psi |
| Hydraulic Tank Capacity | 37 gal (140 L) |
| Total Hydraulic System Capacity | 63.4 gal (240 L) |
| Swing Mechanism | |
| Swing Speed | 0–10.9 rpm |
| Max Swing Torque | 46,197 lbf·ft |
| Travel System | |
| Travel Speed (Low–High) | 1.8 – 3.4 mph (3.0 – 5.5 km/h) |
| Traction Force | 83,1167 lbf |
| Max Gradeability | 70% (35°) |
| Operating Weight | 54,895 lb (24,900 kg) |
| Working Range | |
| Max Digging Reach (Ground) | 35' 1" |
| Max Loading Height | 39' 8" |
| Cabin | Hydraulic cab riser, rearview camera |
| Refill Capacities | |
| Fuel Tank | 105.7 gal (400 L) |
| DEF Tank | 9 gal (35 L) |
| Cooling System | 5.9 gal (22.3 L) |
| Engine Oil | 7.1 gal (27 L) |
| Swing Reduction Unit | 1.3 gal (5 L) |
| Final Drive (each side) | 0.9 gal (3.3 L) |
| Sound Levels | |
| Exterior | 102 dB(A) |
| In-Cab | 70 dB(A) |
Manuals & Documents
Product Brochure
Product Specification
