Develon | Wheel Loader | DL280-7 | Width 8' 11.9" | Horsepower 189.1 HP | For Heavy-Duty Construction, Recycling, & Material Handling

Develon | Wheel Loader | DL280-7 | Width 8' 11.9" | Horsepower 189.1 HP | For Heavy-Duty Construction, Recycling, & Material Handling

$1.00
$1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Powerful Performance 189.1-hp DEVELON engine ensures high breakout force and fuel-efficient operation.
  • Heavy-Duty Z-Bar Lift Arm Optimized lifting force for superior digging and material handling applications.
  • High-Lift Option for Extended Reach Enables efficient loading of high-sided trucks, hoppers, and recycling bins.
  • Ride Control System for Stability Reduces material loss while traveling across rugged terrains.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1: Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Develon | Wheel Loader | DL280-7 | Width 8' 11.9" | Horsepower 189.1 HP | For Heavy-Duty Construction, Recycling, & Material Handling

DESCRIPTION

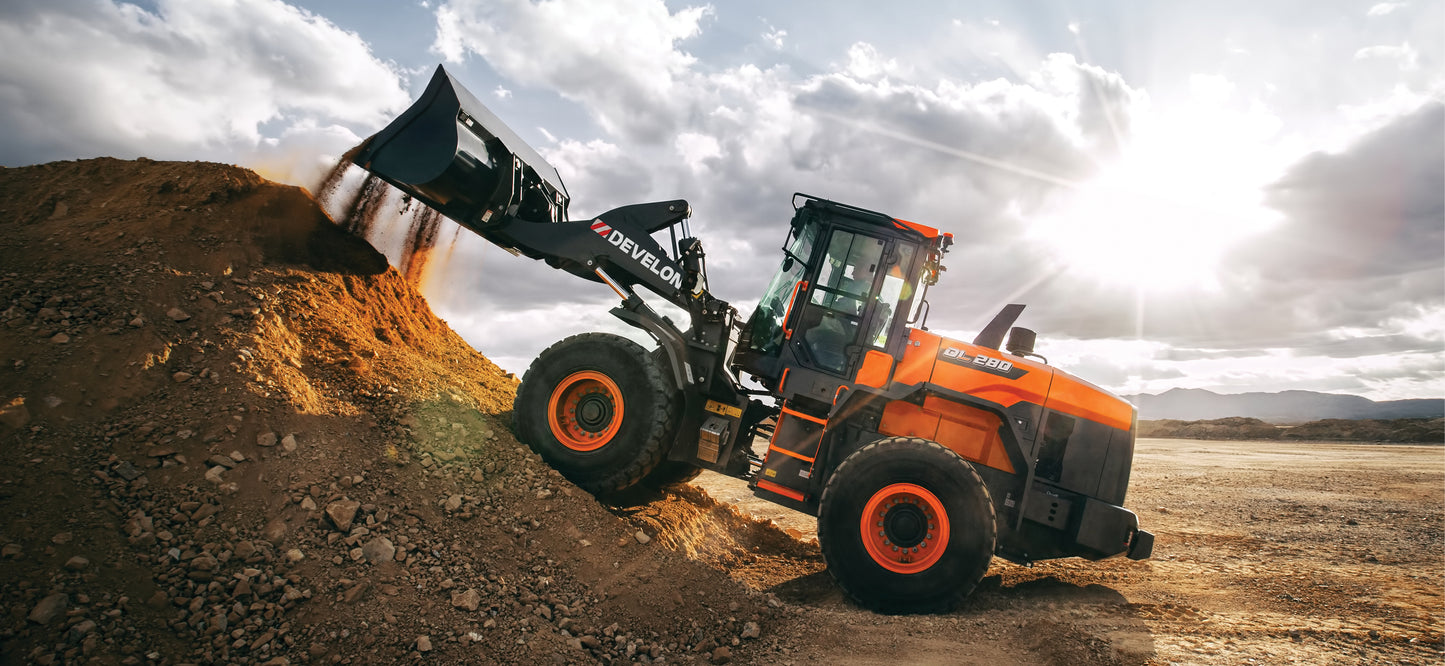

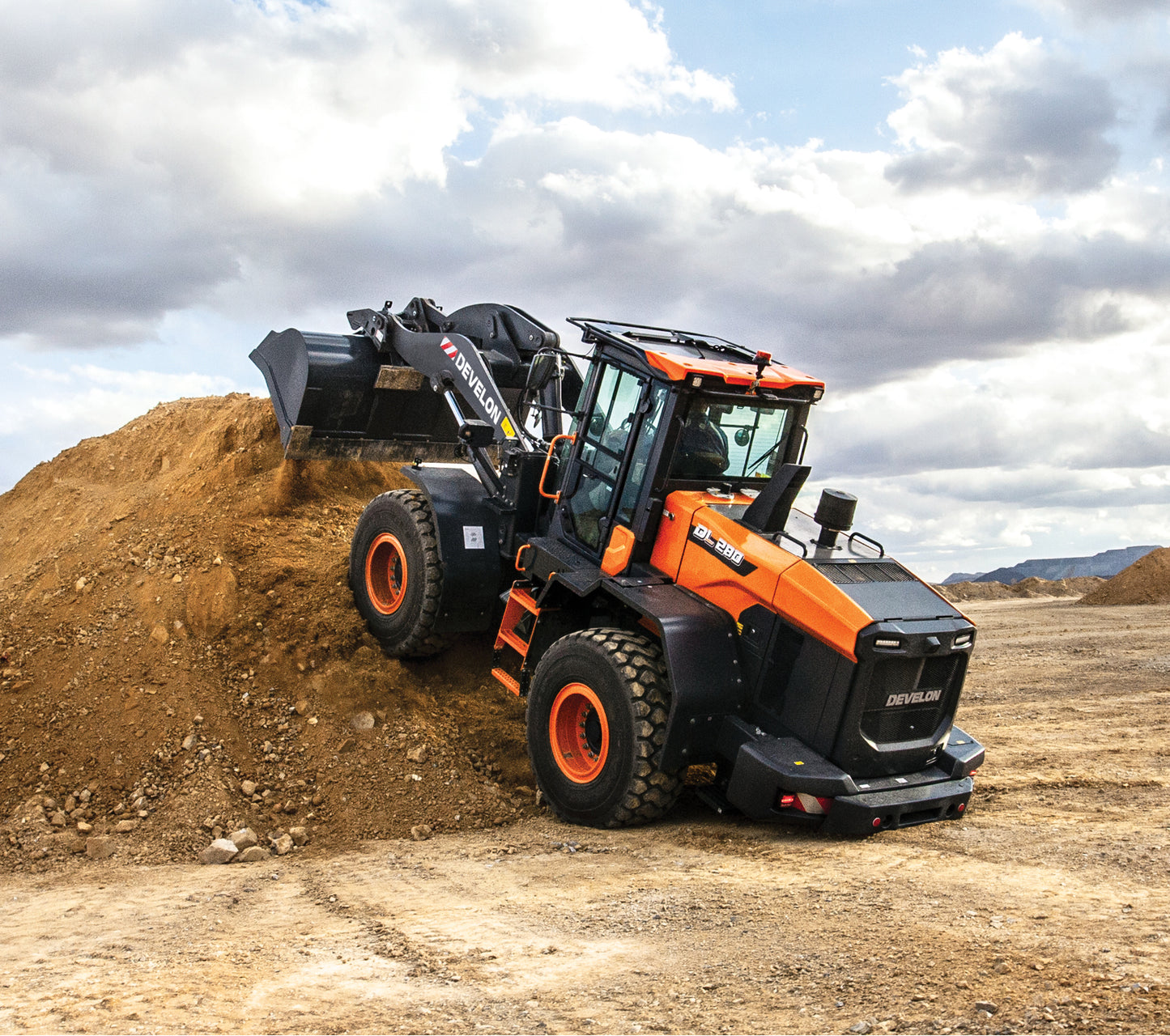

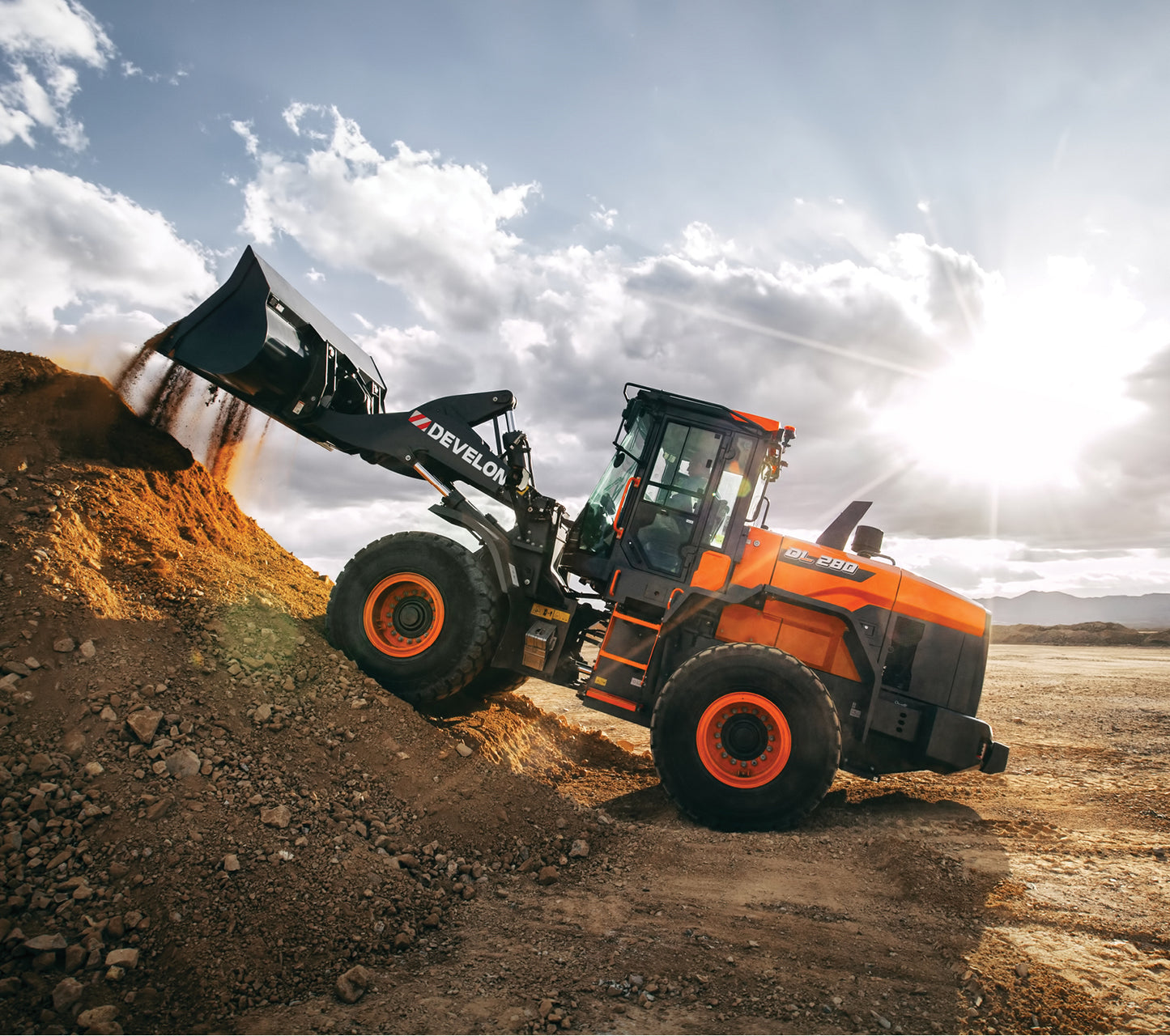

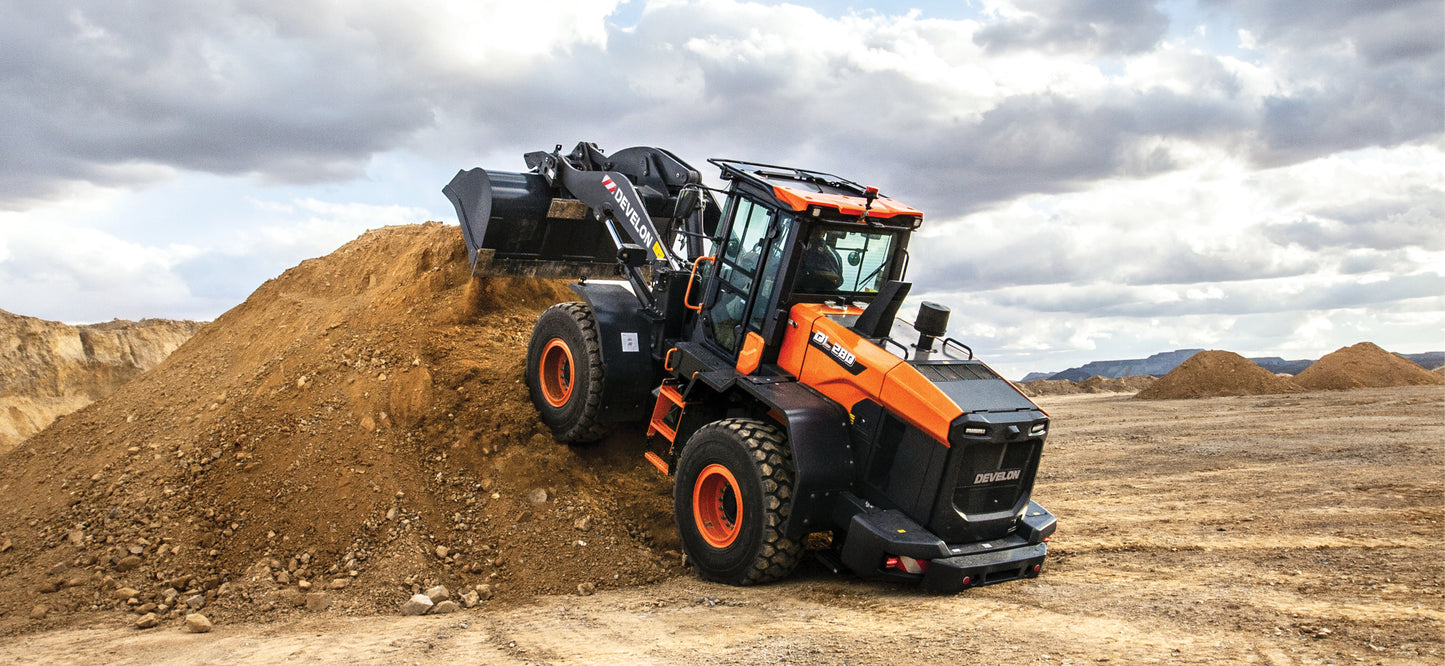

The DEVELON DL280-7 Wheel Loader is designed for powerful, precise, and efficient operation in construction, recycling, and material handling applications. Featuring a 3.7-cubic-yard bucket capacity, a reinforced Z-bar lift arm linkage, and rugged build quality, this loader delivers exceptional breakout force, lifting strength, and reliability for demanding work environments.

Equipped with a next-generation ZF powershift transmission, the DL280-7 ensures smooth gear transitions, fuel efficiency, and optimal traction, allowing operators to move materials seamlessly across various terrains. Standard ride control technology minimizes material loss, ensuring stability and performance even in rough conditions.

With MY DEVELON fleet management, advanced visibility features, and an intuitive Smart Touch display, this wheel loader combines power, comfort, and high efficiency in every operation.

Key Features

  • Powerful Performance 189.1-hp DEVELON engine ensures high breakout force and fuel-efficient operation.
  • Heavy-Duty Z-Bar Lift Arm Optimized lifting force for superior digging and material handling applications.
  • High-Lift Option for Extended Reach Enables efficient loading of high-sided trucks, hoppers, and recycling bins.
  • Ride Control System for Stability Reduces material loss while traveling across rugged terrains.
  • Precision Transmission & Drivetrain ZF powershift transmission and heavy-duty axles improve power delivery and stability.
  • Enhanced Operator Visibility & Comfort Transparent Bucket system, Smart Touch display, rearview camera, and larger glass panels.
  • Fleet Monitoring & Telematics MY DEVELON ensures real-time diagnostics, maintenance tracking, and fuel optimization.
  • Tier 4 Compliance & Clean Emissions HPCR fuel delivery, CEGR cooling, DOC, SCR, and DEF integration reduce environmental impact.

Detailed Specifications

Category Specification
Engine DEVELON DL06, 6-cylinder, 189.1 hp @ 2000 rpm
Max Torque 665.4 lbf·ft @ 1400 rpm
Displacement 5.9 L (360 in³)
Fuel Tank Capacity 62.1 gal (235.0 L)
DEF Tank Capacity 7.9 gal (30.0 L)
Operating Weight 34,550 lb
Bucket Capacity 3.7 yd³
Lift Capacity 27,064 lb (Static Tipping Load – Straight)
Overall Dimensions Length: 25' 1" / Height: 11' 0" / Width: 8' 4.4"
Wheelbase 10' 0"
Turning Radius 20' 2" (at bucket edge)
Hydraulic Flow 65.0 gal/min (each main pump)
System Pressure 3843.5 psi (Work) / 2828.2 psi (Steering)
Boom Up/Down Speed 5.4 sec up / 3.2 sec down
Bucket Crowd/Dump 1.7 sec crowd / 1.5 sec dump
Transmission Type Powershift, 4-speed std. / 5-speed (optional)
Max Travel Speed Up to 24.9 mph (40 km/h)
Sound Level Cab: 71 dB(A) / External: 104 dB(A)
Maximum Gradeability 58% (30°)
Differentials Limited Slip Front / Open Rear
