Develon | Wheel Loader | Model DL200-7 | Width 8' 4.4" | Horsepower 142.1 HP | For Construction, Agriculture, & Snow Removal

Develon | Wheel Loader | Model DL200-7 | Width 8' 4.4" | Horsepower 142.1 HP | For Construction, Agriculture, & Snow Removal

$1.00
$1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Powerful Engine: 142.1 hp @ 2200 rpm for superior performance in construction and agricultural applications.
  • Impressive Bucket Capacity: 2.6 yd³ for efficient loading and unloading tasks.
  • Hydrostatic Transmission: Enhances fuel efficiency and provides smooth operation.
  • Comfortable Cab: Spacious design with intuitive controls and enhanced visibility.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1: Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Develon | Wheel Loader | Model DL200-7 | Width 8' 4.4" | Horsepower 142.1 HP | For Construction, Agriculture, & Snow Removal


DESCRIPTION

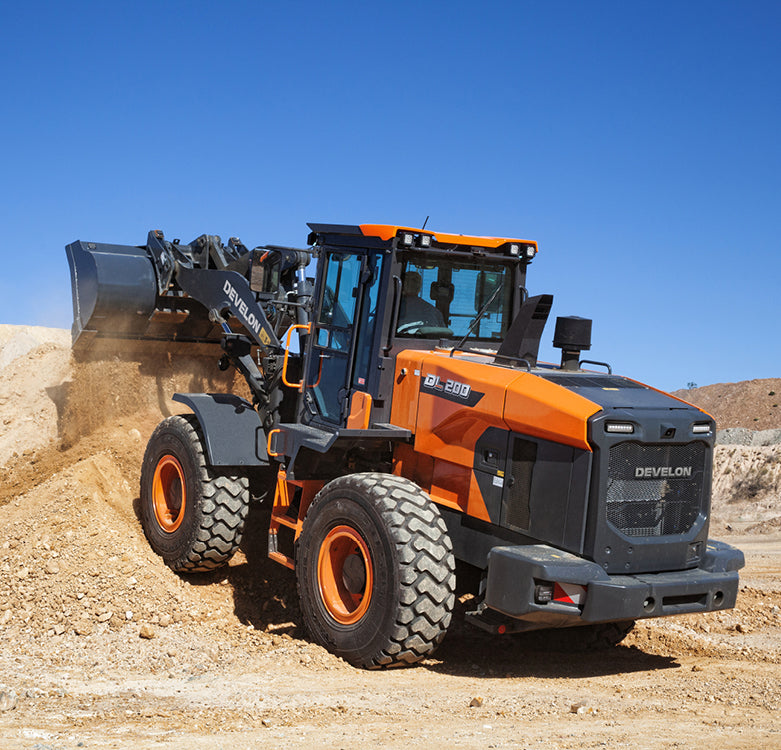

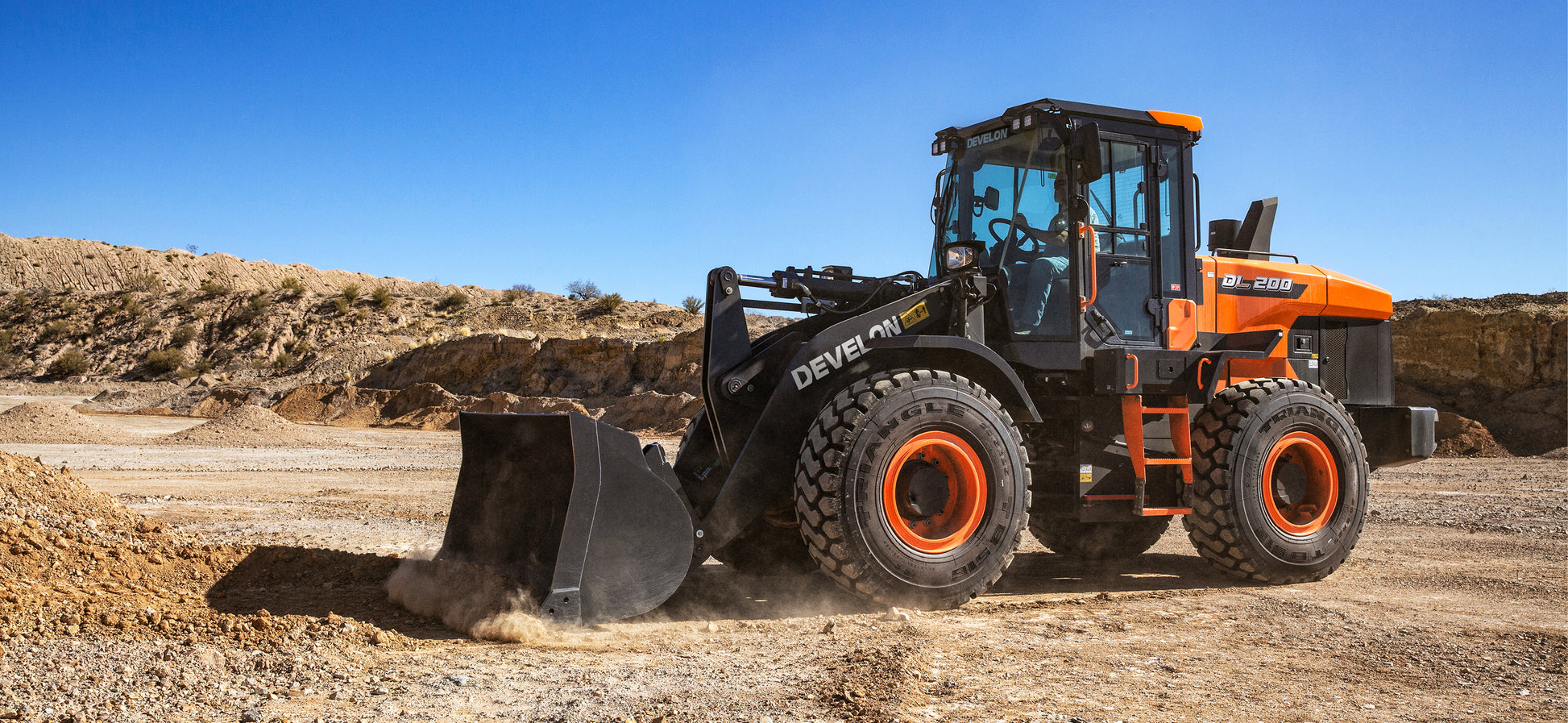

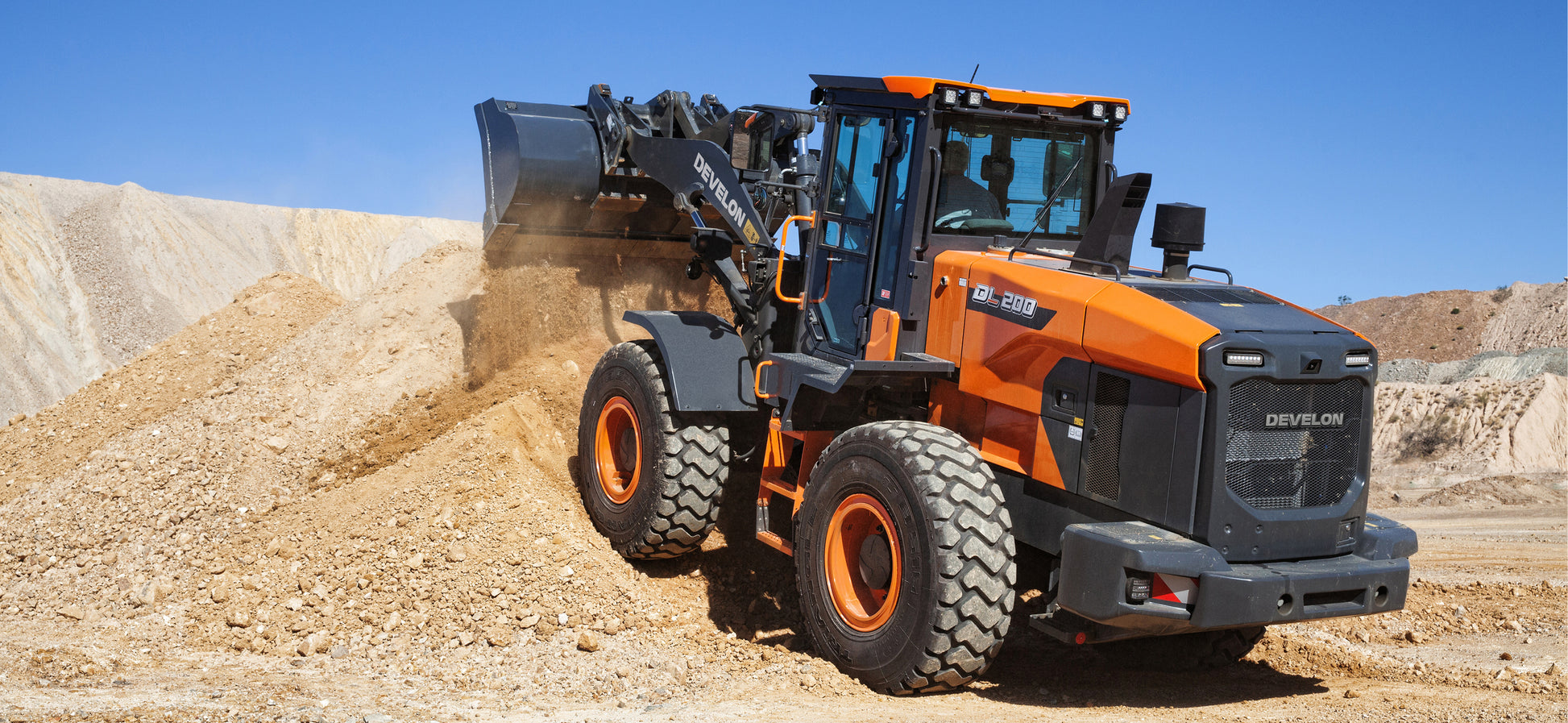

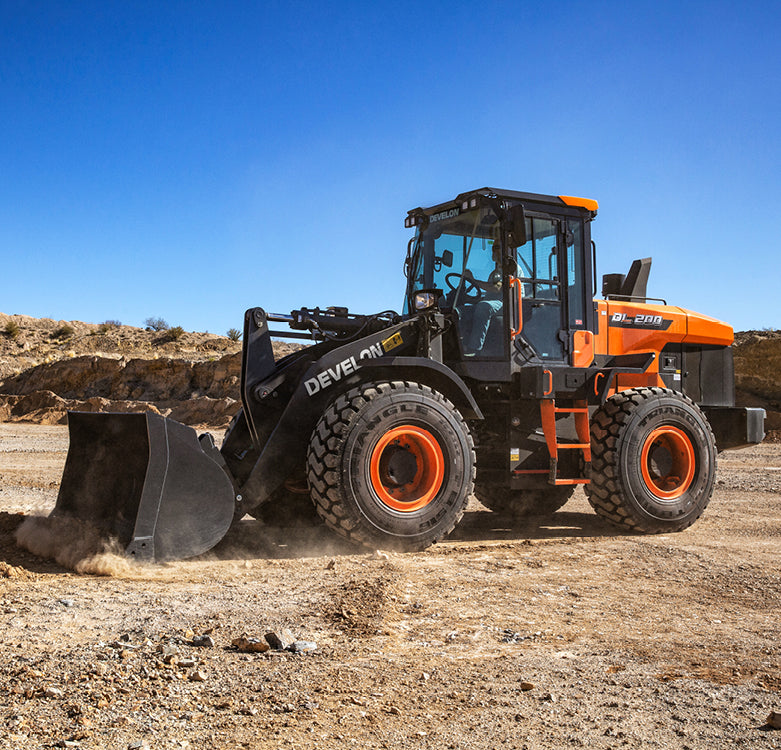

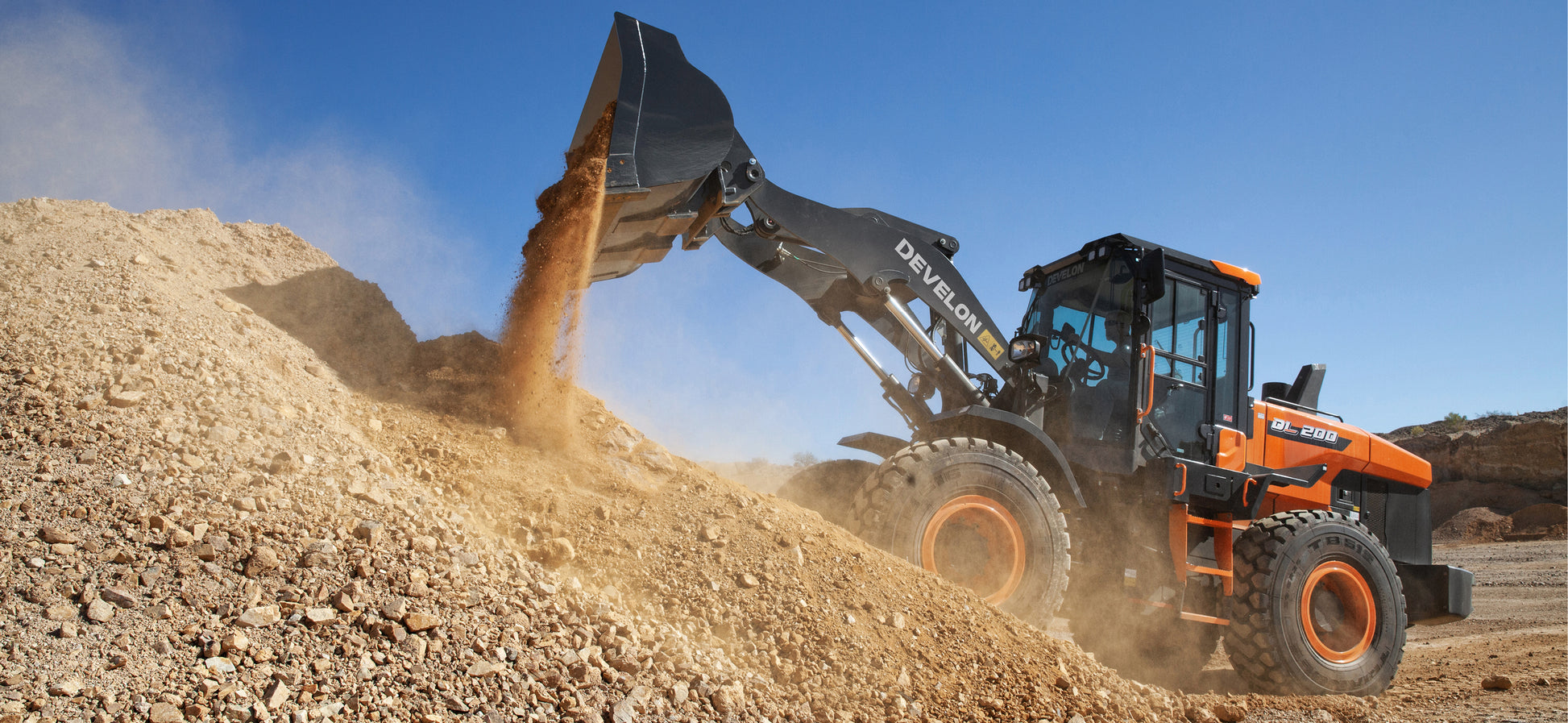

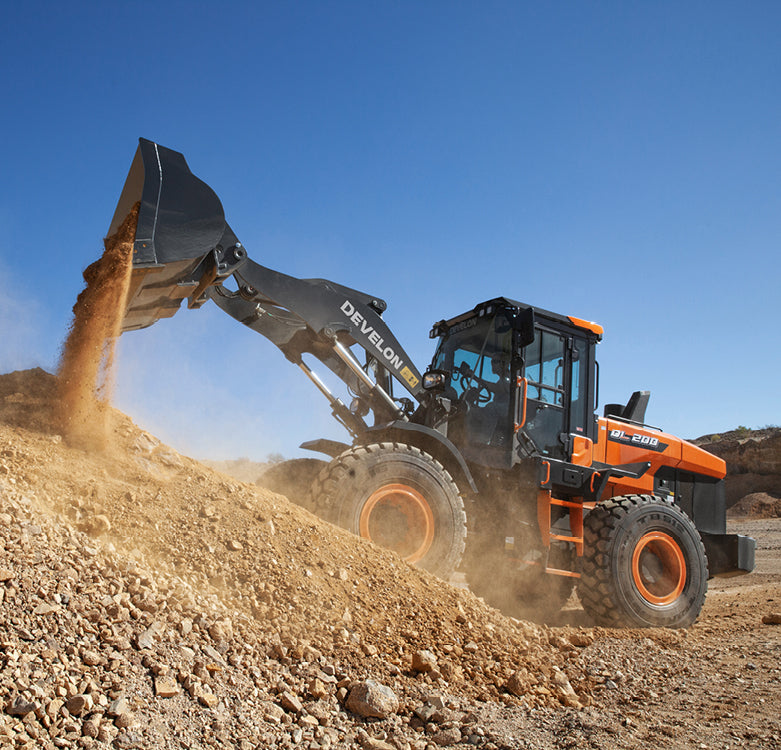

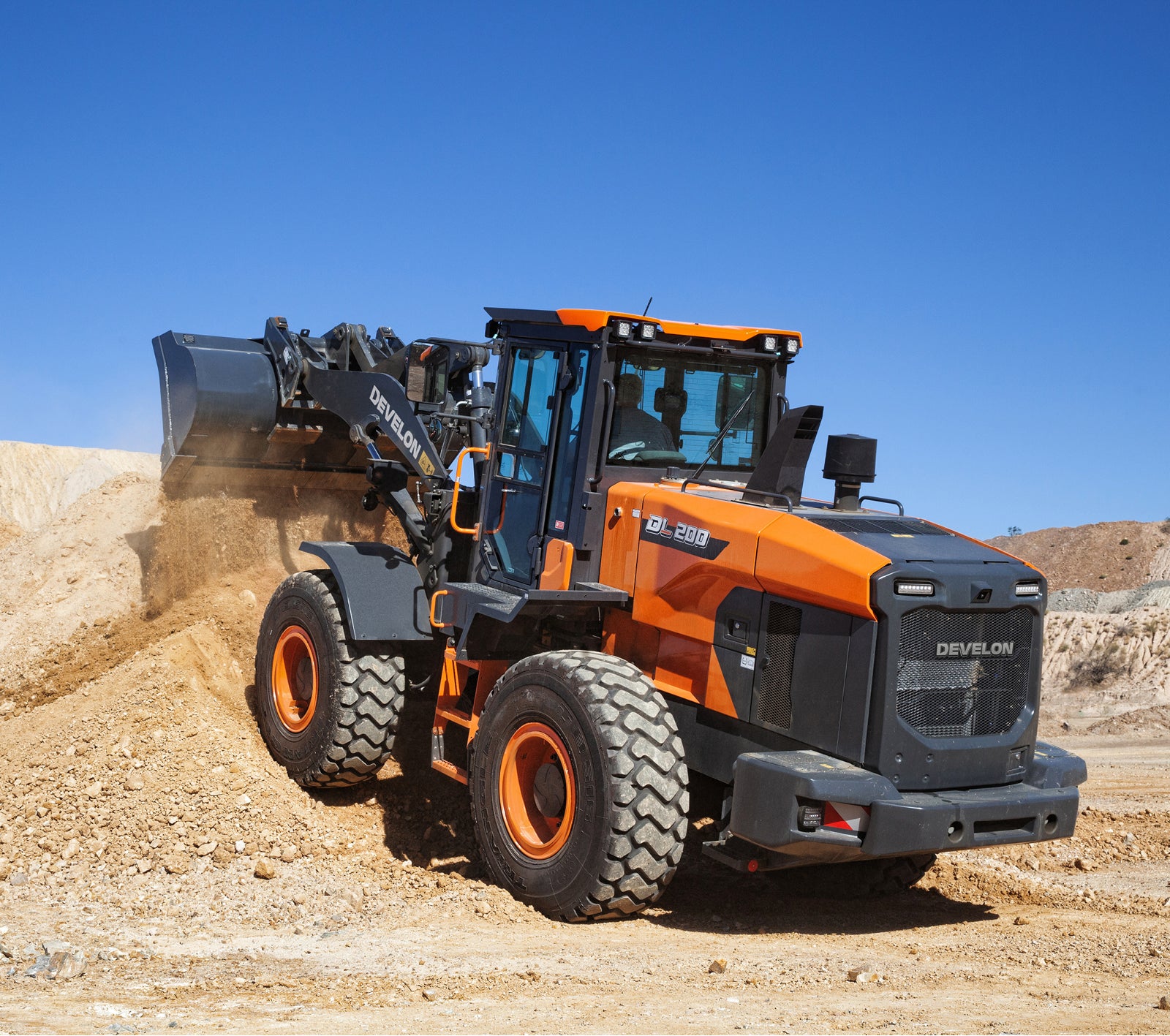

Take on tough jobs with confidence using the DEVELON DL200-7 Wheel Loader a high-performance, fuel-efficient, and versatile machine designed for superior productivity in construction, agriculture, landscaping, and snow removal. With its 2.6-cubic-yard bucket capacity, smooth hydrostatic transmission, and limited slip differential on both front and rear axles, the DL200-7 delivers unmatched control, power, and precision.

Engineered for both comfort and durability, this wheel loader offers an enhanced operator environment, intuitive Smart Touch display, and excellent all-around visibility. From high-lift loading tasks to maneuvering through tight job sites, the DL200-7 is a reliable workhorse that helps you get the job done smarter and faster.

Key Features

  • Powerful Engine: 142.1 hp @ 2200 rpm for superior performance in construction and agricultural applications.
  • Impressive Bucket Capacity: 2.6 yd³ for efficient loading and unloading tasks.
  • Hydrostatic Transmission: Enhances fuel efficiency and provides smooth operation.
  • Comfortable Cab: Spacious design with intuitive controls and enhanced visibility.
  • Tier 4 Compliance: Advanced emissions technology for environmentally friendly operation.
  • Durable Design: Built with heavy-duty components for reliability in challenging work conditions.

Detailed Specifications

Category Specification
Engine Perkins 1204F, 4-cylinder
Rated Power (Net) 142.1 hp @ 2200 rpm (106.0 kW)
Max Torque (Gross) 412.4 lb·ft @ 1400 rpm
Displacement 4.4 L (269 in³)
Bore x Stroke 4.1" x 5.0" (105 mm x 127 mm)
Starter / Alternator 24 V / 85 A
Battery 2 x 12 V, 100 AH, 900 CCA
Hydraulics Variable axial piston pump
Max Flow Rate 40.9 gal/min (155 L/min)
System Pressure (Work) 3843 psi (265 bar)
System Pressure (Steer) 2830 psi (195 bar)
Boom Up/Down Speed 5.6 sec / 2.8 sec
Bucket Crowd/Dump 1.7 sec / 1.4 sec
Travel Speed (Fwd) 1.2–23.6 mph (2.0–38.0 km/h)
Travel Speed (Rev) 1.2–12.4 mph (2.0–20.0 km/h)
Max Gradeability 58% (30°)
Operating Weight 26,559 lb (12,050 kg)

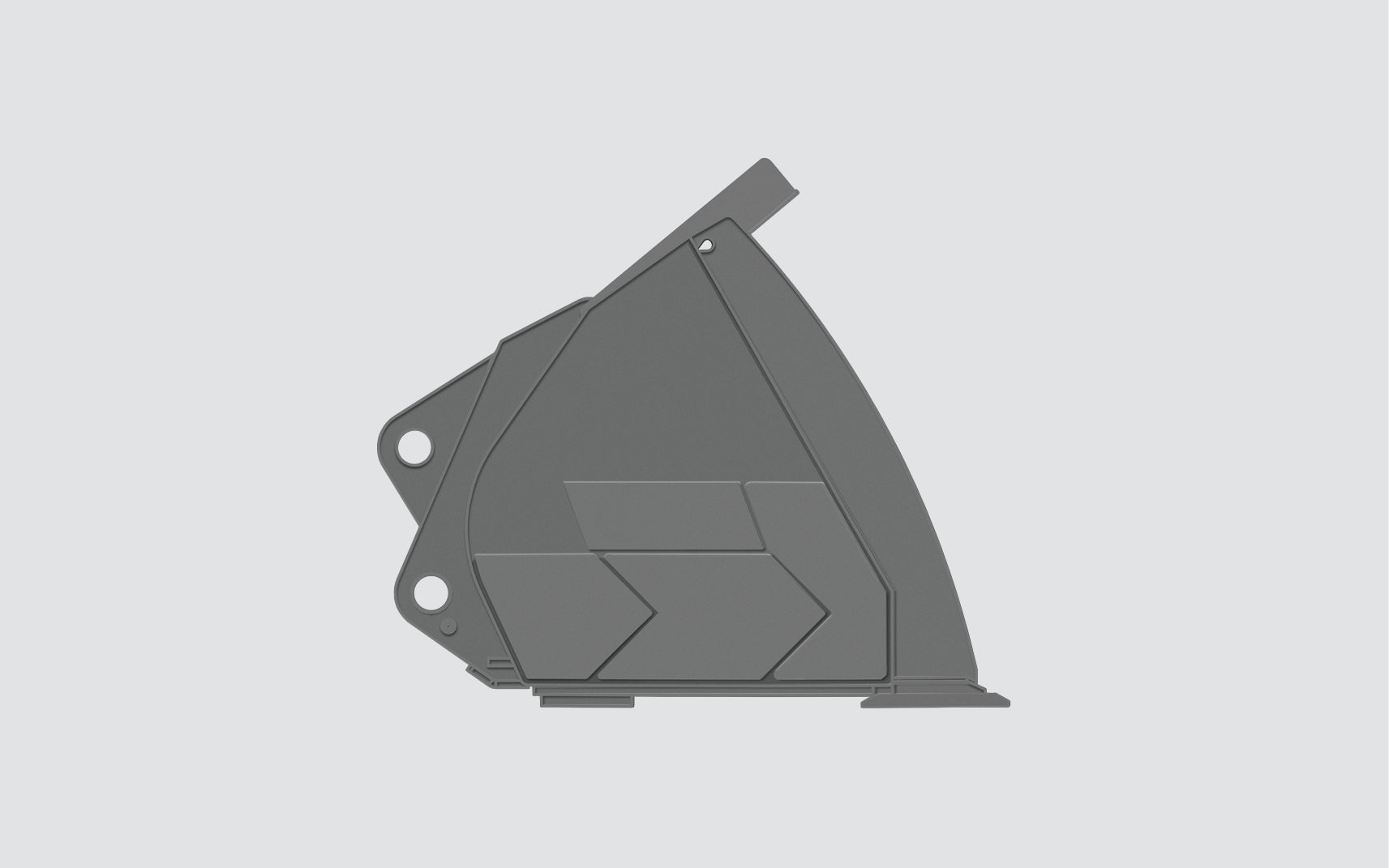

Bucket Capacity 2.6 yd³ (2.0 m³)
Overall Height 10' 10" (3.3 m)
Overall Length 23' 6" (7.16 m)
Wheelbase 9' 9" (2.97 m)
Turning Radius 19' 2" (5.85 m) at bucket edge
Tipping Load 22,315 lb (10,122 kg) Straight
Differentials Limited Slip Front & Rear
Sound Level (Exterior) 102 dB(A)
Sound Level (Cabin) 68 dB(A)
Fuel Tank 62.1 gal (235 L)
DEF Tank 5.0 gal (19 L)
Cooling System 8.6 gal (32.6 L)
Hydraulic System Cap. 31.7 gal (120 L)
