Product Description
Develon | Wheel Loader | Model DL200TC-7 | Width 8' 4.4" | Horsepower 142.1 HP | For Construction, Agriculture & Material
DESCRIPTION

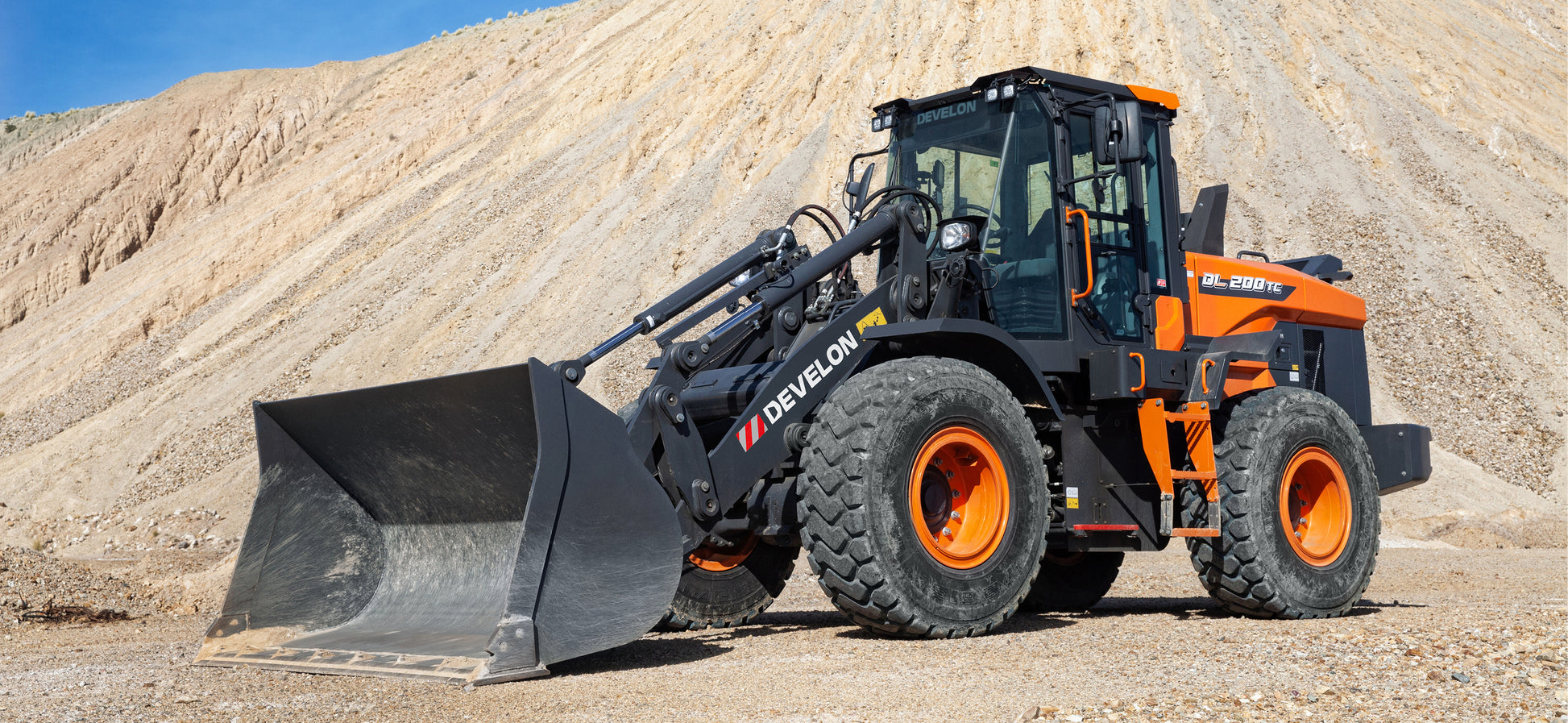

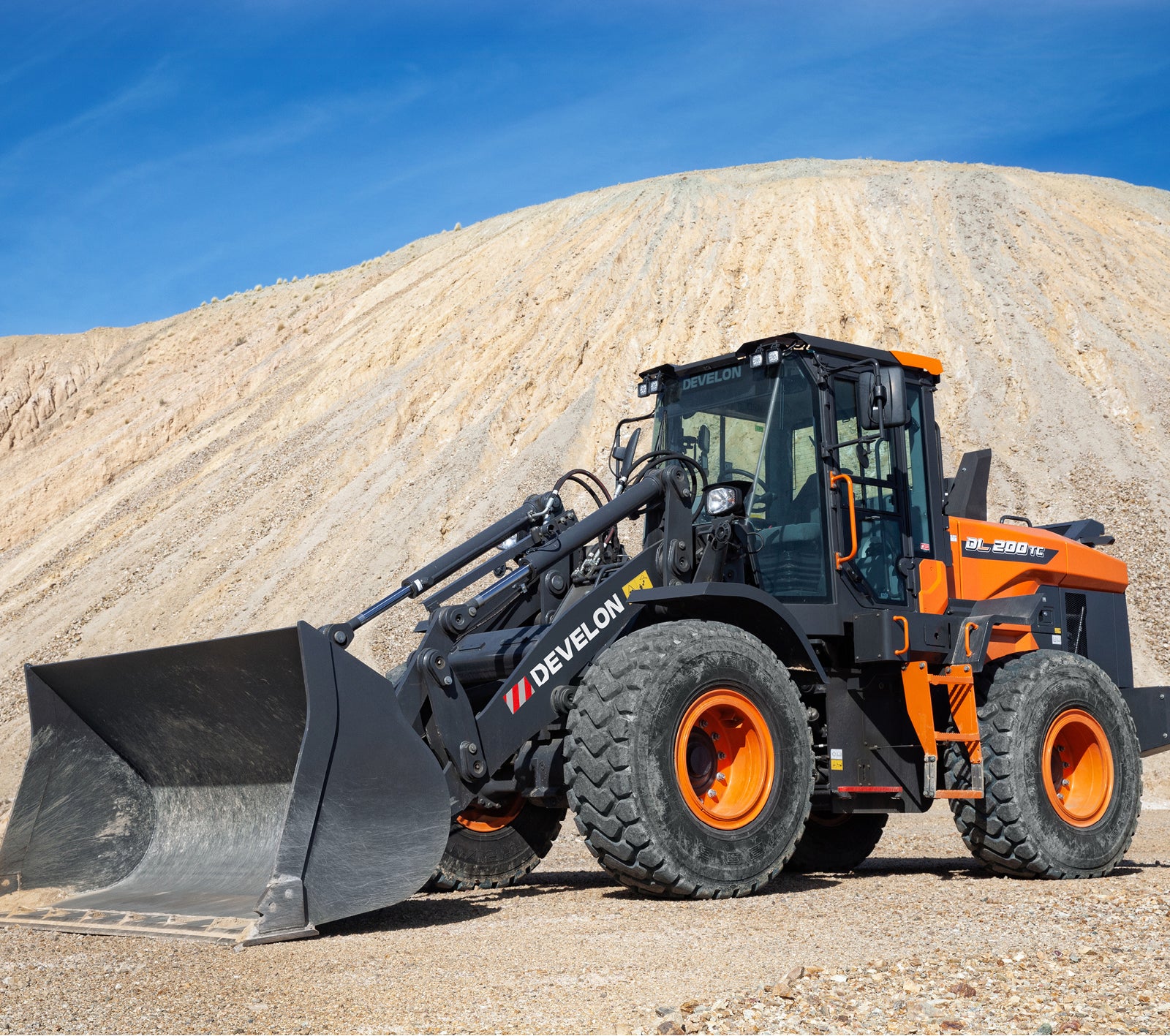

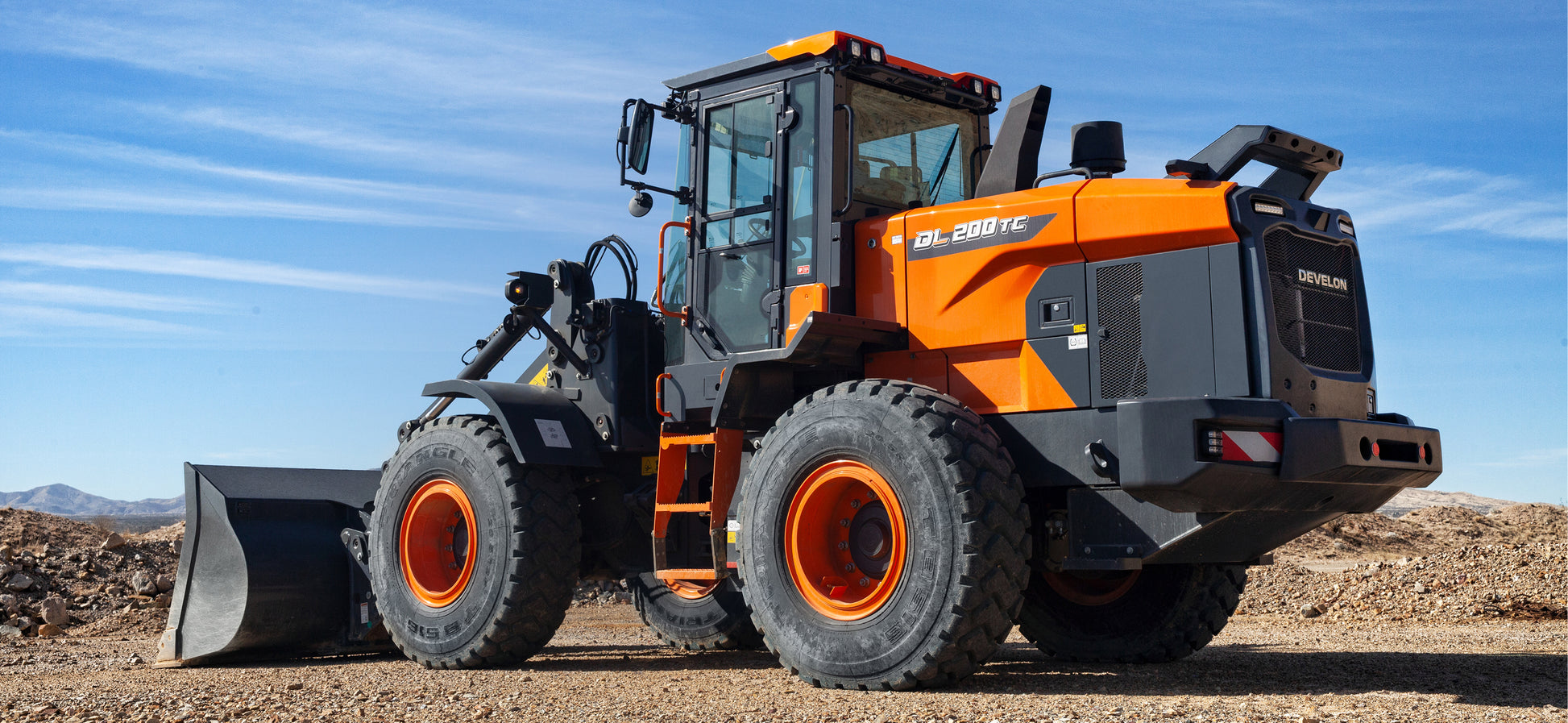

The Develon DL200TC-7 Wheel Loader is a powerful, smartly designed machine built to tackle demanding material-handling tasks with precision and efficiency. Engineered for versatility, this next-generation wheel loader excels in construction, agriculture, landscaping, and snow removal environments. Its robust parallel-lift linkage ensures accurate lifting and placement, making it perfect for lift-and-place operations beyond traditional loading.
With a strong focus on operator comfort, visibility, and machine intelligence, the DL200TC-7 offers exceptional control with hydrostatic transmission, advanced traction management, and load-sensing hydraulics for unmatched performance. The result is a refined, responsive, and reliable loader that’s designed for all-day productivity and reduced fuel consumption.
Whether you’re moving material into high-sided trucks, navigating tight jobsite conditions, or changing attachments on the fly, this loader combines smart engineering with rugged strength to keep your work moving forward efficiently and effortlessly.
Key Features
- Powerful Engine: 142.1 hp @ 2000 rpm for superior performance in various applications.
- Impressive Bucket Capacity: 2.6 yd³ for efficient loading and unloading tasks.
- Hydrostatic Transmission: Enhances fuel efficiency and provides smooth operation.
- Comfortable Cab: Spacious design with intuitive controls and enhanced visibility.
- Tier 4 Compliance: Advanced emissions technology for environmentally friendly operation.
- Durable Design: Built with heavy-duty components for reliability in challenging work conditions.
Detailed Specifications
| Category | Specification |
|---|---|
| Engine | |
| Engine Make / Model | Perkins / 1204F |
| Cylinders | 4 |
| Net Horsepower | 142.1 hp @ 2000 rpm |
| Gross Horsepower | 142.1 hp @ 2200 rpm |
| Max Torque | 412.4 lbf·ft @ 1400 rpm |
| Displacement | 4.4 L (268.5 in³) |
| Fuel System | High-pressure common-rail |
| Tier 4 Emissions | Yes (SCR, DOC, DPF, EGR) |
| Hydraulics | |
| Main Pump Type | Variable displacement axial piston |
| Max Flow Rate | 40.9 gal/min (155.0 L/min) |
| Work System Pressure | 3843.5 psi (265.0 bar) |
| Steering System Pressure | 2828.2 psi (195.0 bar) |
| Boom Raise / Lower Time | 5.6 / 3.3 sec |
| Bucket Crowd / Dump Time | 1.9 / 3.4 sec |
| Transmission & Travel | |
| Type | Hydrostatic with 4-speed Forward / 3-speed Reverse |
| Max Forward Speed | 23.61 mph (38.0 km/h) |
| Max Reverse Speed | 12.4 mph (20.0 km/h) |
| Max Gradeability | 58% (30°) |
| Differential | Limited Slip (Front & Rear) |
| Dimensions | |
| Width | 8' 4.4" (approx.) |
| Overall Height | 10' 10" |
| Overall Length | 24' 8" |
| Wheelbase | 9' 9" |
| Turning Radius (Bucket Edge) | 19' 2" |
| Operating Performance | |
| Operating Weight | 26,867 lb |
| Static Tipping Load (Straight) | 20,172 lb |
| Bucket Capacity | 2.6 yd³ |
| Cab & Environment | |
| Sound Level (External / In-Cab) | 102 dB(A) / 68 dB(A) |
| HVAC System | Enhanced Heating & Cooling |
| Display | Develon Smart Touch with Rear Camera |
| Visibility | Transparent Bucket + Full-Glass Door |
| Service Refill Capacities | |
| Fuel Tank | 62.1 gal |
| DEF Tank | 5.0 gal |
| Cooling System | 8.6 gal |
| Engine Oil | 3.1 gal |
| Transmission | 31.7 gal |
| Hydraulic System | 31.7 gal |
| Front / Rear Axles | 4.0 gal / 4.5 gal |
| Hydraulic Cylinders | |
| Steering (x2) | 2.8" x 1.4" x 14.0" |
| Lift Arm (x2) | 4.1" x 2.6" x 31.0" |
| Bucket (x1) | 3.9" x 2.6" x 33.0" |
