Product Description
Develon | Wheel Loader | Model DL220-7 | Width 8' 4.4" | Horsepower 159.6 HP | For Construction, Agriculture & Material Handling
DESCRIPTION

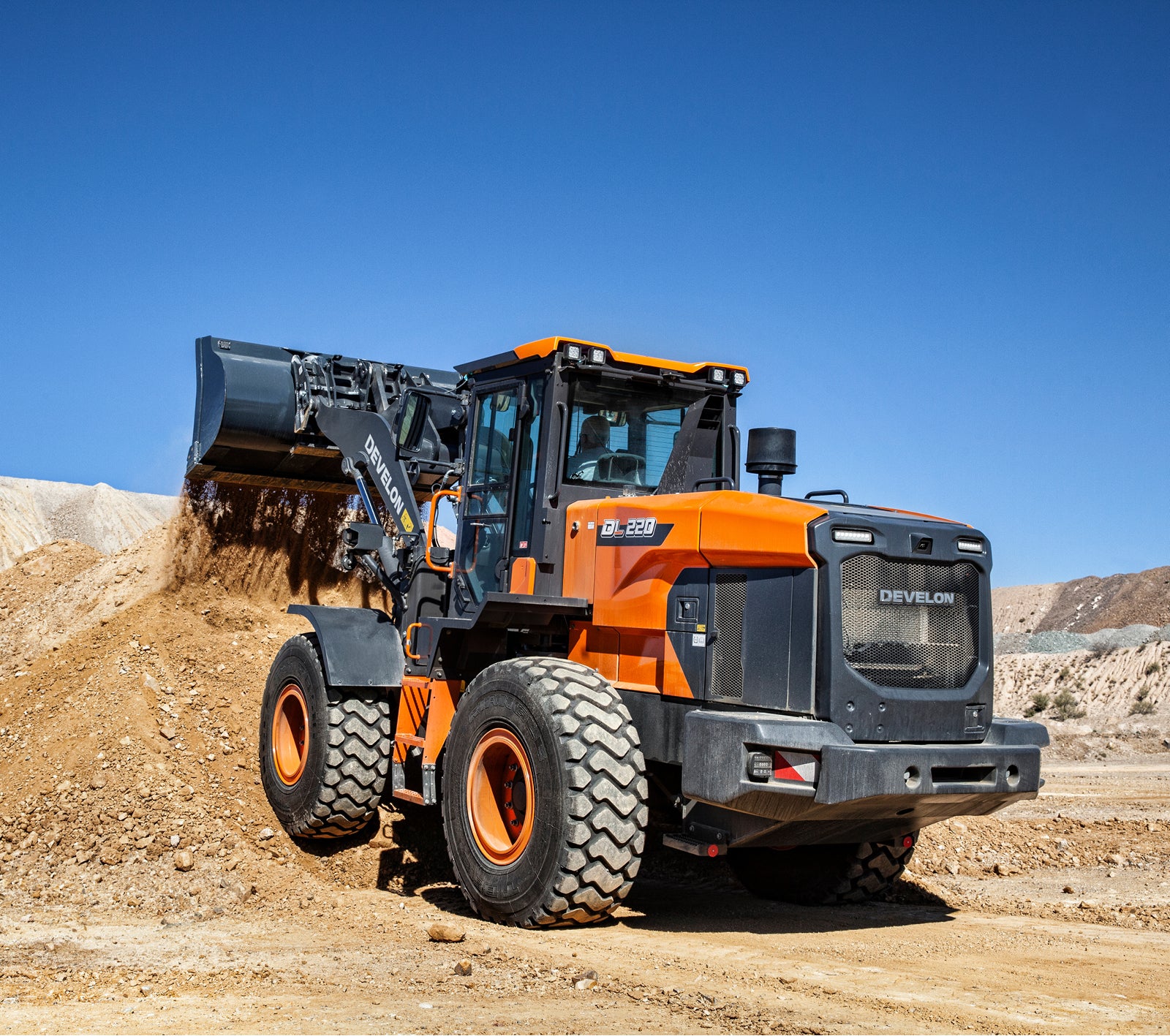

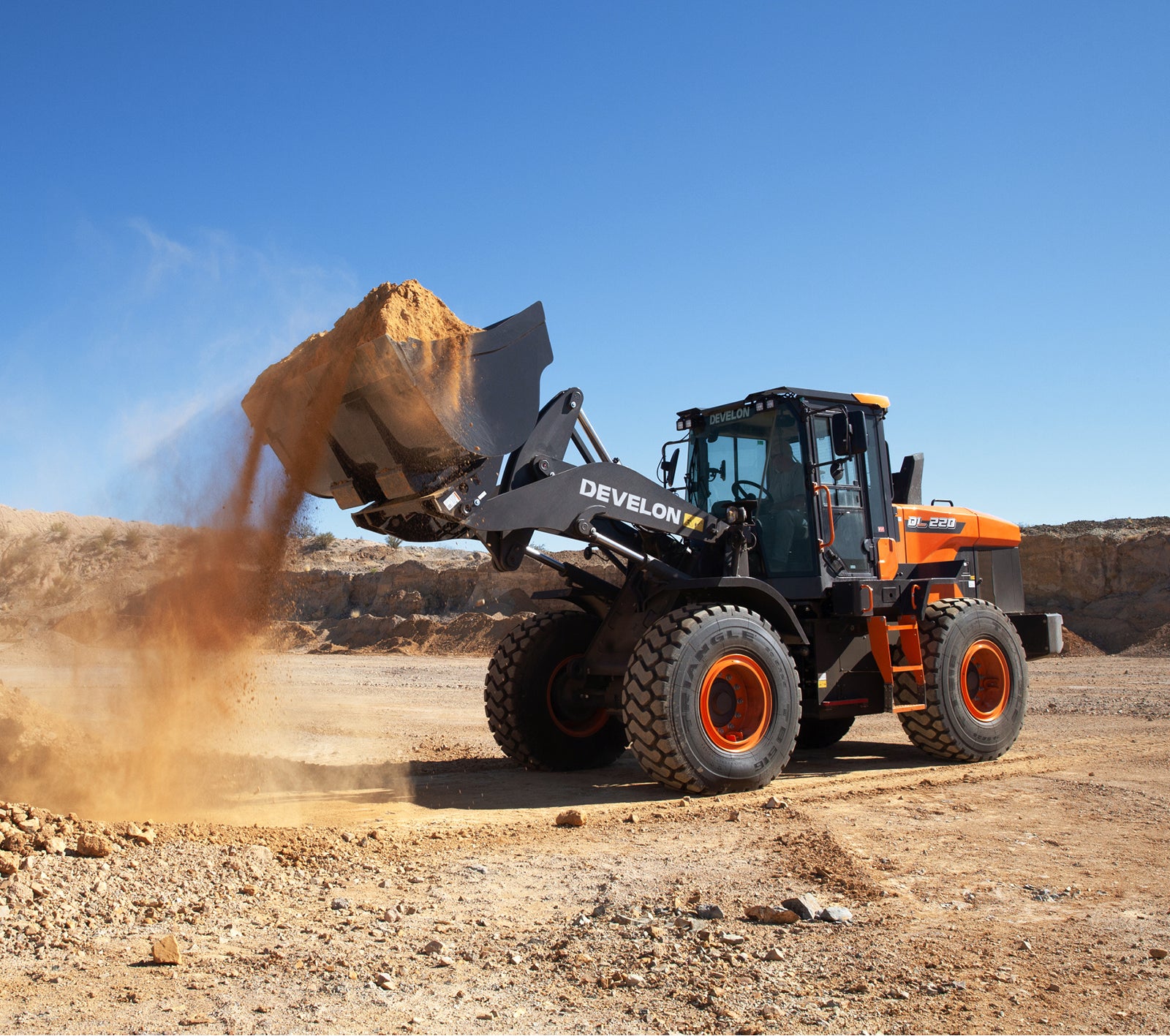

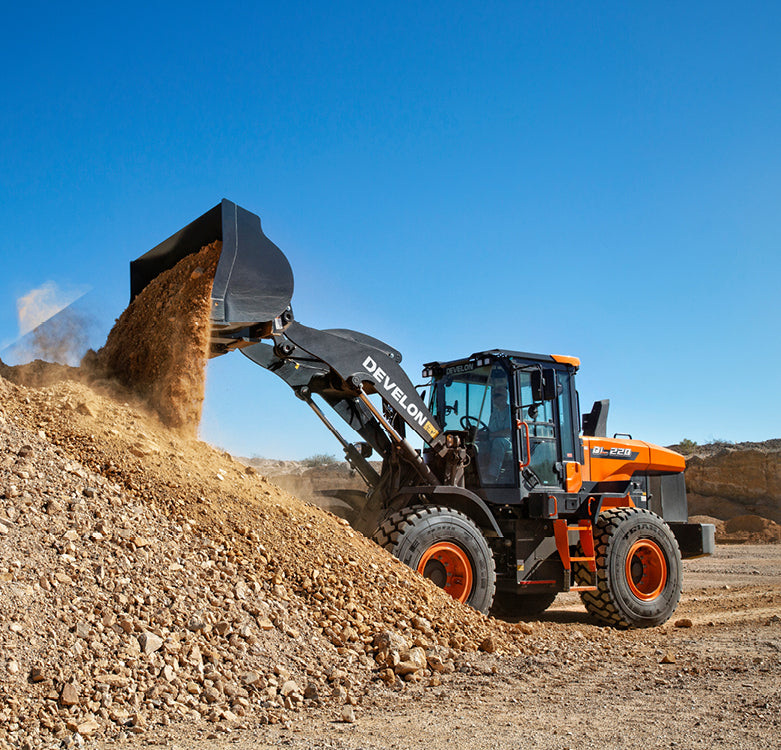

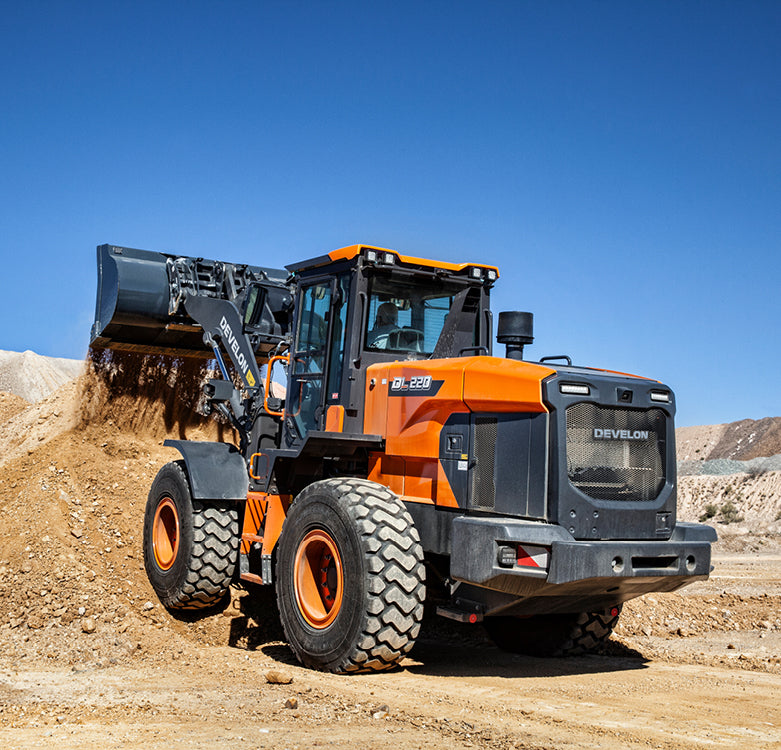

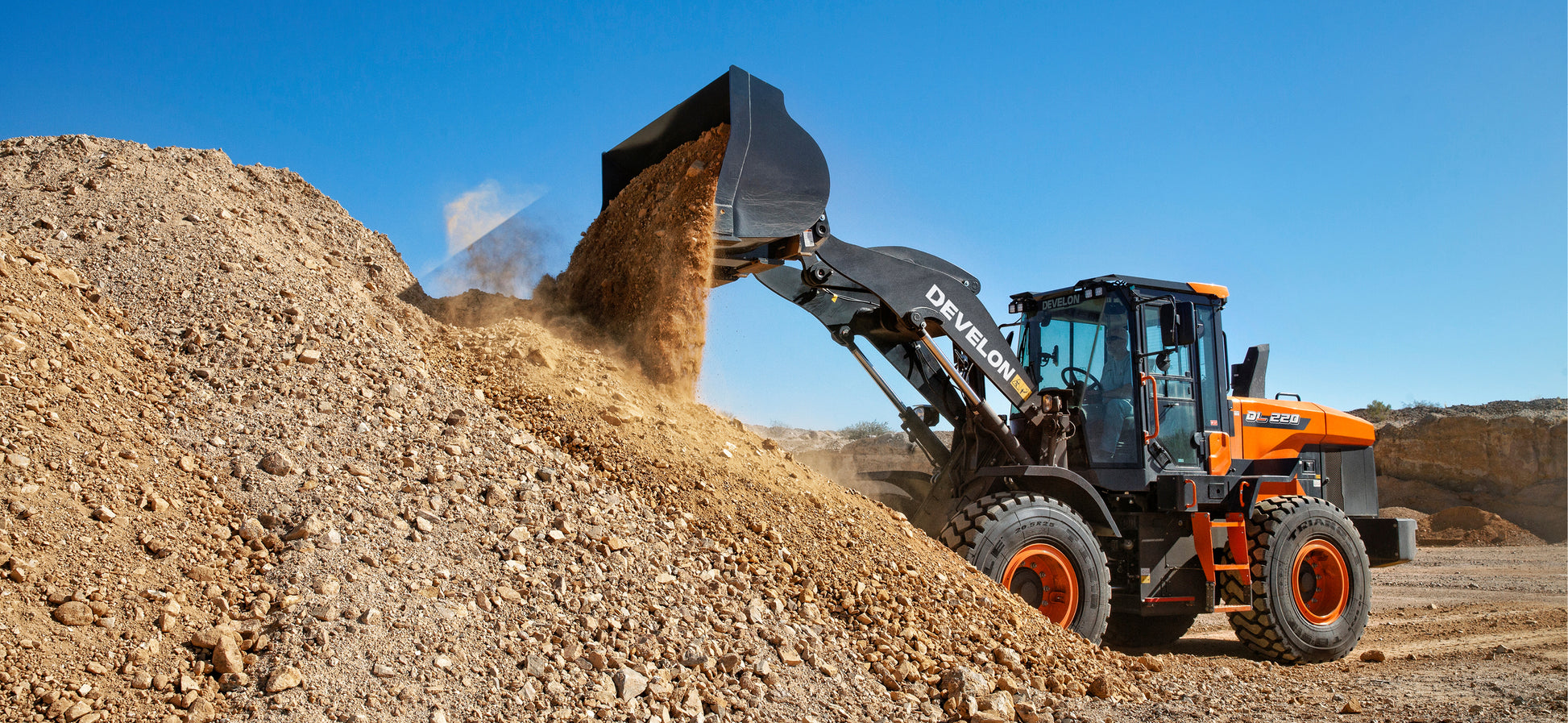

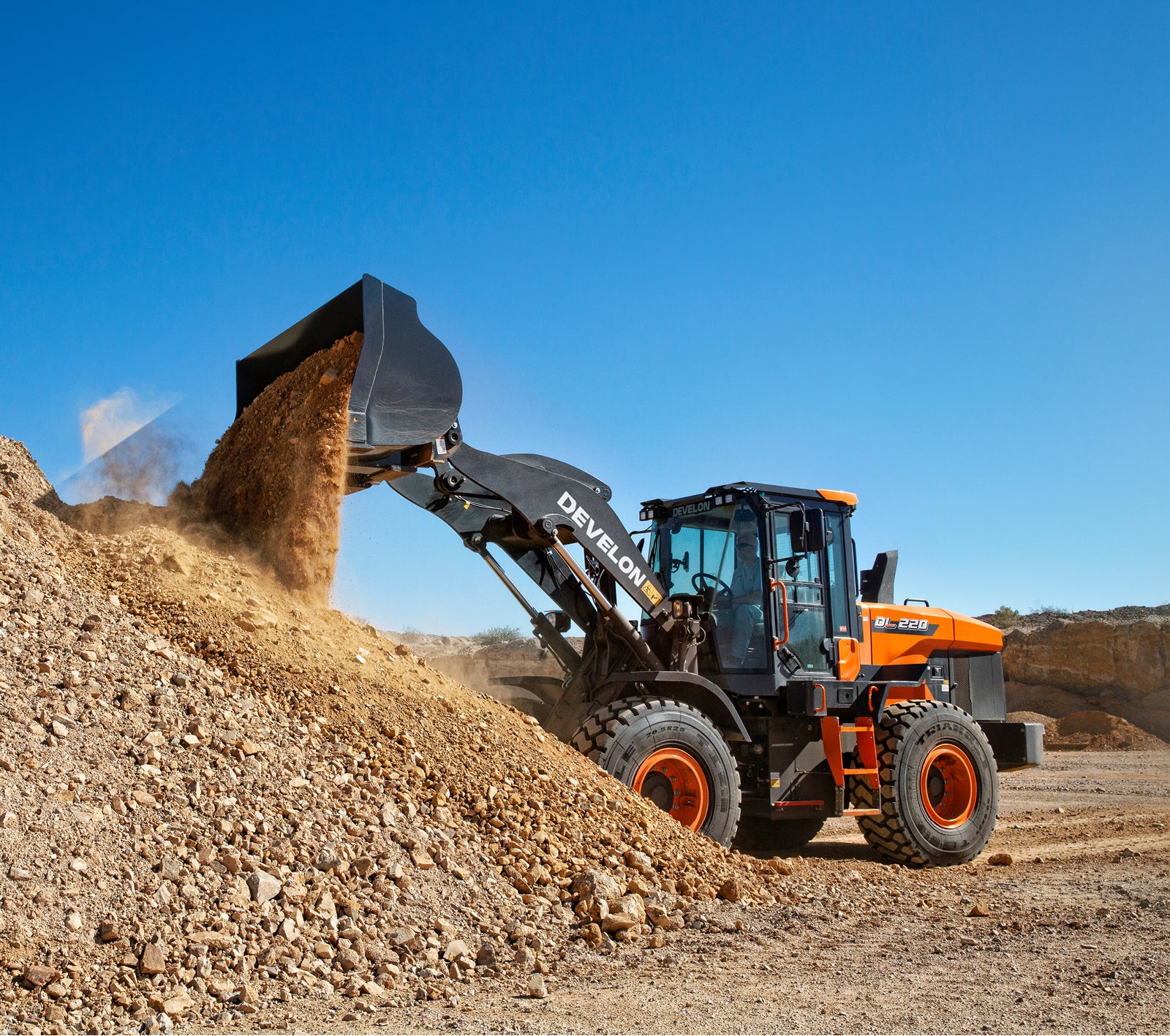

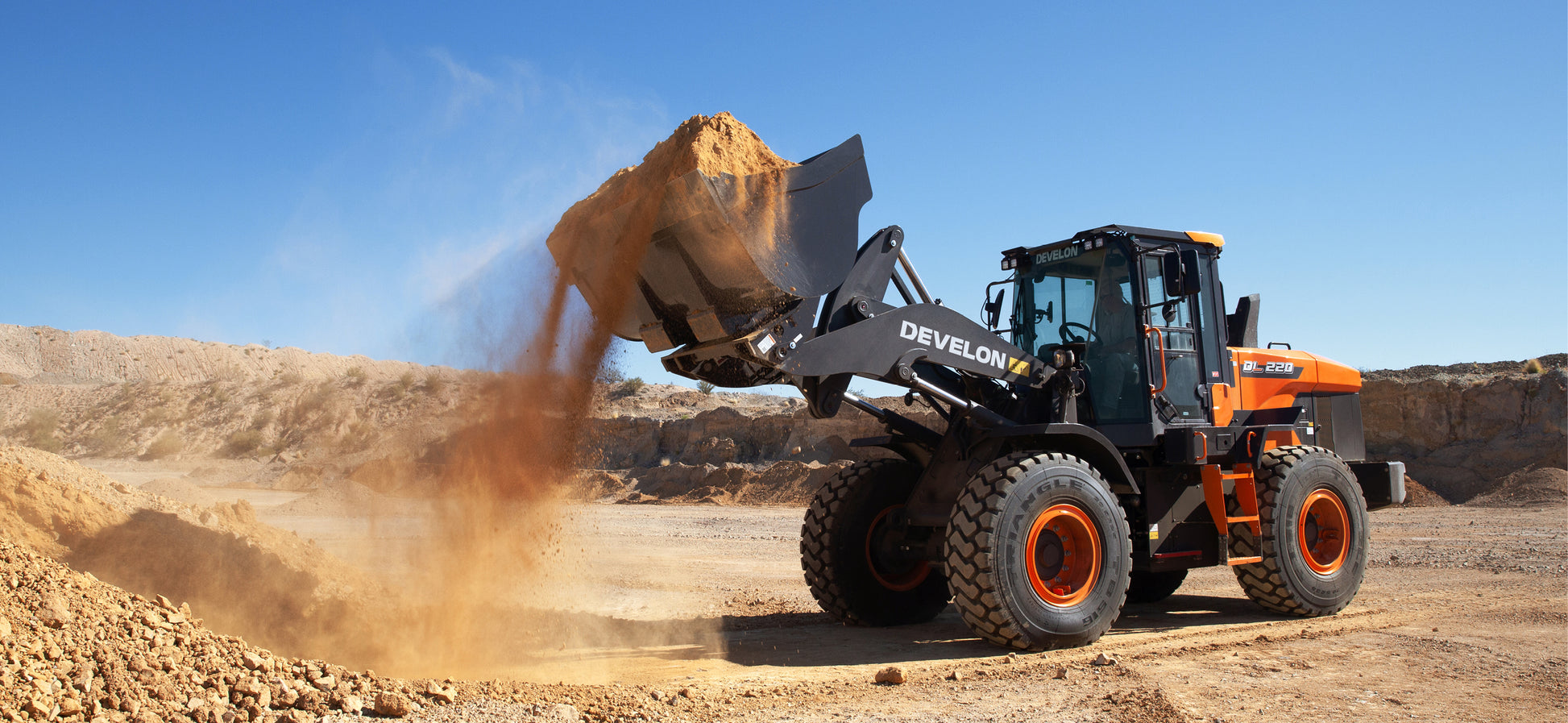

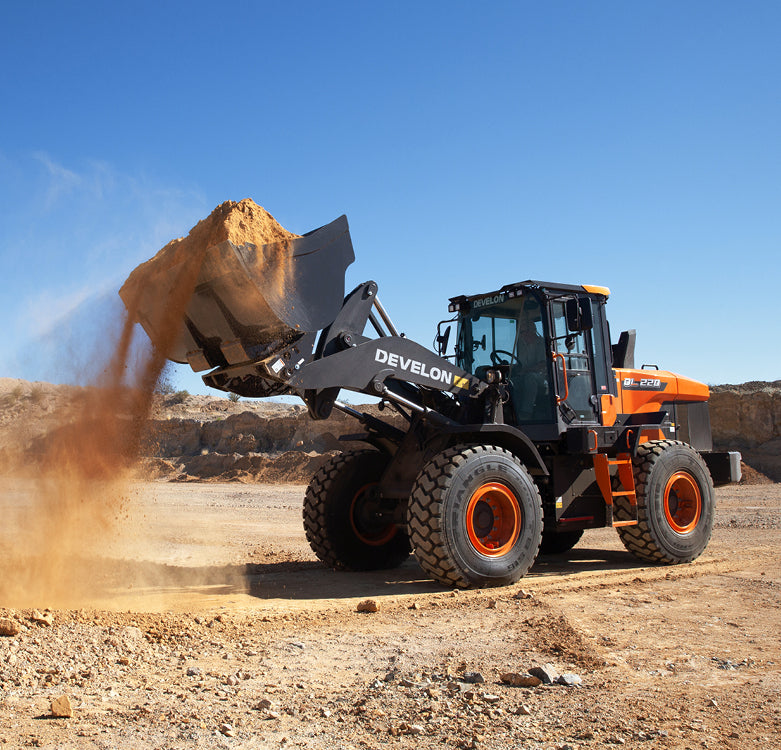

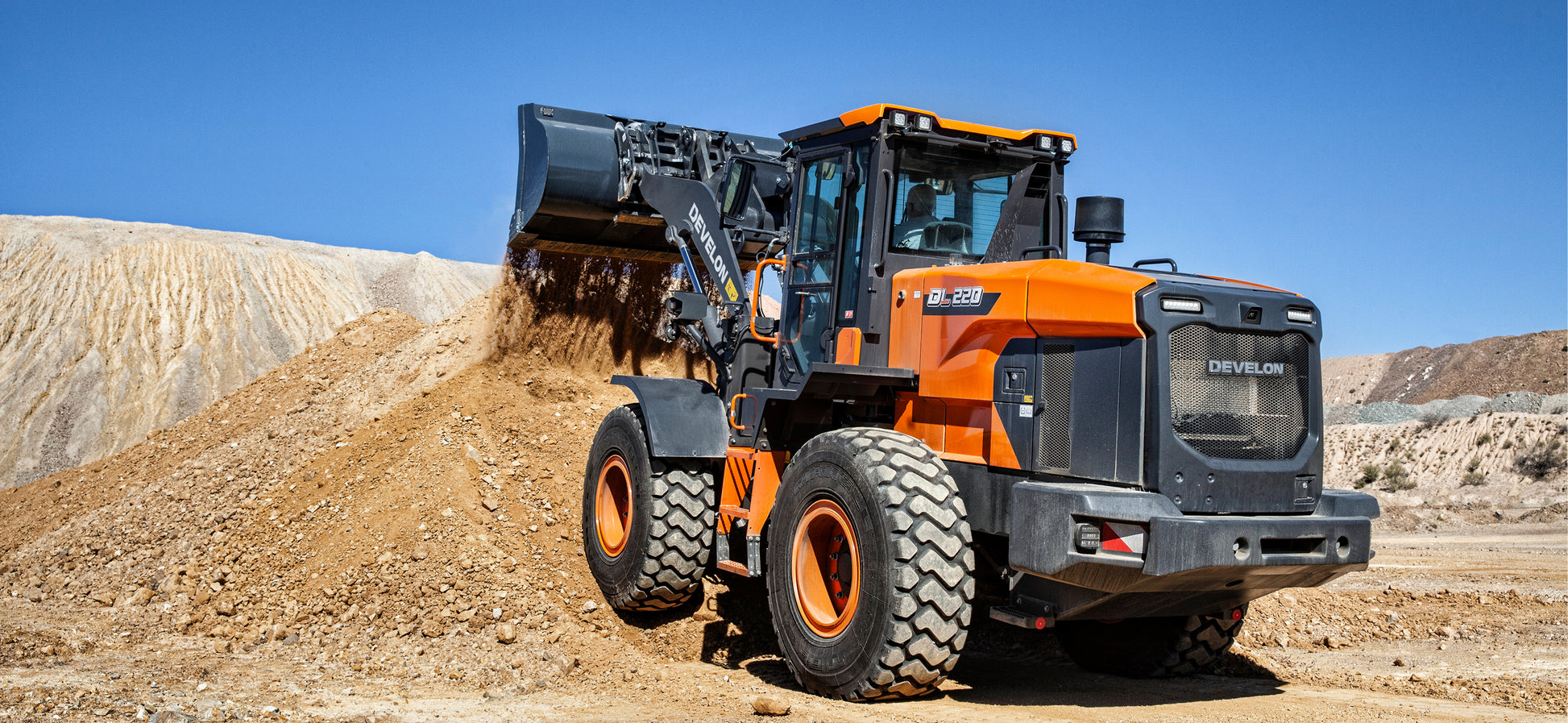

The DEVELON DL220-7 Wheel Loader combines brute strength with refined comfort and intelligence, delivering next-generation performance for your toughest material-handling jobs. Whether you're working in construction, agriculture, or industrial applications, the DL220-7 rises to the challenge with an exceptional balance of power, agility, and operator-first design.
Built around a robust DEVELON DL06 engine producing a net 159.6 horsepower, this machine confidently handles everything from loading aggregates to moving bulk material across tough terrain. The powerful ZF transmission and heavy-duty axles ensure smooth, dependable operation, while multiple power modes and automatic features optimize fuel use without compromising performance.
Inside the cab, operators enjoy a spacious, modern environment with intuitive controls, a high-resolution Smart Touch screen, advanced HVAC, and DEVELON-exclusive Transparent Bucket technology for enhanced visibility. Routine maintenance is simplified with easily accessible service points, centralized lube locations, and smart diagnostics via MY DEVELON fleet management tools.

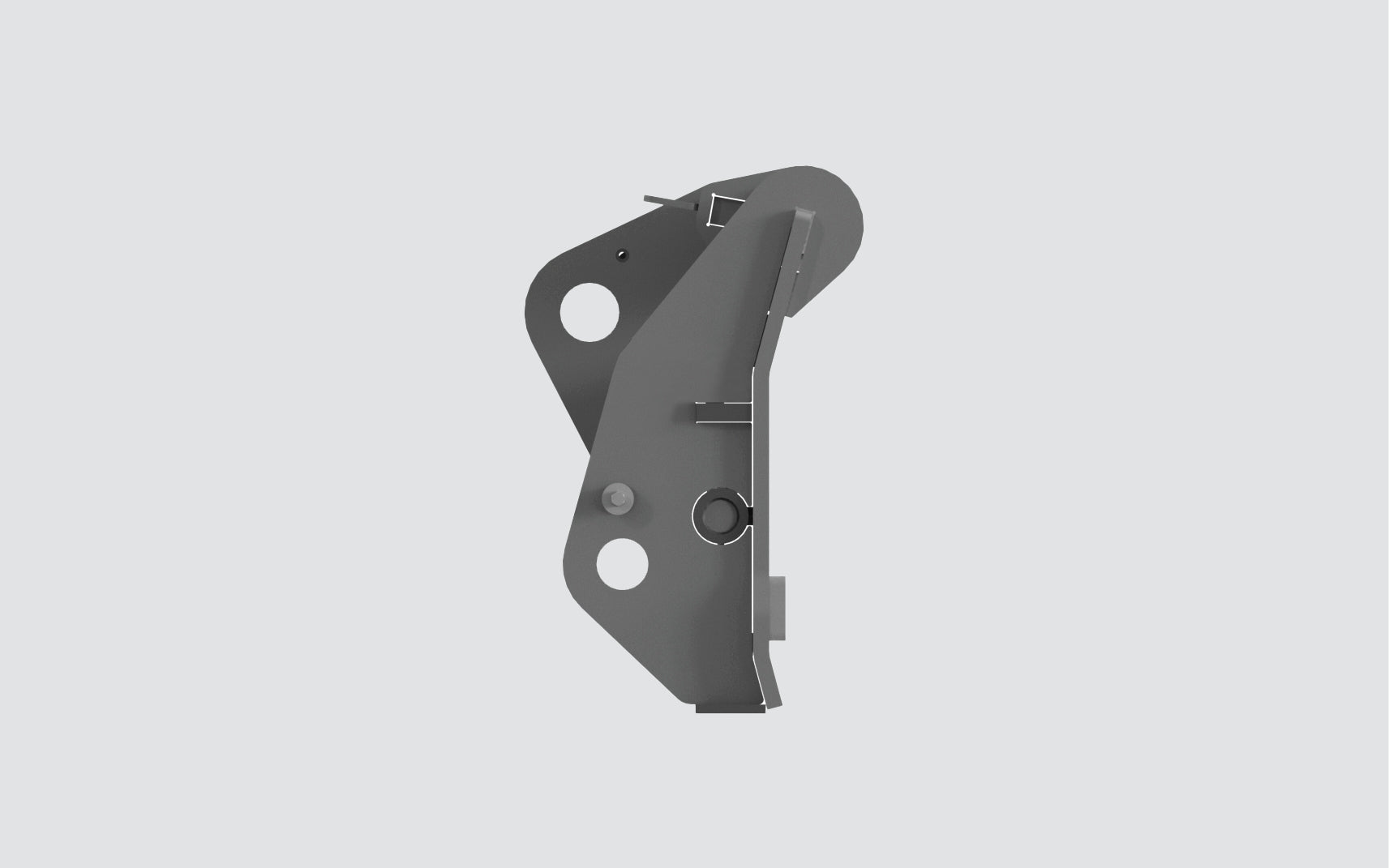

From its high-capacity bucket and quick coupler system to its rugged build and intelligent powertrain, the DL220-7 is engineered for all-day productivity, no matter the jobsite conditions.
Key Features
- Powerful Engine: 159.6 hp @ 2100 rpm for superior performance in heavy-duty applications.

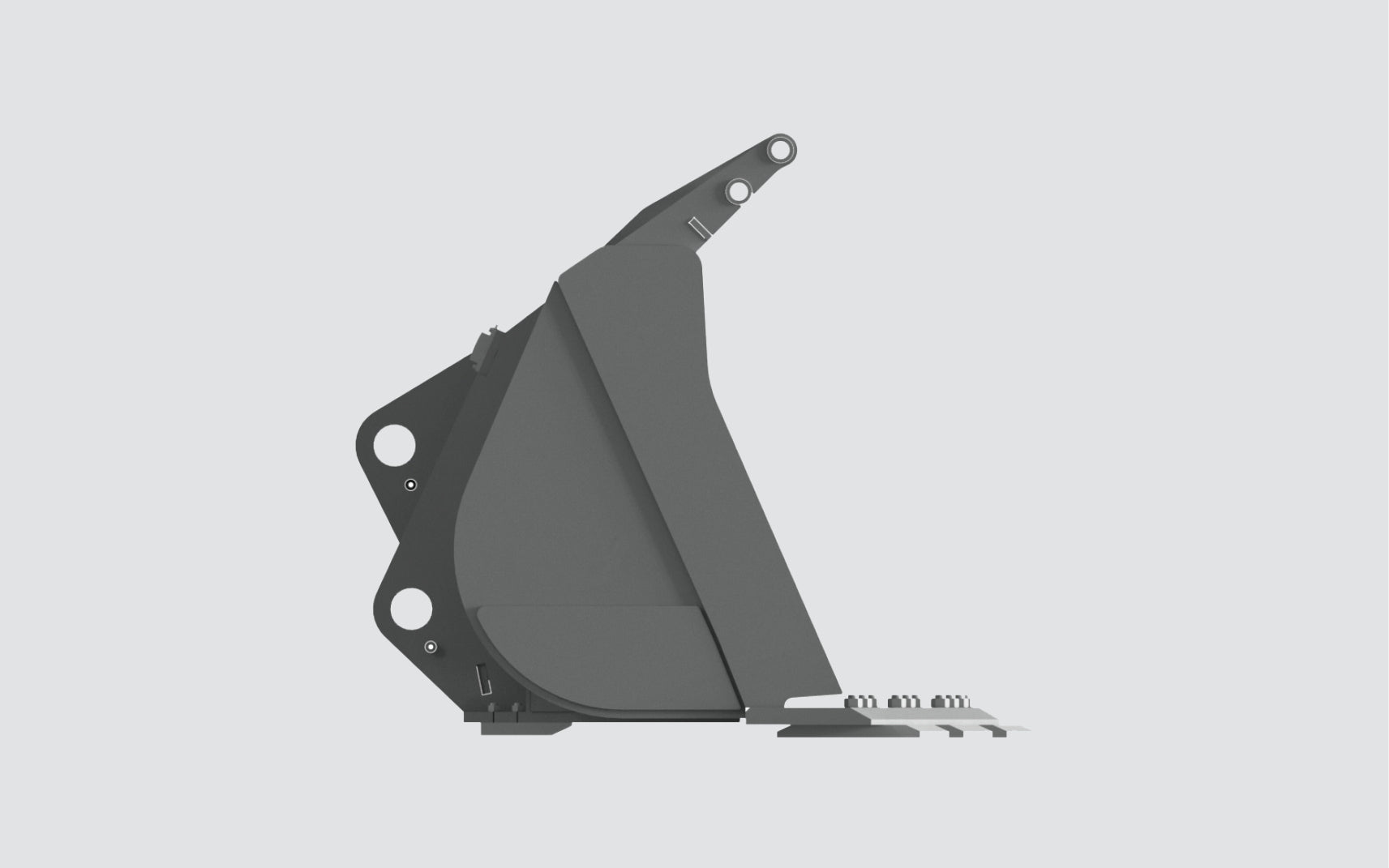

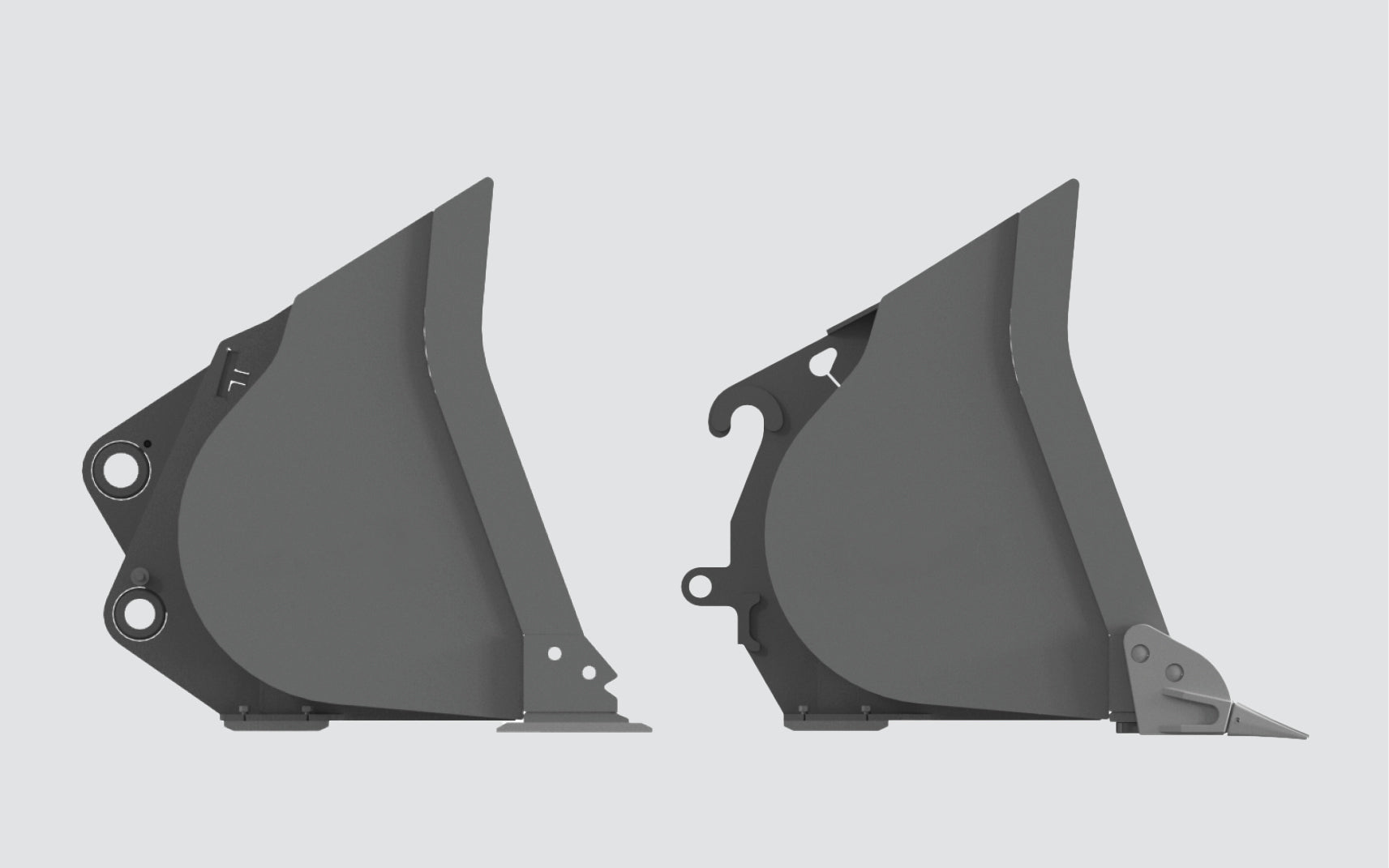

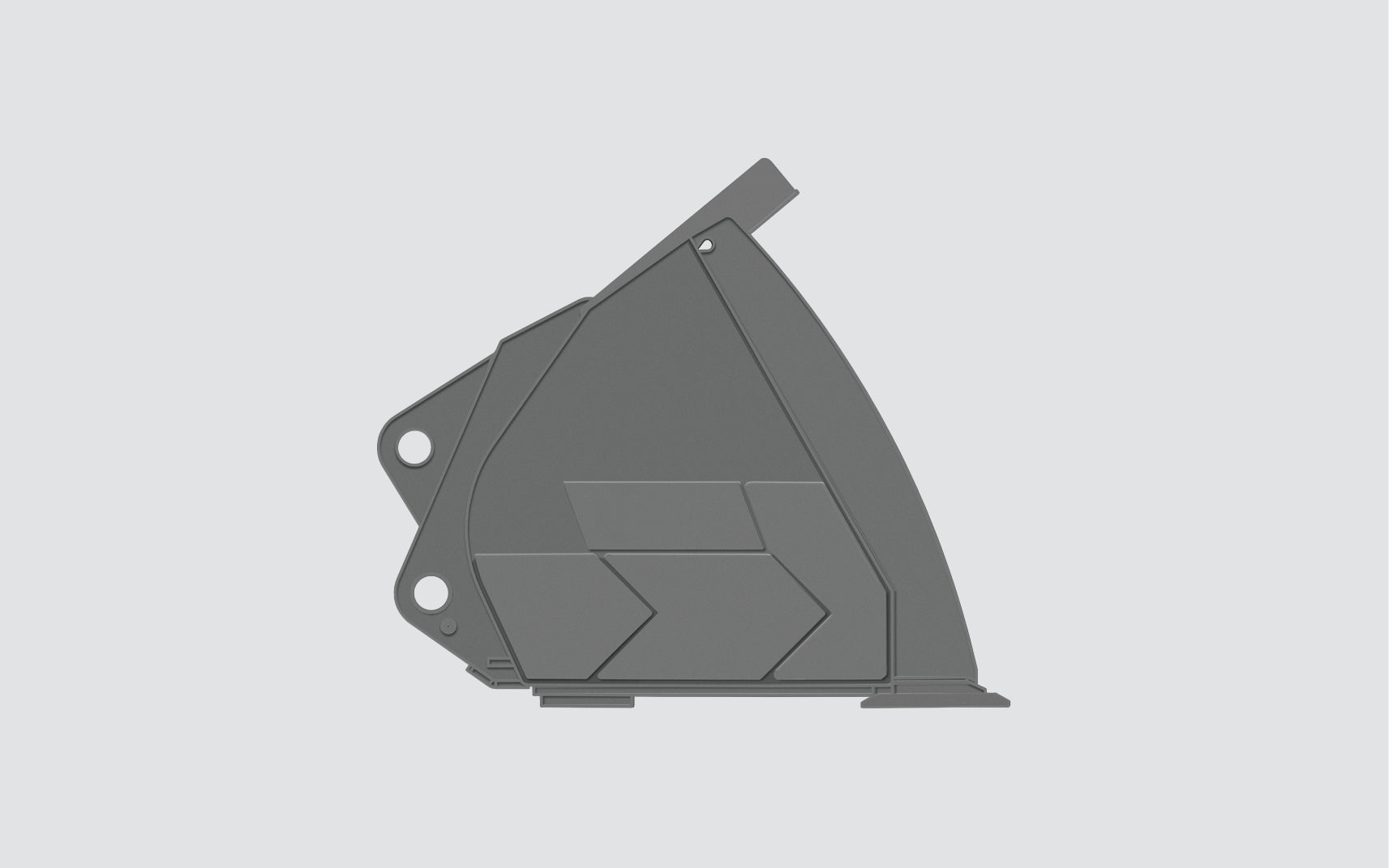

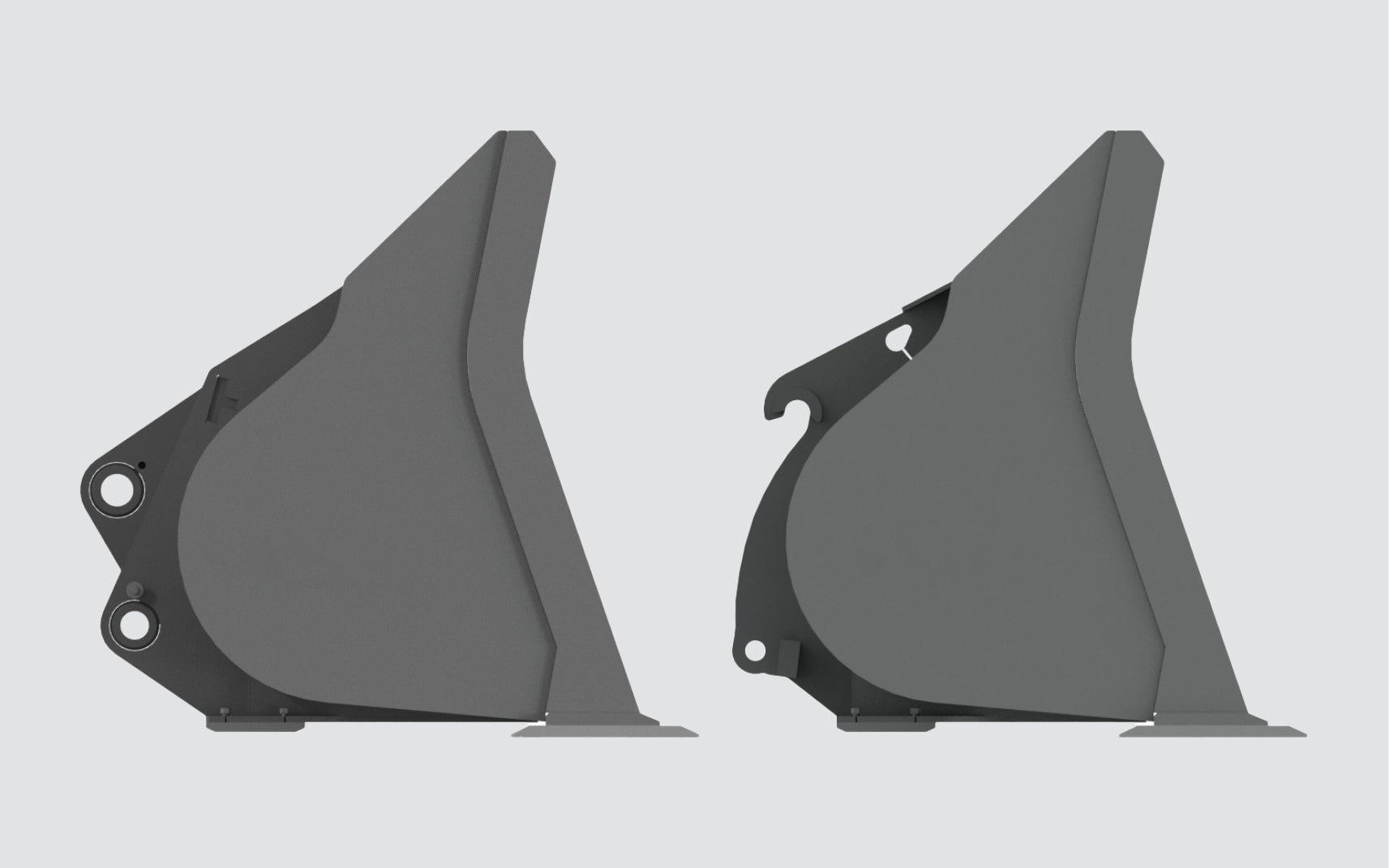

- Generous Bucket Capacity: 3.0 yd³ for efficient loading and transporting of materials.
- ZF Powershift Transmission: Provides seamless power delivery and multiple power modes for optimal performance.
- Comfortable Cab: Spacious design with intuitive controls and enhanced visibility for operator comfort.
- Tier 4 Compliance: Advanced emissions technology for environmentally friendly operation.
- Durable Design: Built with heavy-duty components for reliability in challenging work conditions.
Detailed Specifications
| Category | Specification |
|---|---|
| Engine | DEVELON DL06, 6-cylinder diesel |
| Rated Power (Net) | 159.6 hp @ 2100 rpm |
| Max Torque | 542.8 lbf·ft @ 1400 rpm |
| Displacement | 5.9 L (360.0 in³) |
| Operating Weight | 29,099 lb |
| Bucket Capacity | 3.0 yd³ |
| Transmission | ZF Powershift, Limited Slip Differentials |
| Travel Speeds (4-speed) | F: 4.3–24.2 mph, R: 4.6–15.7 mph |
| Travel Speeds (5-speed) | F: 4.0–24.9 mph, R: 4.3–19.6 mph (US15) |
| Hydraulic Flow Rate | 40.9 GPM (155.0 L/min) |
| Hydraulic Pressure (Work) | 3625.9 psi (250 bar) |
| Hydraulic Pressure (Steer) | 2828.2 psi (195 bar) |
| Overall Height | 10' 10" |
| Overall Length | 24' 5" |
| Wheelbase | 10' 0" |
| Turning Radius | 19' 7" at bucket edge |
| Static Tipping Load | 23,210 lb (straight) |
| Fuel Tank Capacity | 62.1 gal |
| DEF Tank Capacity | 7.9 gal |
| Hydraulic System Capacity | 31.7 gal |
| Cab Sound Level | 70 dB(A) (ISO 6396) |
| Exterior Sound Level | 103 dB(A) (ISO 6395) |
Manuals & Documents
Product Brochure
Product Specification
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information neededabout products and parts you can’t find!

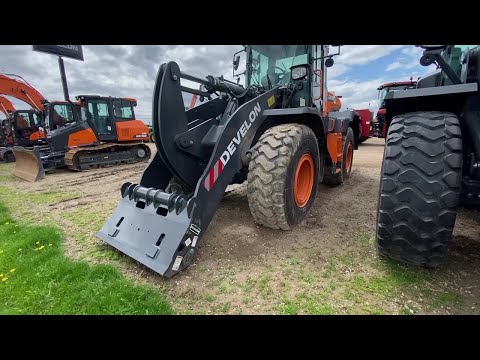

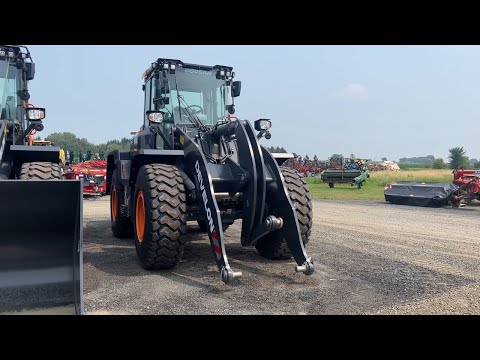

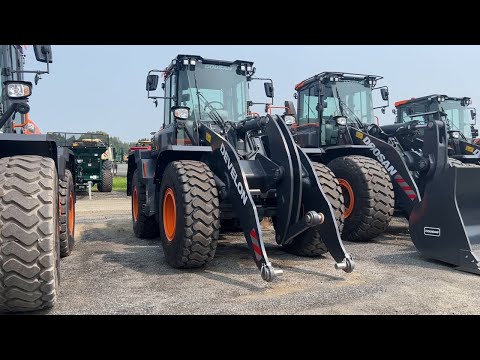

Videos
