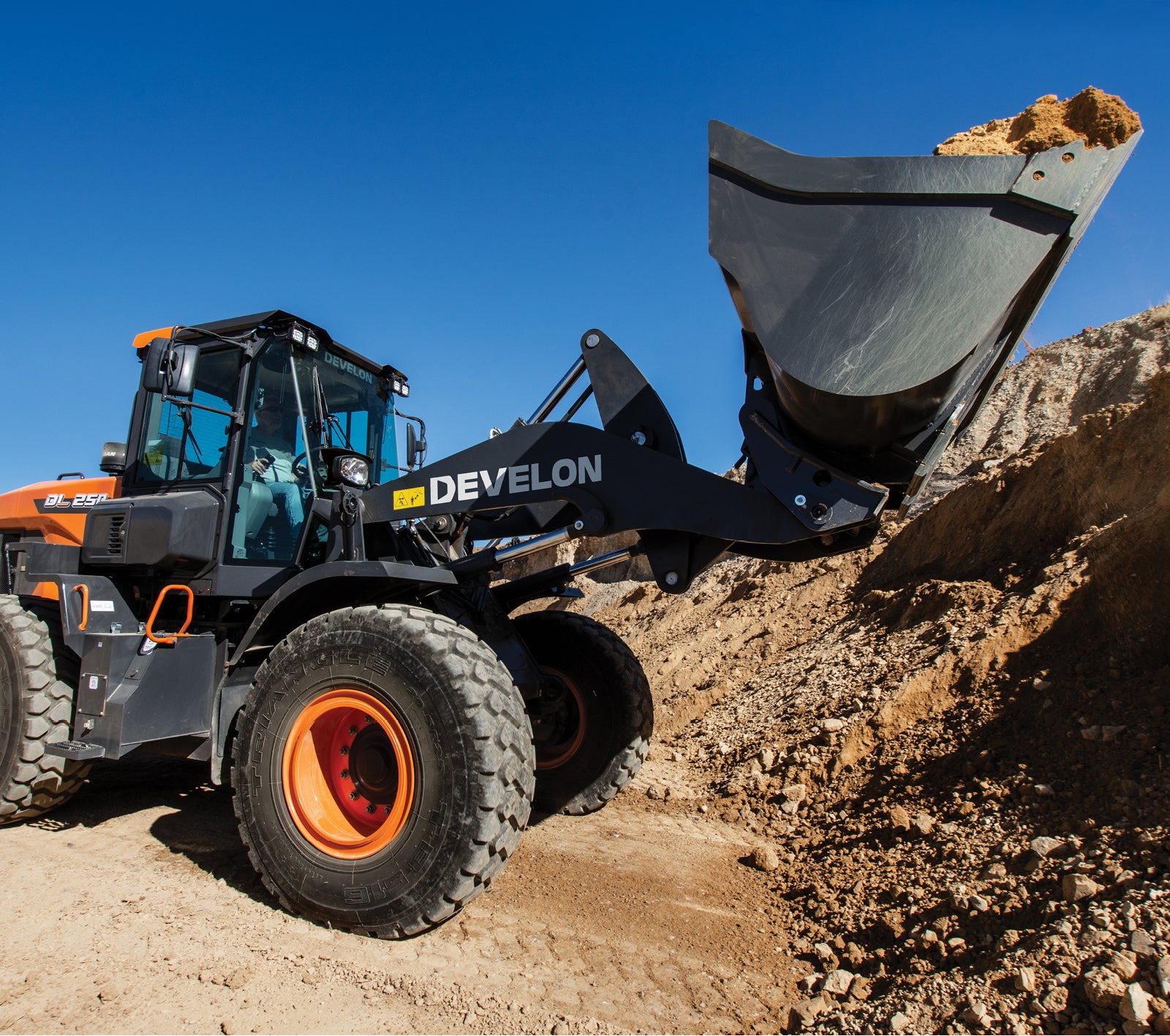

Develon | Wheel Loader | Model DL250-7 | Width 8' 11.9" | Horsepower 171.6 HP | For Construction, Agriculture & Heavy Lifting

Develon | Wheel Loader | Model DL250-7 | Width 8' 11.9" | Horsepower 171.6 HP | For Construction, Agriculture & Heavy Lifting

$1.00
$1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Optimized Power & Efficiency 171.6-hp DEVELON engine ensures high breakout force and smooth performance.
  • Heavy-Duty Z-Bar Lift Arm Delivers superior lifting power and breakout force for tough material handling tasks.
  • High-Lift Option Provides additional reach for loading high-sided trucks and hoppers.
  • Ride Control System for Stability Minimizes shock absorption and material loss on uneven terrains.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1: Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Develon | Wheel Loader | Model DL250-7 | Width 8' 11.9" | Horsepower 171.6 HP | For Construction, Agriculture & Heavy Lifting



DESCRIPTION

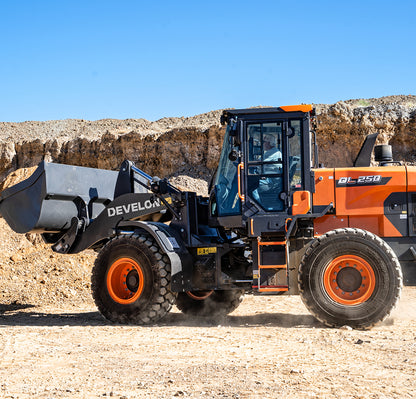

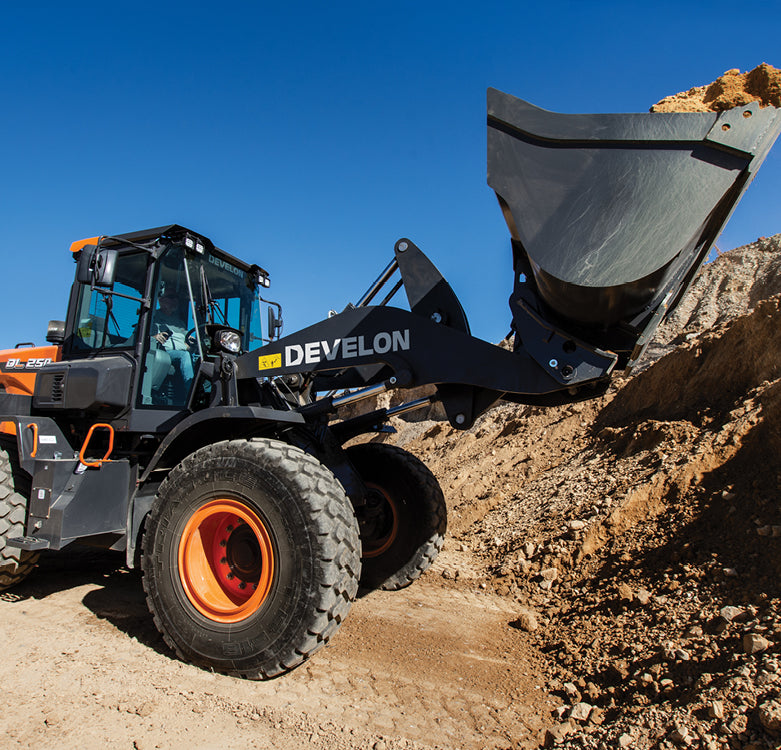

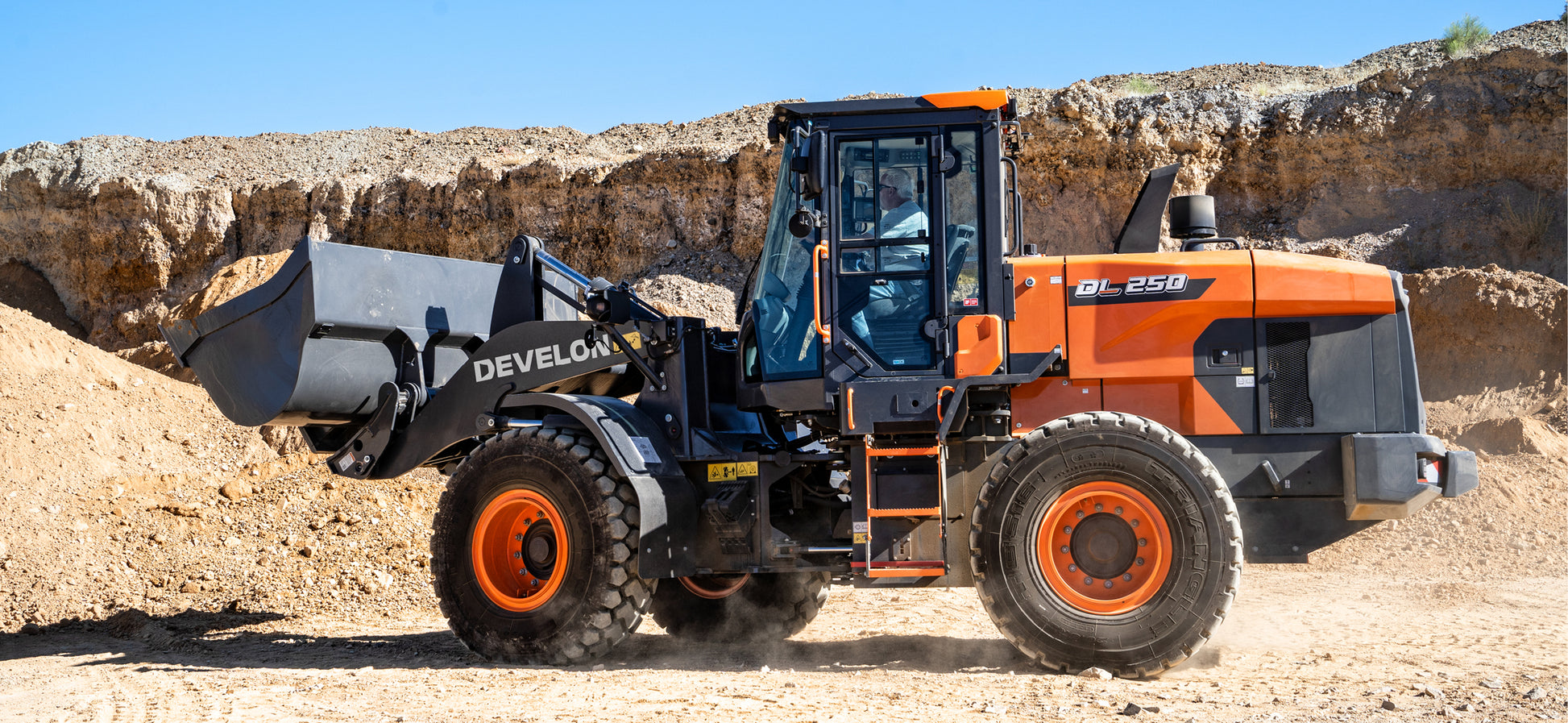

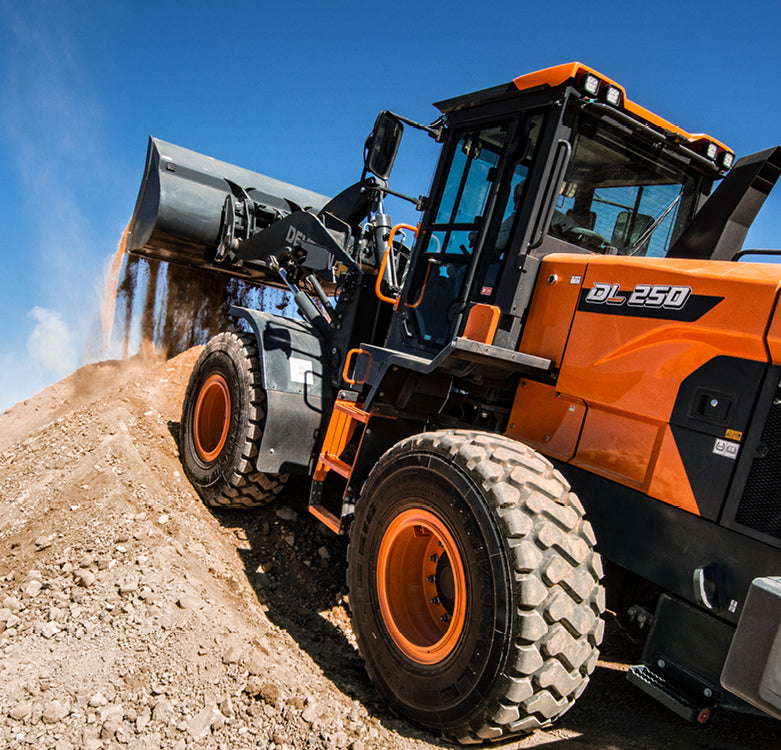

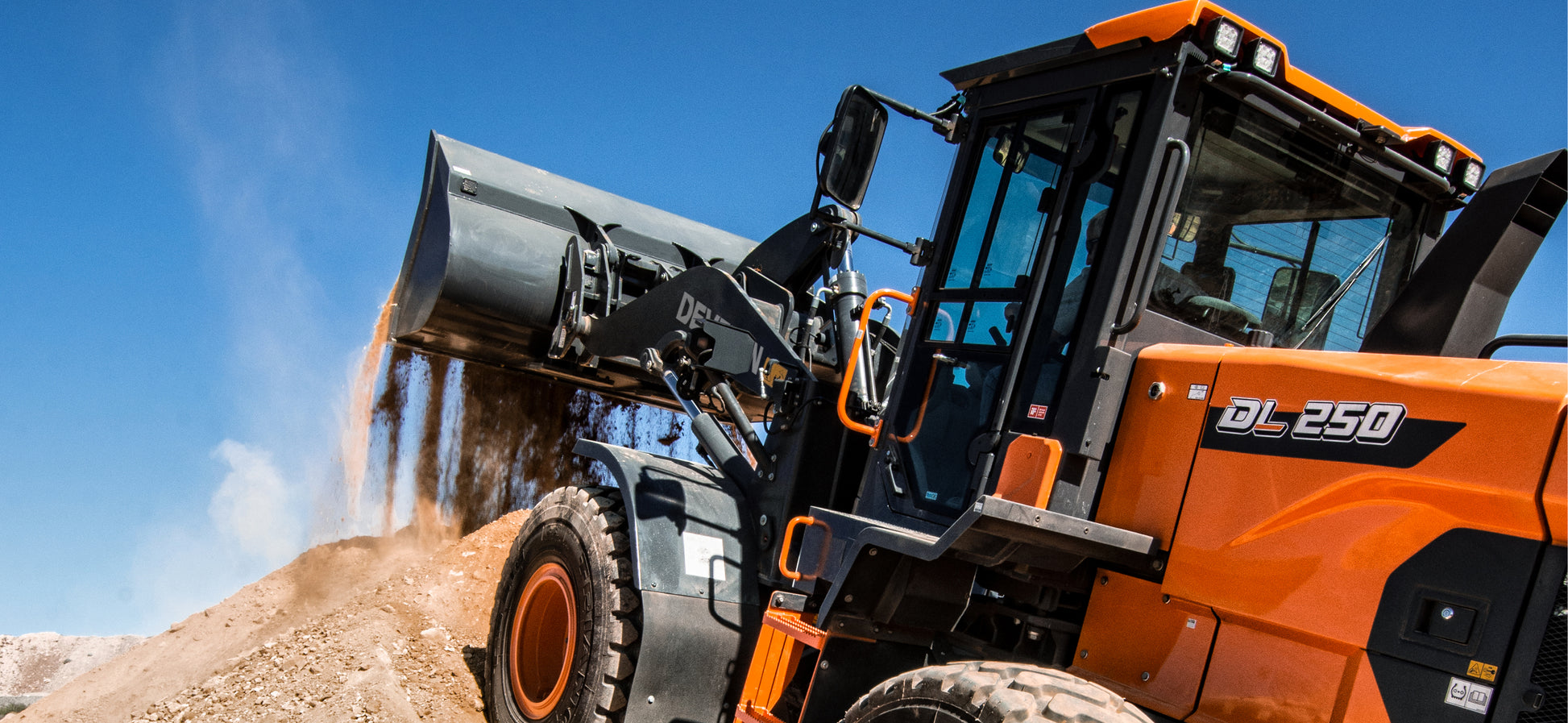

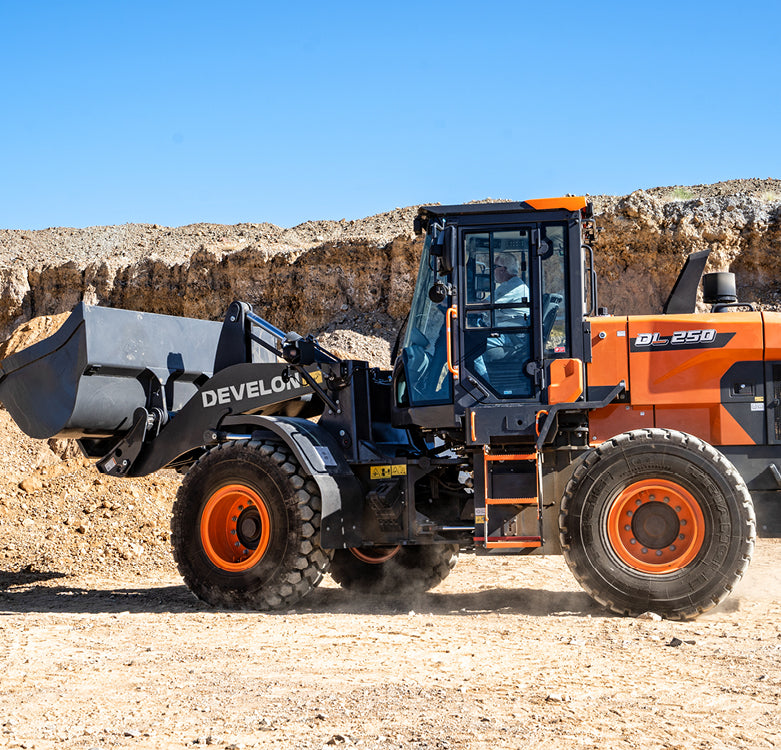

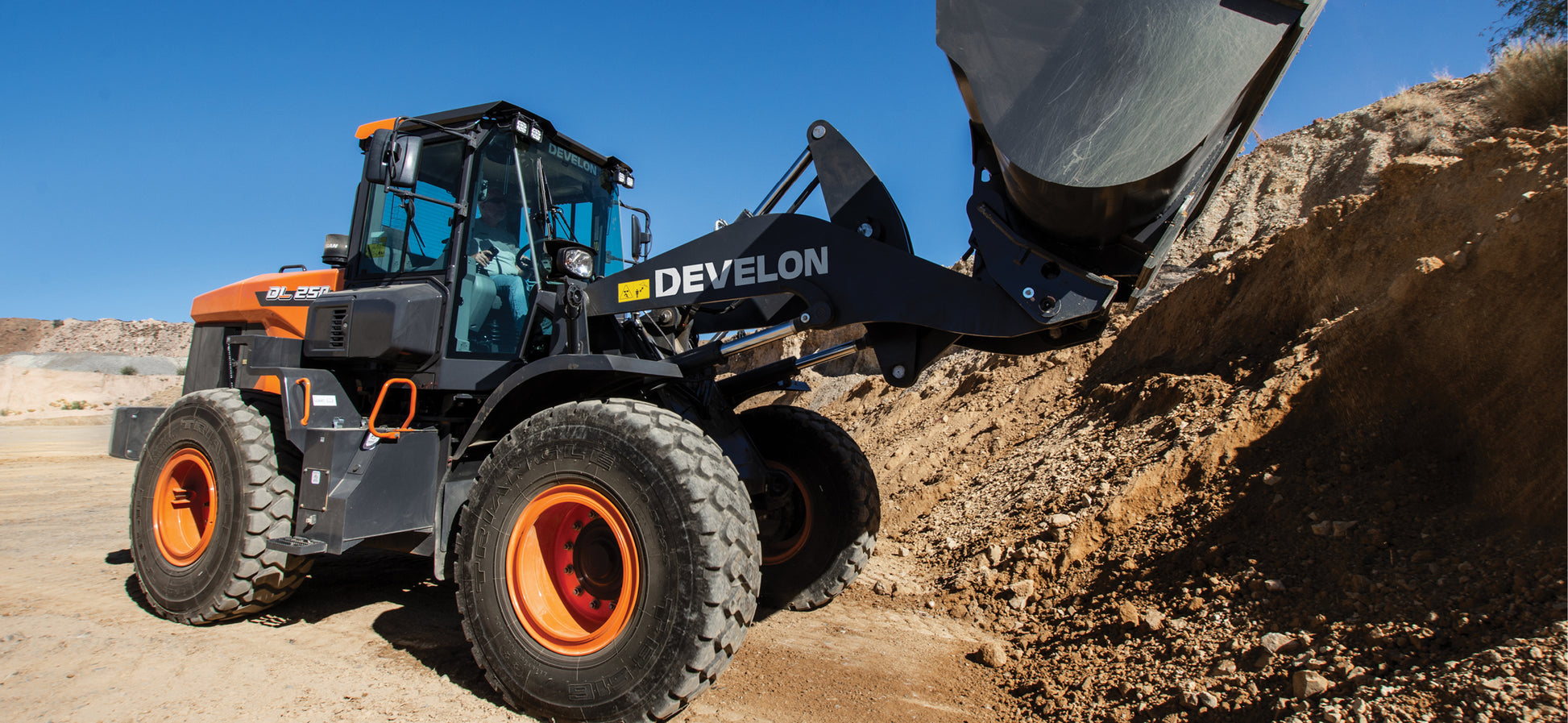

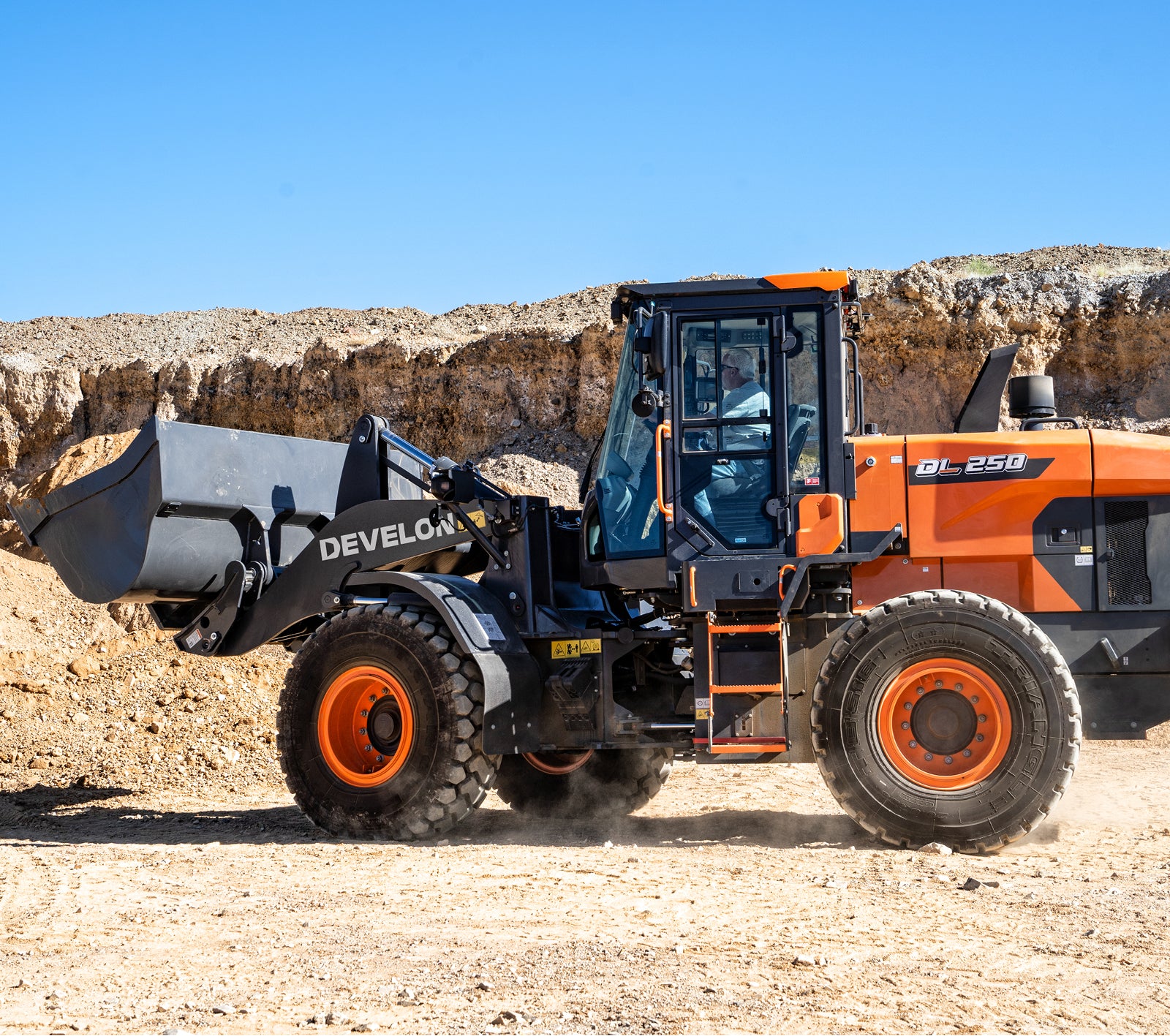

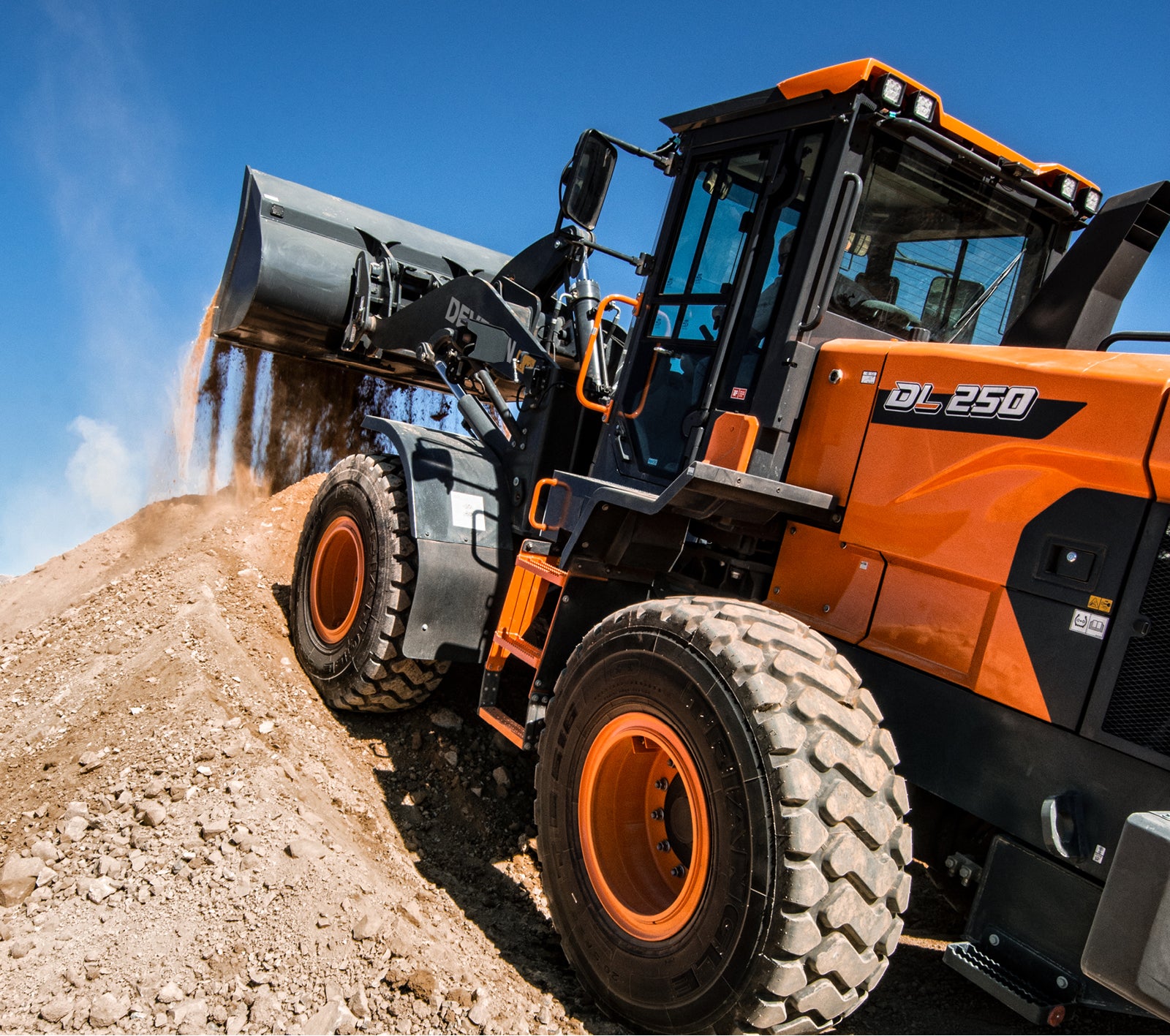

The DEVELON DL250-7 Wheel Loader is engineered to deliver superior power, efficiency, and durability for demanding construction, agricultural, and material handling tasks. With its 3.3-cubic-yard bucket capacity, this loader is ideal for heavy lifting, excavation, and high-sided material dumping.

Equipped with a ZF powershift transmission, the DL250-7 ensures seamless gear transitions and fuel optimization, while the standard Ride Control system reduces material loss when transporting loads over rugged terrain. The Z-bar lift arm linkage enhances breakout force, ensuring effortless digging in tough conditions.

With MY DEVELON fleet management, enhanced visibility features, and an ergonomic Smart Touch display, this wheel loader is designed for maximum uptime, precision, and operator comfort.

Key Features

  • Optimized Power & Efficiency 171.6-hp DEVELON engine ensures high breakout force and smooth performance.
  • Heavy-Duty Z-Bar Lift Arm Delivers superior lifting power and breakout force for tough material handling tasks.
  • High-Lift Option Provides additional reach for loading high-sided trucks and hoppers.
  • Ride Control System for Stability Minimizes shock absorption and material loss on uneven terrains.
  • Superior Transmission & Drivetrain ZF powershift transmission and reinforced axles for optimal traction and efficiency.
  • Enhanced Operator Comfort & Visibility Smart Touch display, Transparent Bucket system, rearview camera, and larger glass area.
  • Advanced Telematics & Maintenance Management MY DEVELON fleet monitoring ensures real-time diagnostics and optimized productivity.
  • Tier 4 Compliance for Clean Emissions HPCR fuel delivery, CEGR cooling, DOC, SCR, and DEF technology for reduced environmental impact.

Detailed Specifications

Category Specification
Engine Develon DL06, 6-cylinder
Rated Power (Net) 171.6 hp @ 2100 rpm
Max Torque 593 lbf·ft @ 1400 rpm
Displacement 5.9 L (360 in³)
Starter / Battery 24V, 8.6 hp / 2x12V, 100 AH, 900 CCA
Hydraulic Flow (each pump) 40.9 gpm (155 L/min)
Hydraulic Pressure (Work) 3843.5 psi (265 bar)
Hydraulic Pressure (Steer) 2828.2 psi (195 bar)
Bucket Capacity 3.3 yd³
Operating Weight 30,527 lb
Wheelbase 10 ft
Overall Height 10 ft 10 in
Overall Length 24 ft 6 in
Turning Radius (Bucket Edge) 19 ft 11 in
Static Tipping Load (Straight) 23,973 lb
Transmission Limited Slip Front/Rear
Travel Speed (FWD 4-speed) 3.98 / 7.3 / 14.2 / 23.3 mph
Travel Speed (FWD 5-speed) 3.7 / 7.5 / 11.5 / 17.2 / 24.9 mph (US15)
Max Gradeability 58% (30°)
Fuel Tank 62.1 gal (235 L)
DEF Tank 7.9 gal (30 L)
Cab Noise Level 70 dB(A)
External Noise Level 103 dB(A)
Cooling System 8.9 gal (34 L)
Engine Oil 6.5 gal (24.5 L)
Transmission Fluid 8.5 gal (32 L)
Hydraulic Reservoir 31.7 gal (120 L)
Axles (Front/Rear) 9.2 gal / 6.1 gal
Steering Cylinder (x2) 2.8" x 1.8" x 16.7" (70 mm x 45 mm x 425 mm)
Lift Arm Cylinders (x2) 4.5" x 3.0" x 31.1" (115 mm x 75 mm x 790 mm)
Bucket Cylinder (x1) 5.3" x 3.1" x 20.3" (135 mm x 80 mm x 515 mm)
