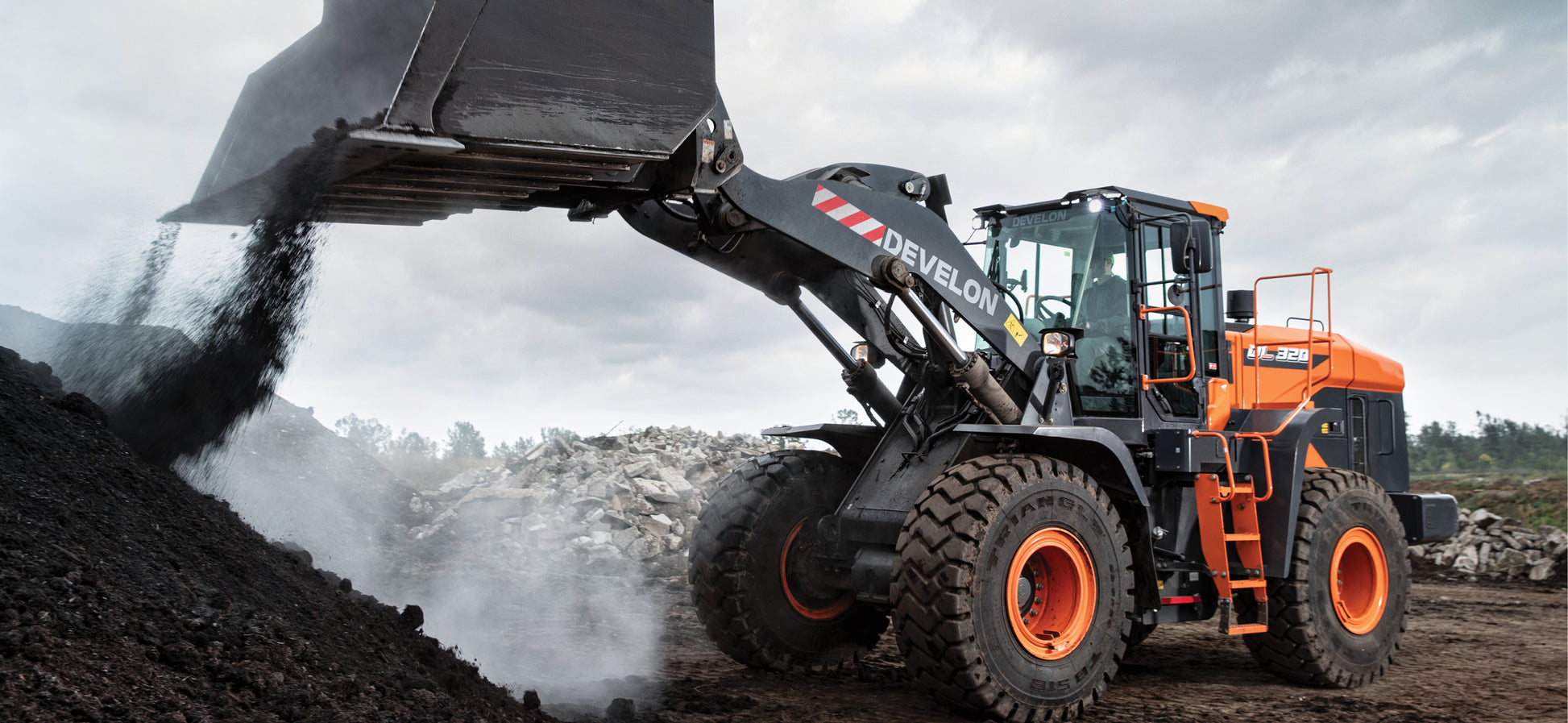

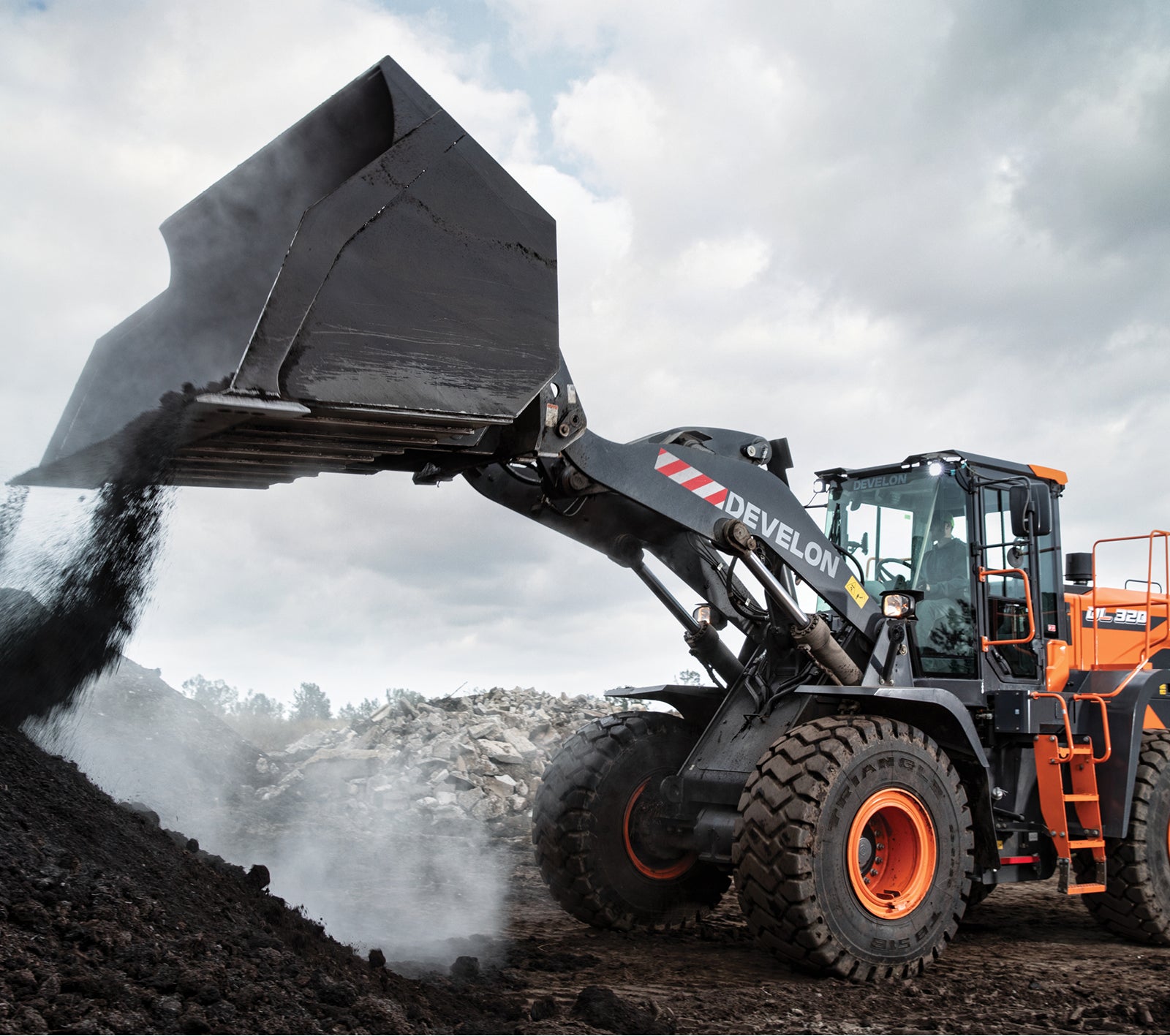

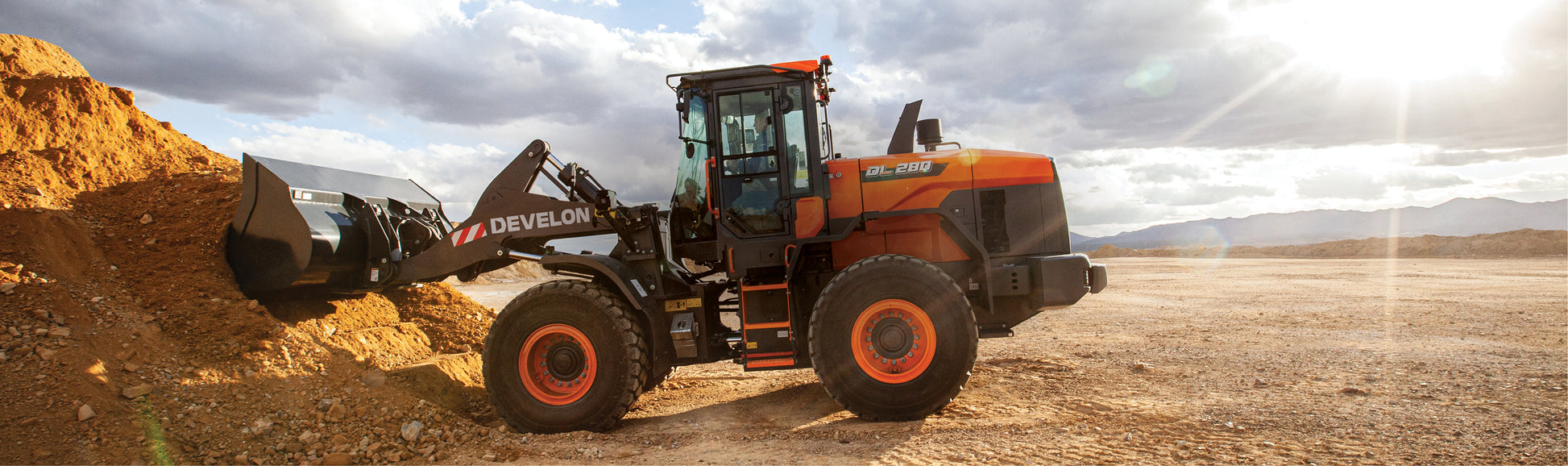

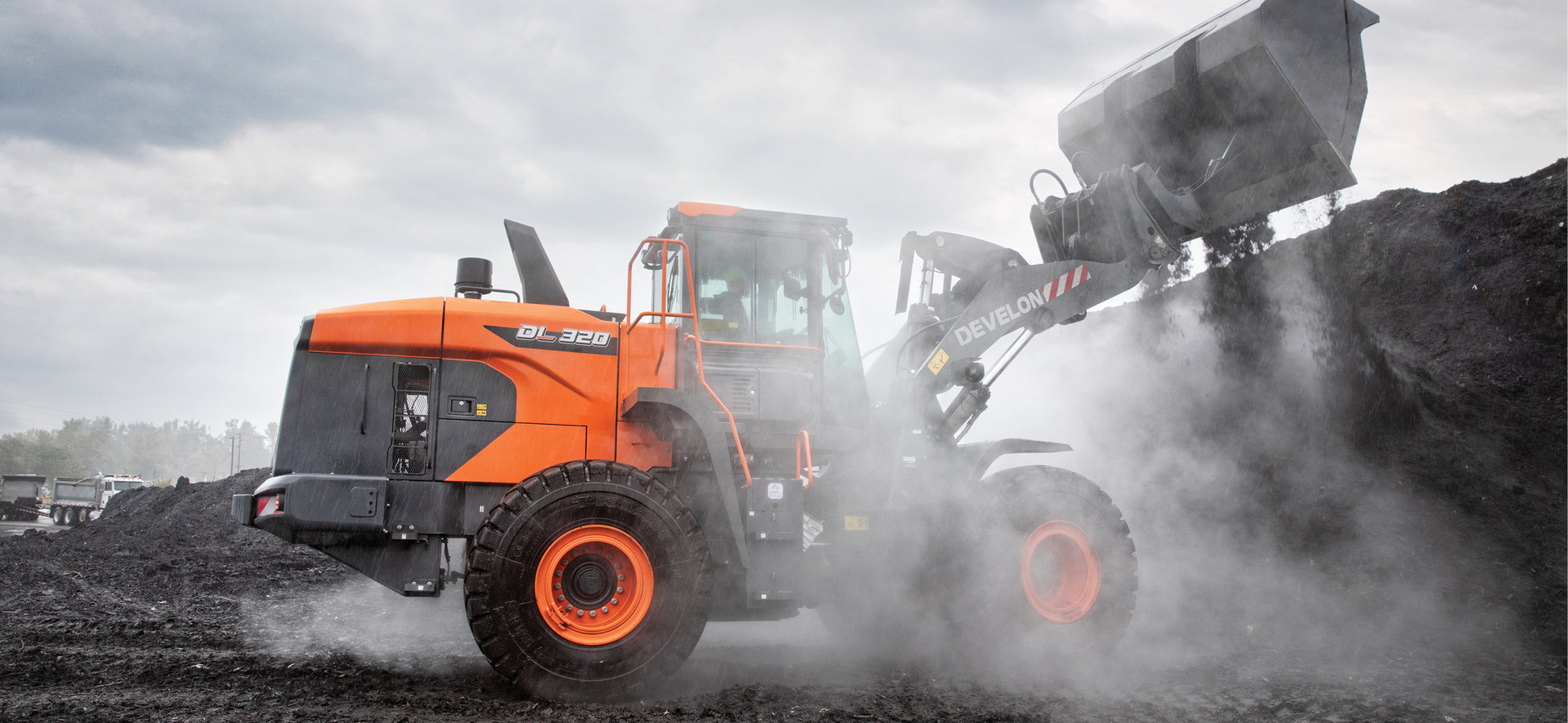

Develon | Wheel Loader | Model DL320-7 | Width 9' 6.9" | Horsepower 270.9 HP | For Construction, Material Handling, & Agriculture

Develon | Wheel Loader | Model DL320-7 | Width 9' 6.9" | Horsepower 270.9 HP | For Construction, Material Handling, & Agriculture

$1.00
$1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Powerful Engine Performance: 270.9 HP DEVELON DL08 engine ensures smooth and efficient operation.
  • High-Capacity Bucket: 4.6 yd³ bucket enables improved load handling and reduced cycle times.
  • Optimized Hydraulic Flow: 38.3 gal/min flow rate offers precision control and rapid movement.
  • Improved Maneuverability: Limited slip front/rear differentials provide responsive traction across tough terrains.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1: Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

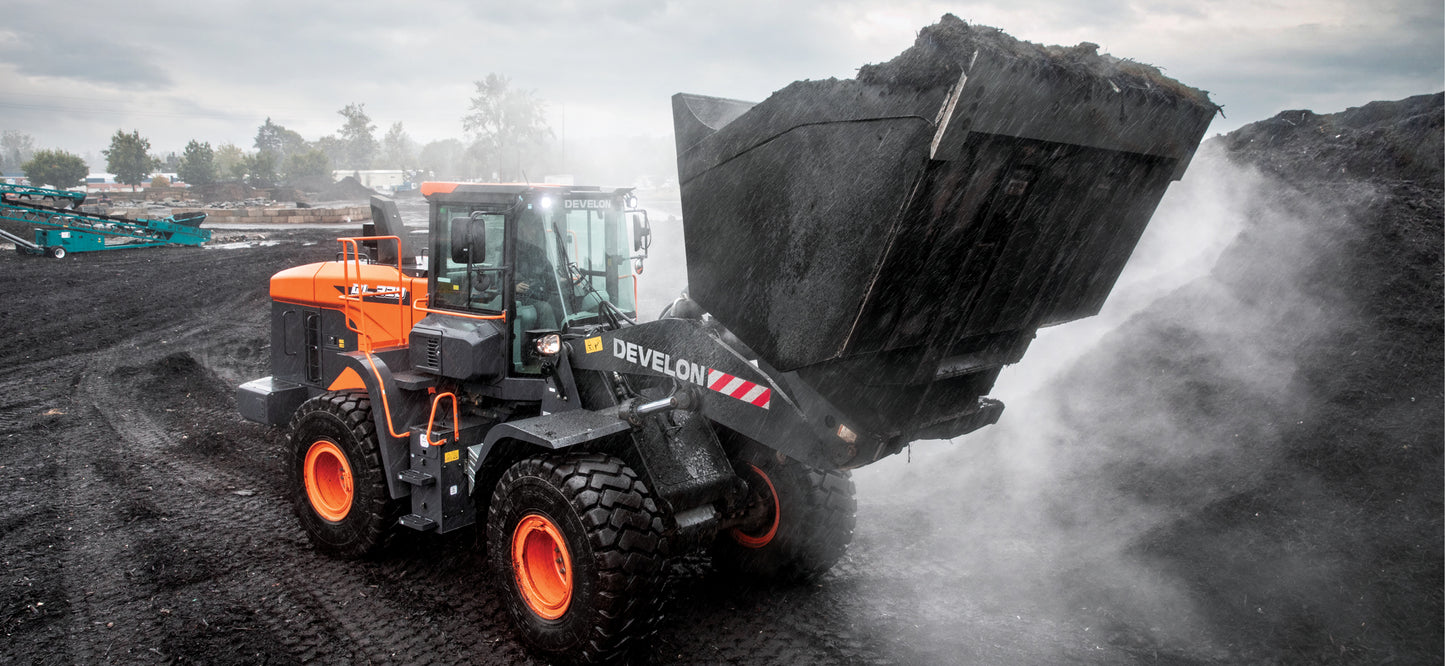

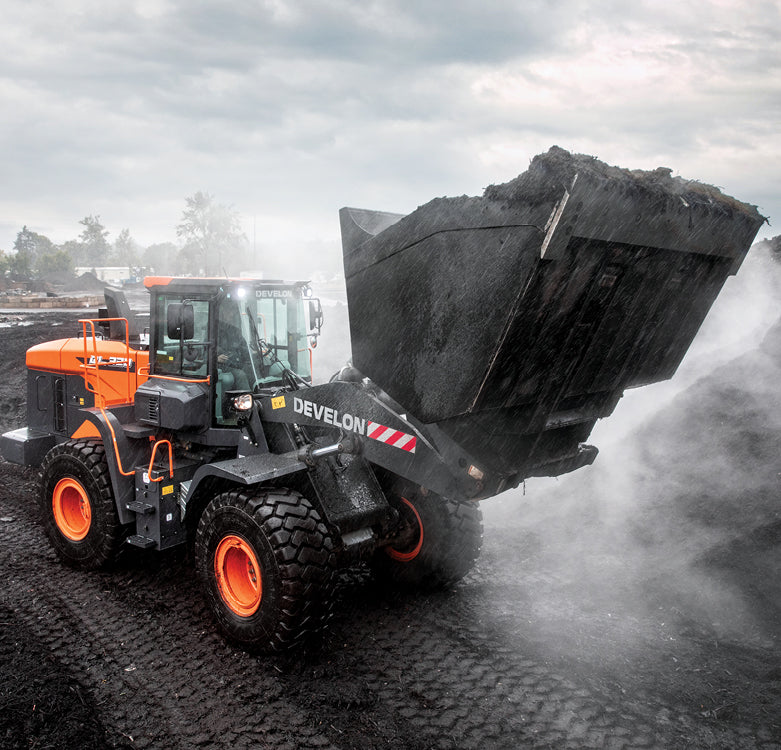

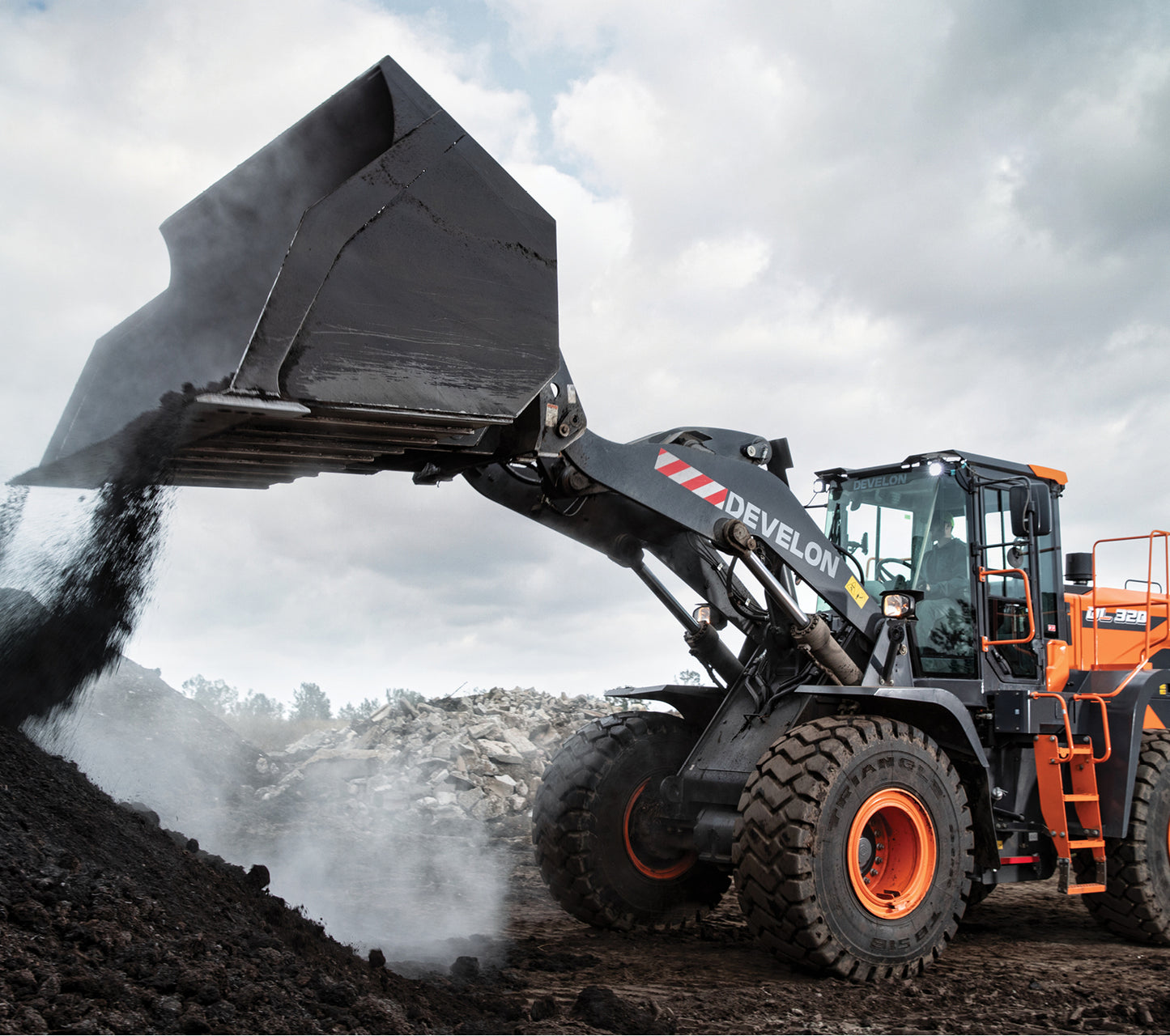

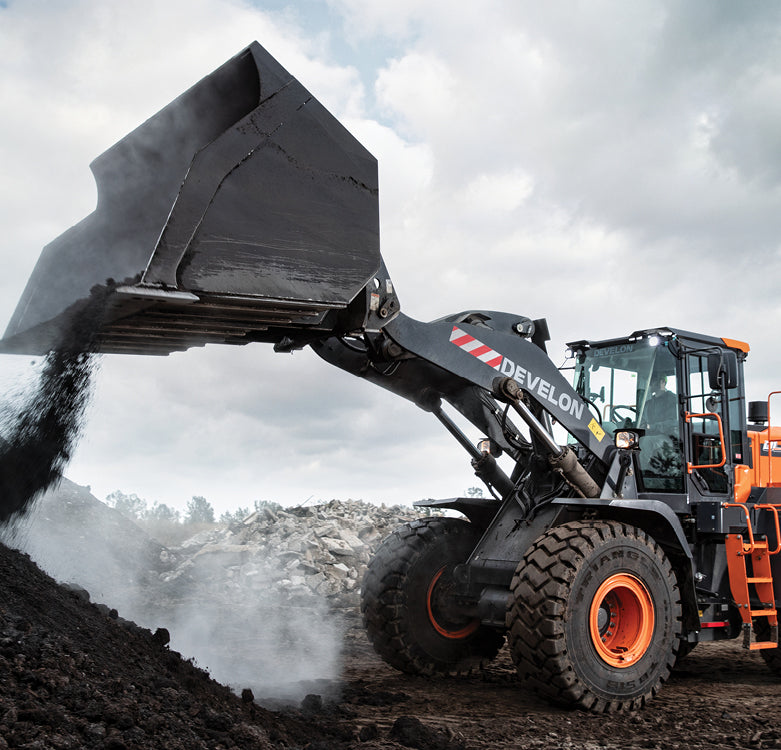

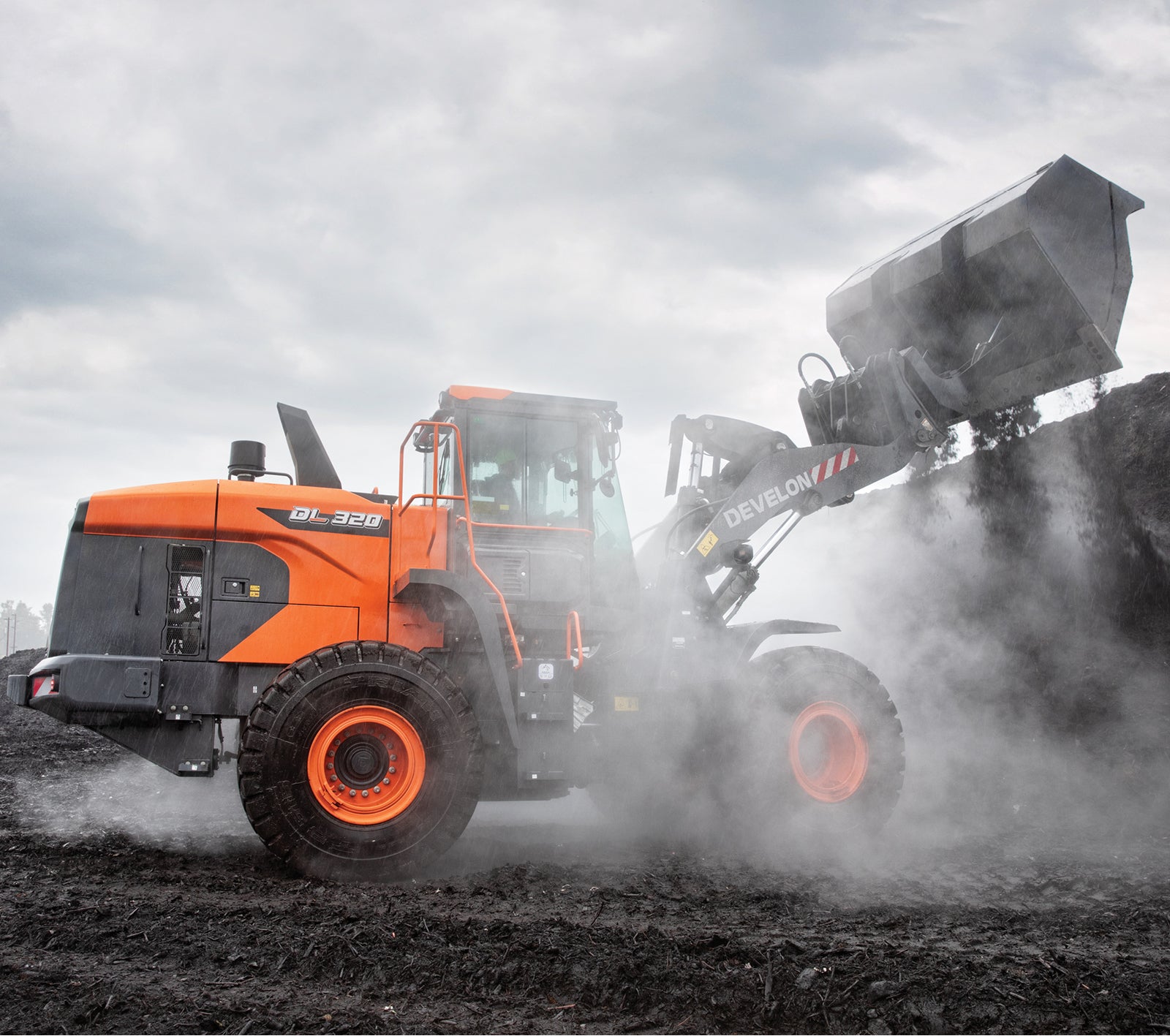

Develon | Wheel Loader | Model DL320-7 | Width 9' 6.9" | Horsepower 270.9 HP | For Construction, Material Handling, & Agriculture



DESCRIPTION

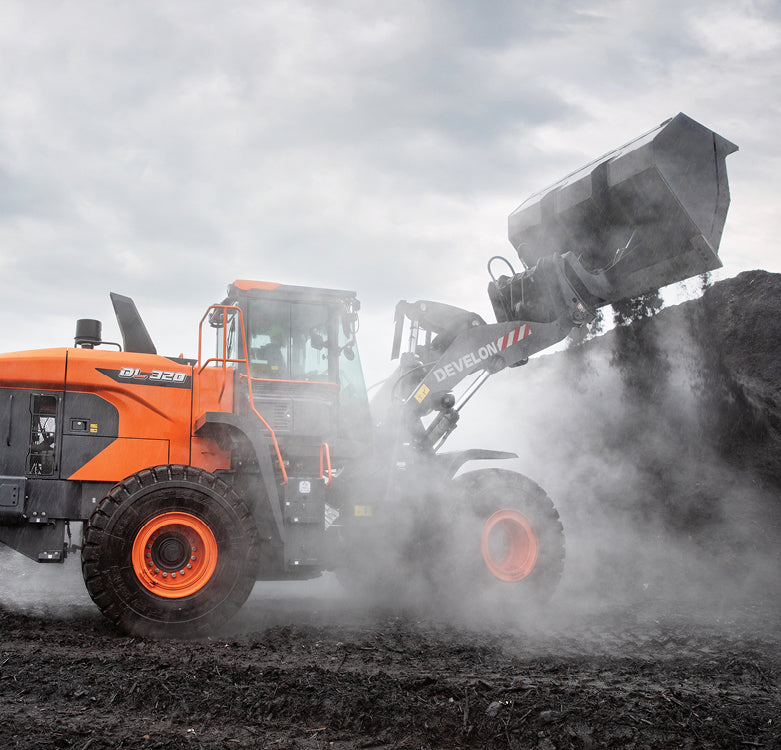

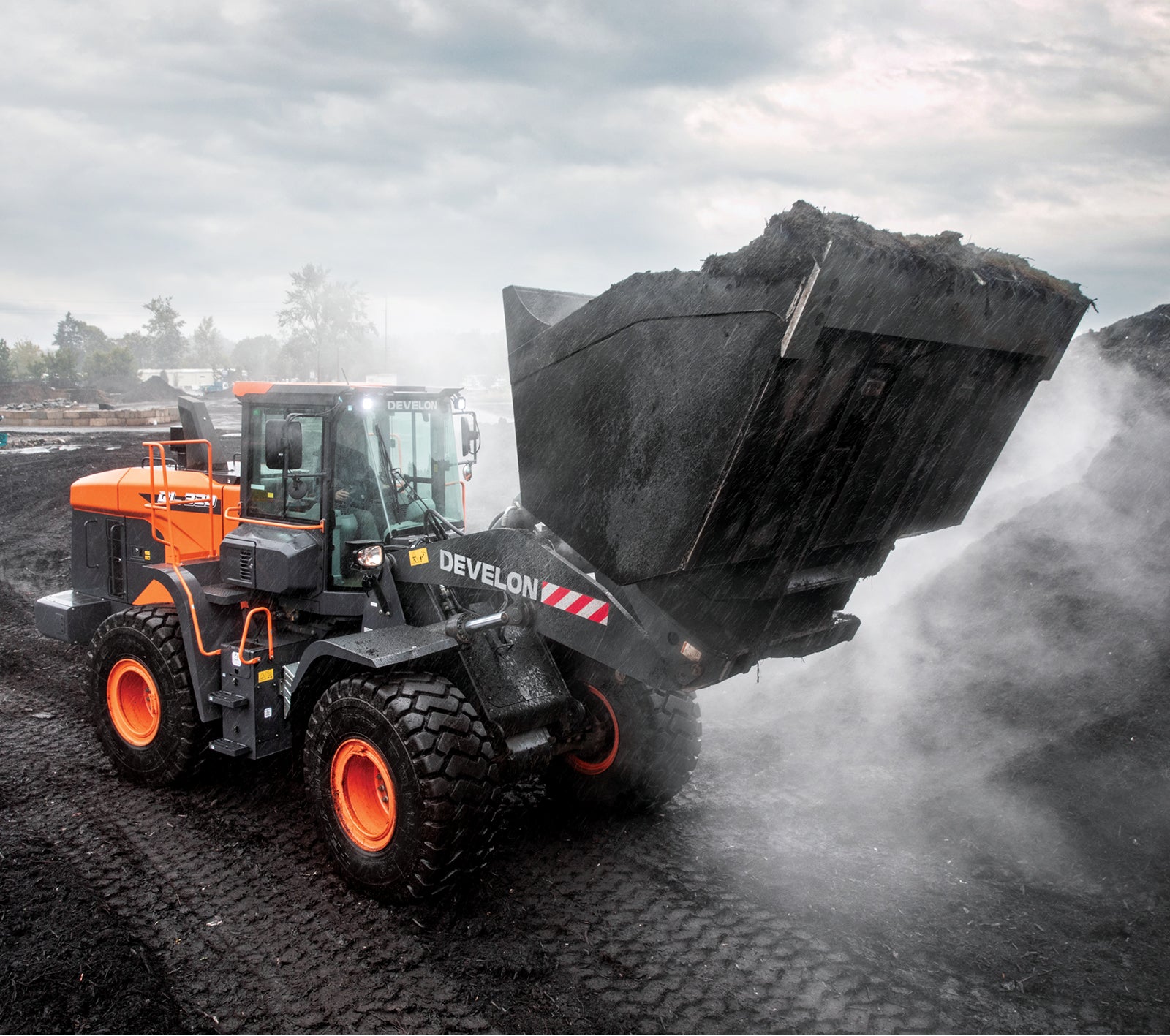

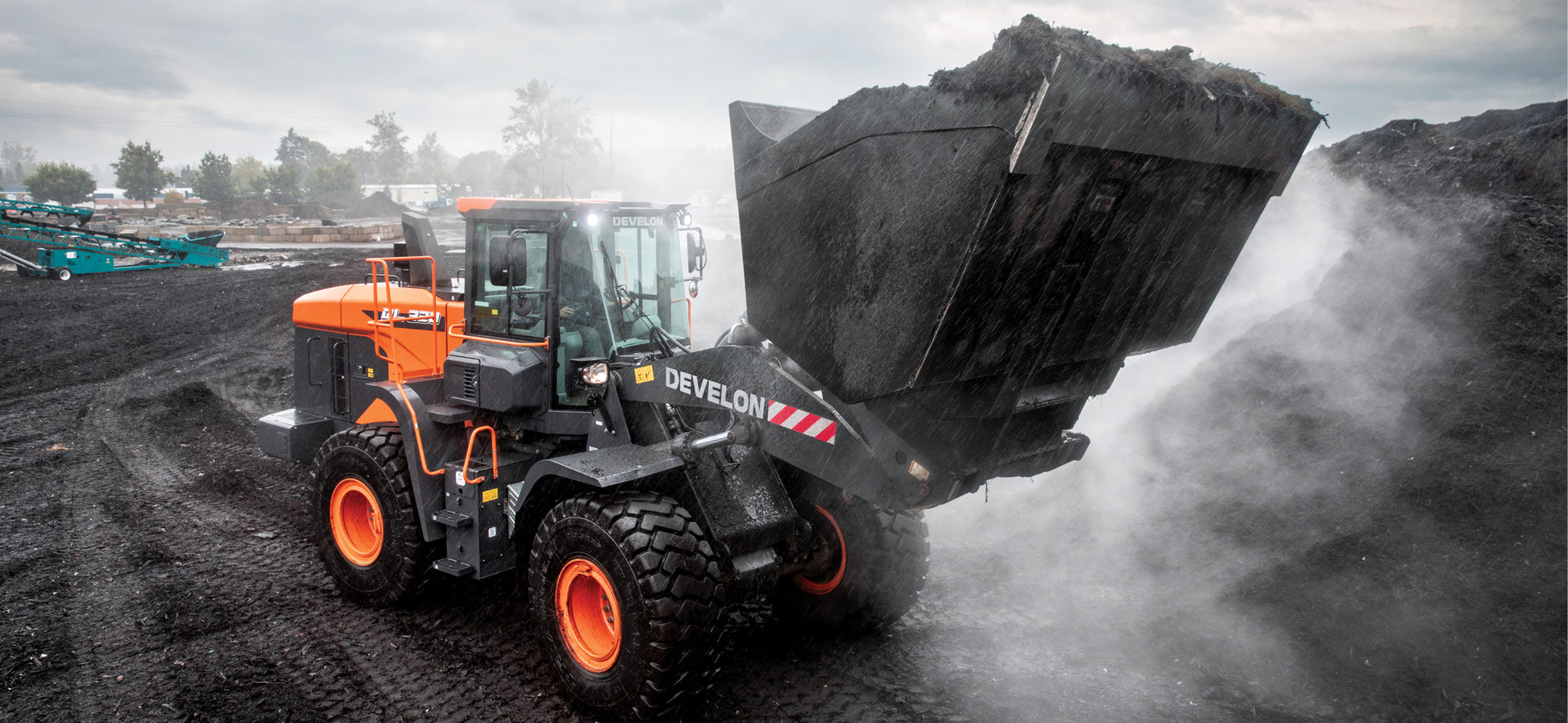

Power, precision, and premium engineering come together in the DEVELON DL320-7 Wheel Loader, a robust mid-size performer engineered to meet the rigorous demands of heavy-duty applications. Designed with operator comfort, intelligent control systems, and unmatched durability at its core, the DL320-7 lets you move more material with less effort hour after hour.

This next-generation wheel loader features a 7% larger bucket capacity, limited-slip differentials, and a high-torque DEVELON DL08 engine that cranks out 270.9 horsepower. Its reinforced box frame and intelligent features like the Transparent Bucket system and Smart Load Weighing system ensure maximum efficiency with minimum downtime.

Whether you’re managing aggregate yards, loading high-sided trucks, or navigating job sites in demanding environments, the DL320-7 brings outstanding visibility, high breakout force, superior lift capacity, and a refined cab experience that puts full control in your hands.

Key Features

  • Powerful Engine Performance: 270.9 HP DEVELON DL08 engine ensures smooth and efficient operation.
  • High-Capacity Bucket: 4.6 yd³ bucket enables improved load handling and reduced cycle times.
  • Optimized Hydraulic Flow: 38.3 gal/min flow rate offers precision control and rapid movement.
  • Improved Maneuverability: Limited slip front/rear differentials provide responsive traction across tough terrains.
  • Exclusive Transparent Bucket Technology: Enhances visibility by allowing operators to “see-through” the bucket from an in-cab display.
  • Ride Control System: Improves vehicle stability for higher productivity while transporting materials.
  • Advanced Cooling System: Wider radiator fin spacing and a reversible fan efficiently clears debris for uninterrupted performance.
  • DEVELON Smart Touch Display: User-friendly screen provides real-time monitoring of machine settings, diagnostics, and the rearview camera.
  • Smart Fuel Efficiency: SAT (Situation Awareness Technology) dynamically adjusts engine output to optimize fuel savings.
  • Enhanced Cab Design: 14% more glass area, full-glass door, larger mirrors, and optional LED work lights improve visibility for safer operations.

Detailed Specifications

Category Specification
Engine DEVELON DL08, 6-cylinder, 7.64 L
Rated Power (Net) 270.9 hp @ 1800 rpm
Max Torque (Gross) 940 lb-ft @ 1300 rpm
Fuel System HPCR + CEGR + DOC + SCR (Tier 4 Compliant)
Hydraulic System 79.3 GPM max flow, 3626 psi (work), 3118 psi (steering)
Boom Speed (Up/Down) 5.8 sec / 2.9 sec
Bucket Speed (Crowd/Dump) 2.0 sec / 1.6 sec
Transmission 4-speed powershift (optional 5-speed)
Travel Speed (F/R) Up to 24.9 mph forward, 17.7 mph reverse
Max Gradeability 51% (27°)
Weights & Capacities
Operating Weight 43,572 lb
Bucket Capacity 4.6 yd³
Static Tipping Load 34,453 lb (straight)
Fuel Tank 76.9 gal
DEF Tank 16.4 gal
Hydraulic System 45.7 gal
Cooling System 11.9 gal
Dimensions
Overall Height 11' 6"
Overall Length 27' 3"
Wheelbase 10' 10"
Turning Radius 21' 8" at bucket edge
Noise Levels
External (ISO 6395) 105 dB(A)
Cab (ISO 6396) 67 dB(A)
