Product Description

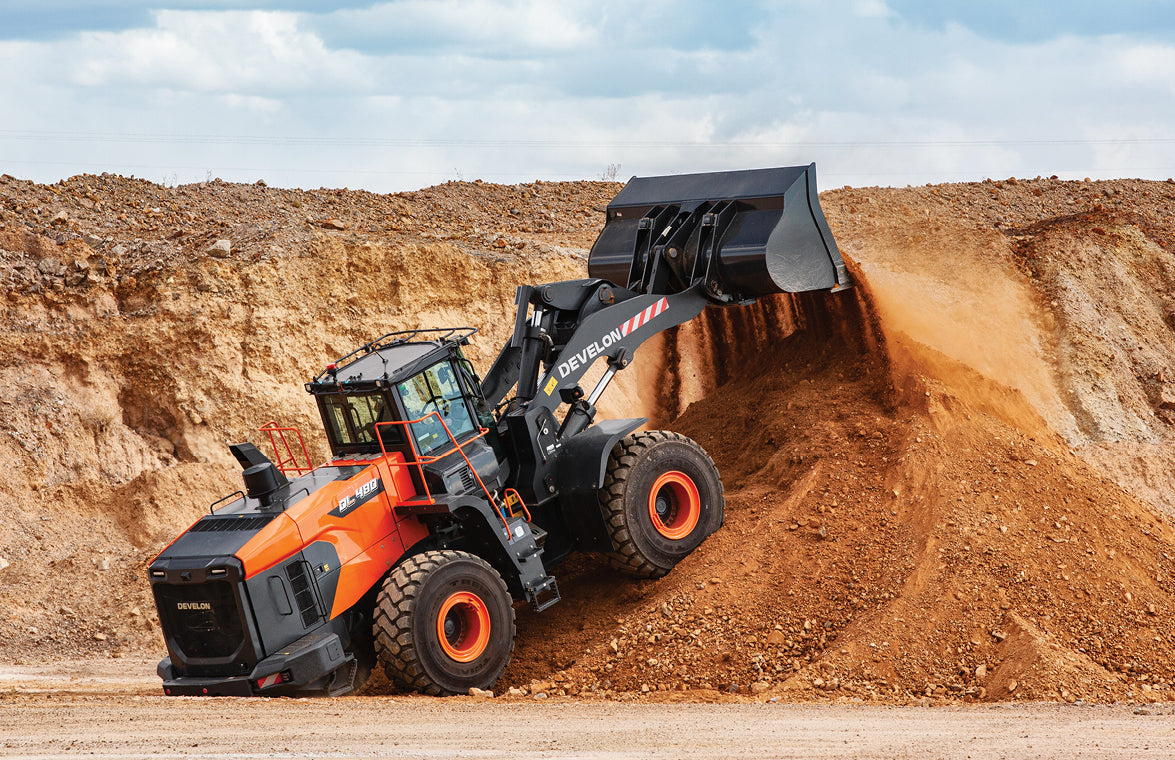

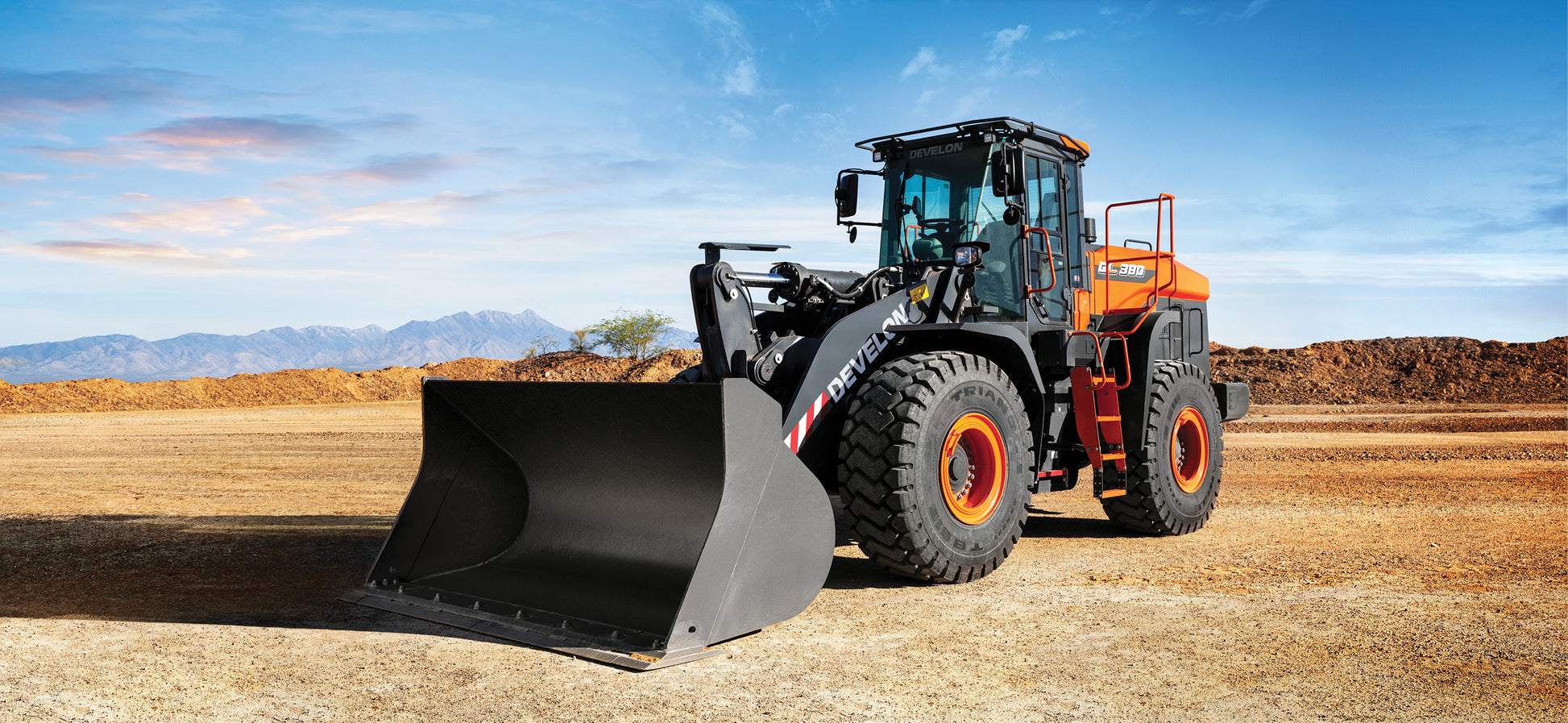

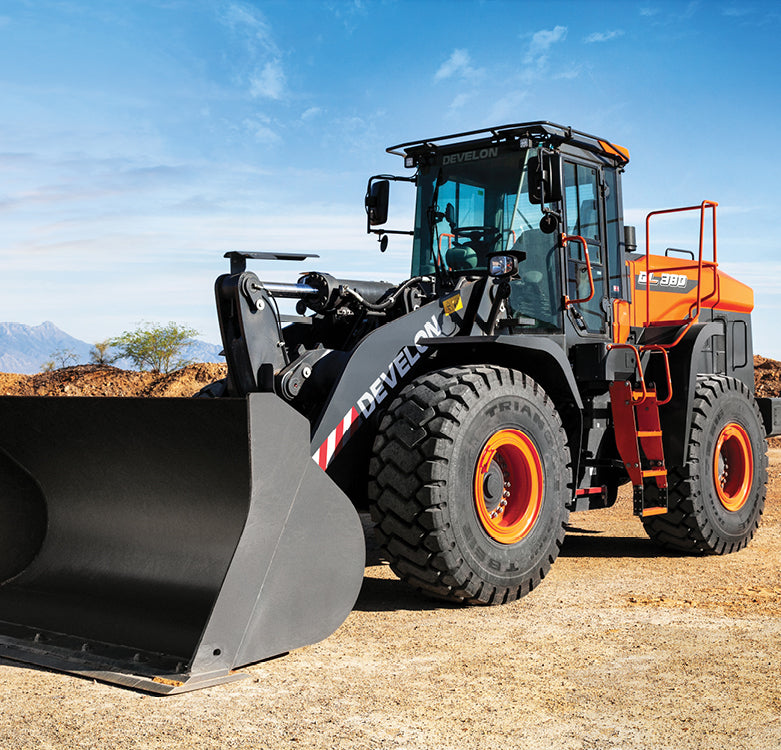

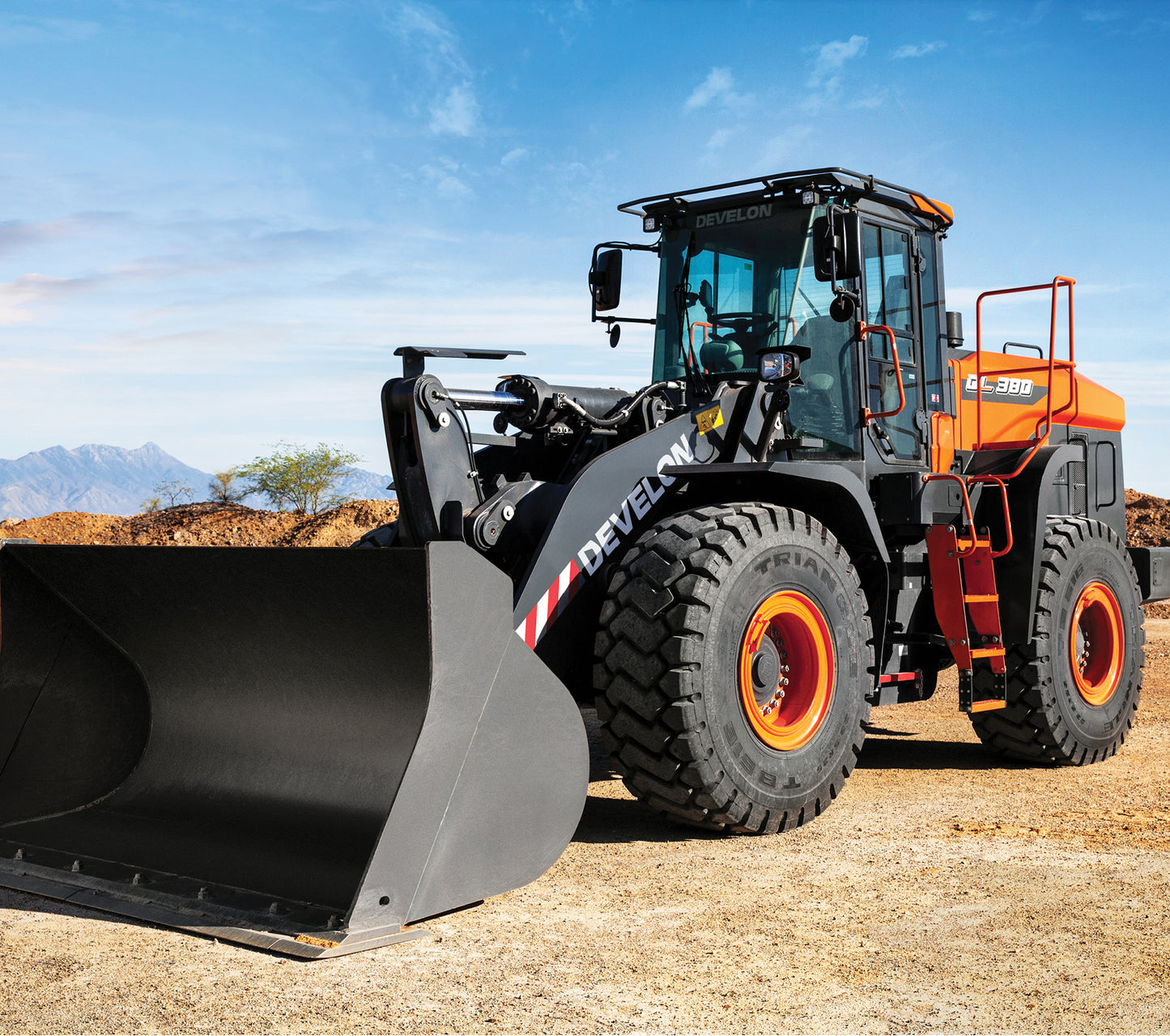

Develon | Wheel Loader | Model DL380-7 | Width 10' 2.4" | Horsepower 270.9 HP | For Heavy Lifting in Construction, Mining, & Material Handling
DESCRIPTION
Experience unstoppable power, superior control, and operator-focused innovation with the DEVELON DL380-7 Wheel Loader a rugged workhorse engineered for high-demand operations in construction, aggregates, agriculture, and more. Designed with a reinforced structure, smarter cab features, and unmatched lifting capabilities, the DL380-7 redefines productivity and reliability in its class.
From the moment you start the machine using the exclusive DEVELON Smart Key, the DL380-7 is ready to deliver. Its powerful 270.9 horsepower engine and high-flow hydraulics work seamlessly with intuitive controls, a large-capacity bucket, and advanced cooling systems. The high-lift configuration and smart Ride Control enable smooth operation even with full loads and rough terrain.
Inside the cab, operators will appreciate increased glass visibility, ergonomic layout, reduced noise, and the DEVELON Smart Touch screen offering complete system awareness, rear camera visuals, and full control over critical settings. Maintenance has never been easier, thanks to centralized service points, real-time diagnostics, and remote monitoring via the MY DEVELON fleet management platform.
Whether you're moving heavy aggregate, loading trucks, or clearing snow, the DL380-7 stands ready with muscle, precision, and operator comfort built into every bolt.
Key Features
- Powerful Performance 270.9-hp DEVELON engine ensures smooth, high-torque operation and efficient fuel consumption.
- Heavy-Duty Z-Bar Lift Arm Delivers high breakout force, making material handling effortless even in tough conditions.
- High-Lift Option Extended reach for loading high-sided trucks, bins, and processing plants.
- Ride Control System for Stability Reduces material loss while traveling on rugged terrains.
- Enhanced Transmission & Hydraulic Flow ZF powershift transmission and 68.7 GPM hydraulic flow provide fluid movement and increased efficiency.
- Operator-Centric Visibility & Comfort Smart Touch display, Transparent Bucket system, rearview camera, and expanded glass area.
- Advanced Telematics & Fleet Management MY DEVELON ensures real-time tracking, diagnostics, and optimized fuel usage.
- Tier 4 Compliance & Clean Emissions HPCR fuel system, CEGR cooling, DOC, SCR, and DEF integration reduce environmental impact.
Detailed Specifications
| Category | Specification |
|---|---|
| Engine | DEVELON DL08, 6-cylinder, 270.9 hp @ 1800 rpm |
| Displacement | 7.6 L (466 in³) |
| Max. Torque | 940 lbf·ft @ 1300 rpm |
| Hydraulic Flow | 68.7 gal/min |
| System Pressure (Work) | 3844 psi |
| Operating Weight | 45,022 lb |
| Bucket Capacity | 5.1 yd³ |
| Overall Length | 27' 3" |
| Overall Height | 11' 6" |
| Wheelbase | 10' 10" |
| Turning Radius | 21' 10" at bucket edge |
| Transmission | Powershift 4-speed (5-speed optional) |
| Travel Speeds (Fwd) | 3.7 / 7.3 / 14.5 / 22.4 mph (4-speed) |
| 3.8 / 7.1 / 10.9 / 17.0 / 24.9 mph (5-speed) | |
| Travel Speeds (Rev) | Up to 17.9 mph (5-speed) |
| Axles | Limited Slip Front & Rear |
| Fuel Capacity | 76.9 gal |
| DEF Capacity | 16.4 gal |
| Cabin Sound Level | 68 dB(A) |
| External Sound Level | 105 dB(A) |
| Lift Arm Cylinder | 5.9" x 3.7" x 31.5" |
| Bucket Cylinder | 7.1" x 4.1" x 21.1" |

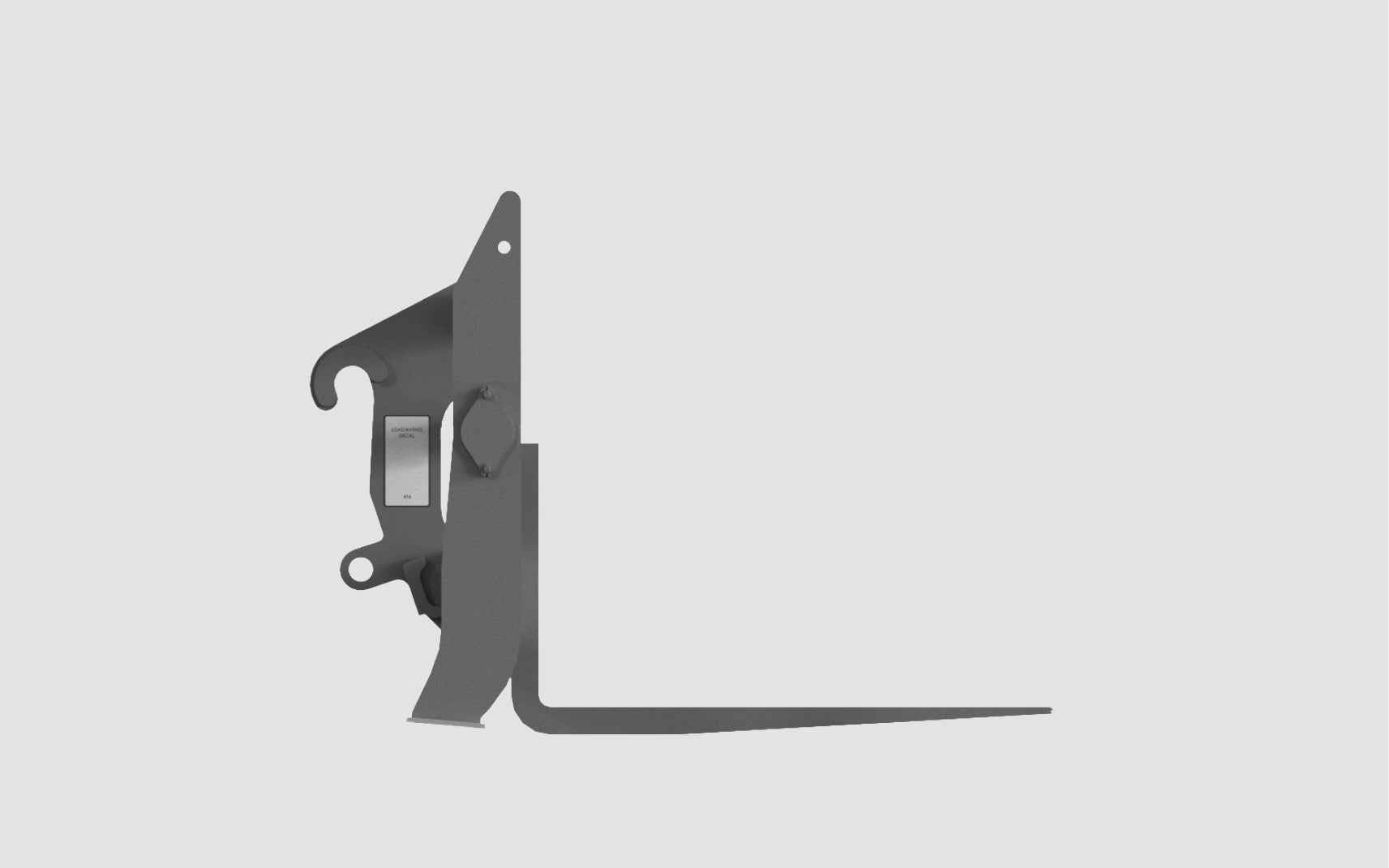

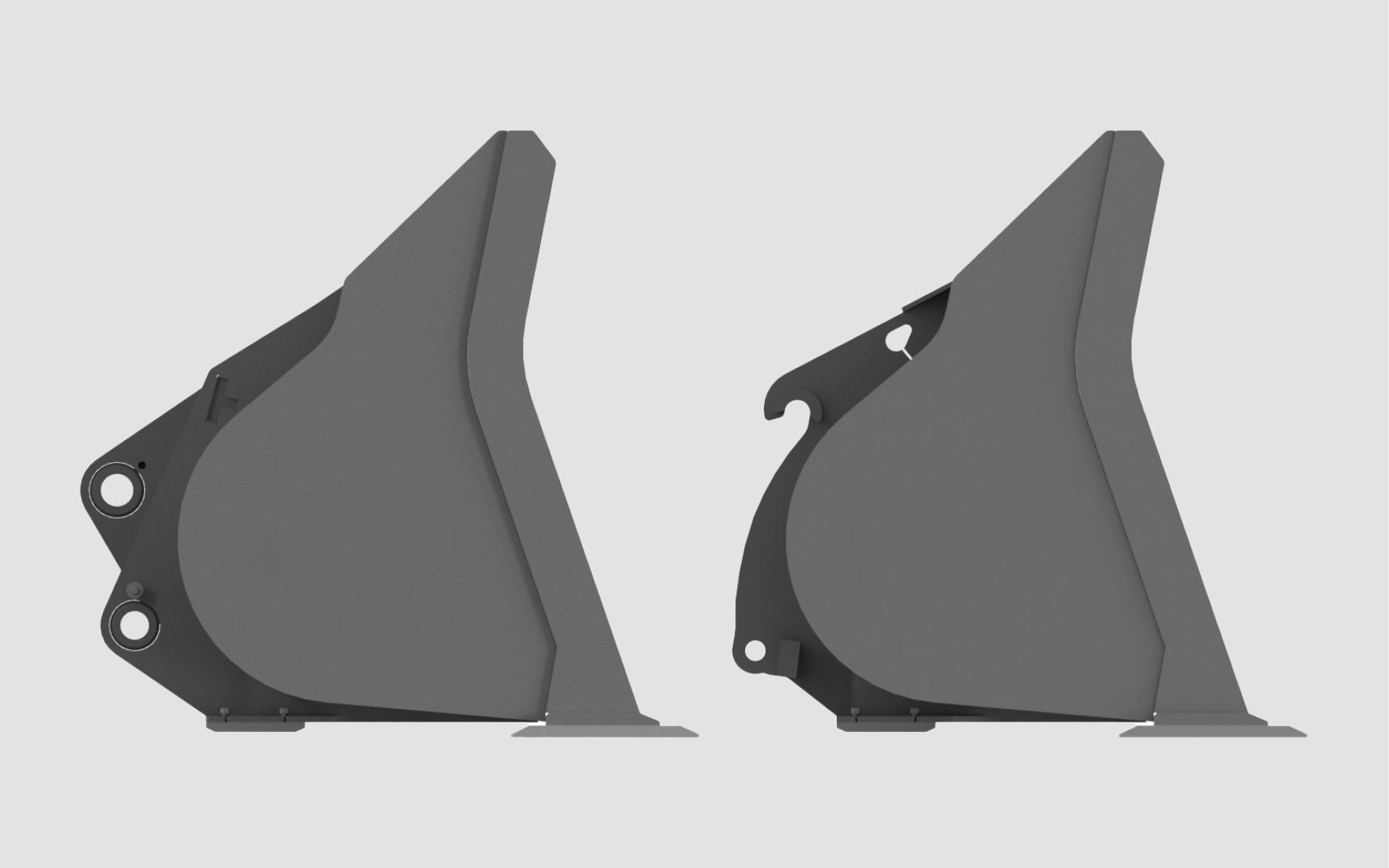

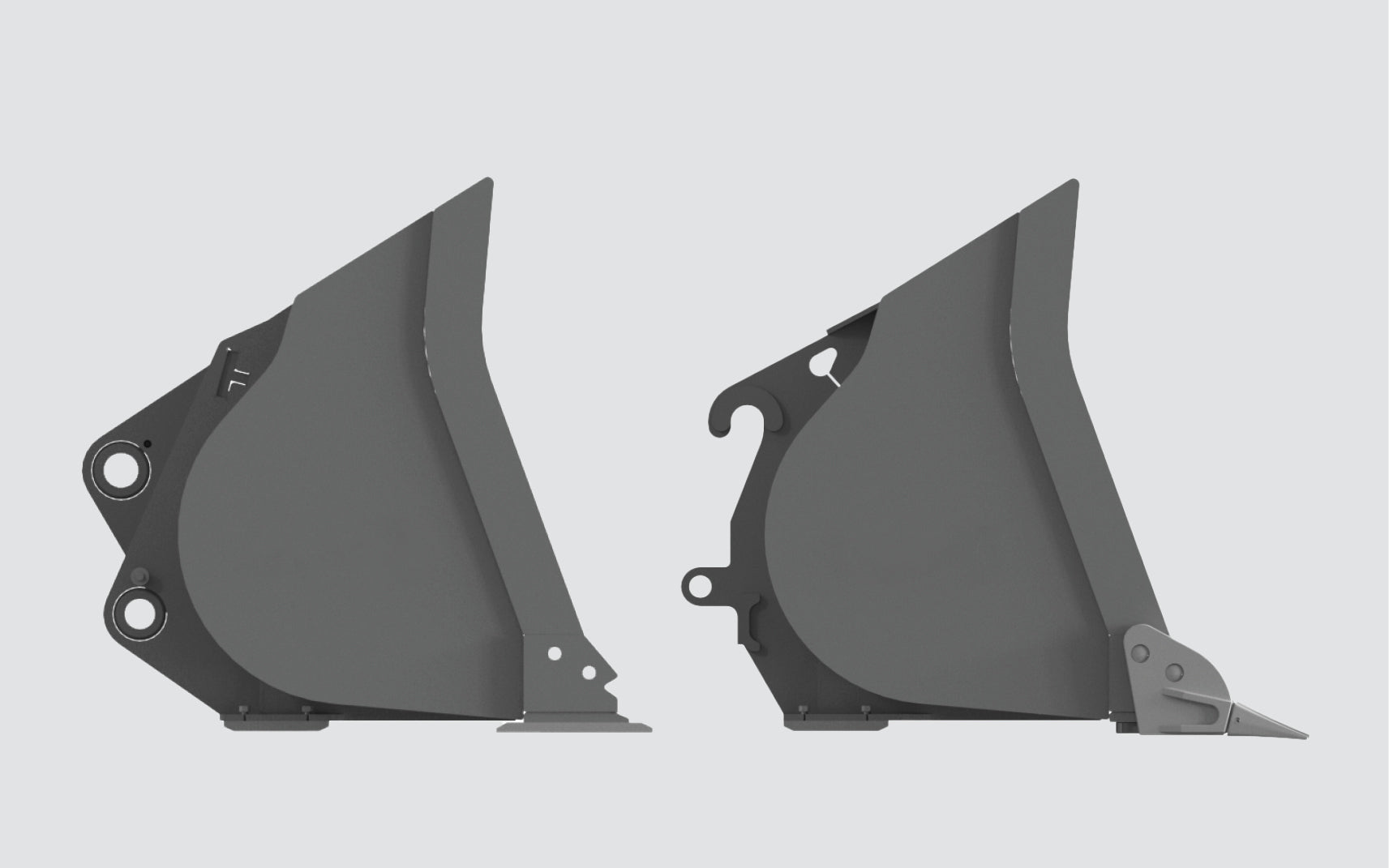

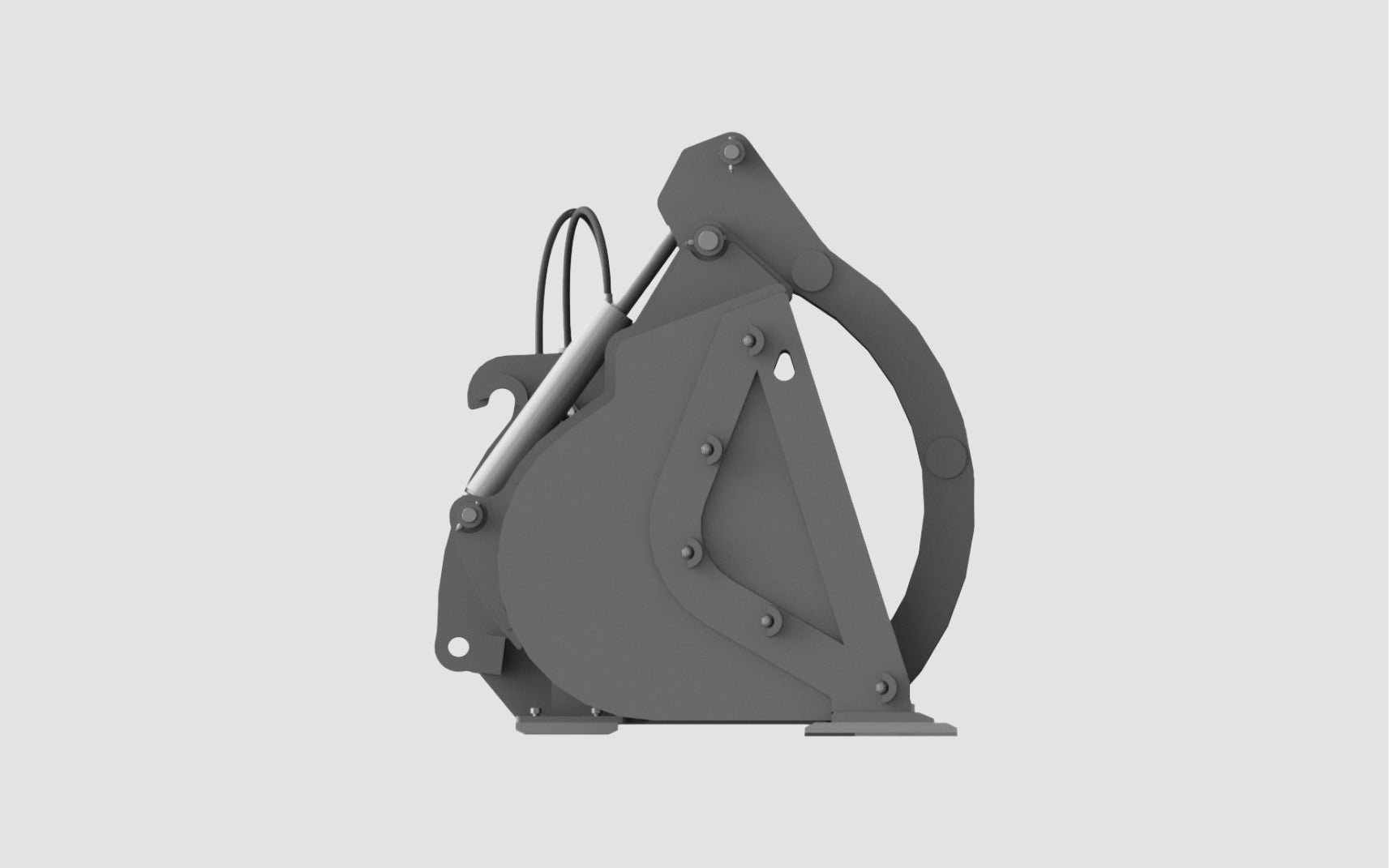

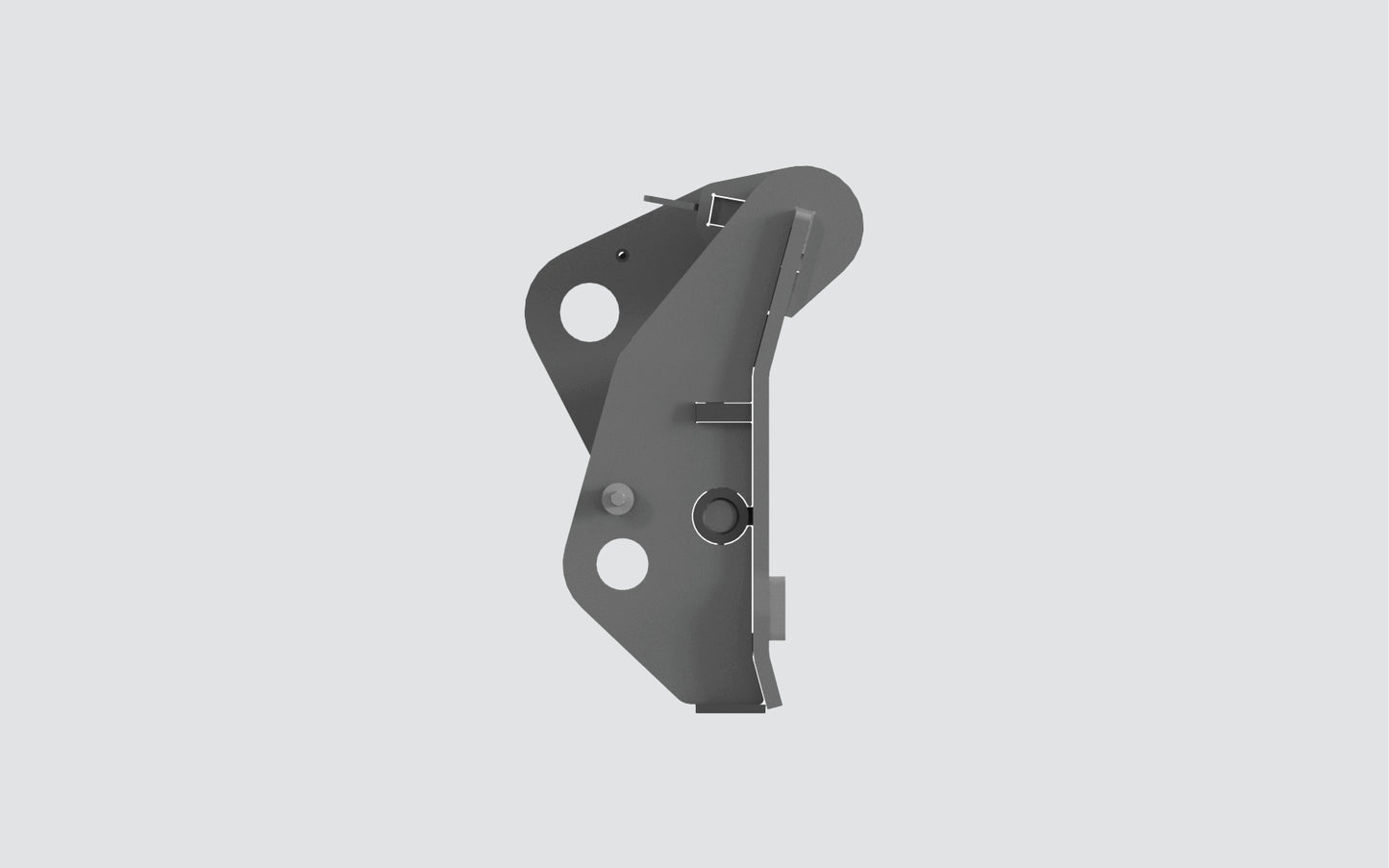

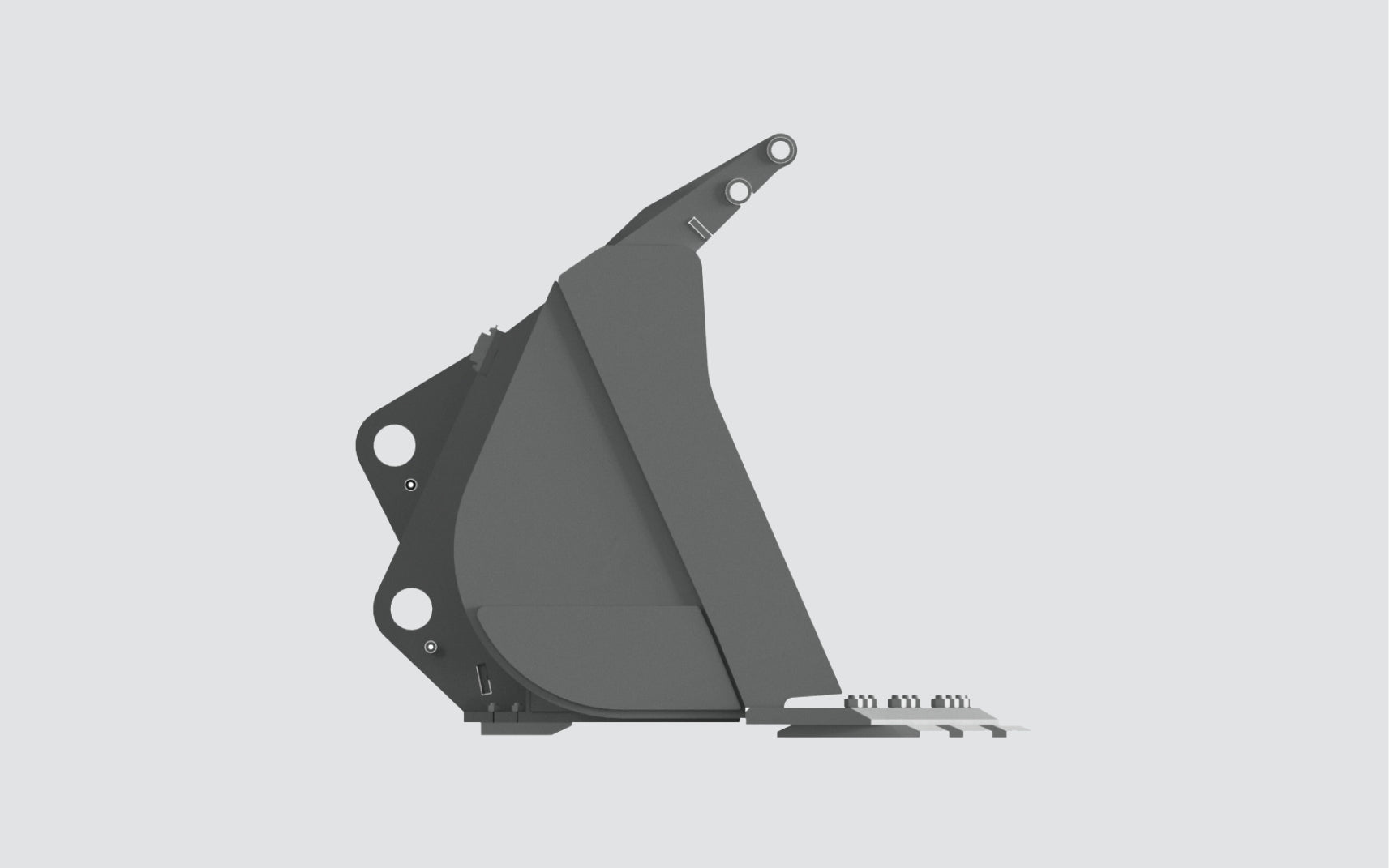

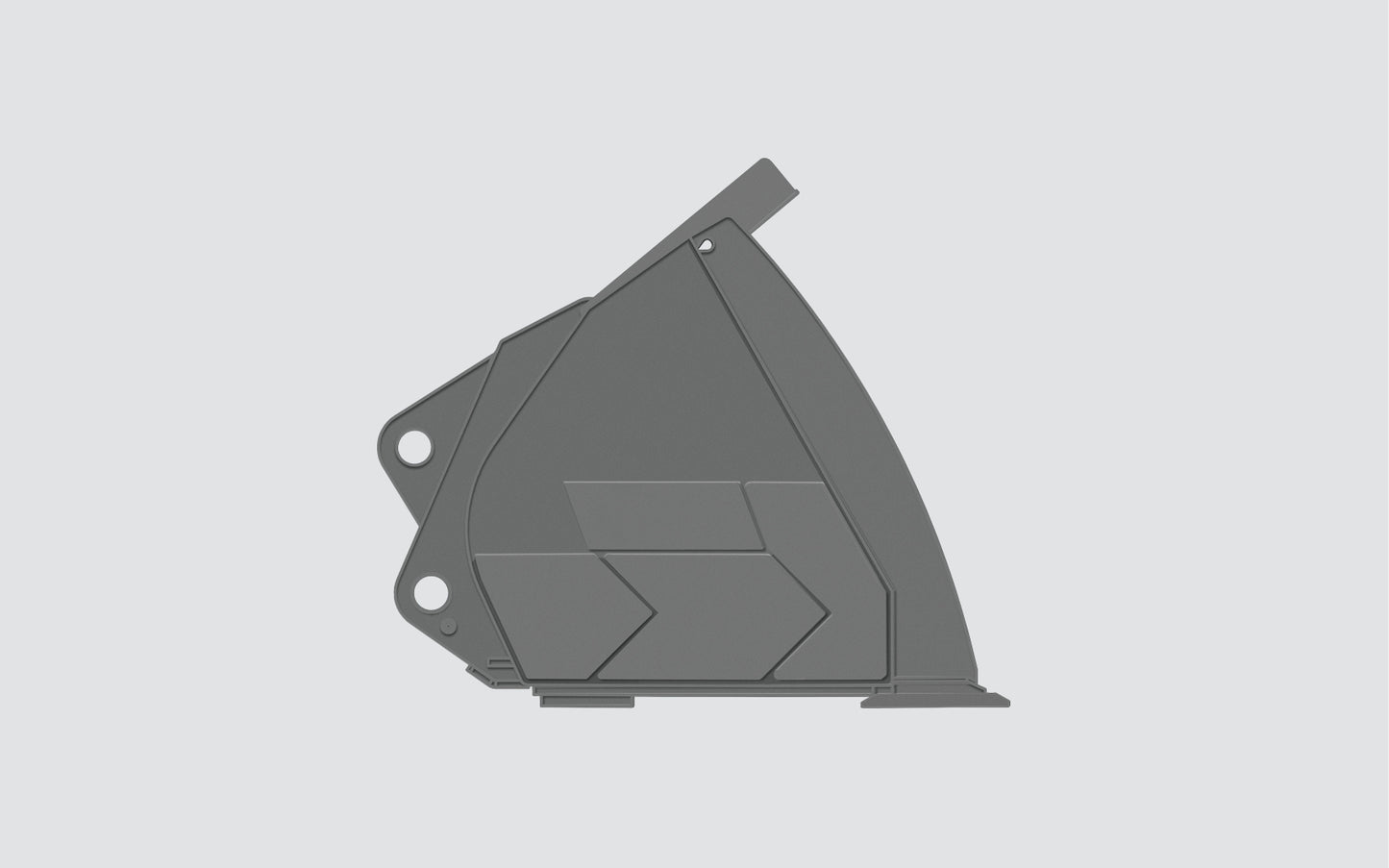

| Approved Attachments | General Purpose, Aggregate, Light Material Buckets, Pallet Forks, Rock and Grapple Buckets, Quick Coupler |
Manuals & Documents
Product Brochure
Product Specification
