Product Description

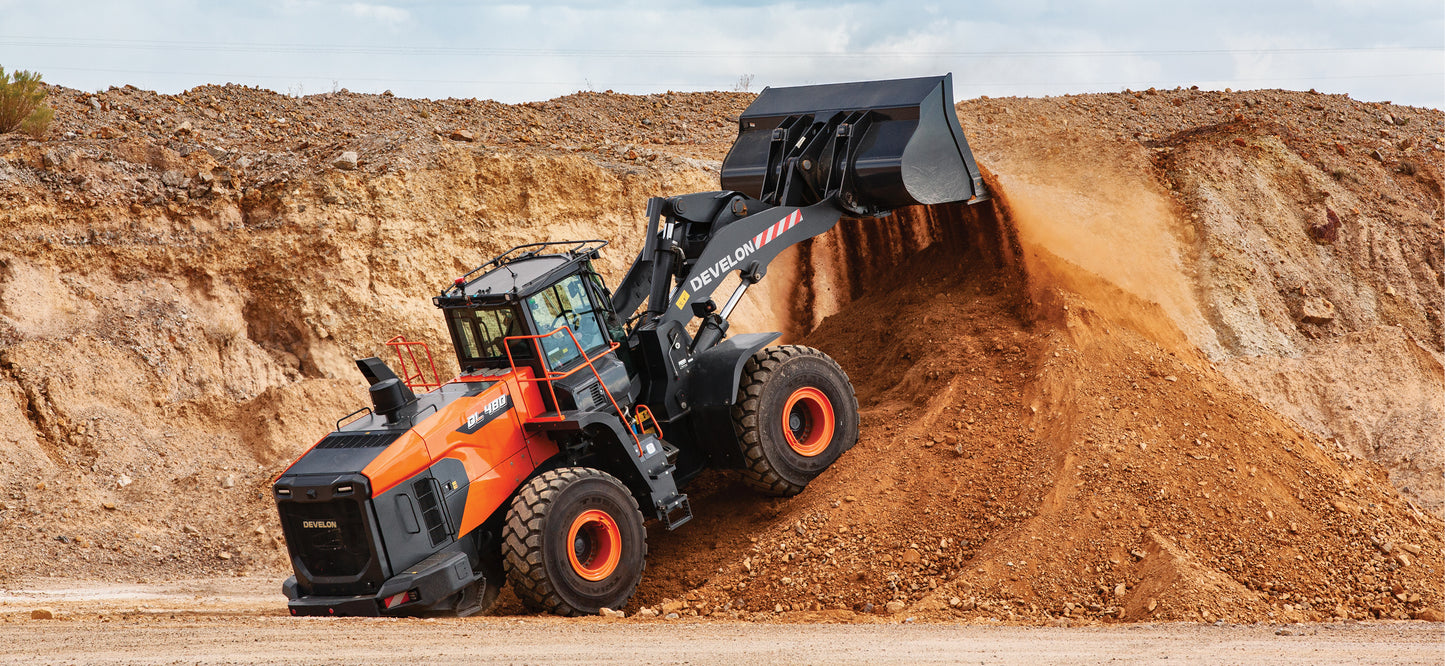

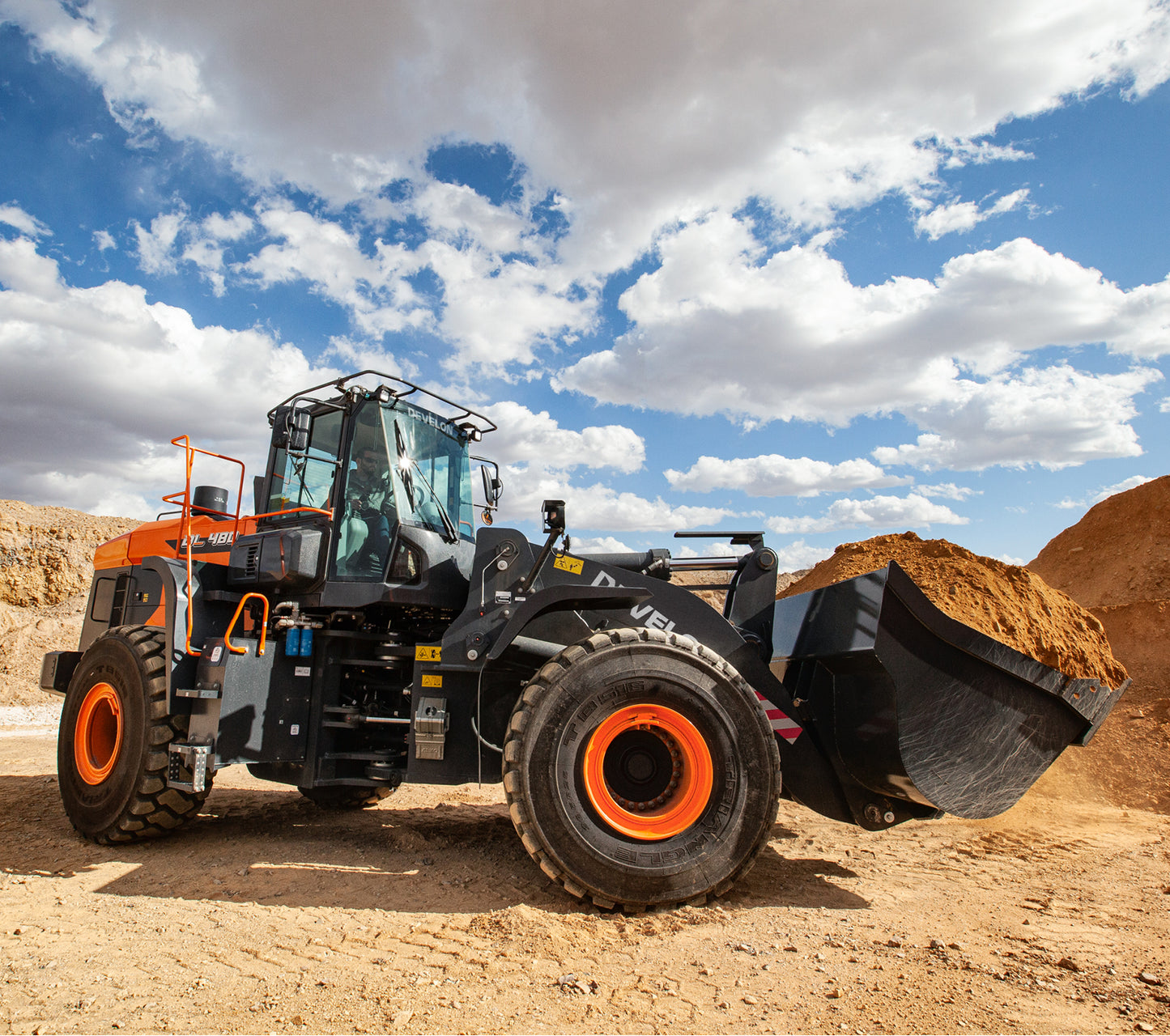

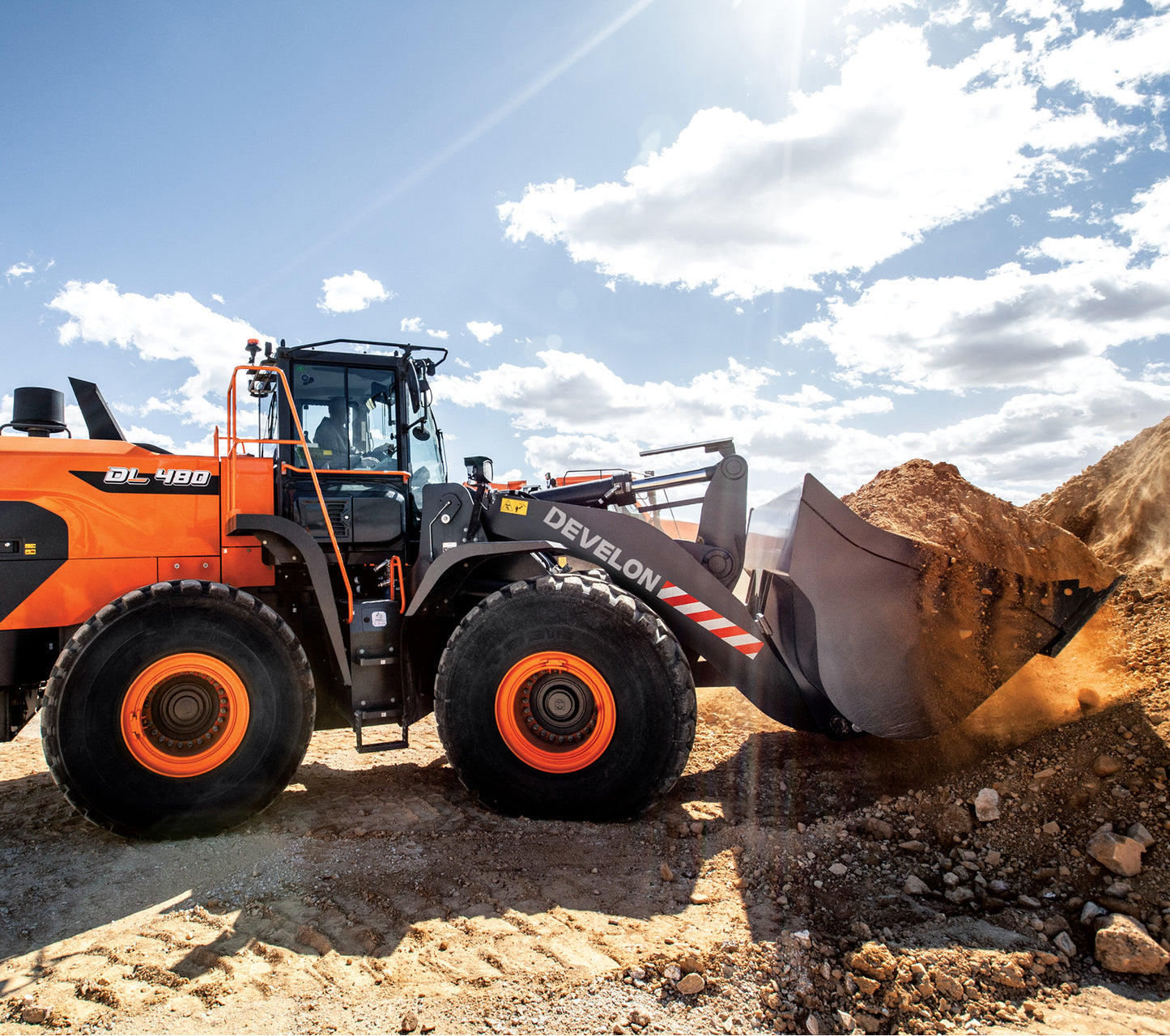

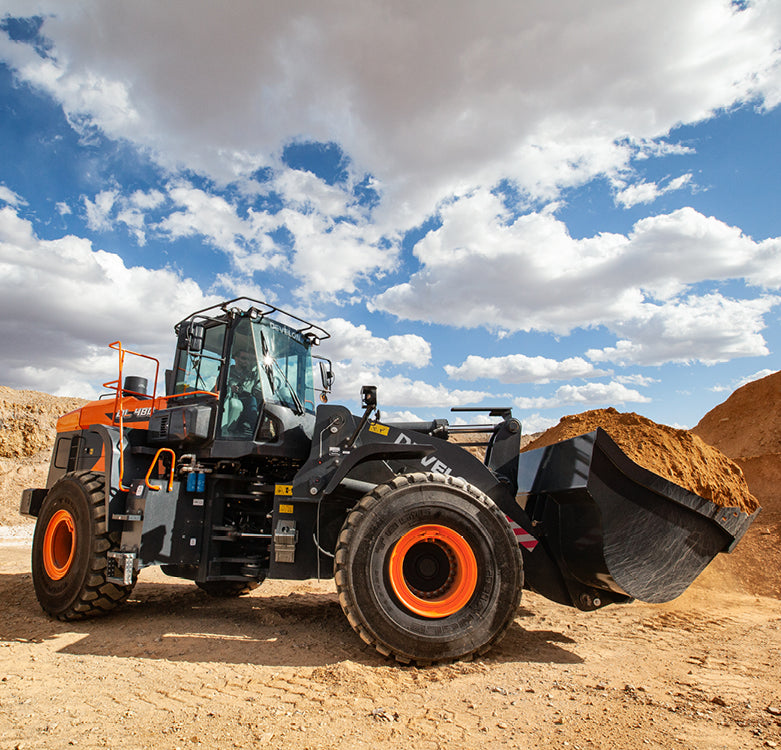

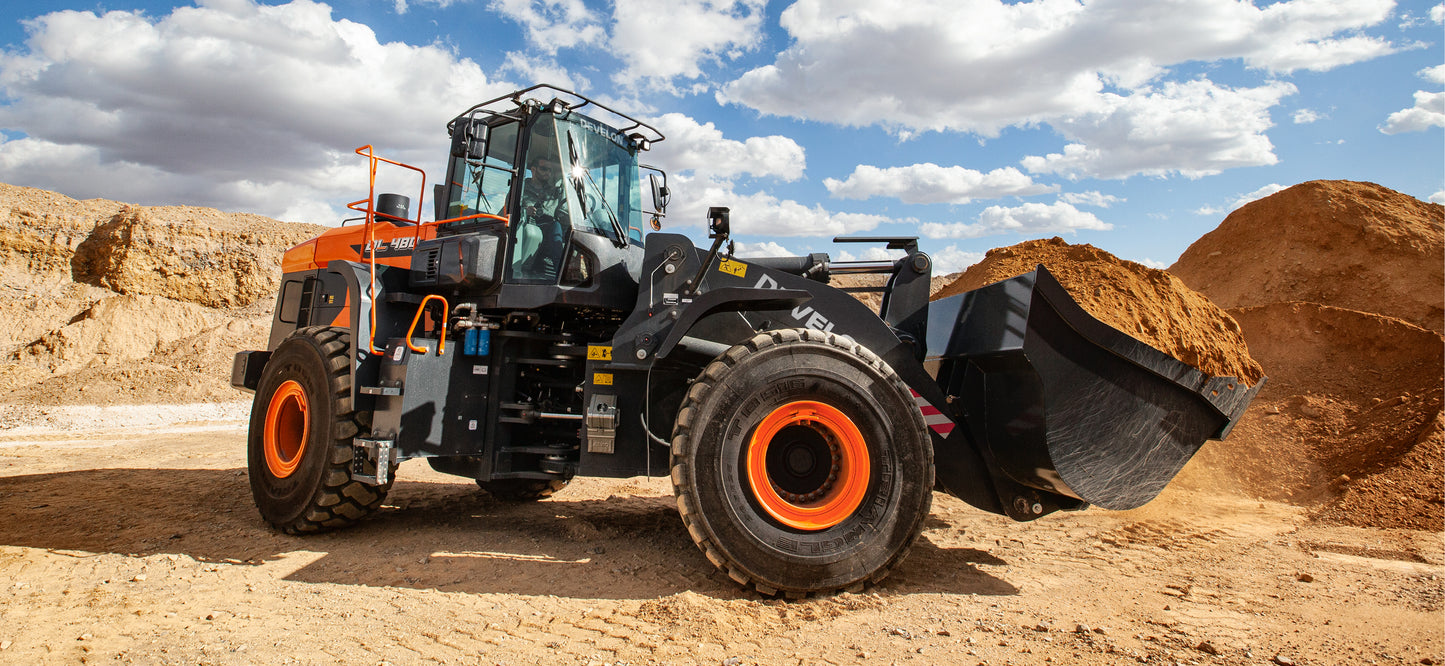

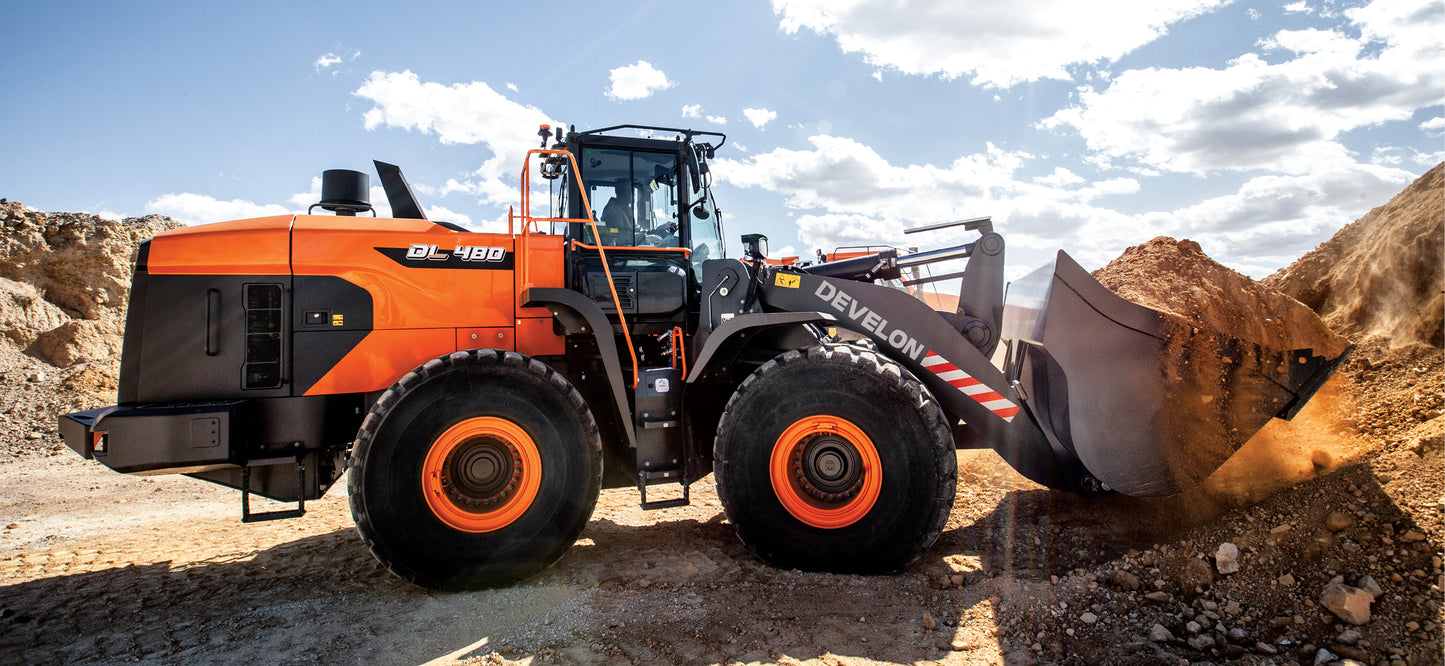

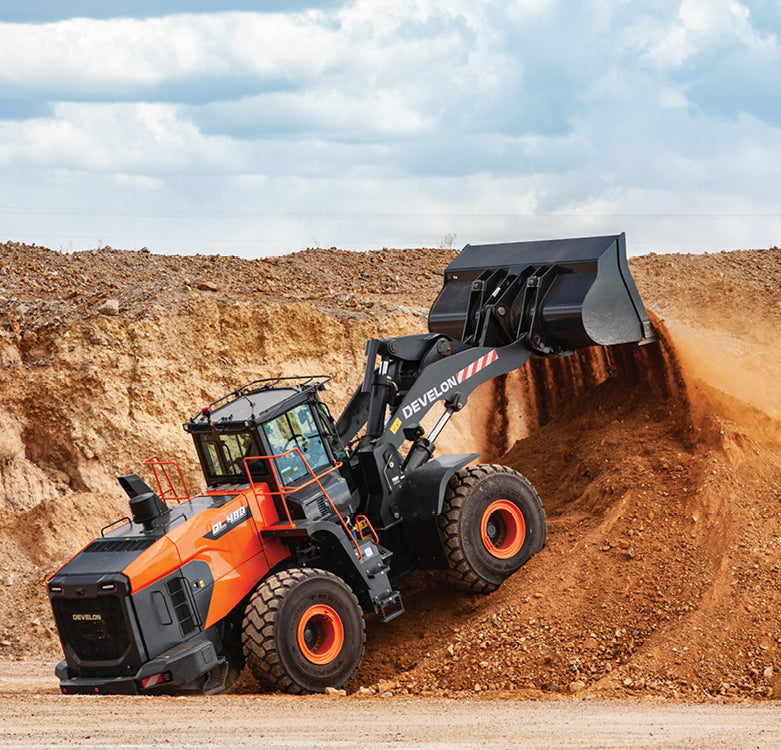

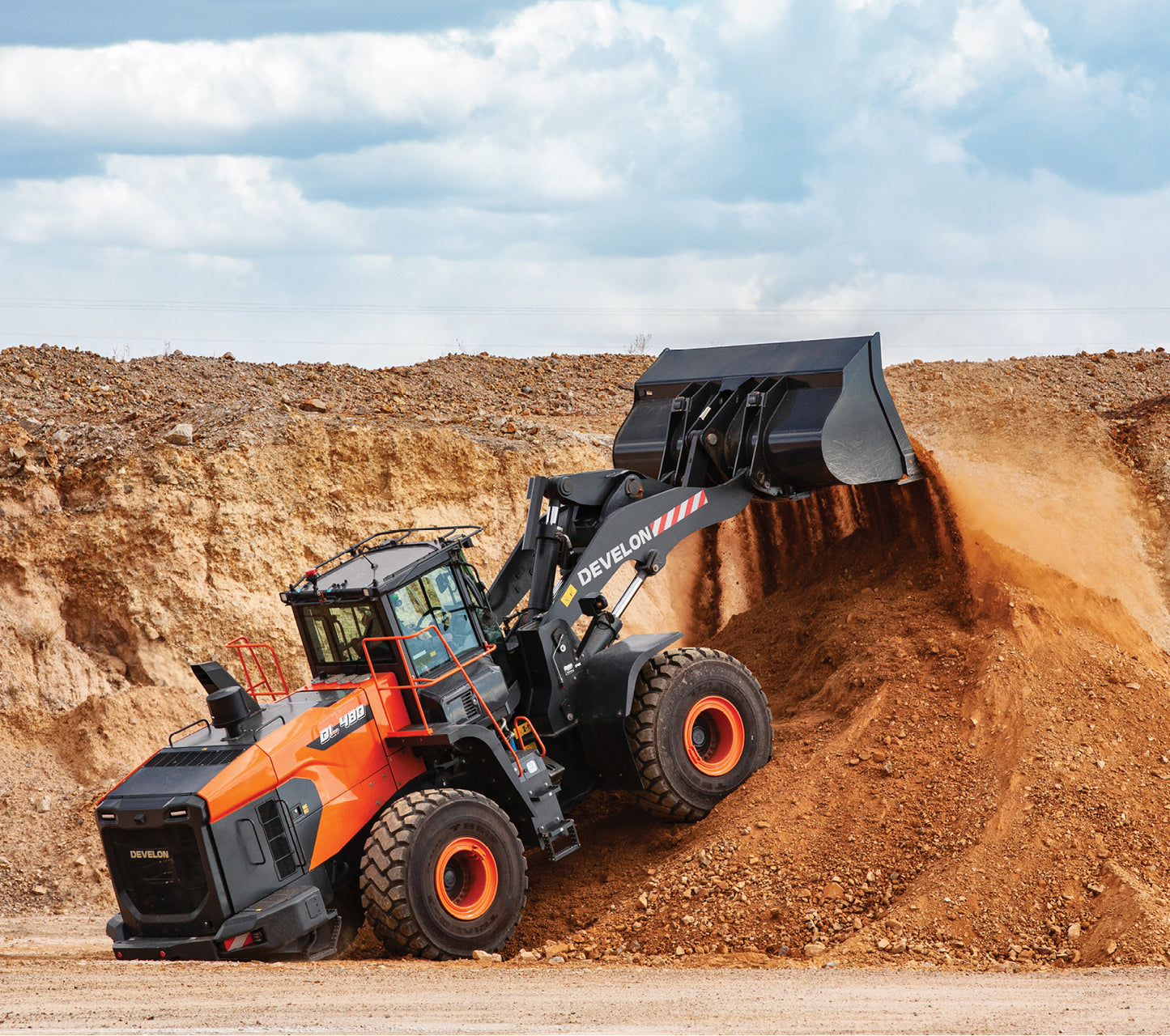

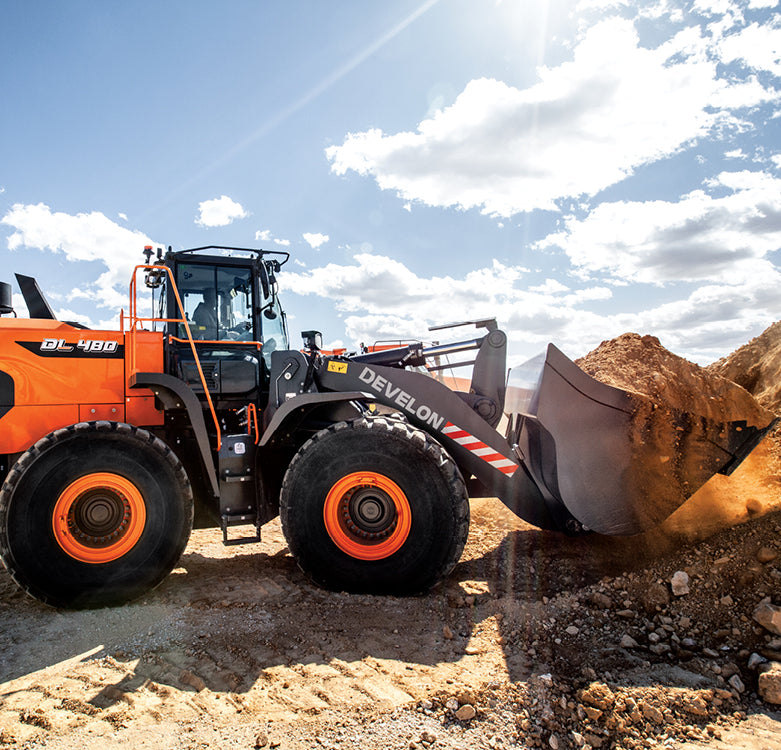

Develon | Wheel Loader | Model DL480-7 | Width 10' 9.9" | Horsepower 344.6 HP | For Heavy-Duty Construction, Mining & Material Handling
DESCRIPTION
Unleash unmatched power, performance, and precision with the Develon DL480-7 Wheel Loader the ultimate solution for demanding construction, mining, and material handling applications. Built for high productivity and long-lasting durability, the DL480-7 combines cutting-edge technology with operator-first comfort and rugged engineering. Whether you’re moving massive volumes of aggregate or loading high-sided trucks, this machine is designed to handle it all with ease.
With an impressive 344.6 net horsepower and 6.3 cubic yards of bucket capacity, the DL480-7 brings more muscle and speed to the jobsite. Its reinforced box frame, heavy-duty axles, and Z-bar lift arm offer enhanced lifting capabilities and structural strength, while the upgraded cooling system ensures optimal performance in harsh environments.
Inside, a redesigned cab offers 14% more visibility, a standard rearview camera, and Develon’s Smart Touch screen display, giving operators full control over the machine’s performance in a modern, ergonomic environment. The optional Transparent Bucket system even lets you “see through” the bucket a game-changing feature for safety and precision.
Whether you're tackling rugged terrain or high-volume jobs, the DL480-7 is a powerhouse you can count on efficient, reliable, and built to go the distance.
Key Features
- Increased Productivity: The DL480-7 boasts a 7% larger bucket capacity for faster and more efficient material handling.
- Powerful Engine Performance: A 344.6 HP Scania DC13 engine ensures high-output power while optimizing fuel efficiency.
- Advanced Hydraulic System: 97.2 gal/min flow rate provides superior lifting capability and smooth hydraulic control.
- Optimized Cab Visibility: A 14% larger glass area, full-glass door, and standard rearview camera improve operator awareness.
- Exclusive Transparent Bucket Technology: Allows operators to “see-through” the bucket for added precision when handling materials.
- DEVELON Smart Touch Display: Seamlessly monitor machine functions, adjust settings, and view real-time diagnostics from a user-friendly touchscreen.
- Ride Control System: Minimizes vibrations and improves stability when transporting heavy loads.
- Quick Coupler Compatibility: Easily switch attachments without leaving the operator seat, maximizing efficiency.
- Smart Fuel Efficiency: Situation Awareness Technology (SAT) automatically adjusts engine output for optimal fuel savings.
Detailed Specifications
| Category | Specification |
|---|---|
| Engine | Scania DC13, 6-cylinder |
| Rated Power (Net) | 344.6 hp @ 1800 rpm |
| Max Torque (Gross) | 1180 lbf·ft @ 1300 rpm |
| Displacement | 12.7 L |
| Hydraulics | Variable axial piston pump |
| Max Flow Rate | 97.2 gal/min |
| System Pressure | Work: 4641 psi / Steer: 3046 psi |
| Boom Up/Down | 6.1 sec / 2.7 sec |
| Bucket Dump/Crowd | 1.7 sec / 2.3 sec |
| Operating Weight | 58,354 lb |
| Bucket Capacity | 6.3 yd³ |
| Dimensions | |
| Overall Height | 11' 11" |
| Overall Length | 29' 11" |
| Wheel Base | 11' 8" |
| Turning Radius | 23' 6" (at bucket edge) |
| Static Tipping Load | 45,322 lb (straight) |
| Transmission | Limited Slip Differential (Front/Rear) |
| Travel Speeds (4-spd) | FWD: 3.7–22.5 mph / REV: 3.7–15.5 mph |
| Travel Speeds (5-spd) | FWD: 3.9–24.9 mph / REV: 3.9–16.5 mph |
| Max Gradeability | 51% (27°) |
| Environment | External: 106 dB(A) / Cabin: 72 dB(A) |
| Fuel & Fluids | Fuel: 87.7 gal / DEF: 15.9 gal |
| Engine Oil | 11.9 gal |
| Transmission | 15.9 gal |
| Hydraulic System | 59.7 gal |
| Cooling System | 13.1 gal |
| Front/Rear Axle | 16.4 gal / 11.1 gal |
| Hydraulic Cylinders | |
| Lift Arm | 6.7" x 4.1" x 31.1" |
| Bucket | 7.5" x 4.7" x 23.2" |
| Steering | 3.9" x 2" x 17.7" |
