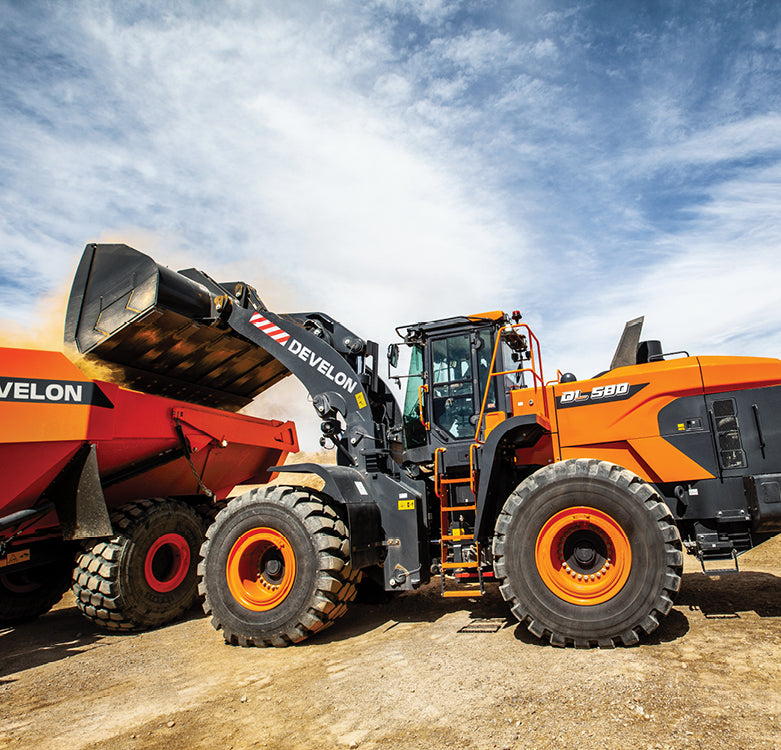

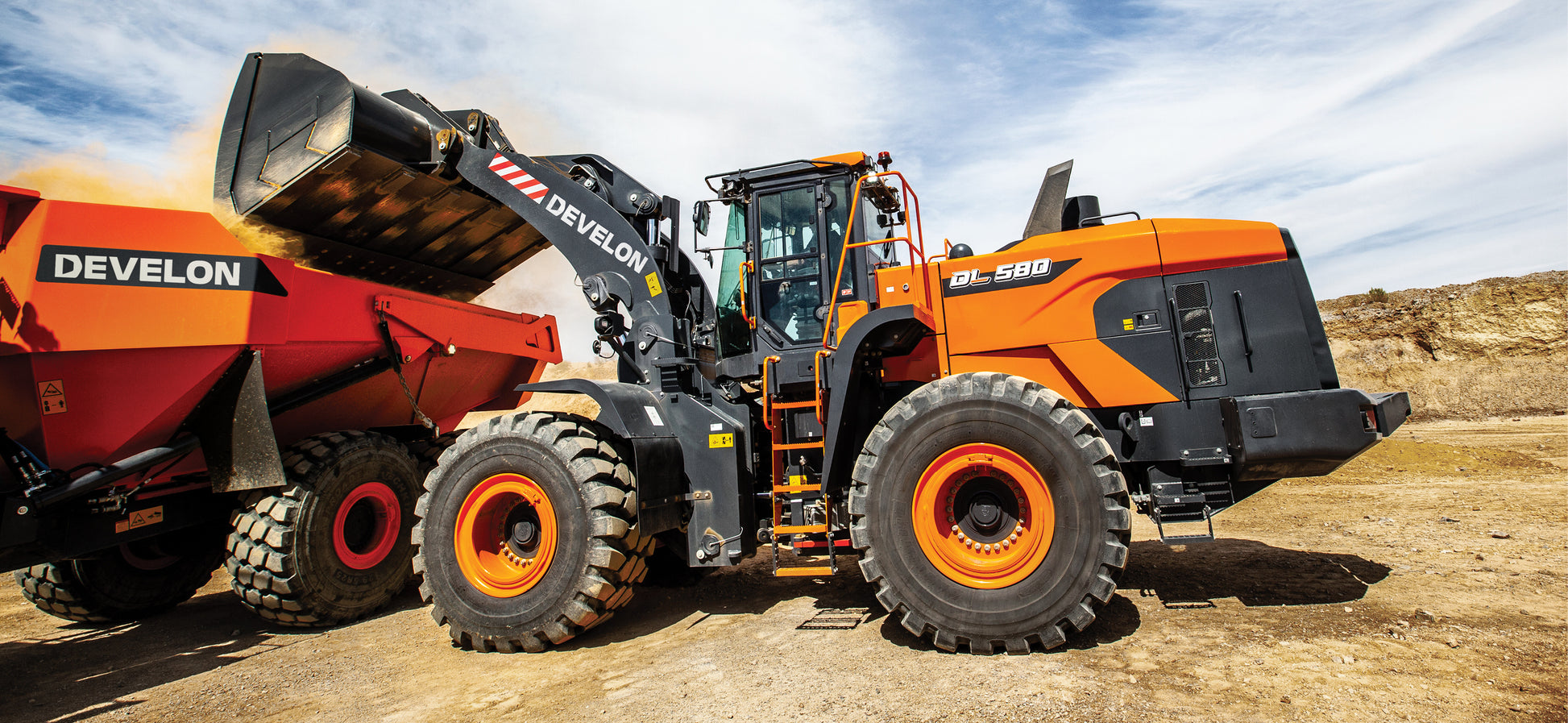

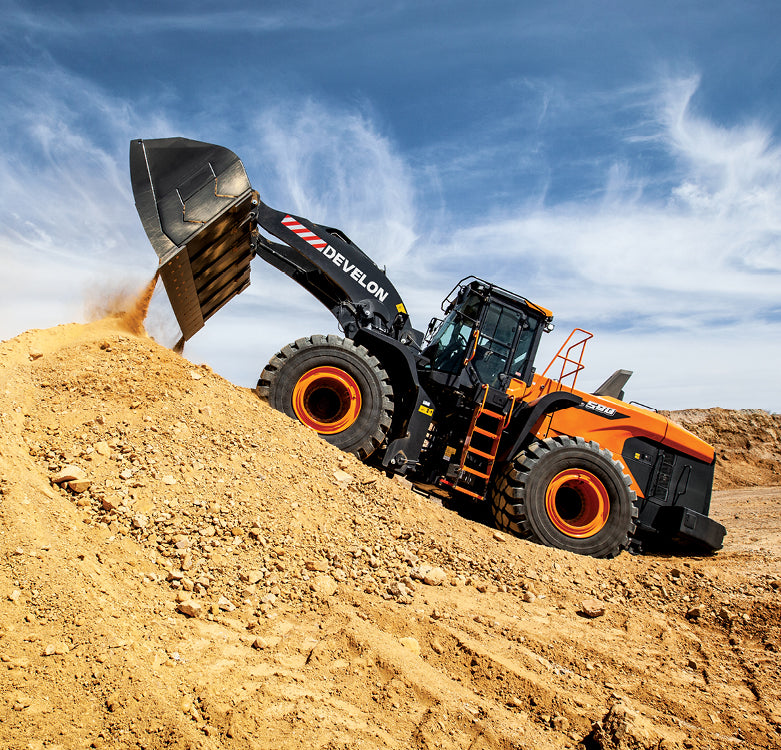

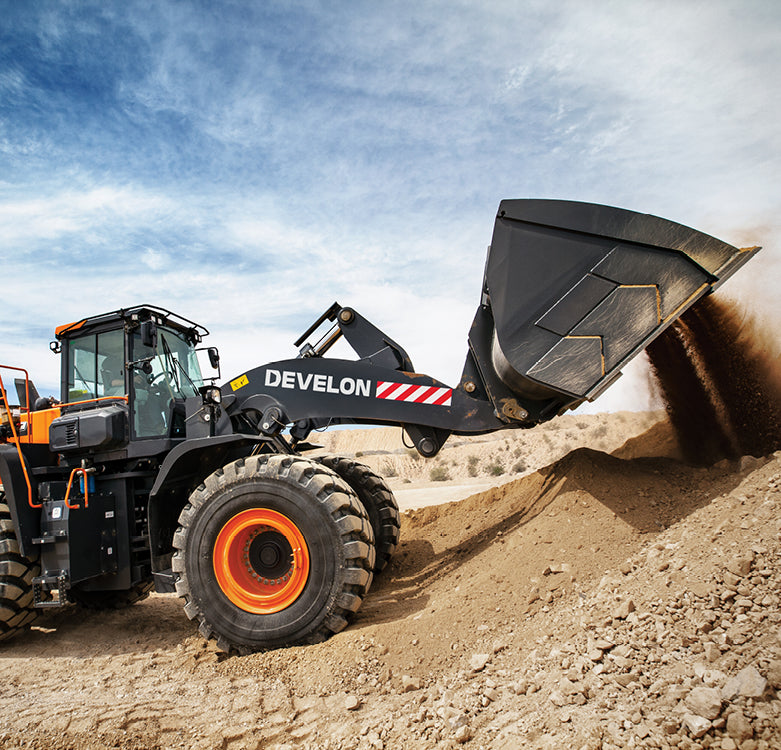

Develon | Wheel Loader | Model DL580-7 | Width 11' 2.8" | Horsepower 394.3 HP | For Mining, Heavy Construction & Aggregate Handling
Develon | Wheel Loader | Model DL580-7 | Width 11' 2.8" | Horsepower 394.3 HP | For Mining, Heavy Construction & Aggregate Handling
Couldn't load pickup availability
Couldn't load pickup availability
How To Request A Quote
***Online pricing not available, Please request a quote:***
How To Get A Quote:
Option 1: Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
Product Description
Develon | Wheel Loader | Model DL580-7 | Width 11' 2.8" | Horsepower 394.3 HP | For Mining, Heavy Construction & Aggregate Handling
DESCRIPTION

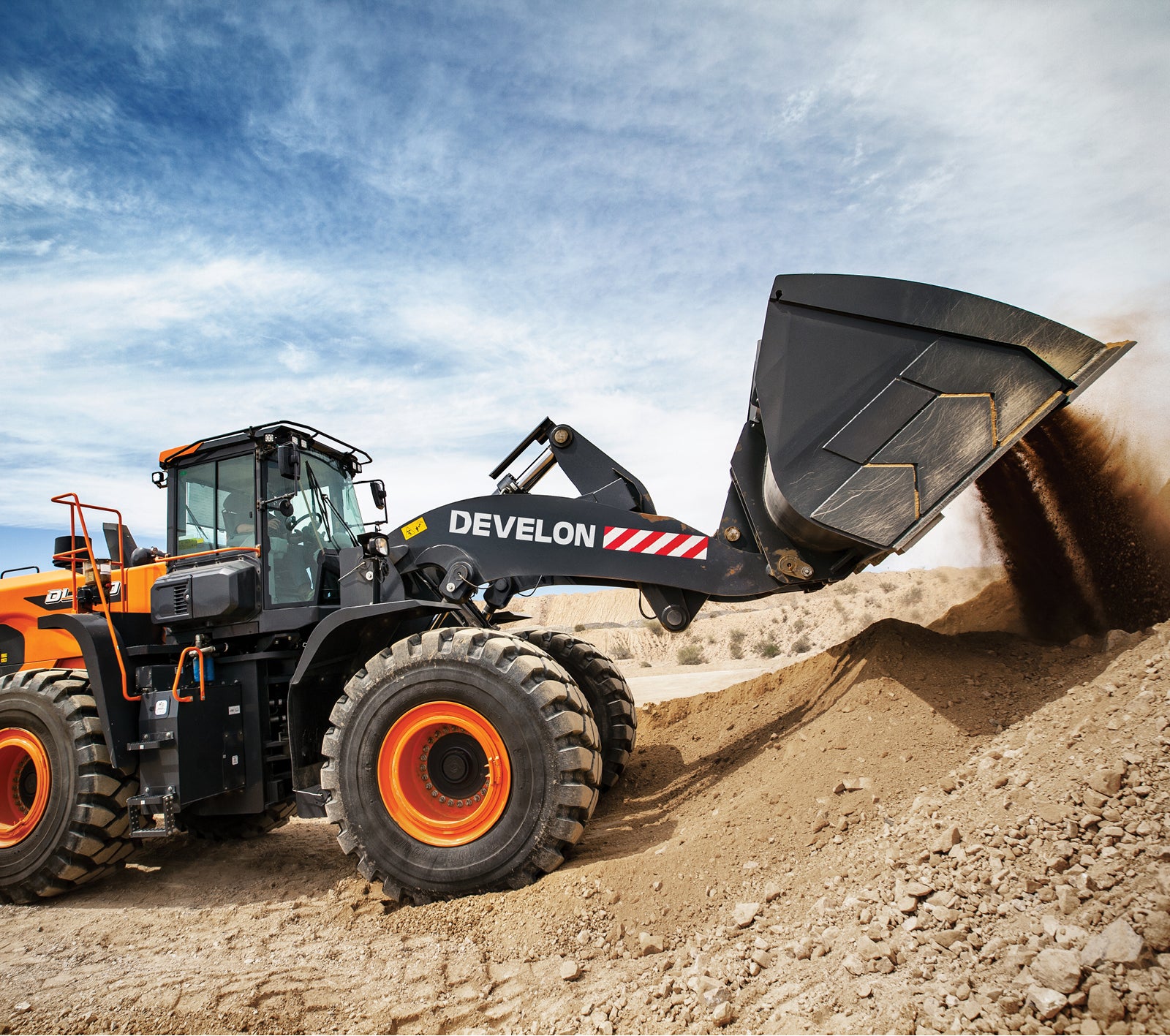

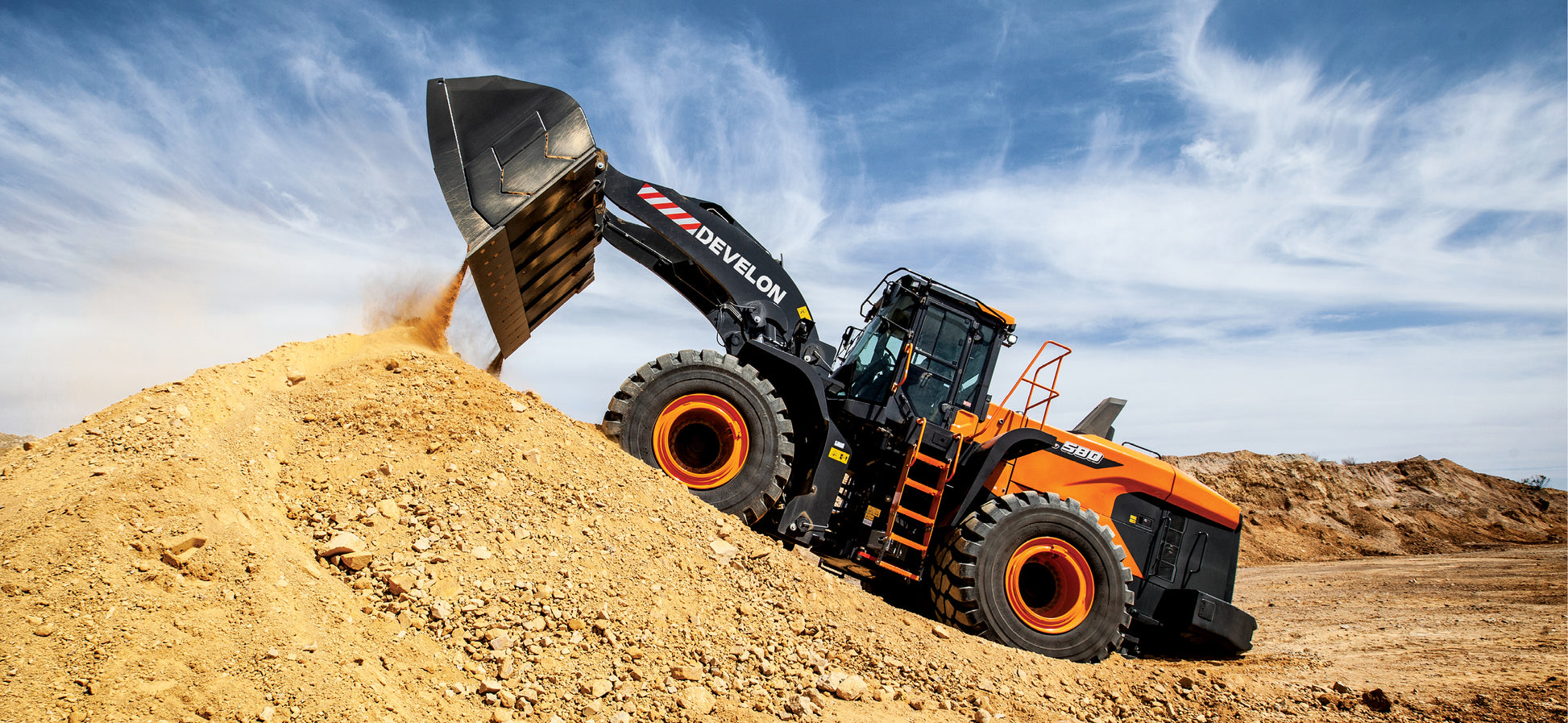

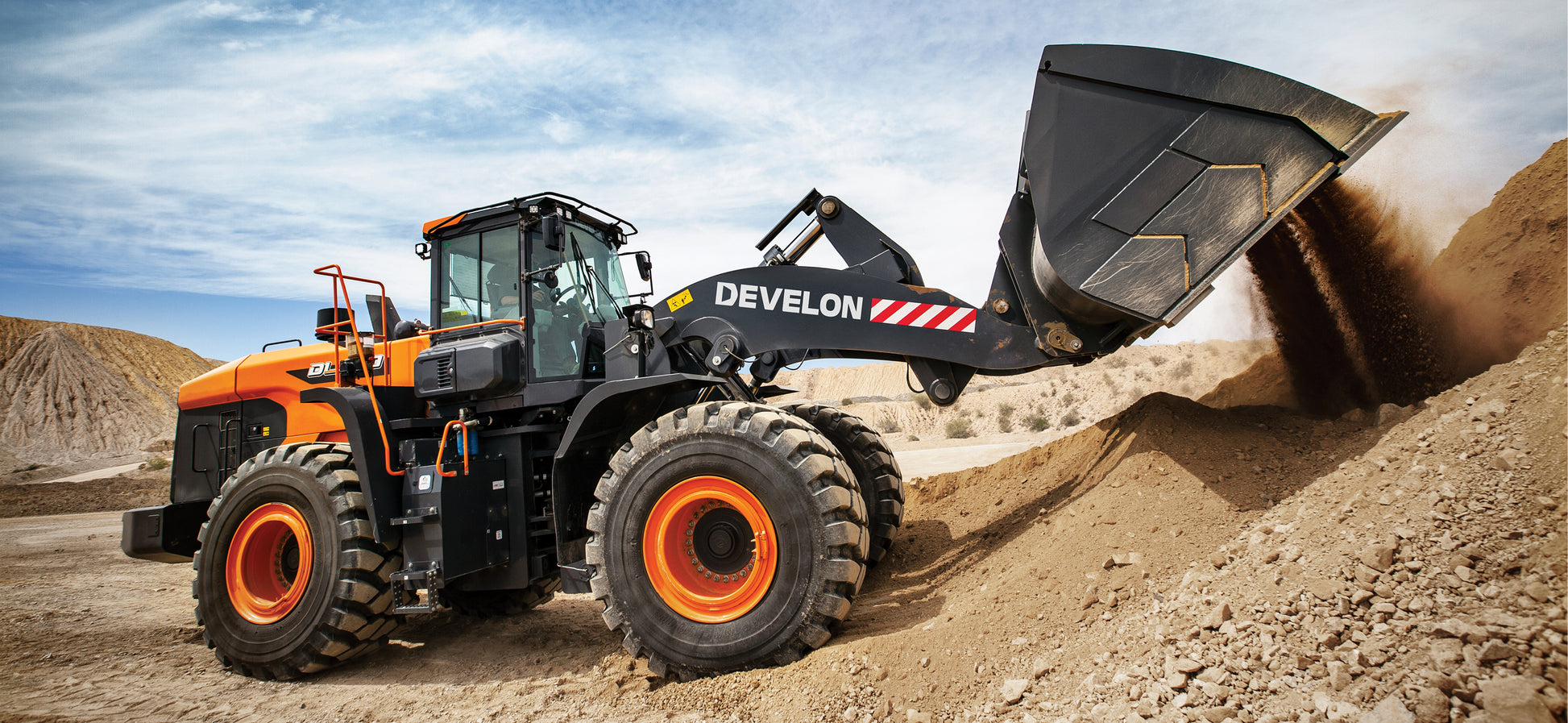

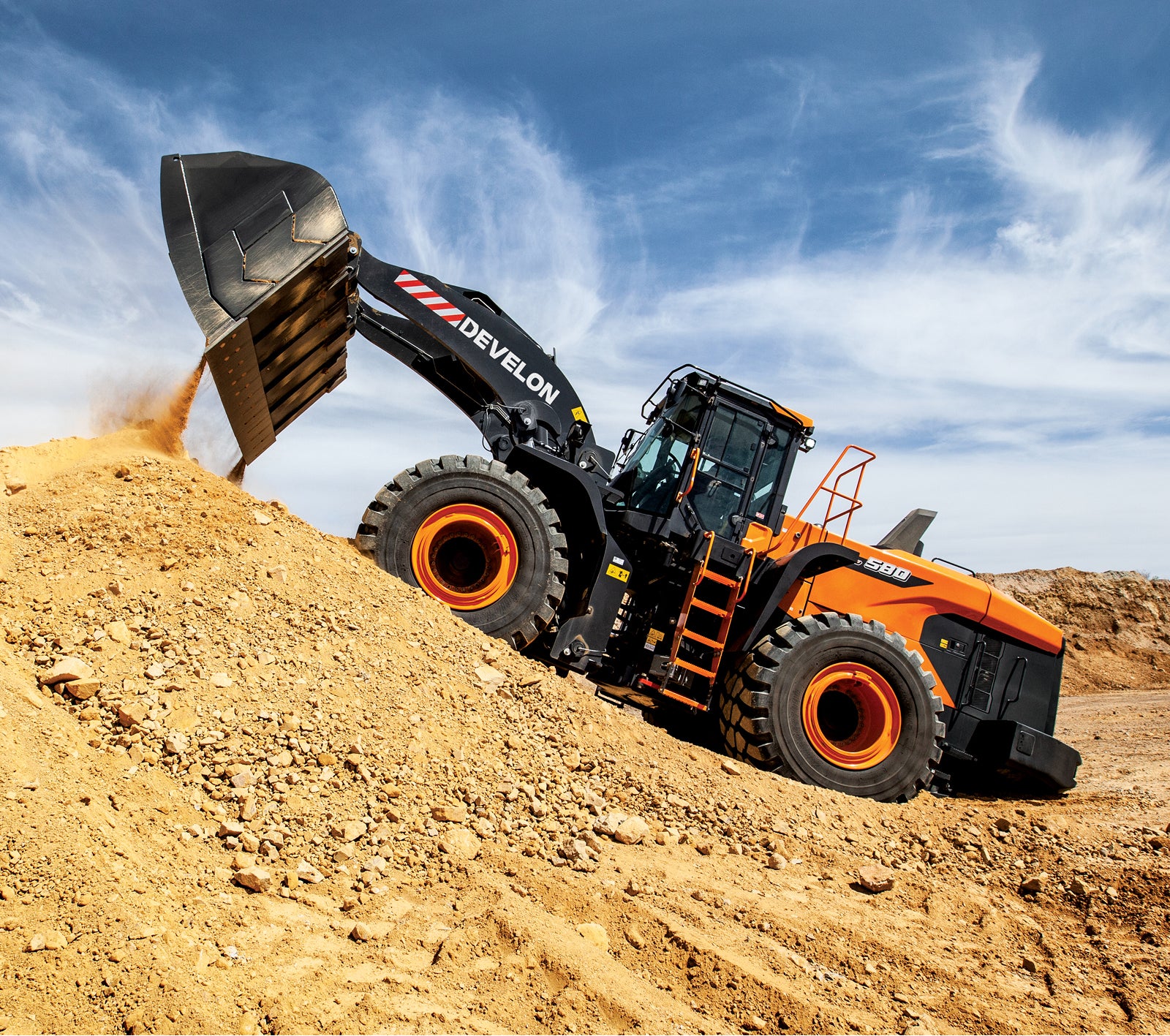

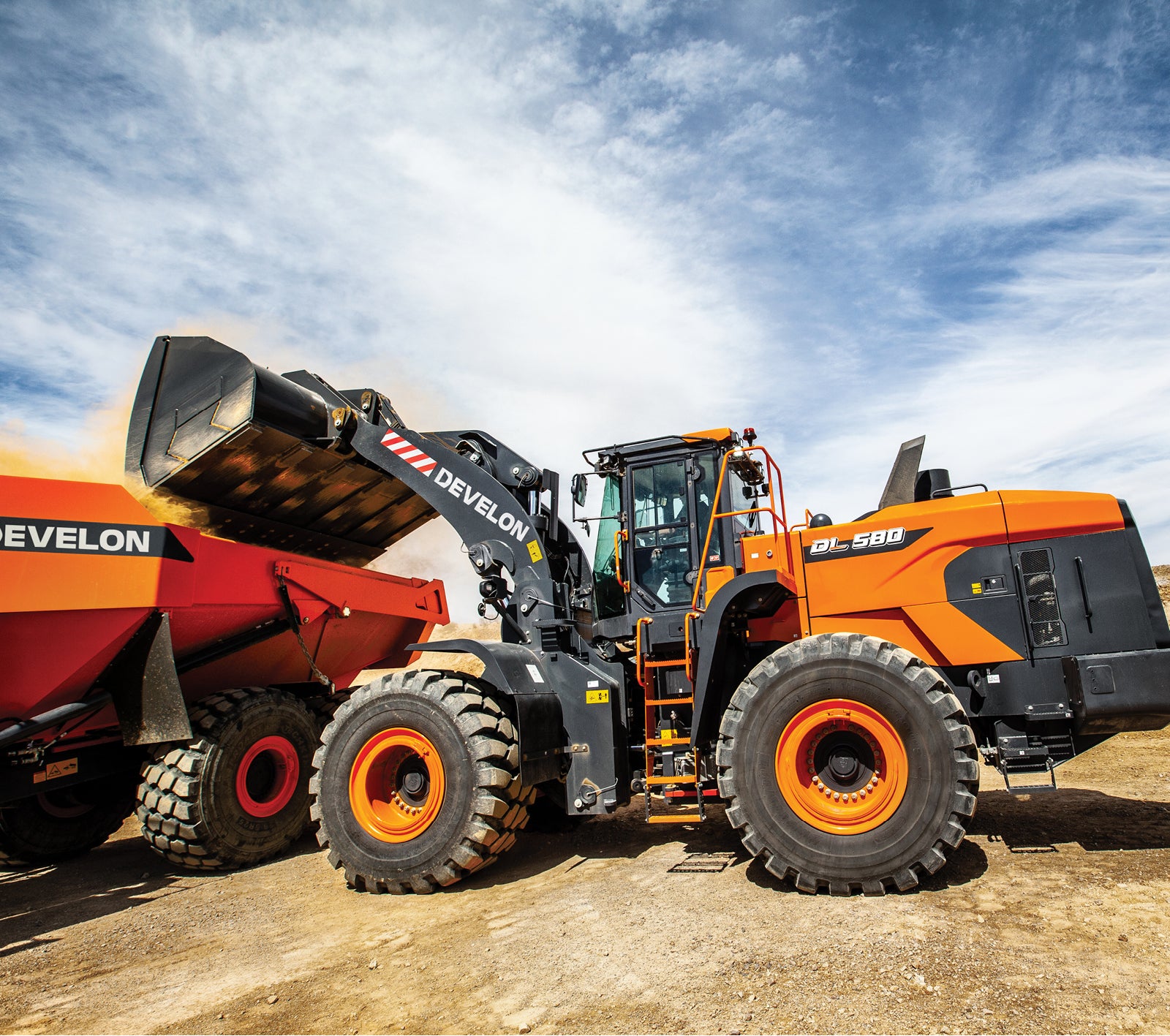

Take on mining, aggregates, and heavy-duty construction applications with confidence using the DEVELON DL580-7 Wheel Loader. Designed for maximum efficiency and durability, this powerful machine provides a massive 8.4 yd³ bucket capacity, 394.3 HP of raw power, and a reinforced lifting system to handle extreme workloads with ease.
Equipped with advanced hydraulics, an optimized transmission, and a robust Z-bar lift arm, the DL580-7 ensures high load-carrying capabilities, superior stability, and fast cycle times allowing operators to maximize productivity while minimizing fuel consumption.
Key Features
- Unrivaled Engine Power: 394.3 HP Scania DC13 engine delivers high torque performance in demanding environments.

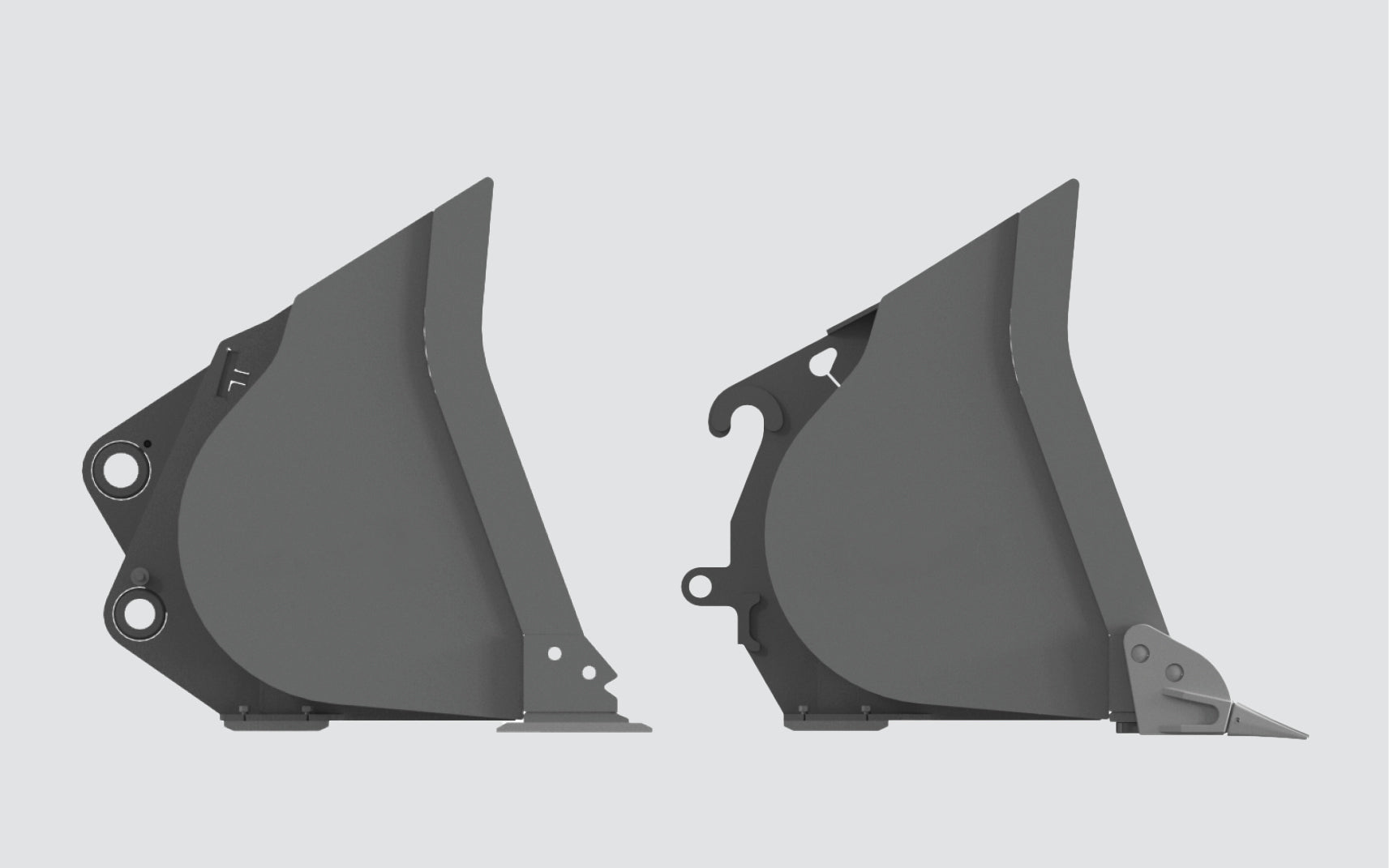

- Heavy-Duty Bucket Capacity: 8.4 yd³ bucket enables efficient material handling with reduced cycle times.
- Optimized Hydraulic System: 74.0 gal/min flow rate ensures smooth and responsive lift functions.
- Strong Frame & Reinforced Components: Strengthened Z-bar lift arm and reinforced front work group enhance durability.

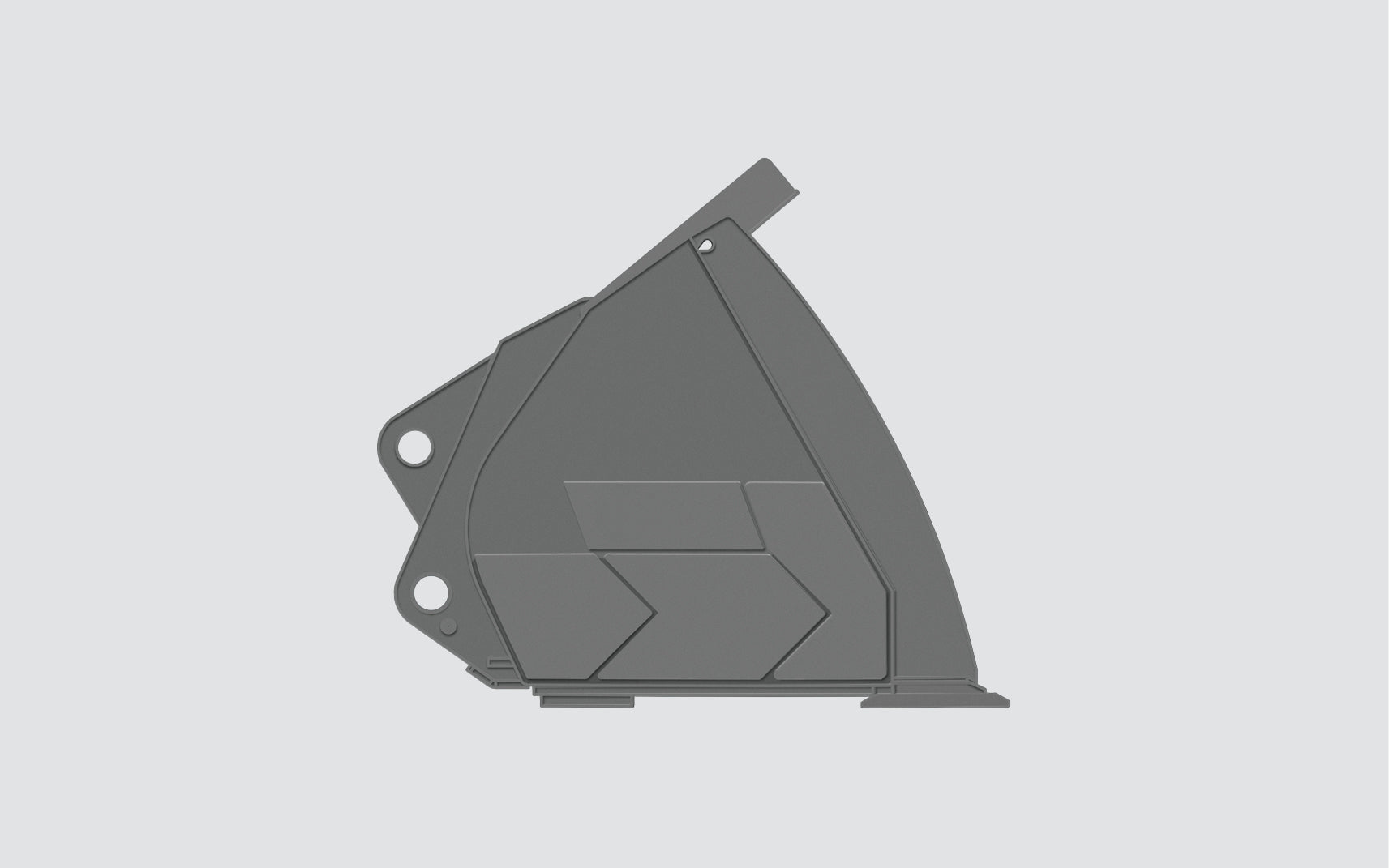

- Exclusive Transparent Bucket Technology: Allows operators to “see-through” the bucket for precise loading control.
- Advanced Cooling System: Hydraulically driven reversible fan improves debris clearance and cooling efficiency.
- Smart Load Weighing System: Measures bucket weight for improved accuracy in material transport.
- Enhanced Cab Design: 14% more glass area, full-glass door, larger mirrors, and standard rearview camera provide better visibility.
- Intuitive Smart Touch Display: Monitors critical machine functions, fuel efficiency, and real-time diagnostics.
- Axle Cooler Option: Enhances machine reliability in high-temperature environments or long-haul material transport.
- Smart Fuel Efficiency: SAT (Situation Awareness Technology) dynamically adjusts engine output for optimal fuel savings.
Detailed Specifications
| Category | Specification |
|---|---|
| Engine | Scania DC13, 6-cylinder, 394.3 HP @ 1800 rpm |
| Max Torque | 1591 lbf·ft @ 1300 rpm |
| Displacement | 12.7 L |
| Fuel System | HPCR + CEGR + DOC + SCR (DEF) |
| Starter / Battery | 24V, 8.6 hp / 2×12V, 200AH |
| Operating Weight | 78,673 lb |
| Bucket Capacity | 8.4 yd³ |
| Tipping Load (Straight) | 60,549 lb |
| Overall Dimensions (L × H) | 32' 6" × 12' 7" |
| Wheelbase | 12' 2" |
| Turning Radius (at Bucket Edge) | 25' 0" |
| Hydraulic Flow (per pump) | 74.0 gal/min |
| Hydraulic Pressure (Work/Steer) | 3626 / 3118 psi |
| Boom Speed (Up/Down) | 6.5 / 3.7 sec |
| Bucket Crowd/Dump | 1.2 / 1.7 sec |
| Transmission | 5-speed auto with hydraulic locking front differential |
| Travel Speeds (F/R) | 3.9 – 24.9 mph / 3.8 – 16.9 mph |
| Max Gradeability | 58% (30°) |
| Sound Level (External/Cabin) | 111 dB(A) / 73 dB(A) |
| Fuel Tank Capacity | 116.5 gal |
| DEF Tank Capacity | 15.9 gal |
| Cooling System | 14.3 gal |
| Hydraulic System Total | 63.9 gal |
| Axle Coolers (Front/Rear) | 16.5 / 16.9 gal |
| Transmission Fluid | 17.7 gal |
| Cylinder Specs (Lift/Bucket/Steering) | 7.5" x 4.1" x 35" / 9.4" x 6.3" x 23.8" / 4.3" x 2.4" x 18.3" |
