Product Description
DH Farm BU45 Bale Unroller | Bale Size 4' OR 5' | 50–90 PTO HP | 3‑Point Hitch | For Tractors
DESCRIPTION

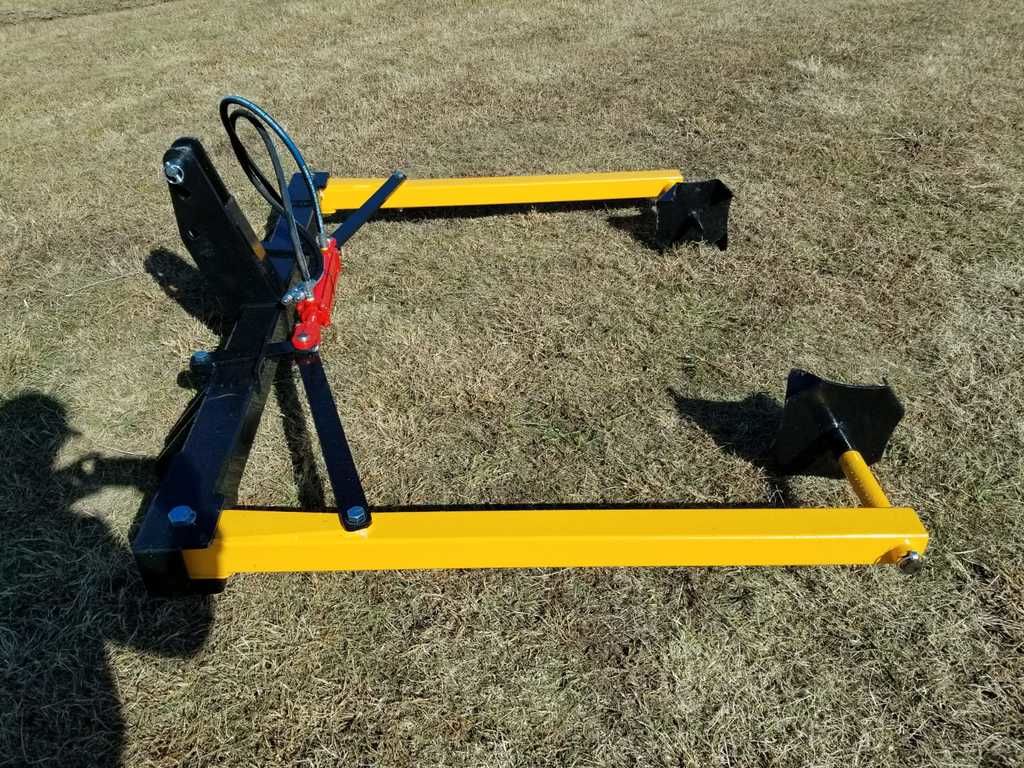

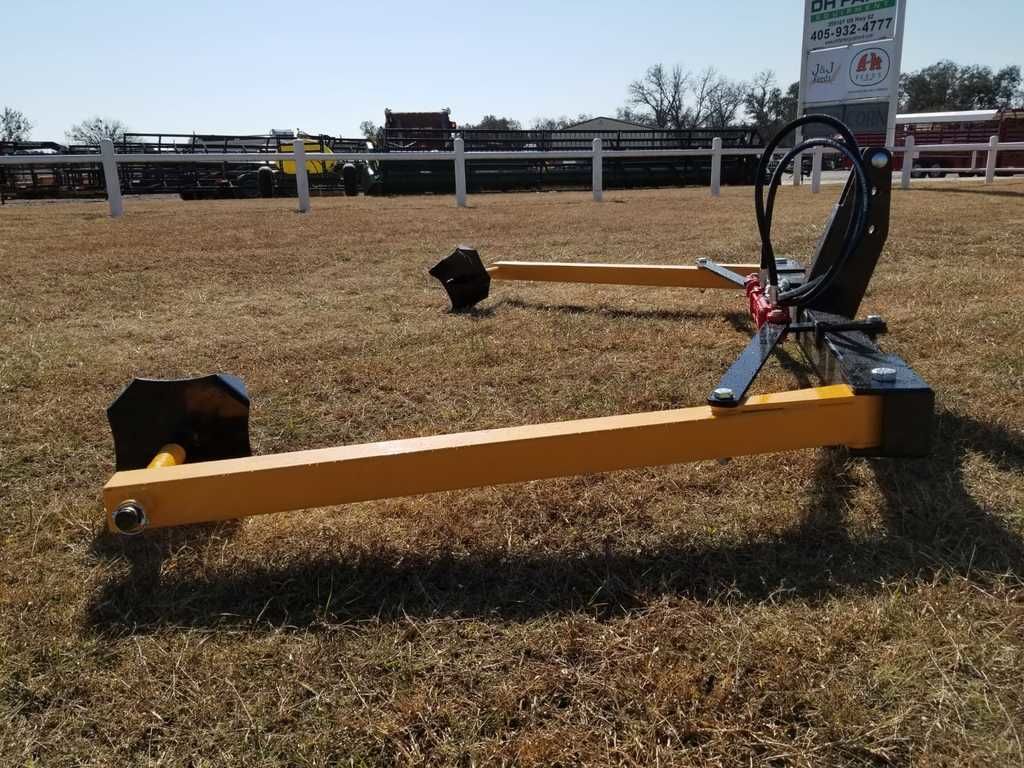

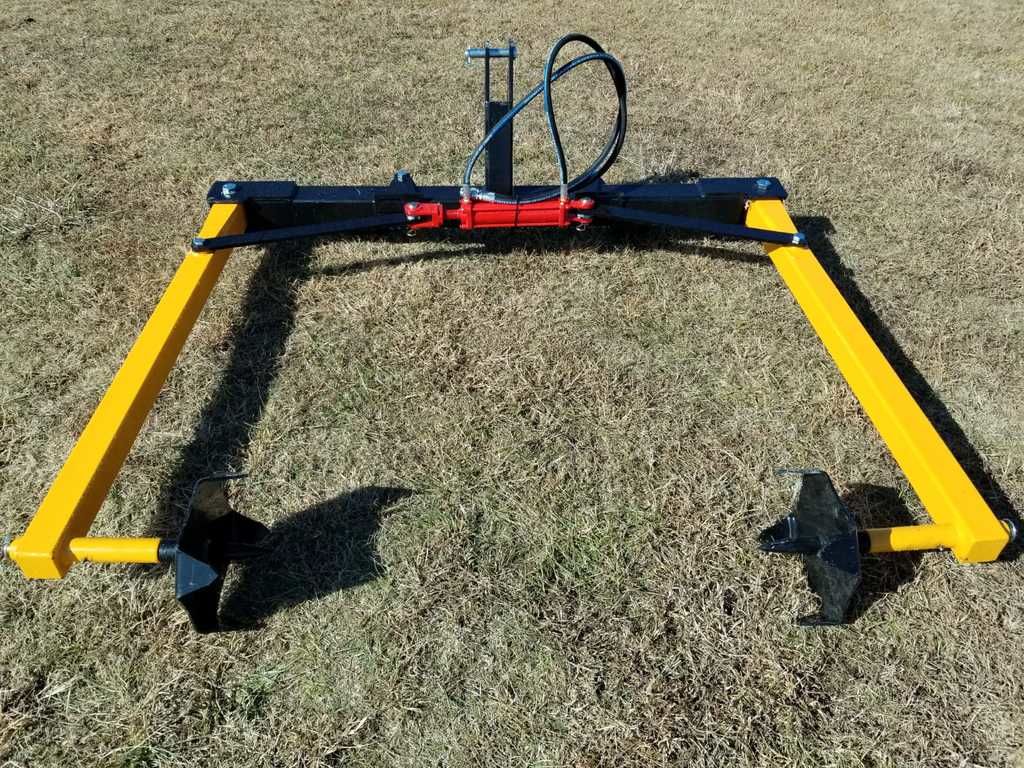

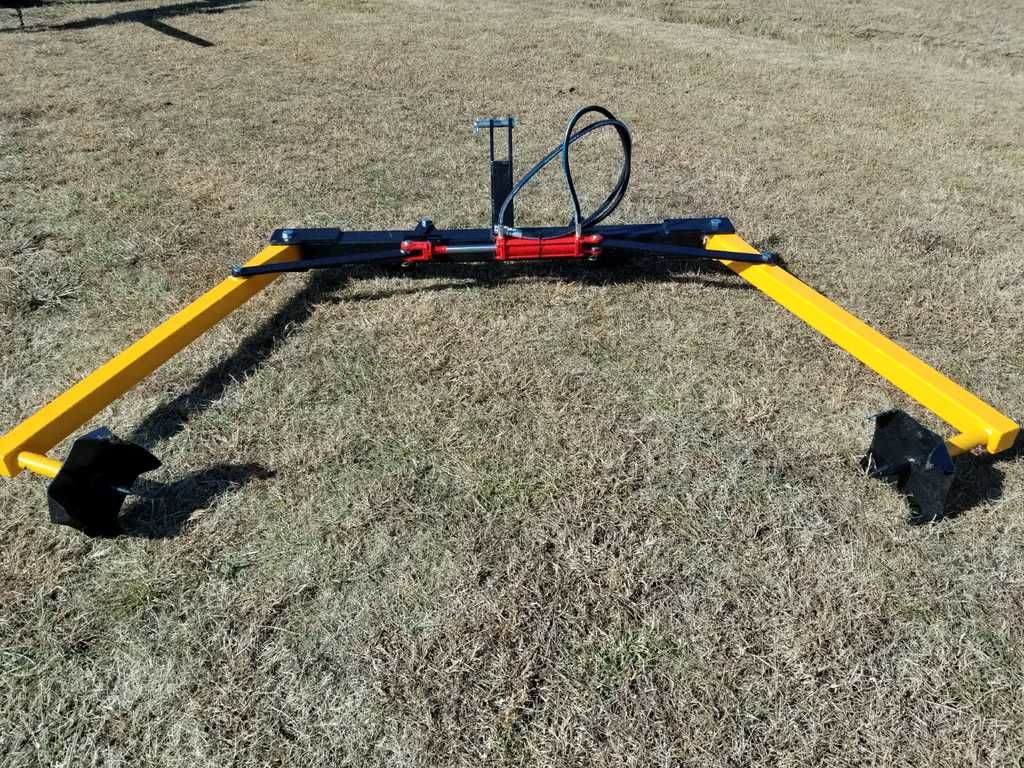

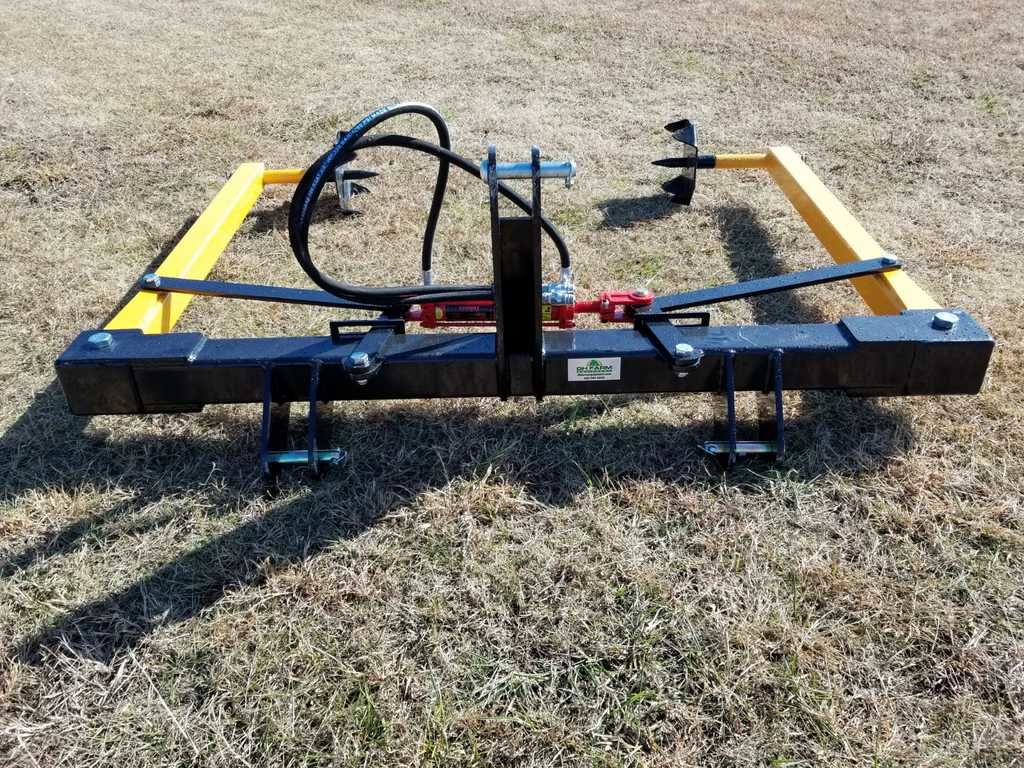

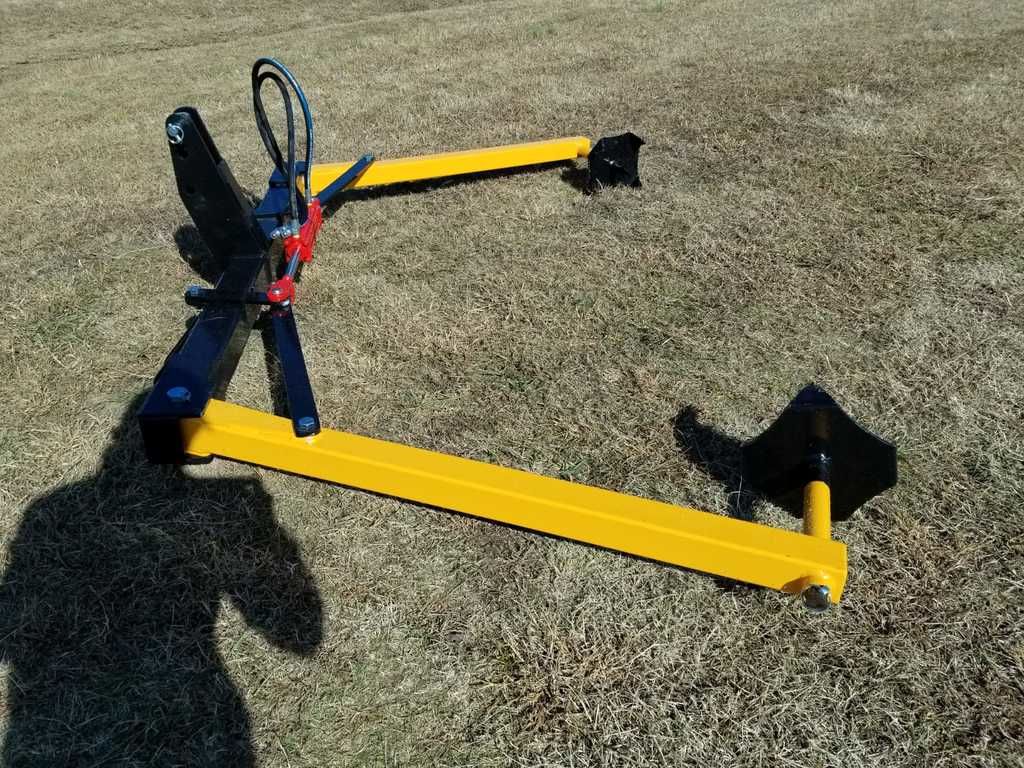

The DH BU45 Bale Unroller is a heavy‑duty 3‑point hitch attachment designed to handle and unroll round hay bales with ease. Built to accommodate both 4′ and 5′ wide bales, it offers flexibility for different bale sizes while reducing waste and improving feeding efficiency.
With a maximum capacity of 2,000 lbs, the BU45 is engineered for strength and reliability. Its front frame is constructed from 4×4″ ¼″ wall tubing, while the arms use 3×3″ ¼″ wall tubing for durability under load. Equipped with a Category 2 hookup, hydraulic cylinder, and hoses, this bale unroller is ready for quick connection and efficient operation.
For optimal performance, the DH BU45 requires approximately 50–90 PTO horsepower, making it suitable for mid‑ to large‑sized tractors.
Key Features
- 3‑Point Hitch Design – Easy hookup to tractors for quick bale handling and feeding.
- Handles 4′ or 5′ Wide Bales – Versatile capacity accommodates standard bale sizes.
- 2,000 lbs Max Capacity – Heavy-duty build ensures reliable performance with large bales.
- 4×4″ ¼″ Wall Frame Tubing – Rugged construction for long-lasting durability.
- 3×3″ ¼″ Wall Arm Tubing – Reinforced arms provide strength and stability during operation.
- Category 2 Hookup – Standardized connection for compatibility with a wide range of tractors.
- Hydraulic System Included – Comes complete with cylinder and hoses for efficient bale unrolling.
- 50–90 PTO HP Tractor Requirement – Designed for mid-range tractors, balancing power and efficiency.
- Versatile Applications – Ideal for bale feeding and hay management across farms and ranches.
Detailed Specifications
| Feature | Details |
|---|---|
| Model | DH BU45 Bale Unroller |
| Type | 3‑pt hitch bale unroller |
| Bale Size | Handles 4′ or 5′ wide bales |
| Max Capacity | 2,000 lbs |
| Frame Tubing | 4×4″ ¼″ wall tubing |
| Arm Tubing | 3×3″ ¼″ wall tubing |
| Hookup | Category 2 |
| Hydraulic System | Cylinder & hoses included |
| Horsepower Req. | 50–90 PTO HP (tractor) |
| Application | Bale feeding, hay management |
