DH Farm Grader Blade | Model F10‑HP120L | Frame 6″ × 6″ | Pull Type | 80–120 HP | For Tractors
DH Farm Grader Blade | Model F10‑HP120L | Frame 6″ × 6″ | Pull Type | 80–120 HP | For Tractors
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
DH Farm Grader Blade | Model F10‑HP120L | Frame 6″ × 6″ | Pull Type | 80–120 | For Tractors
DESCRIPTION

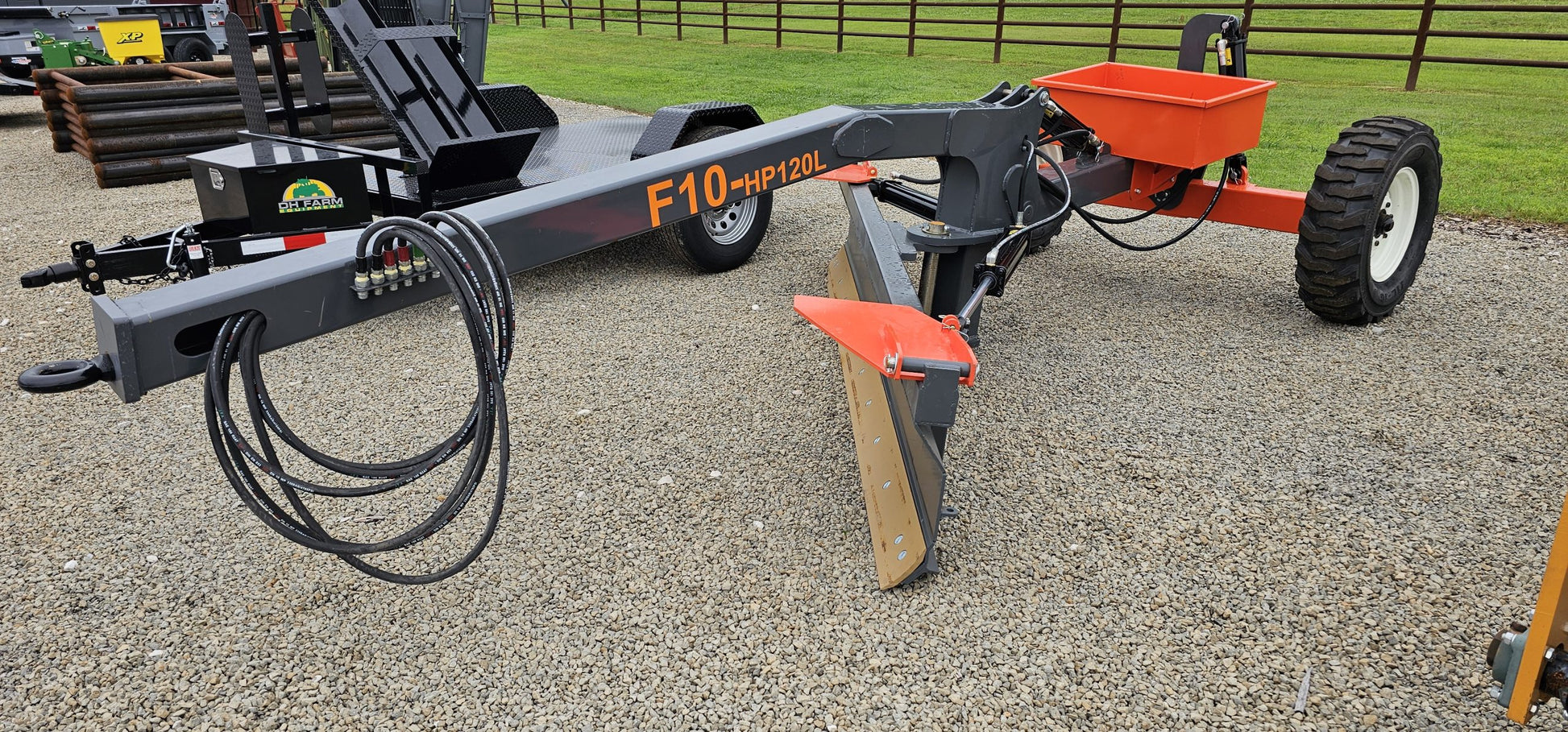

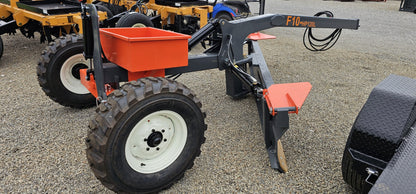

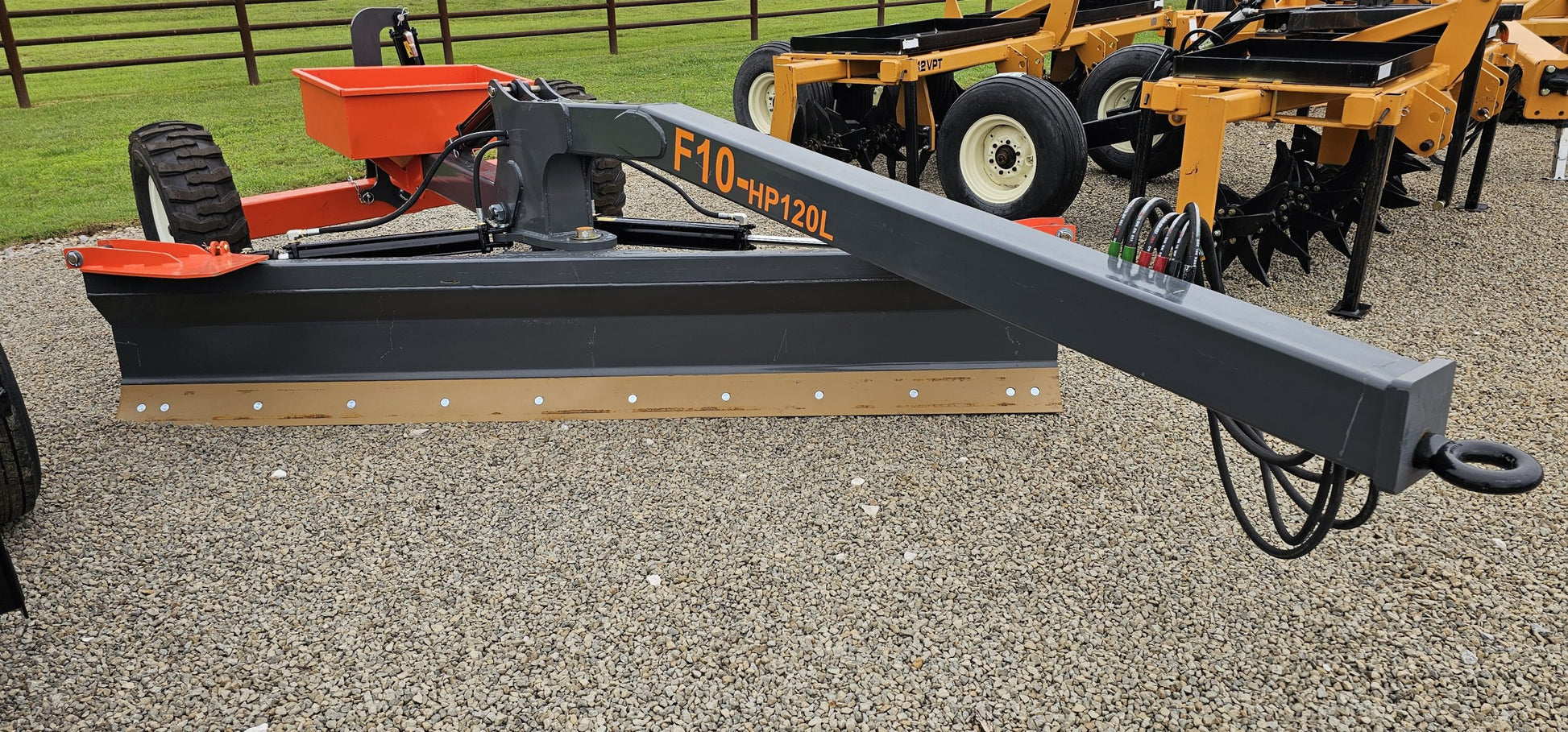

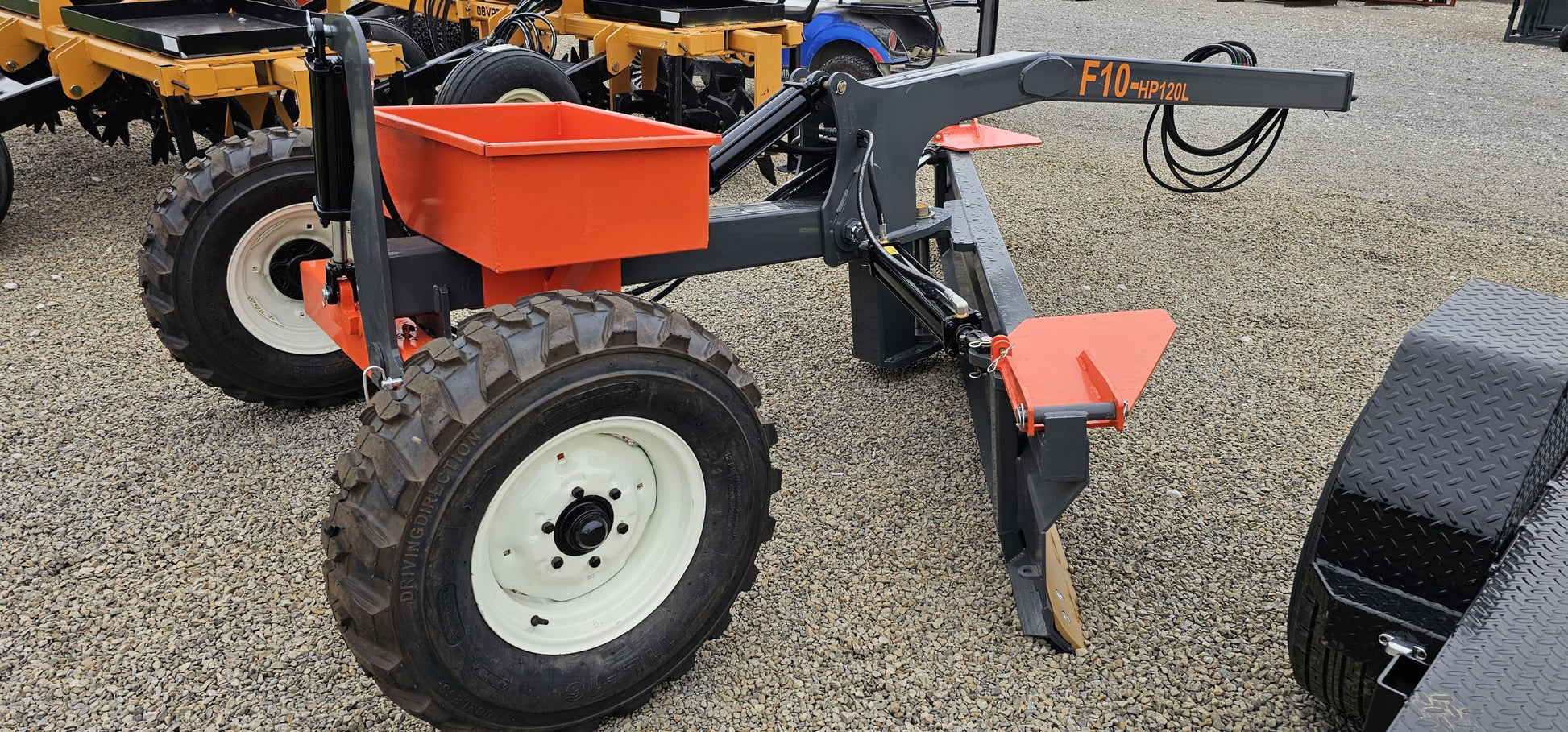

The DH F10‑HP120L is a heavy‑duty pull‑type grader blade designed for precision grading of driveways, farm roads, and construction sites. Featuring a 10′ hydraulic 6‑way blade, this unit delivers exceptional versatility, allowing operators to angle, tilt, and adjust the blade for a wide range of applications.

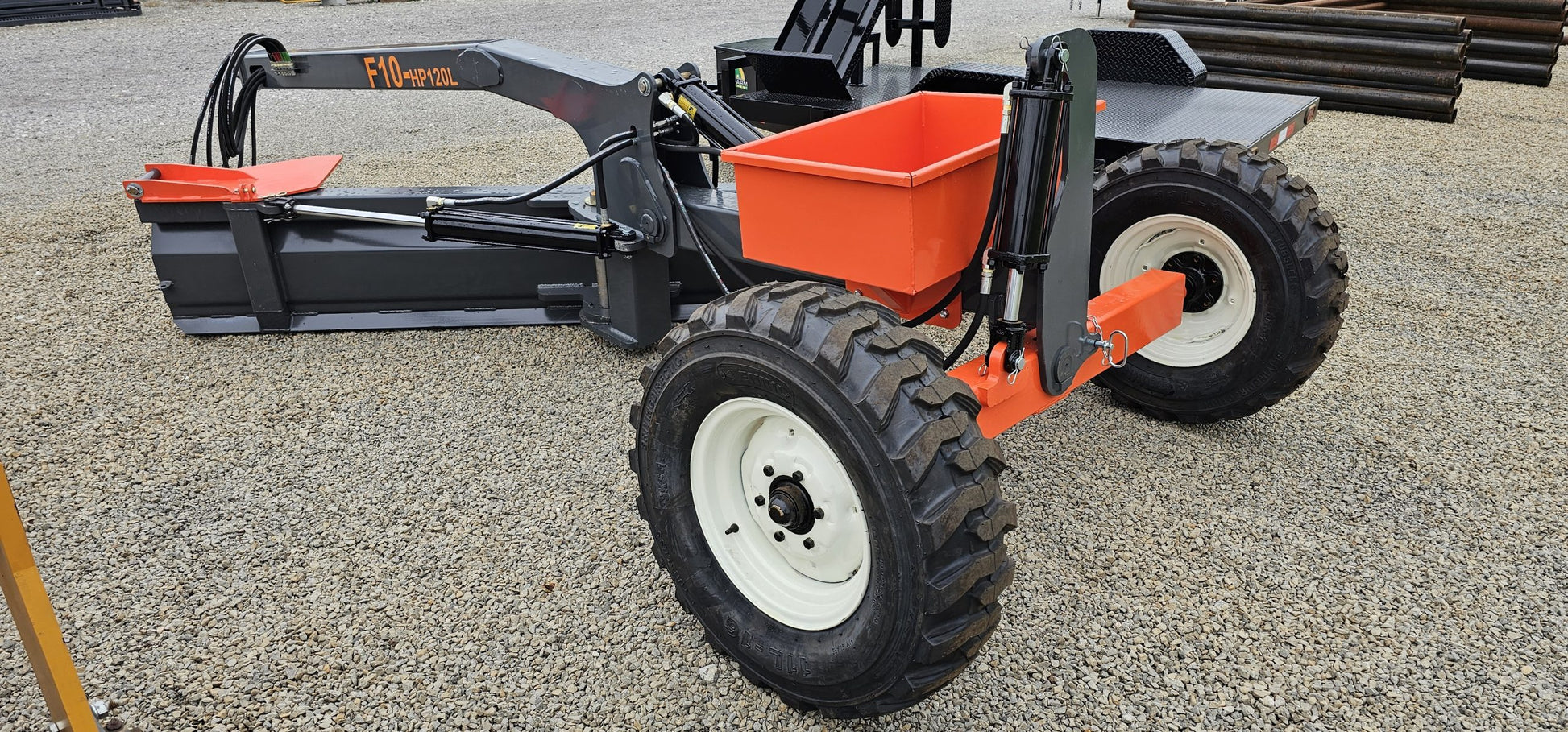

Built on a rugged 6″ × 6″ main frame and equipped with durable 11L16 12‑ply tires, the grader blade is engineered for stability and long‑lasting performance. A pintle hitch hookup ensures easy attachment, while the integrated weight box can be filled with concrete or other material to increase downforce and efficiency.
For optimal operation, the DH F10‑HP120L requires approximately 80–120 PTO horsepower, making it suitable for mid‑ to large‑sized tractors.
Key Features

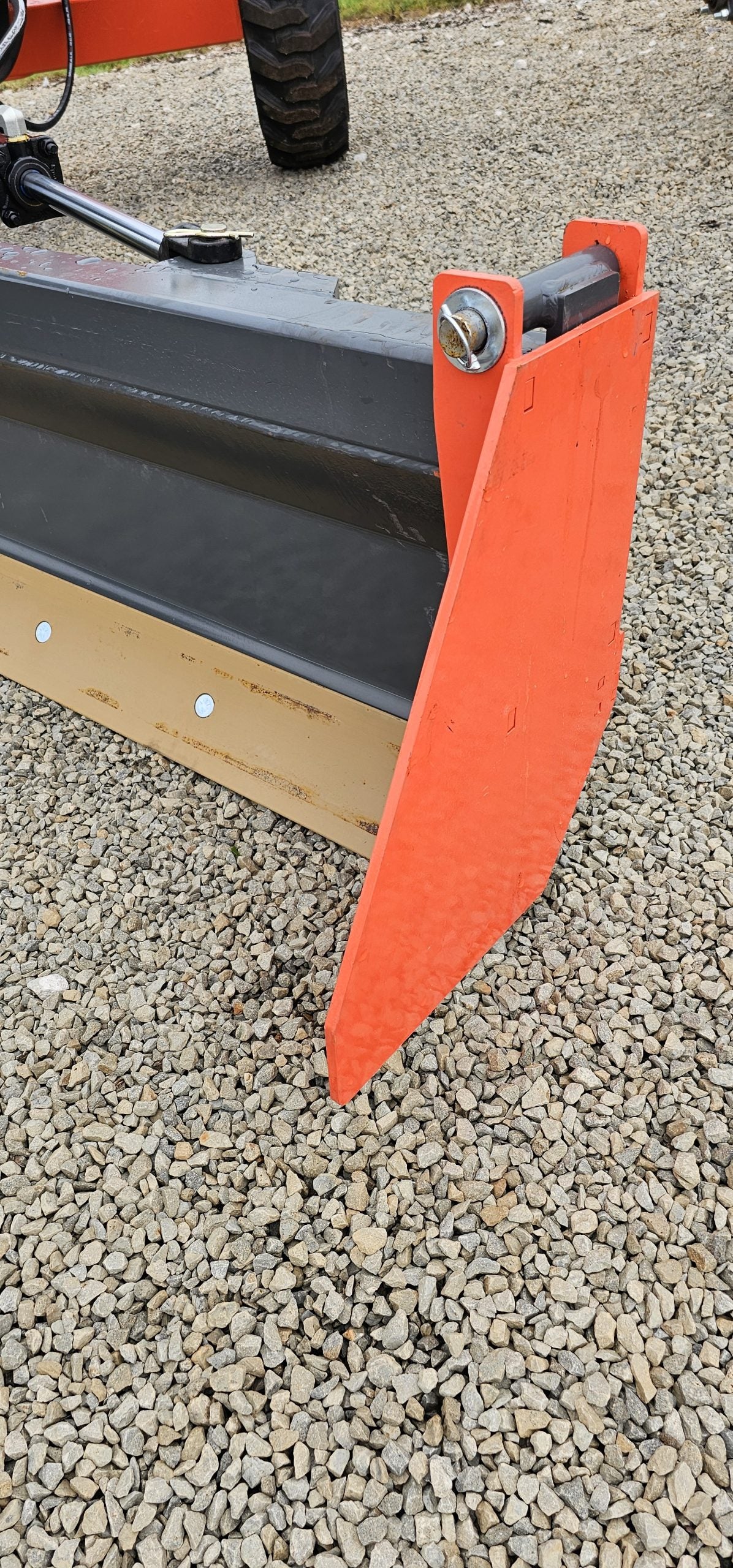

- 10′ Hydraulic 6‑Way Blade – versatile grading performance with multiple angle and tilt adjustments.
- Horsepower Requirement: 80–120 PTO HP – ensures smooth and efficient operation with compatible tractors.
- Heavy‑Duty Frame – 6″ × 6″ construction built to withstand tough grading tasks.
- Stable Operation – 11L16 12‑ply tires and optional weight box for added balance and efficiency.
Detailed Specifications
| Feature | Details |
|---|---|
| Model | DH F10‑HP120L |
| Blade Type | 10′ hydraulic, 6‑way blade (pull type) |
| Hitch | Pintle hitch hookup |
| Frame | 6″ × 6″ heavy‑duty main frame |

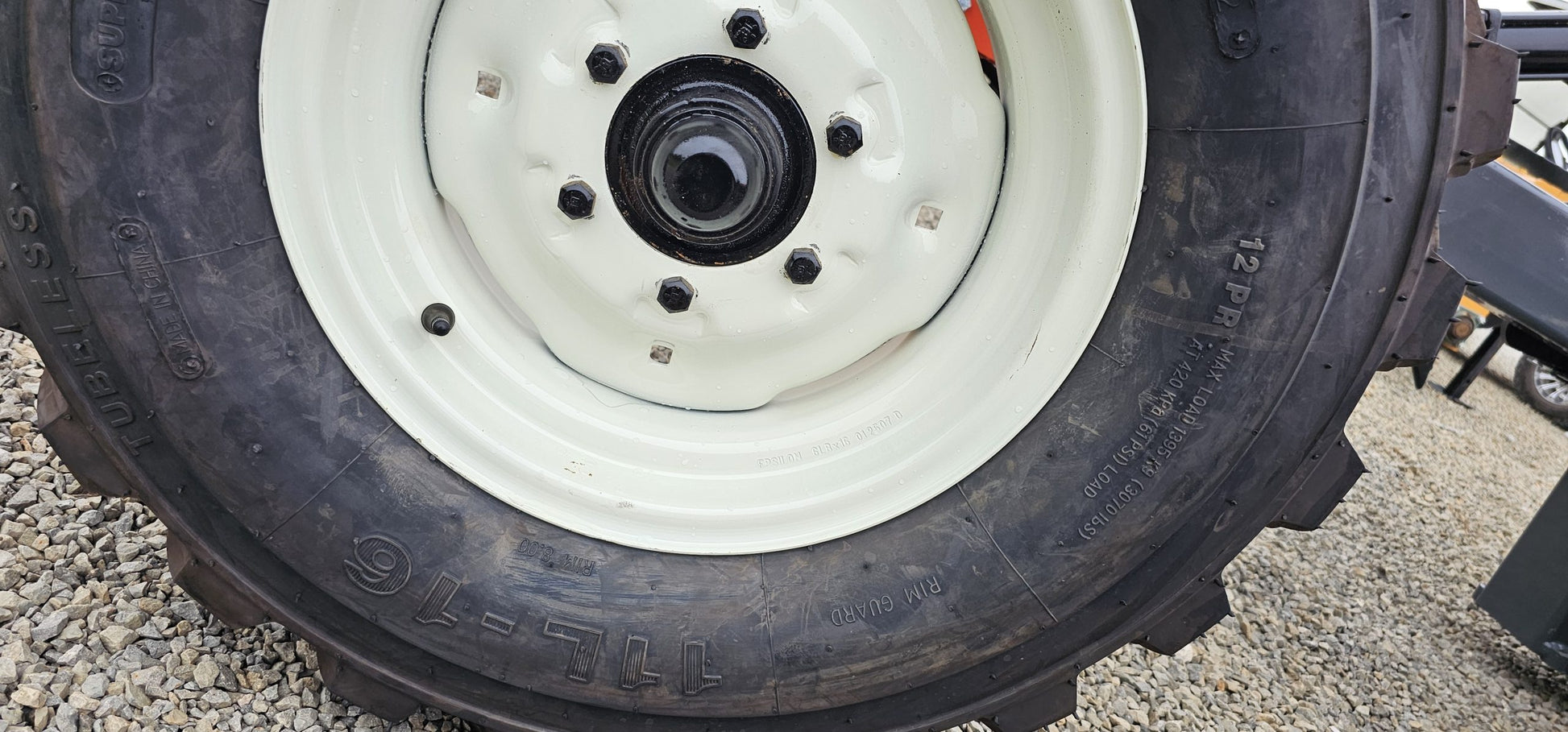

| Tires | 11L16, 12‑ply |
| Horsepower | 80–120 HP |
| Weight Box | Can be filled with concrete or other material for added stability |
| Applications | Driveways, roads, general grading |
