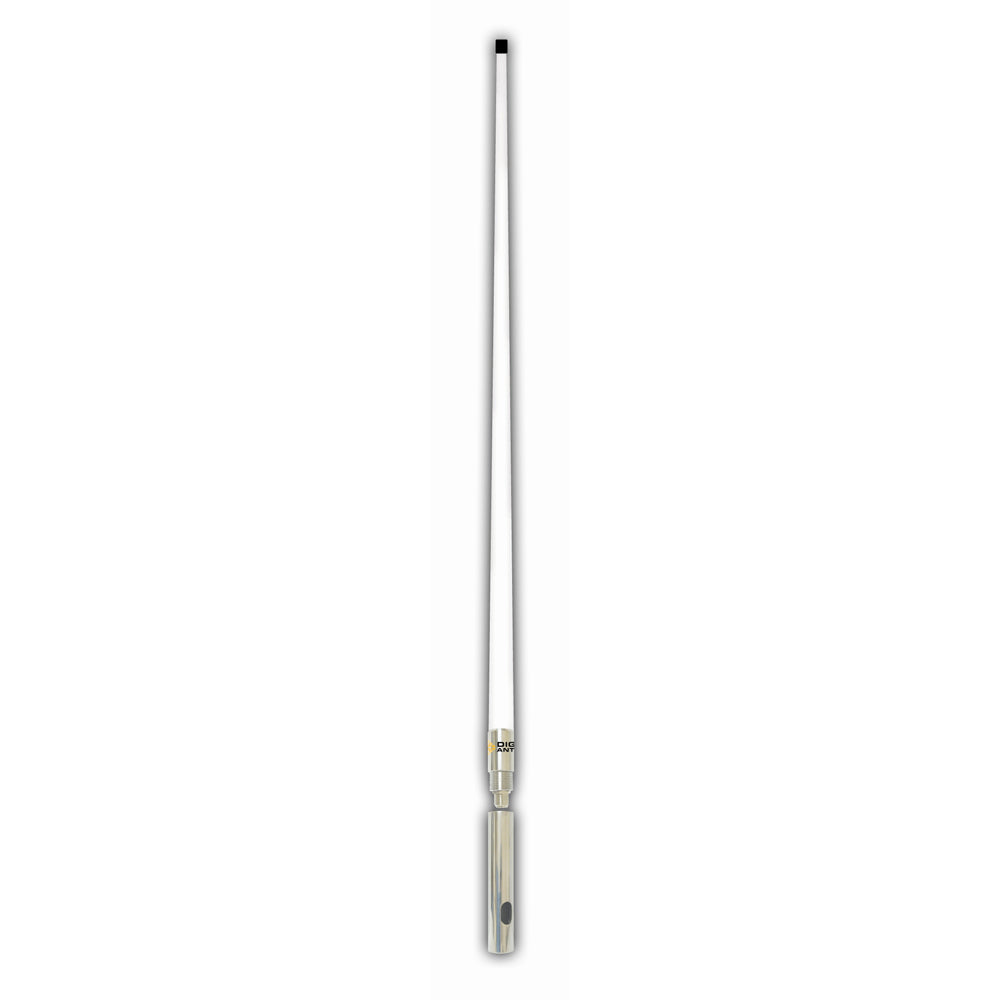

Digital Antenna 876-SW 4 AIS Antenna - White [876-SW]

AIS Antennas
4' Length, 4.5dB Gain

In conjunction with the USCG Automatic Identification System (AIS) requirements for commercial vessels, Digital Antenna created a series of 4 AIS antennas that meet the exacting AIS frequency requirements. Designed with a low 1.5:1.0 SWR ratio from 159-162 MHz, Digital Antennas 4.5 dB gain AIS antennas offer unsurpassed durability and performance compatible with all AIS transponders.

All of our antennas are made in the USA, assembled, tested and tuned by hand for maximum performance, quality and durability.

All 4' AIS Antennas Feature:

• Powerful brass radiators

• Soldered connections

• Power directing ferrite choke bead

• High gloss urethane finish

• 316 stainless steel ferrule

• 4.5dB gain

• Mount: Stainless steel double female ferrule for mounting 114 threaded base

• Connector: Quality female SO-239 (UHF female)

• Cable: Not included use our VHF/AIS cables and two DA645 connectors

Specifications:

• Antenna Band: AIS
• Color: White
• Construction: Fiberglass
• Ferrule Type: Stainless Steel
• Length (Inches): 4'
• Box Dimensions: 2"H x 2"W x 50"L WT: 3 lbs
• UPC: 839494001657
