Product Description
Dirt Dog Rear Blade | 181 Series | Overall Width 108" & 120" inches | Horsepower 140-180 HP | For Tractor
DESCRIPTION
The 181 Series are available with manual or hydraulic adjustments allowing you to customize it to your specifications. Fix drainage issues, grade the land, clear snow, and more. A simple, versatile tool that’s long been a staple of tractor owners for good reason.
The Dirt Dog 181 Series Rear Blade is an industrial-grade grading and land management tool designed for heavy-duty applications. Built for extreme durability, this blade offers manual or hydraulic adjustments for tilt, offset, and angle, making it an essential tool for precision grading, road maintenance, and snow clearing.
With a reinforced 5/16” moldboard standing 19” tall, the blade efficiently moves material while maintaining structural integrity. The 1/2” x 6” bolt-on, reversible cutting edge ensures long-lasting performance. The 5” moldboard king pin adds extra strength, making this blade ideal for tractors with 140 to 180 HP. The Cat II & III 3-Point Quick Hitch Compatible A-frame provides quick and secure attachment.
Manufactured in the USA, the Dirt Dog 181 Series Blade is available in 9ft and 10ft widths, with optional hydraulic angle, offset, tilt, skid shoe kits, and end plates for enhanced performance and customization.
Key Features
- Quick Hitch Compatibility: Designed for Category II & III quick hitch systems, ensuring fast and easy mounting.
- Durable Moldboard King Pin: Features a 5” moldboard king pin for enhanced durability and stability during operation.
- Versatile Angle Adjustment: Offers 45° forward and reverse angle adjustment for precise and efficient land grading.
- Smooth Operation Over Uneven Terrain: Equipped with a 15° tilt adjustment to provide adaptability to varying ground conditions.
- Flexible Offset Adjustment: 39” offset adjustment available with manual or hydraulic options for customized operation.
- Reinforced Moldboard: Built with a 5/16” reinforced moldboard, available in 9ft and 10ft widths for robust performance.
- Durable Cutting Edge: Includes a 1/2" × 6" bolt-on, reversible cutting edge to maximize wear life and minimize replacements.
- Convenient Storage: Comes with a parking stand for easy and organized storage.
- Optional Hydraulic Adjustments: Provides optional hydraulic adjustments for angle, tilt, and offset, improving operational efficiency.
- Optional Skid Shoe Kit: Prevents excessive digging, allowing for controlled and consistent grading.
- Optional Bolt-on End Plate Kit: Helps trap material efficiently for enhanced functionality.
- Proudly Made in the USA: Manufactured domestically, ensuring high quality and craftsmanship.

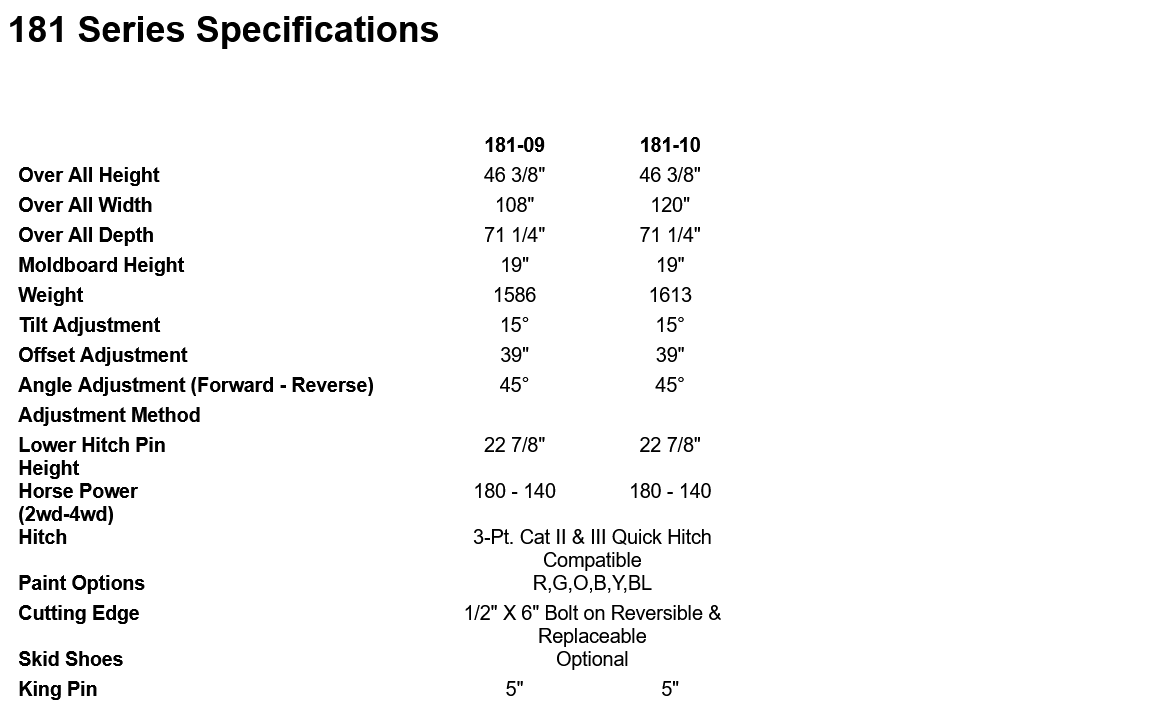

Detailed Specifications
| Specification | 181-09 | 181-10 |
|---|---|---|
| Over All Height | 46 3/8" | 46 3/8" |
| Over All Width | 108" | 120" |
| Over All Depth | 71 1/4" | 71 1/4" |
| Moldboard Height | 19" | 19" |
| Weight | 1586 lbs | 1613 lbs |
| Tilt Adjustment | 15° | 15° |
| Offset Adjustment | 39" | 39" |
| Angle Adjustment (Forward - Reverse) | 45° | 45° |
| Adjustment Method | Manual or Hydraulic | Manual or Hydraulic |
| Lower Hitch Pin Height | 22 7/8" | 22 7/8" |
| Horse Power (2wd-4wd) | 180 - 140 HP | 180 - 140 HP |
| Hitch | 3-Pt. Cat II & III Quick Hitch Compatible | 3-Pt. Cat II & III Quick Hitch Compatible |
