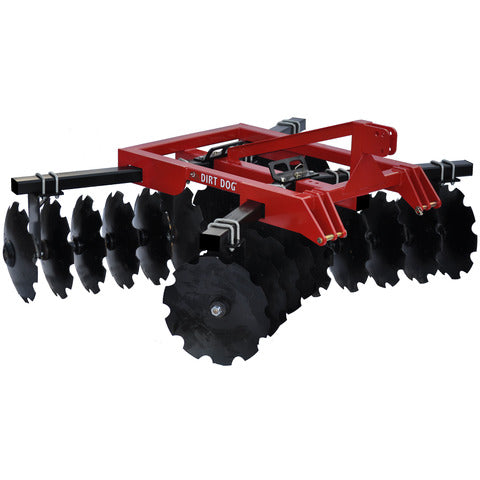

Dirt Dog 3-Point Lift Tandem Disc Harrow | Model 300 Series | Overall Width 78", 96" & 118" inches | Horsepower 45-95 HP | For Tractors
Dirt Dog 3-Point Lift Tandem Disc Harrow | Model 300 Series | Overall Width 78", 96" & 118" inches | Horsepower 45-95 HP | For Tractors
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Dirt Dog 3-Point Lift Tandem Disc Harrow | Model 300 Series | Overall Width 78", 96" & 118" inches | Horsepower 45-95 HP | For Tractors
Included Options:
Description

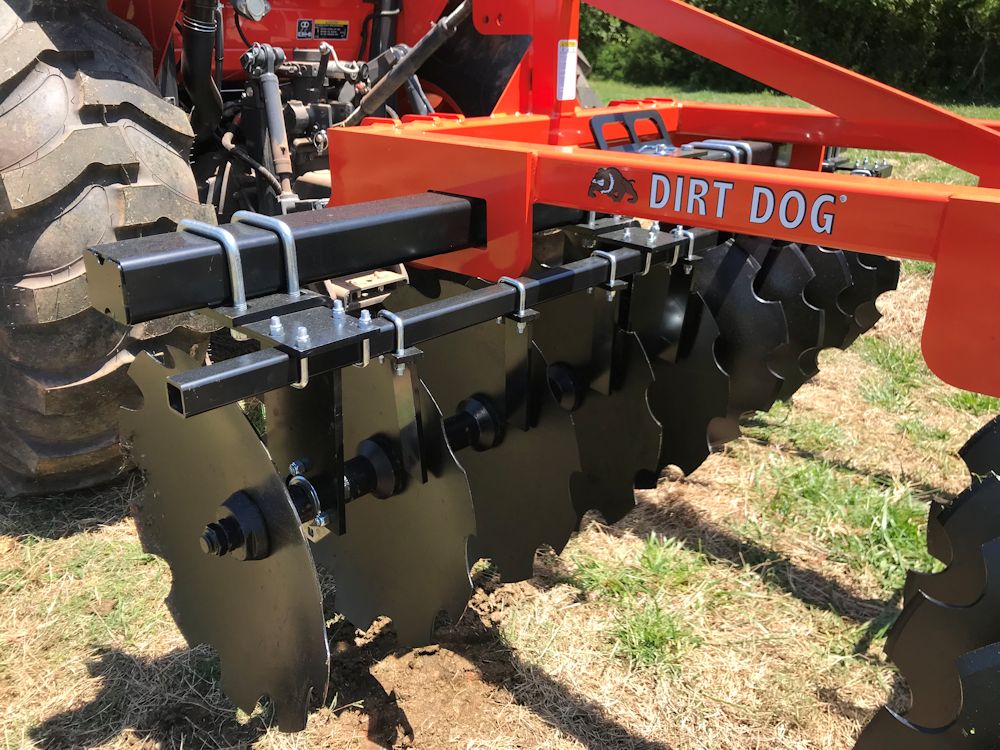

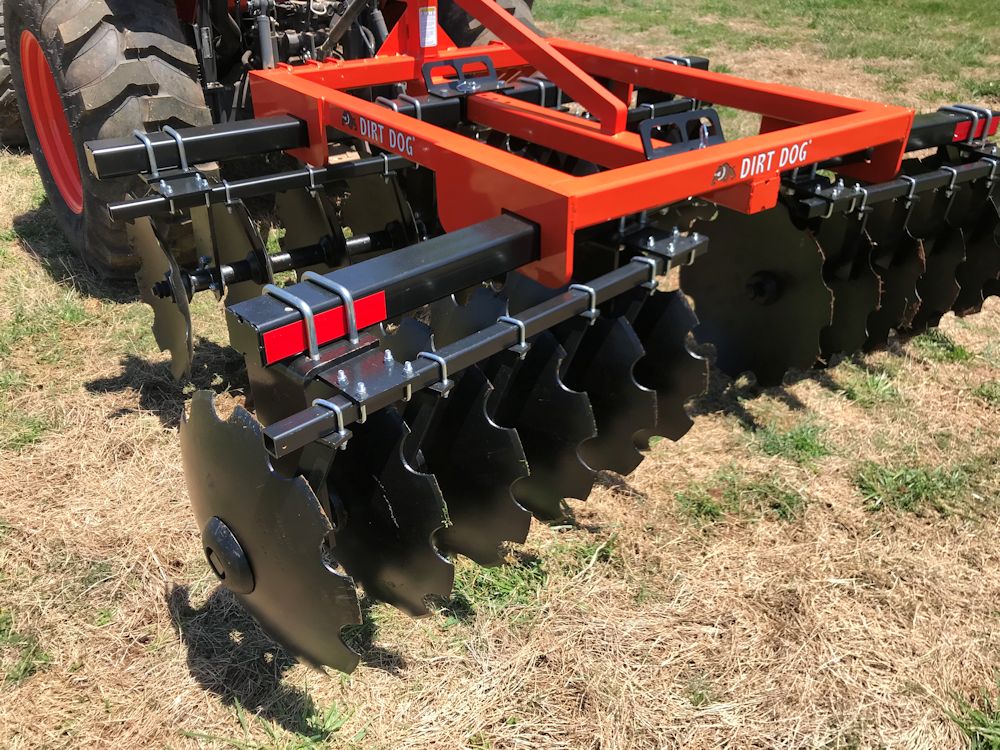

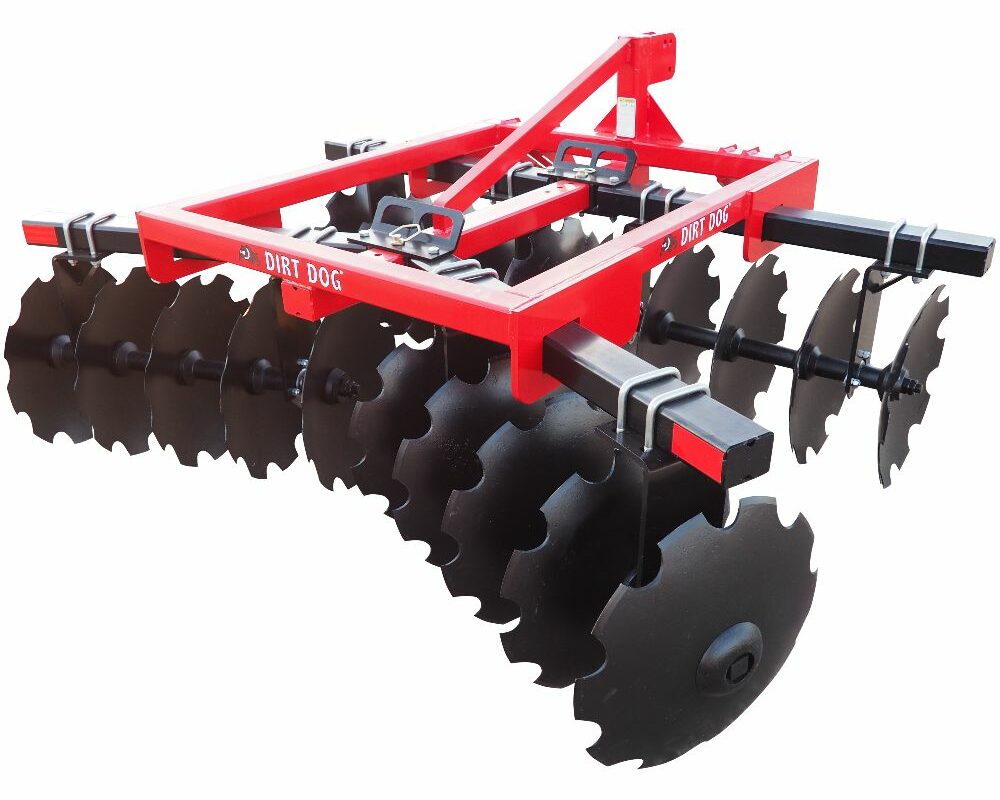

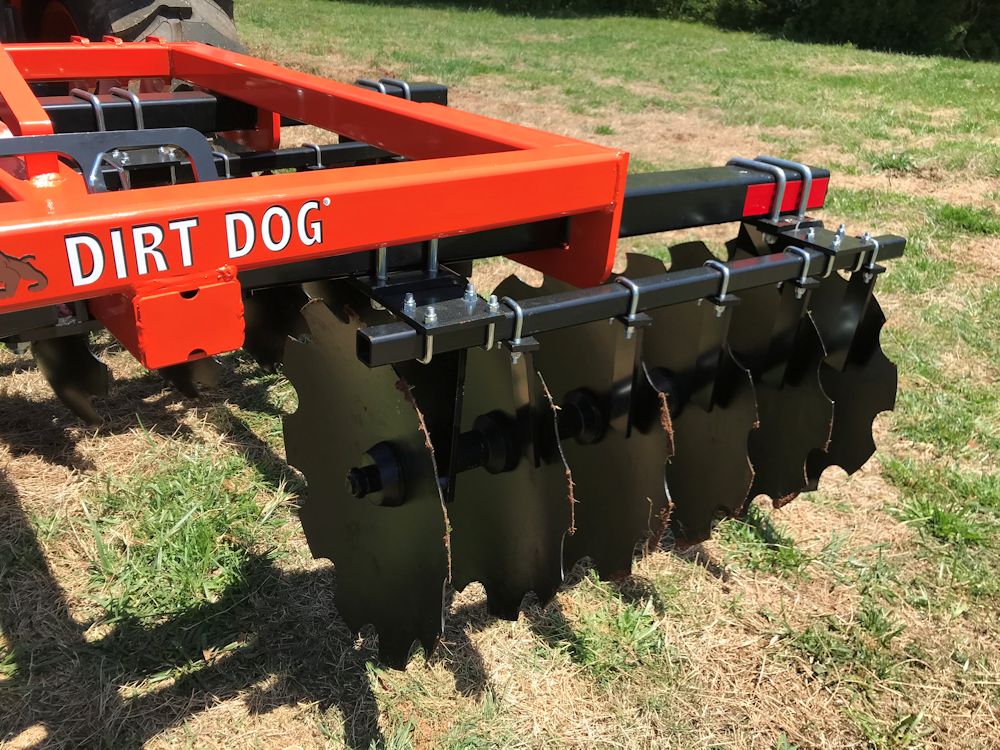

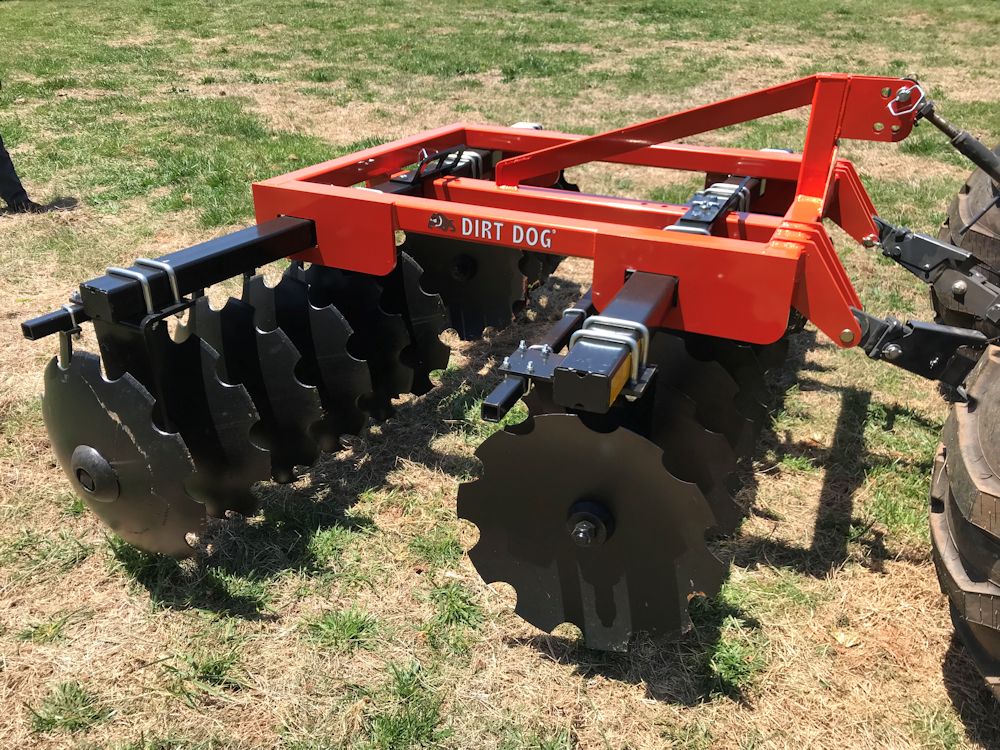

Dirt Dog’s 300 series harrows are the largest three point lift harrows in our line. They are designed to be used with cat I & II three point lift tractors up to 95 horse power. The Quick hitch compatible triple lug hitch and 3” square tube frame make the 300 series an extremely heavy duty disc harrow. The 300 gangs can be configured with 9” or 7 ½” spacing and 20” or 22” disc. Gang angles are adjusted by an index pin and handle assembly that makes adjustments easy. The front gangs angle from 0° to 21° with the rear angling from 7° to 21°. Notched, 3.5mm boron discs are standard on the 300 and sealed, self-aligning bearings keep them turning smooth throughout the life of the harrow. The ½” x 7” reinforced gang hangers that are bolted to the 4” x 3” x ¼” gang tubes provide the unyielding connection needed to transfer your tractors power to the cutting edge of the disc, making this one of the heaviest, capable disc harrows in its class. Dirt Dog’s 300 series is available in widths from 78” to 118” and can be powder coated in red, green, orange, blue and yellow.
Key Features
- Category 1 & 2 Quick Hitch Compatible: Ensures compatibility with both Category 1 and 2 quick hitches for easy attachment and detachment.
- Disc Spacing Options: Available with 7 1/2” or 9” disc spacing to suit different soil types and conditions.
- Standard Boron Notched Discs: 3.5mm Boron notched discs for enhanced durability and performance.
- Sturdy Frame: Constructed with a 3” square tube frame for enhanced durability.
- Secure Gang Hangers: 1/2″ x 7″ gang hangers secured with two 5/8” u-bolts for reliable operation.
- Self-Aligning Bearings: Sealed, self-aligning ball bearings for smooth and maintenance-free performance.
- Horse Power Range: Suitable for 95 horsepower range tractors.
- Robust Gang Tubes: Equipped with 4” x 3” x 1/4″ gang tubes for added strength.
- High Carbon Gang Axles: Features 1 1/8” square high carbon gang axles for superior performance.
- Adjustable Gangs: Front gang adjustable to 0°, 7°, 14°, 21° and rear gang adjustable to 7°, 14°, 21° with easy-to-use adjustment handle.
- Color Options: Available in yellow, red, orange, green, and blue to match various preferences.
- Optional Scraper Kits: Optional scraper kits available for enhanced functionality.
Detailed Specifications
| Model | # of Discs | Disc Size | Disc Type | Spacing Front (in) | Spacing Rear (in) | Cut Width (in) | Weight (lbs) | Recommended HP |
|---|---|---|---|---|---|---|---|---|
| 300-1 | 20 | 20" | Notched | 7-1/2" | 7-1/2" | 78"-85" | 1108 | 45-60 |
| 300-2 | 20 | 22" | Notched | 7-1/2" | 7-1/2" | 78"-85" | 1227 | 55-65 |
| 300-5 | 18 | 20" | Notched | 9" | 7-1/2" | 78"-85" | 1084 | 50-65 |
| 300-6 | 18 | 22" | Notched | 9" | 7-1/2" | 78"-85" | 1201 | 55-70 |
| 300-9 | 20 | 20" | Notched | 9" | 9" | 89"-96" | 1152 | 60-75 |

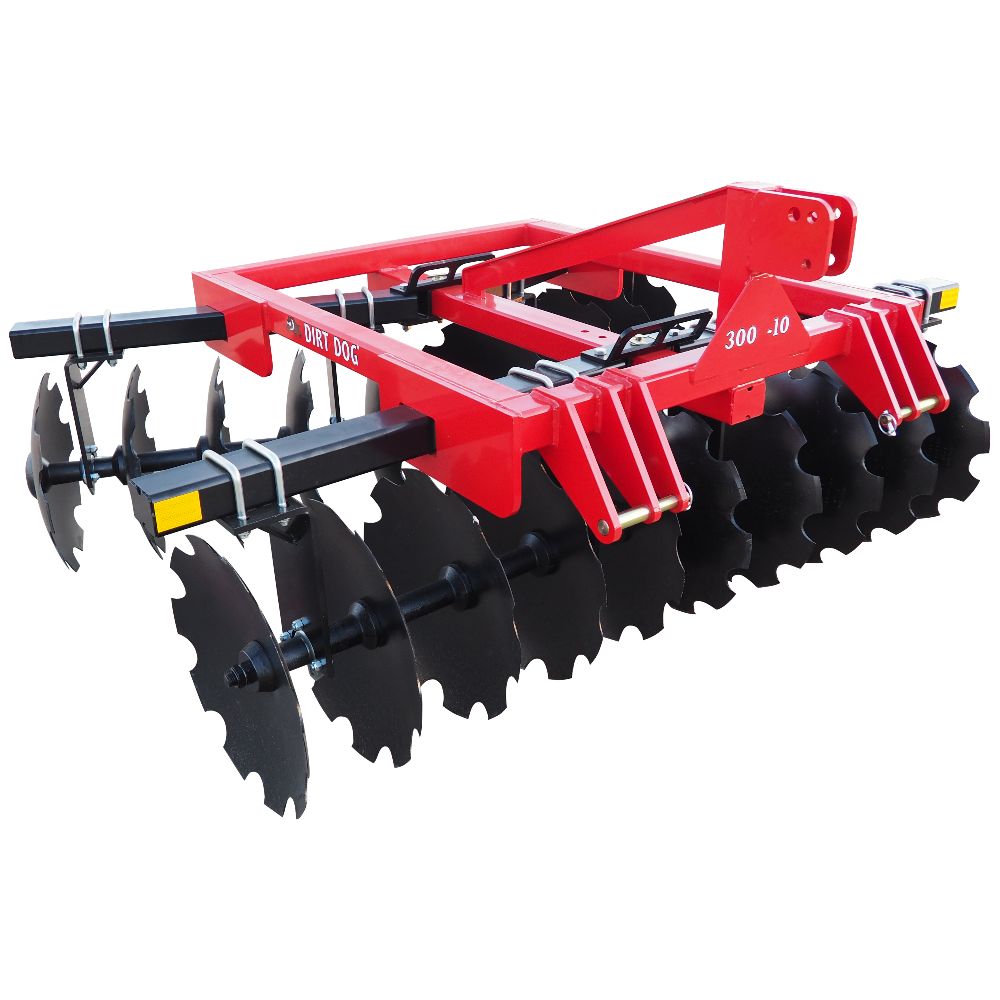

| 300-10 | 20 | 22" | Notched | 9" | 9" | 89"-96" | 1275 | 70-85 |
| 300-13 | 24 | 20" | Notched | 7-1/2" | 7-1/2" | 93"-100" | 1186 | 65-80 |
| 300-14 | 24 | 22" | Notched | 7-1/2" | 7-1/2" | 93"-100" | 1311 | 75-90 |
| 300-17 | 22 | 20" | Notched | 9" | 7-1/2" | 93"-100" | 1173 | 70-85 |
| 300-18 | 22 | 22" | Notched | 9" | 7-1/2" | 93"-100" | 1299 | 75-90 |
| 300-21 | 24 | 20" | Notched | 9" | 9" | 107"-114" | 1246 | 80-95 |
| 300-22 | 24 | 22" | Notched | 9" | 9" | 107"-114" | 1381 | 85-95 |
| 300-25 | 26 | 20" | Notched | 9" | 7-1/2" | 107"-114" | 1355 | 90-95 |
| 300-26 | 26 | 22" | Notched | 9" | 7-1/2" | 107"-114" | 1485 | 95 |
Scraper Kits for 300 Series Disc Harrows
| Scraper Kit # | Description | Compatible Models |
|---|---|---|
| 98598 | 20 Disc - 7-1/2" Spacing - 78" | 300-1 to 300-4 |
| 98575 | 18 Disc - 9"/7-1/2" Spacing - 78" | 300-5 to 300-8 |
| 98512 | 20 Disc - 9" Spacing - 96" | 300-9 to 300-12 |
| 98511 | 24 Disc - 7-1/2" Spacing - 96" | 300-13 to 300-16 |
| 98576 | 22 Disc - 9"/7-1/2" Spacing - 96" | 300-17 to 300-20 |
| 98514 | 24 Disc - 9" Spacing - 118" | 300-21 to 300-24 |
| 98515 | 26 Disc - 9"/7-1/2" Spacing - 118" | 300-25 to 300-28 |
