Dirt Dog 3-PT Bale Spear Cat. 1 | Overall Width 31" | 25-45 HP For Tractor
Dirt Dog 3-PT Bale Spear Cat. 1 | Overall Width 31" | 25-45 HP For Tractor
Couldn't load pickup availability
Couldn't load pickup availability
Product Description

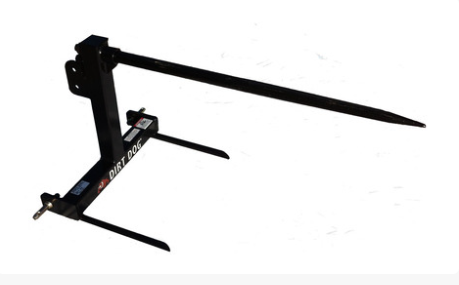

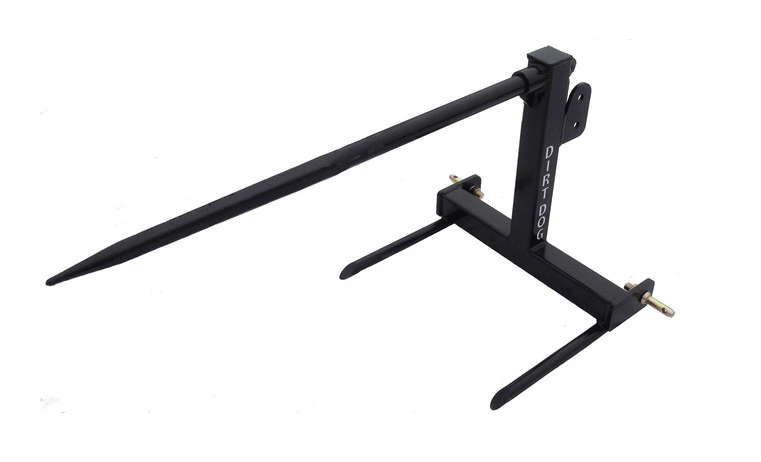

Dirt Dog 3-PT Bale Spear Cat. 1 | Overall Width 31" | 25-45 HP For Tractor
DESCRIPTION
Move and stack hay bales effortlessly with the Dirt Dog 3-PT Bale Spear Cat. 1, designed to handle round bales weighing up to 3,500 lbs. This economical hay implement is ideal for 25-45 HP tractors and offers a main tapered spear that’s 42” long along with two welded balance spears for enhanced stability during bale transport. The bale spear is compatible with both Standard and Quick Hitches, improving operator efficiency, especially when used in combination with a front loader. Constructed with a 3” x 3” square tube frame and reinforced spear bushings, this unit is built for durability and reliability. Its black powder-coated finish ensures long-lasting protection against wear and tear.
Key Features
- Category 1 Quick Hitch compatible
- 42 1/2" usable spear length
- Spear capacity of 3,500 lbs at 23 1/2"
- Reinforced spear bushings for added durability
- Black powder-coated finish for lasting protection
Detailed Specifications
| Specification | Details |
|---|---|
| Overall Height | 25 3/8" |
| Overall Width | 31 7/8" |
| Overall Depth | 51" |
| Spear Size | 1.78" |
| Usable Spear Length | 42 1/2" |
| Weight | 80 lbs |
| Max Spear Capacity | 3,500 lbs @ 23 1/2" |
| Attachment Method | Category 1-3 Point Lift |
| Paint Options | Black |
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!
