Dirt Dog AGGR Grapple Series | Overall Width 60" & 72" inches | Horsepower Up-To 40 HP | For Tractors

Dirt Dog AGGR Grapple Series | Overall Width 60" & 72" inches | Horsepower Up-To 40 HP | For Tractors

$2,469.50
$2,469.50
Sale Sold out
Customizable
Fast
24/7 Support
  • Impressive Lifting Capacity: Designed to handle the toughest tasks with a max capacity of 3500 lbs at 23 1/2” from the frame.
  • Heavy-Duty Construction: Built with 1/2” A36 steel, these grapples are engineered for durability and long-lasting performance.
  • Versatile Compatibility: Fits Standard Skid Steer Quick Attach, John Deere 300/400/500 Quick Attach, and Euro Quick Attach systems.
View full details

Product Description

Dirt Dog AGGR Grapple Series | Overall Width 60" & 72" inches | Horsepower Up-To 40 HP | For Tractors

Included Options:

Description

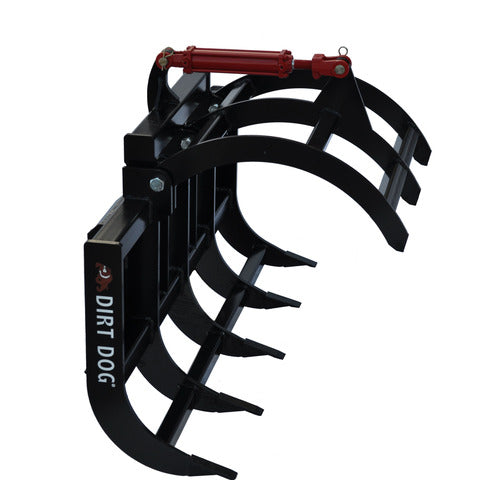

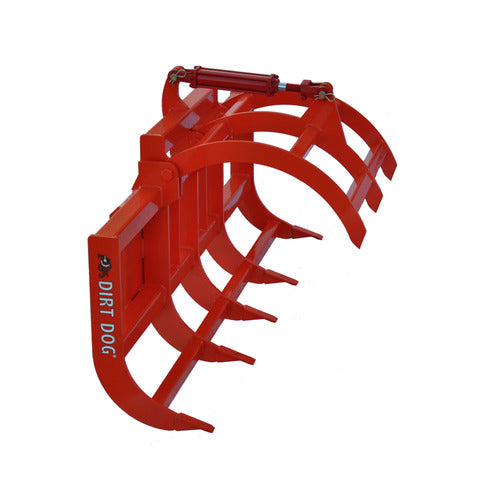

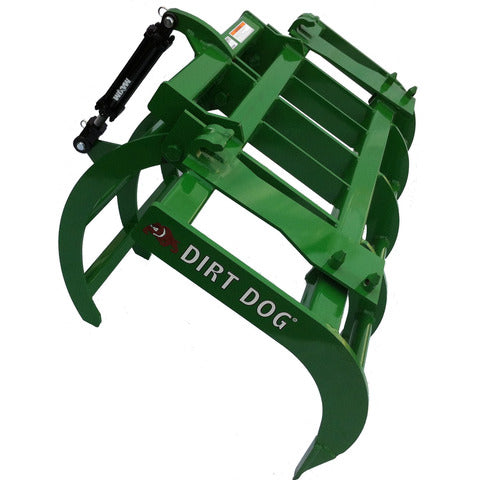

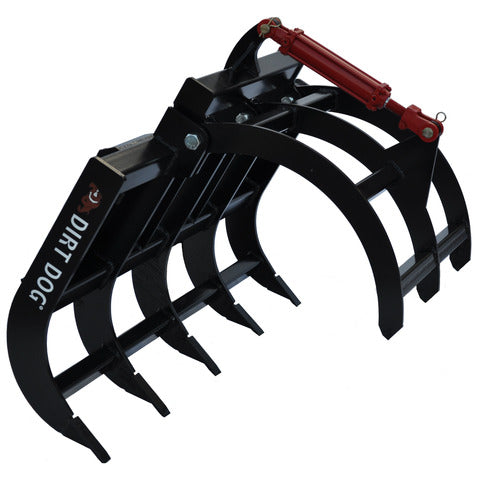

Dirt Dog’s AGGR ag grapple is the best choice for cleaning up brush and debris with your AG loader. The AGGR is available for skid steer, Euro or John Deer ag loaders up to 40 horse power. With its powerful single arm opening to 27”, it can tackle large brush piles and logs with ease. The 2” x 8” ASAE tie rod cylinder produces the clamping force for the 5/8” thick tines allowing the operator to sift through and grab debris, making it easy to manipulate. Each tine has a 5/8” replaceable plow point, extending the life of your grapple. The AGGR comes in 60” & 72” widths and is available in red, green, orange, blue, yellow or black powder coat.

Key Features

  • Impressive Lifting Capacity: Designed to handle the toughest tasks with a max capacity of 3500 lbs at 23 1/2” from the frame, ensuring you can manage even the heaviest loads effortlessly.
  • Heavy-Duty Construction: Built with 1/2” A36 steel, these grapples are engineered for durability and long-lasting performance in the harshest conditions.
  • Versatile Compatibility: Fits Standard Skid Steer Quick Attach, John Deere 300/400/500 Quick Attach, and Euro Quick Attach systems, making it adaptable to various tractors and equipment.
  • Efficient Hydraulic System: Equipped with a single 2” x 6” hydraulic cylinder and included hoses (quick couplers not supplied), ensuring smooth and powerful operation.
  • Replaceable Plow Points: Weld-on, replaceable plow points make maintenance a breeze, keeping your grapple in top working condition with minimal effort.
  • Serrated Tines for Superior Grip: The serrated tines provide an excellent grip on materials, making it easier to handle logs, rocks, debris, and other challenging loads.
  • Optimal Dimensions for Maximum Efficiency: With a 27" grapple opening, you can easily grasp and manage large materials. Plus, the overall dimensions (depth: 25”, height: 37 3/4”, width: 60” or 72”) ensure you get the most out of each load.
  • Tailored for Your Tractor: Specifically designed for AG tractors up to 30 HP, these grapples are perfect for smaller tractors while still delivering heavy-duty performance.
  • Sturdy and Stable Design: The 3” x 3” square tube frame adds stability and strength, ensuring that your grapple can handle the most demanding tasks without bending or breaking.
  • Easy Attachment and Detachment: Compatible with Quick Hitch systems, making it simple to attach and detach the grapple, saving you time and effort.
  • Available Models: Choose from a range of models to suit your needs: AGGR60, AGGR60JD, AGGR60E, AGGR72, AGGR72JD, AGGR72E, each designed to deliver top performance and efficiency.

Detailed Specifications

Specification AGGR60 AGGR60JD AGGR60E AGGR72 AGGR72JD AGGR72E
Overall Depth Closed 25” 25” 25” 25” 25” 25”
Overall Height Closed 37 3/4” 37 3/4” 37 3/4” 37 3/4” 37 3/4” 37 3/4”
Overall Width 60” 60” 60” 72” 72” 72”
Grapple Opening 27 9/16” 27 9/16” 27 9/16” 27 9/16” 27 9/16” 27 9/16”
Usable Open Height 30 1/2” 30 1/2” 30 1/2” 30 1/2” 30 1/2” 30 1/2”
Usable Width 60” 60” 60” 72” 72” 72”
Weight 372 lbs 372 lbs 372 lbs 409 lbs 409 lbs 409 lbs
Number of Teeth 5 5 5 5 5 5
Hoses Included Yes Yes Yes Yes Yes Yes
Quick Couplers No No No No No No
Horsepower Max 40 HP 40 HP 40 HP 40 HP 40 HP 40 HP
