The ARV Cannot Operate Without an ATV Frame with Electric Actuator.
Horsepower Requirements – Designed for 400 cc+ ATVs or 18–25 HP UTVs for optimal towing power and performance in aerating compacted soil.
OverallWidth 49", 62" & 74" inches For ATV/UTVs & Hubs are Greasable & Rotate Independently: The greasable hubs allow for easy maintenance and lubrication, while their ability to rotate independently ensures smooth operation and reduces wear and tear.
1 1/4″ Solid Axles: These robust axles provide strength and durability, capable of handling tough conditions and heavy loads.

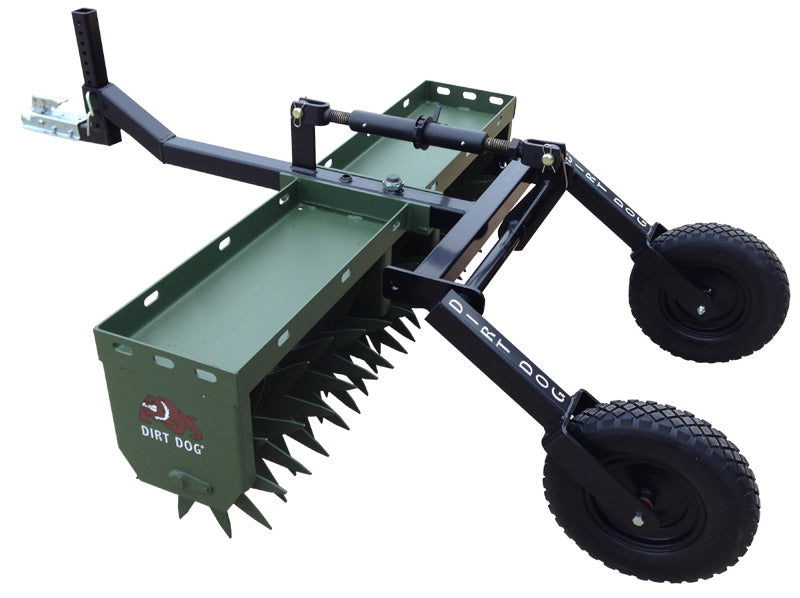

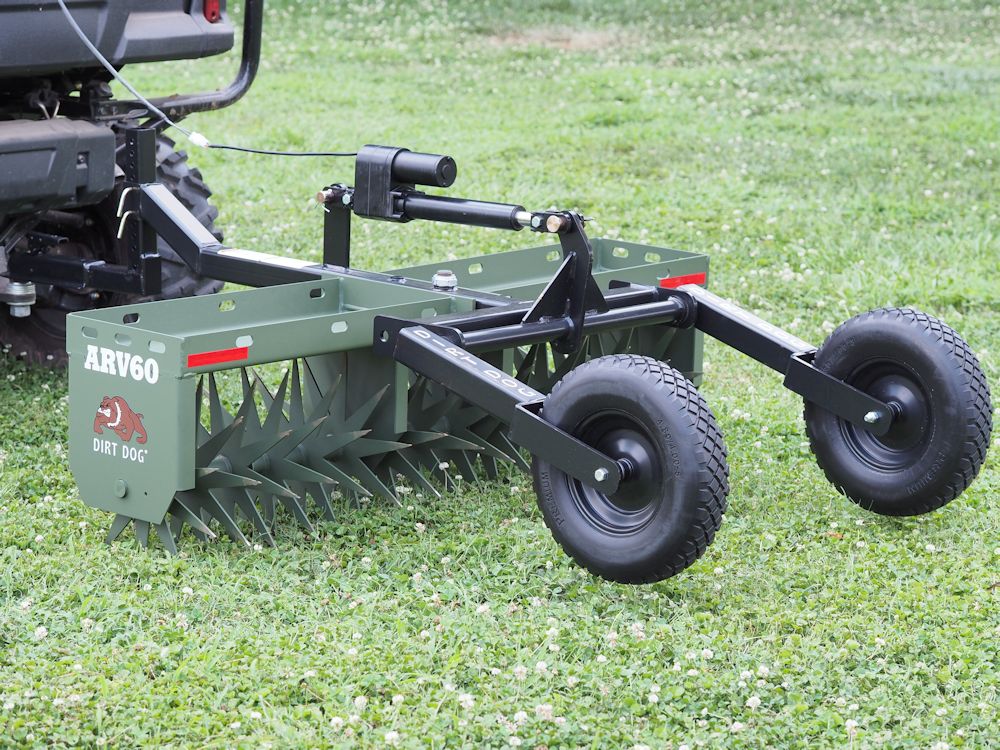

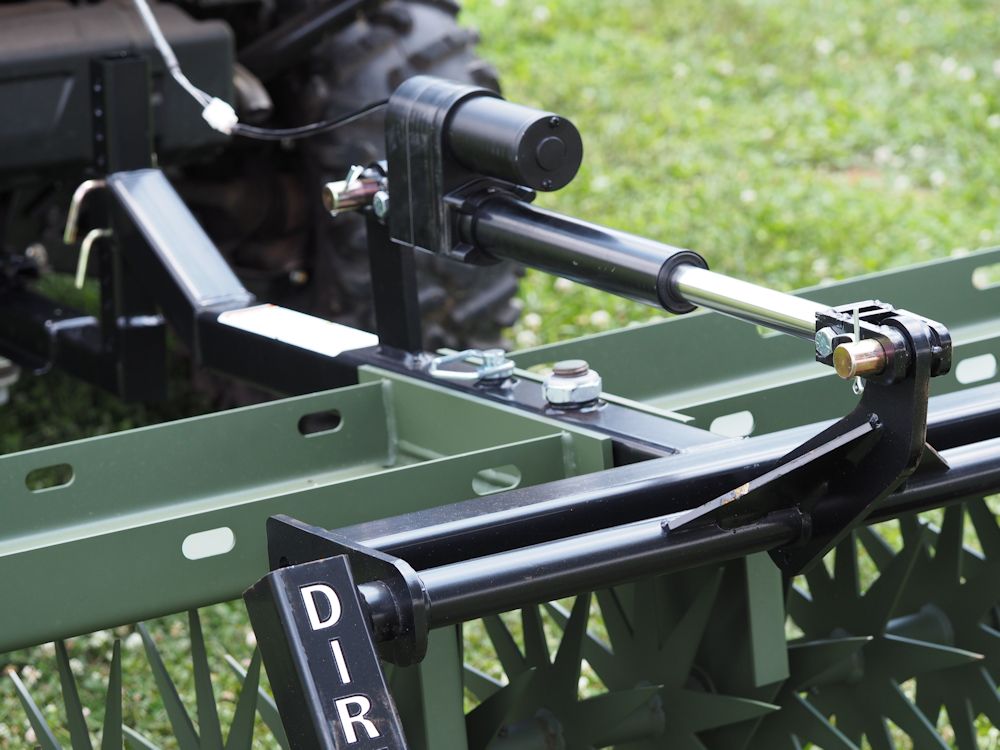

Electric Actuator: Allows you to raise and lower the implement effortlessly with the press of a button, enhancing convenience and reducing physical strain.

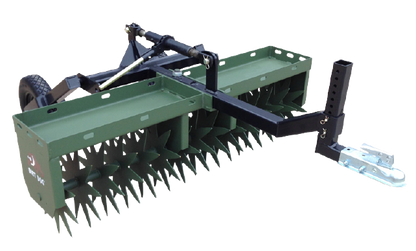

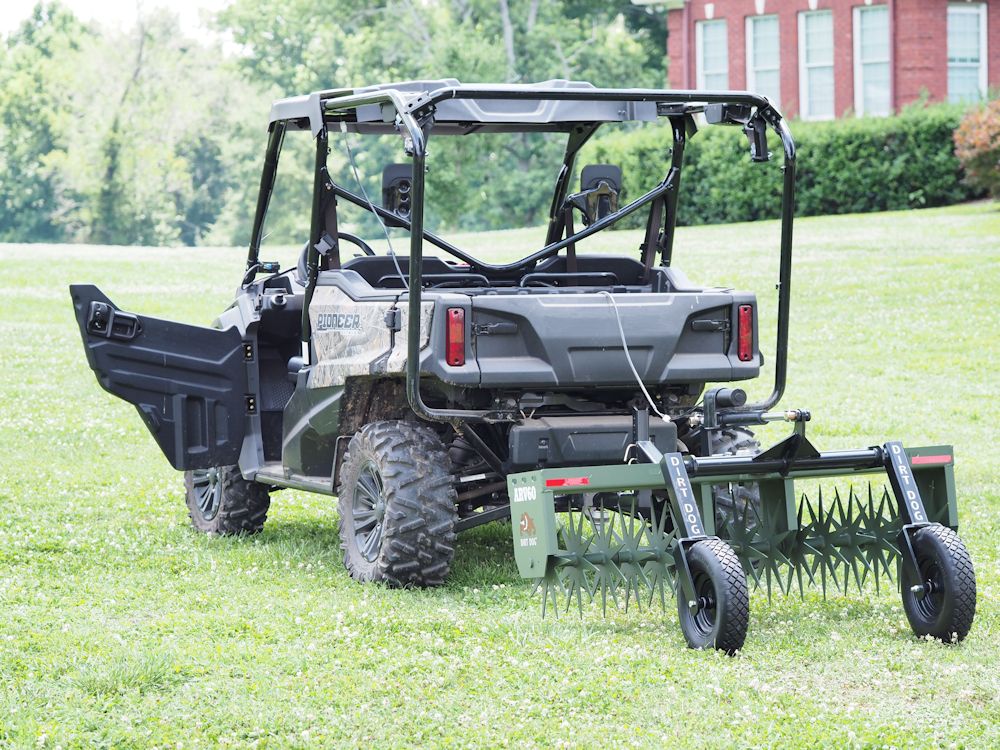

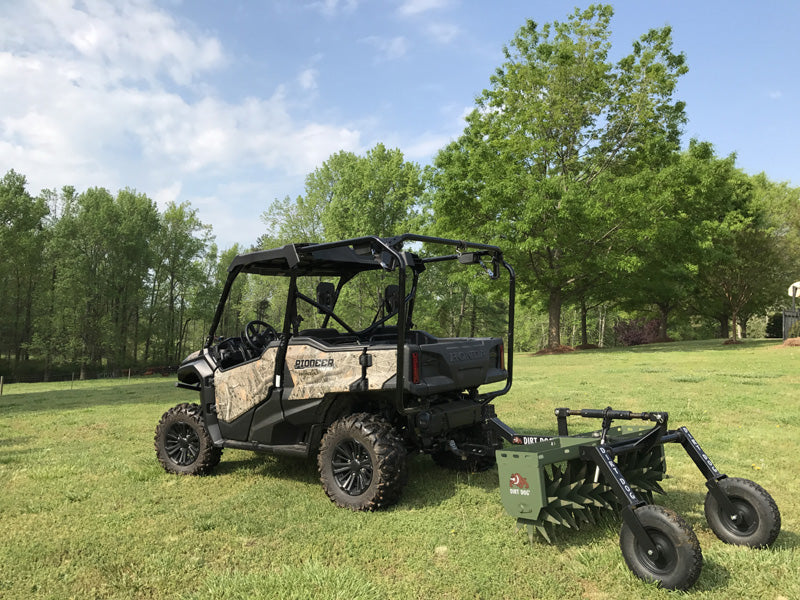

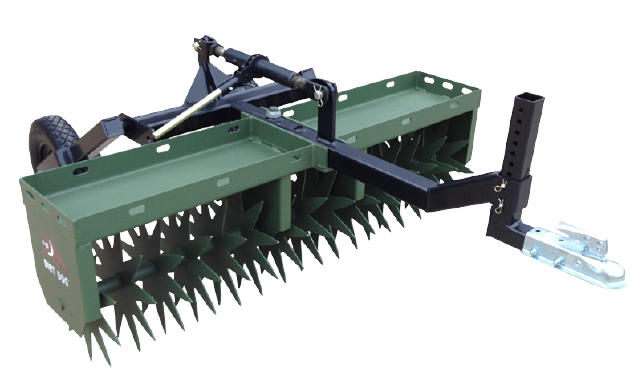

Dirt Dog ATV Equipment – Aerator | ARV Series | Overall Width 48", 60" & 72" | 18–25 HP | For ATV/UTVs
DESCRIPTION
The ARV cannot operate without an ATV Frame with Electric Actuator.

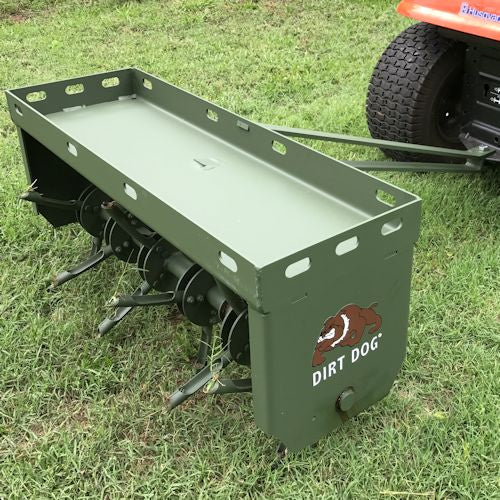

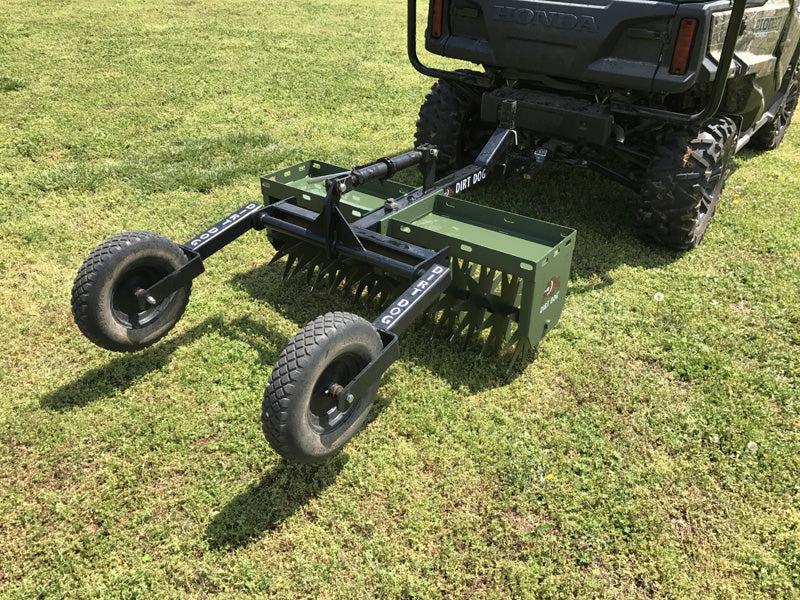

Dirt Dog’s ATV/UTV Pluggers and Aerators are the perfect tool for home owners to care for lawns by breaking up and aerating compact dirt with an ATV or UTV. Our ATV Plugger uses 3/4” hardened spoons on independently rotating and greaseable hubs to remove a plug allowing your lawn to breathe, hydrate, and relieve compaction. Our ATV/UTV Aerator is equipped with 3/16” thick slicing knives. These knives are great for athletic fields since they don’t disturb the surface while they aerate and hydrate. Knives are also great for controlling thatch by cutting through grass runners. Dirt Dog’s PGV & ARV both have independent, greaseable hubs on a 1 1/4” axle. The frame can also be used as a weight rack to get maximum penetration.
Key Features
Electric Actuator: Allows you to raise and lower the implement effortlessly with the press of a button, enhancing convenience and reducing physical strain.

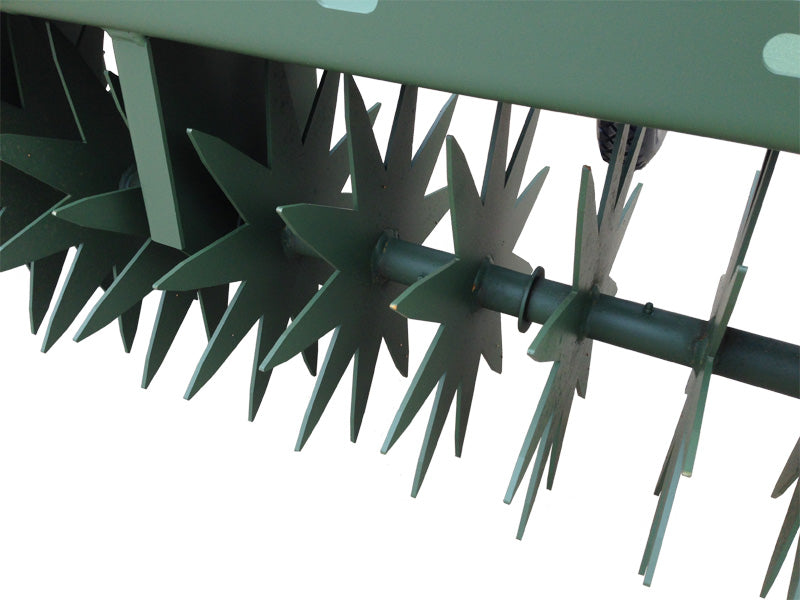

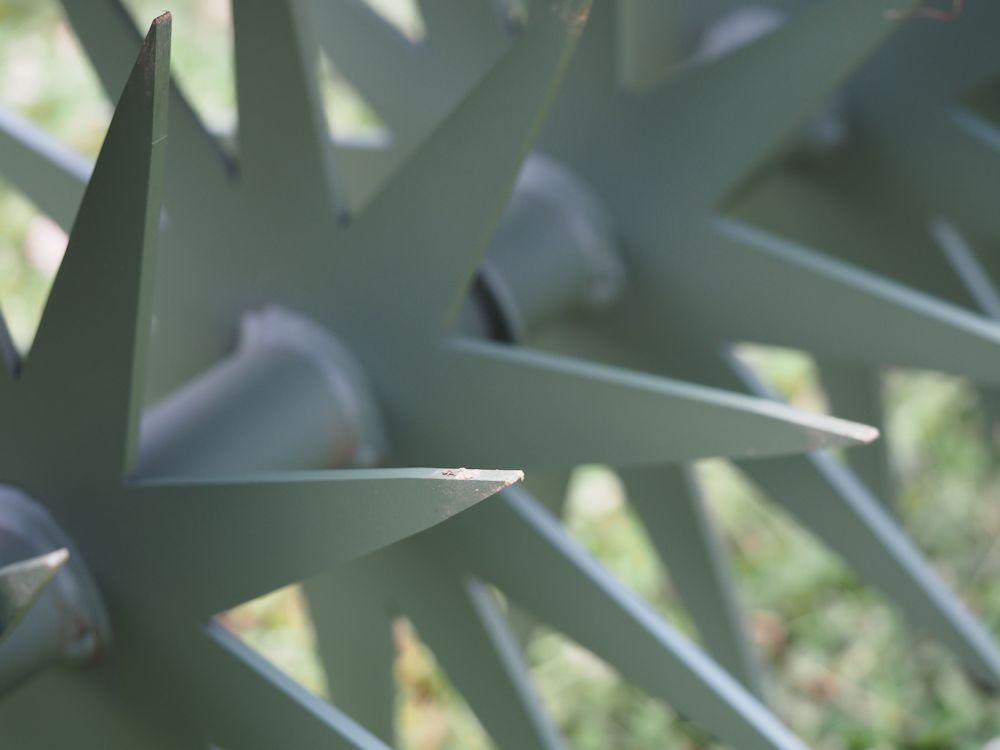

3/16″ Slicing Knives: These knives are designed for efficient slicing and penetration, ensuring effective aeration of the soil.
Horsepower Requirements – Designed for 400 cc+ ATVs or 18–25 HP UTVs for optimal towing power and performance in aerating compacted soil.
Hubs are Greasable & Rotate Independently: The greasable hubs allow for easy maintenance and lubrication, while their ability to rotate independently ensures smooth operation and reduces wear and tear.
1 1/4″ Solid Axles: These robust axles provide strength and durability, capable of handling tough conditions and heavy loads.
Weight Rack: This feature allows for the addition of extra weight, enhancing the performance and depth of aeration.
Solid Tires: These durable tires ensure stability and ease of movement across various terrains.
1 1/4” King Pin: A strong and reliable king pin that ensures the secure connection and smooth pivoting of the equipment.
Dirt Dog Green Powder Coat: This powder coat finish provides a protective layer against rust and corrosion, extending the lifespan of the equipment while giving it a distinctive look.
Detailed Specifications
Feature
ARV48-04
ARV60-04
ARV72-04
Product Description
ATV Aerator 48"
ATV Aerator 60"
ATV Aerator 72"
Overall Height with Frame
37"
37"
37"
Overall Depth with Frame
88 3/8"
88 3/8"
88 3/8"
Distance - Ground to Frame
17 3/4"
17 3/4"
17 3/4"
Overall Width
49 7/8"
62 1/4"
74"
Working Width
44 7/8"
57 3/8"
69"
Overall Depth
17 3/8"
17 3/8"
17 3/8"
Weight with Frame
300 lbs.
335 lbs.
361 lbs.
Number of Knives
120
150
180
Number of Hubs
4
5
6
Knife Spacing
3 7/8"
3 7/8"
3 7/8"
Axle
1 1/4"
1 1/4"
1 1/4"
King Pin
1 1/4"
1 1/4"
1 1/4"
Horsepower
18–25 HP
18–25 HP
18–25 HP
