Dirt Dog

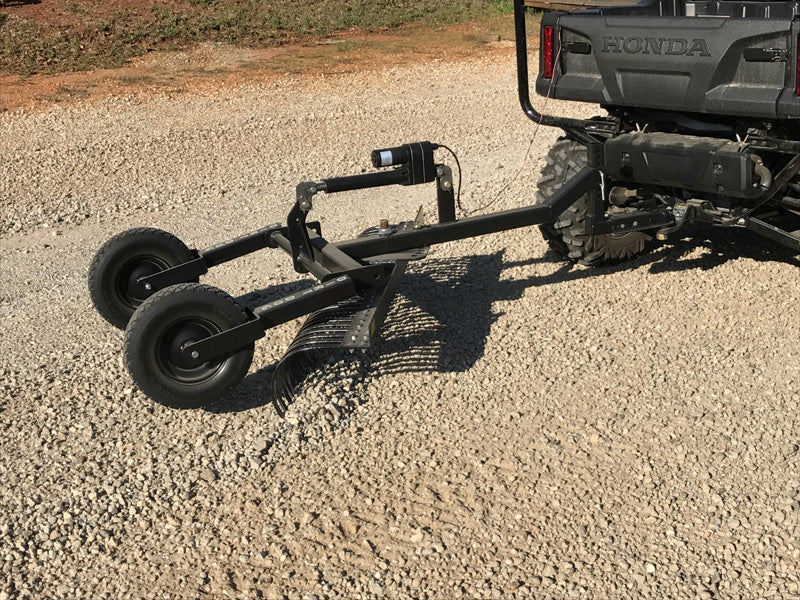

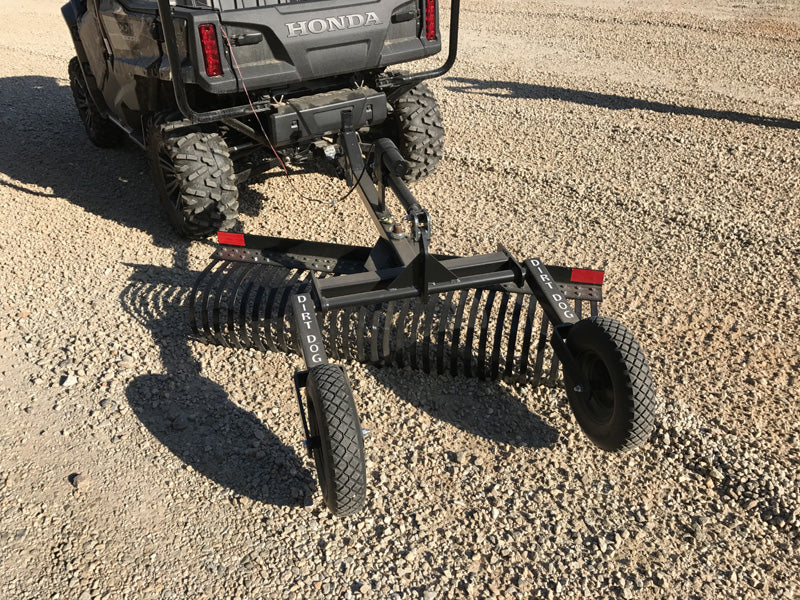

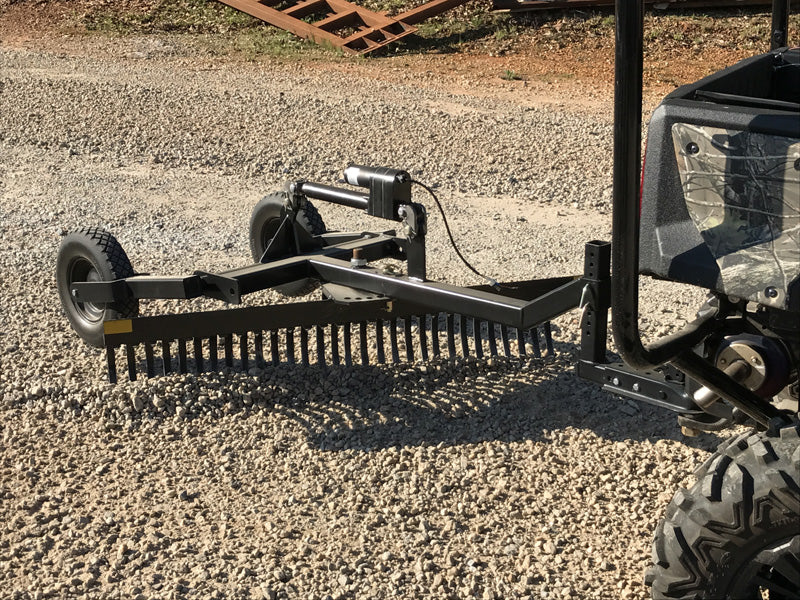

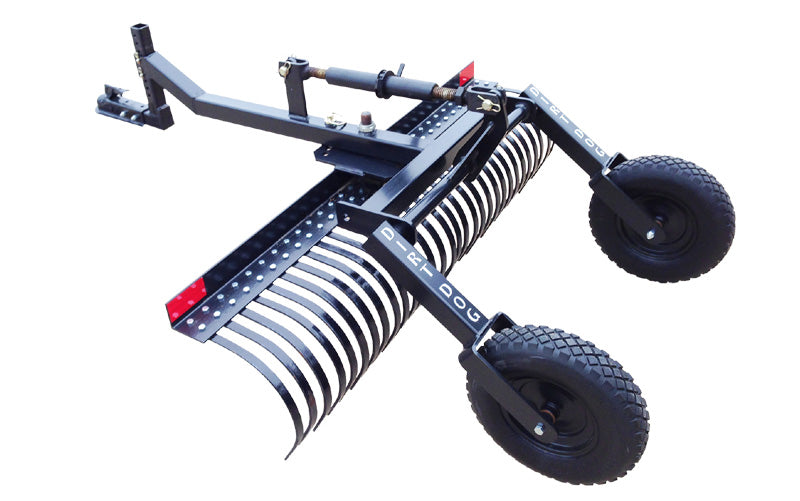

Dirt Dog ATV Equipment – Landscape Rake | LRV Series | Overall Width 48", 60" & 72" | 18–25 HP | For ATV/UTVs

Dirt Dog ATV Equipment – Landscape Rake | LRV Series | Overall Width 48", 60" & 72" | 18–25 HP | For ATV/UTVs

Regular price $764.50
Regular price Sale price $764.50
Sale Sold out
Customizable
Fast
24/7 Support
  • The LRV Cannot Operate Without an ATVF-04-EA-DD
  • Overall Width 48", 60" & 72" inches
  • Estimated Horsepower Requirements – Designed for 400 cc+ ATVs or 18–25 HP UTVs, ensuring enough pulling power for debris and soil work.
  • Electric Actuator: Allows you to raise and lower the implement effortlessly with the press of a button, enhancing convenience and reducing physical strain.
  • Solid Tires: The solid tires are puncture-proof, ensuring reliable performance on various terrains and eliminating the worry of getting a flat tire.
  • 1 1/4” King Pin: The 1 1/4-inch king pin provides a sturdy connection, ensuring smooth operation and durability during use.
View full details

Product Description

Dirt Dog ATV Equipment – Landscape Rake | LRV Series | Overall Width 48", 60" & 72" | 18–25 HP | For ATV/UTVs

DESCRIPTION

The LRV cannot operate without an ATVF-04-EA-DD.

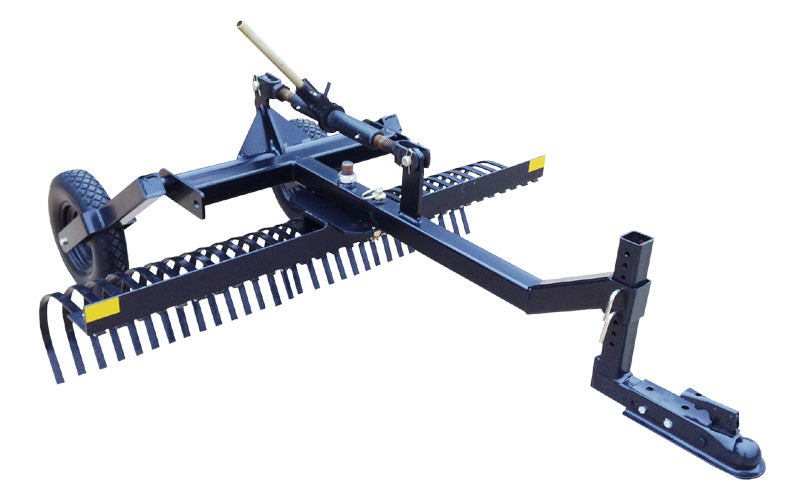

Dirt Dog’s LRV is designed to clean up fields or food plot areas. It’s the perfect tool to rake up debris and rocks to give you a clean slate so you can create the perfect food plot. It is also used for leveling and landscaping yards, and preparing the land for sowing seeds.

Key Features

  • Electric Actuator: Allows you to raise and lower the implement effortlessly with the press of a button, enhancing convenience and reducing physical strain.
  • 5/16” x 1” x 11 1/2” Two Hole Rake Tines: These durable tines are 5/16 inches thick, 1 inch wide, and 11 1/2 inches long, with two holes for secure attachment, providing effective raking performance.
  • Estimated Horsepower Requirements – Designed for 400 cc+ ATVs or 18–25 HP UTVs, ensuring enough pulling power for debris and soil work.
  • Angles from 0° to 30° Right & Left: The rake can be adjusted to various angles from 0° to 30° to the right or left, offering flexibility for different landscaping tasks and achieving desired results.
  • Solid Tires: The solid tires are puncture-proof, ensuring reliable performance on various terrains and eliminating the worry of getting a flat tire.
  • 1 1/4” King Pin: The 1 1/4-inch king pin provides a sturdy connection, ensuring smooth operation and durability during use.
  • Dirt Dog Green Powder Coat: The distinctive Dirt Dog green powder coat finish provides a durable and corrosion-resistant layer, protecting the rake from harsh environmental conditions and extending its lifespan.

Detailed Specifications

LRV48-04

Feature Specification
Overall Height with Frame 37"
Overall Depth with Frame 88 3/8"
Distance – Ground to Frame 15 3/16"
Overall Width 48"
Overall Depth 17 9/16"
Weight with Frame 220 lbs
Angle Adjustment 0° – 30°
Adjustment Method Index Pin
Number of Tines 24
King Pin 1 1/4"
Recommended Horsepower 18 – 25 HP

LRV60-04

Feature Specification
Overall Height with Frame 37"
Overall Depth with Frame 88 3/8"
Distance – Ground to Frame 15 3/16"
Overall Width 60"
Overall Depth 17 9/16"
Weight with Frame 229 lbs
Angle Adjustment 0° – 30°
Adjustment Method Index Pin
Number of Tines 30
King Pin 1 1/4"
Recommended Horsepower 18 – 25 HP

LRV72-04

Feature Specification
Overall Height with Frame 37"
Overall Depth with Frame 88 3/8"
Distance – Ground to Frame 15 3/16"
Overall Width 72"
Overall Depth 17 9/16"
Weight with Frame 251 lbs
Angle Adjustment 0° – 30°
Adjustment Method Index Pin
Number of Tines 36
King Pin 1 1/4"
Recommended Horsepower 18 – 25 HP
