Dirt Dog

Dirt Dog HDGRB Heavy-Duty Road Grader Box | 102" Overall Width | 72-90 HP For Tractors

Dirt Dog HDGRB Heavy-Duty Road Grader Box | 102" Overall Width | 72-90 HP For Tractors

Regular price $3,184.50
Regular price Sale price $3,184.50
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Overall Working Width: 102″ (8 ft) for wide coverage with fewer passes.
  • Horsepower Range: Rated for 90 HP (2WD) or 72 HP (4WD) tractors — delivering the muscle needed for heavy road work.
  • Category I & II Quick Hitch Compatible – Attaches quickly to a wide range of tractors without extra adapters.
  • Dual ½″ × 6″ Cutting Edges at 6° – Bolt‑on, reversible, and replaceable high‑carbon steel for versatility and durability.
  • 4″ × 4″ × 3/8″ Scarifier Box – Rugged steel frame to break up compacted surfaces before smoothing.
View full details

Product Description

Dirt Dog HDGRB Heavy-Duty Road Grader Box | 102" Overall Width | 72-90 HP For Tractors

Included Options:

DESCRIPTION

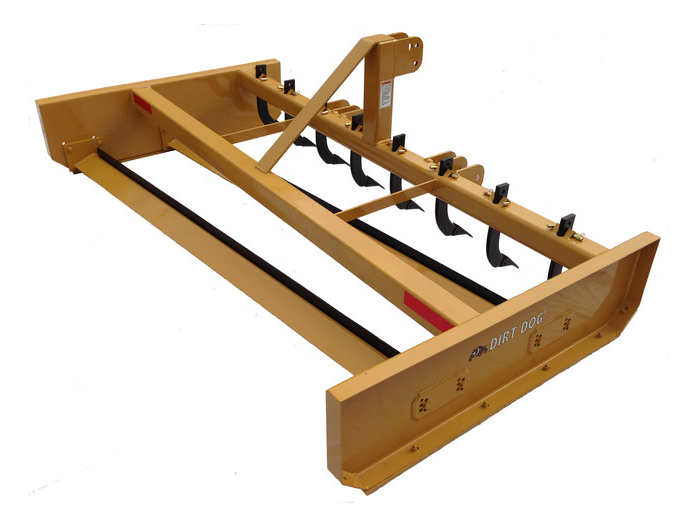

The Dirt Dog HDGRB Heavy-Duty Road Grader Box is the perfect solution for dirt and gravel road maintenance, ensuring smooth and even surfaces with less effort. This grader’s dual forward-mounted cutting edges churn and boil material, smoothing out rough patches and filling low spots without leaving potholes or windrows.

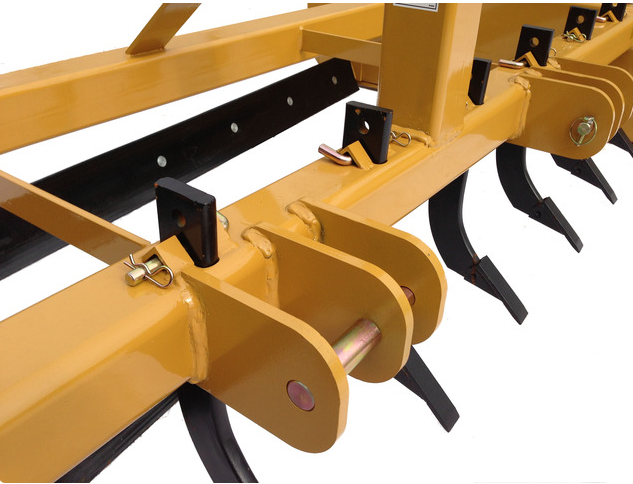

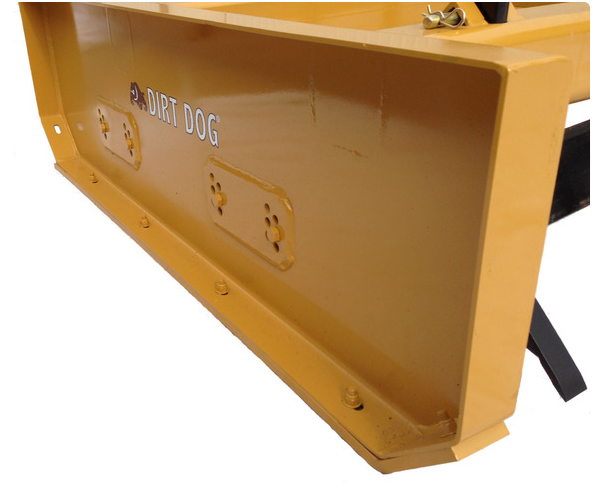

With a heavy-duty triple-lug hitch and 4" × 4" × 3/8" scarifier box, the HDGRB grader is built for durability and stability, even in the toughest conditions. The 1/2" × 6" reversible cutting edges are designed to handle years of demanding use, while the bolt-on replaceable skids allow for easy maintenance and adjustable cutting depth.

The Category I and II Quick Hitch compatibility ensures fast and secure attachment to a wide range of tractors. Designed for tractors with 72 HP (4WD) to 90 HP (2WD), this grader box is ideal for farmers, construction crews, and property managers who need reliable road maintenance equipment.

Key Features

  • Perfect for Dirt & Gravel Road Maintenance – Dual forward‑mounted cutting edges churn and “boil” material for a smooth, pothole‑free finish.
  • Reduced Maintenance Needs – Leaves roads in such good condition that upkeep intervals are greatly extended.
  • Overall Working Width: 102″ (8 ft) for wide coverage with fewer passes.
  • Horsepower Range: Rated for 90 HP (2WD) or 72 HP (4WD) tractors — delivering the muscle needed for heavy road work.
  • Category I & II Quick Hitch Compatible – Attaches quickly to a wide range of tractors without extra adapters.
  • Triple Lug Hitch – Reinforced for maximum stability and long service life under load.
  • Adjustable Cutting Depth – Tailor grading intensity for various materials and terrain types.
  • Bolt‑On Replaceable Skids – Easy to swap when worn, extending tool life and lowering maintenance costs.
  • Dual ½″ × 6″ Cutting Edges at 6° – Bolt‑on, reversible, and replaceable high‑carbon steel for versatility and durability.
  • 4″ × 4″ × 3/8″ Scarifier Box – Rugged steel frame to break up compacted surfaces before smoothing.
  • Multiple Color Options – Red, Green, Orange, Blue, or Yellow powder‑coat for corrosion resistance and customization.

Detailed Specifications

Specification Details
Overall Height 34 7/16 inches
Overall Width 102 inches (8 ft)
Overall Depth 54 7/16 inches
Box Height 15 7/8 inches
Weight with Shanks 800 lbs (8 ft)
Scarifier Box Size 4" × 4" × 3/8" steel
# of Shanks 8 (8 ft)
# of Plow Bolts 16 (8 ft)
Lower Hitch Pin Height 14 ½ inches
Horse Power (2WD-4WD) 90 HP (2WD), 72 HP (4WD)
Cutting Edge 1/2" × 6", Bolt-on, Reversible, Replaceable
Bolt on Skids 1/2" × 2 ½ inches
Hitch Type 3-Point Category I & II Quick Hitch
Paint Options Red, Green, Orange, Blue, or Yellow Powder Coat Paint
