Product Description
Dirt Dog Heavy Duty Box Blade | BBX Series | Overall Width 48", 60", 65" & 72" inches | Horsepower 25-40 HP | For Tractor
Included Options:
DESCRIPTION
The Dirt Dog BBX Series 3-Point Box Blade is an ideal solution for small tractor owners looking for a larger capacity grading and leveling tool. Its rugged design allows for efficient scraping, leveling, and material relocation while remaining easy to handle and cost-effective.
This heavy-duty box blade is equipped with two reversible 3/8” x 6” cutting edges, ensuring long-lasting performance. The adjustable ripper shanks enable deep soil penetration, breaking up hard ground and shallow roots. Whether driving forward for scraping and leveling or reversing to push material like a dozer, the BBX series provides exceptional control.
Manufactured in Commerce, GA, USA, the BBX Series is available in 4ft, 5ft, 5’5”, and 6ft widths, suitable for tractors ranging from 25 HP to 40 HP. Its Cat I Quick Hitch compatibility ensures fast and secure attachment for maximum efficiency.
Key Features
- Enhanced Structural Durability: Built with a 4” square × 5/16” scarifier tube for superior strength and long-term use.
- Superior Ground Penetration: Features 5/8” shanks with replaceable plow points to ensure excellent soil penetration and operational efficiency.
- Heavy-Duty A-Frame: Equipped with a bolt-on A-frame for increased stability and durability, enhancing performance in demanding conditions.
- Long-Lasting Cutting Edges: Includes two 3/8” × 6” bolt-on, reversible, and replaceable cutting edges for extended functionality and reduced maintenance.
- Quick Hitch Compatibility: Designed for fast and easy tractor attachment with Category I Quick Hitch compatibility.
- Versatile Size Options: Available in 48", 60", 65", and 72" models to accommodate various operational needs and tractor sizes.

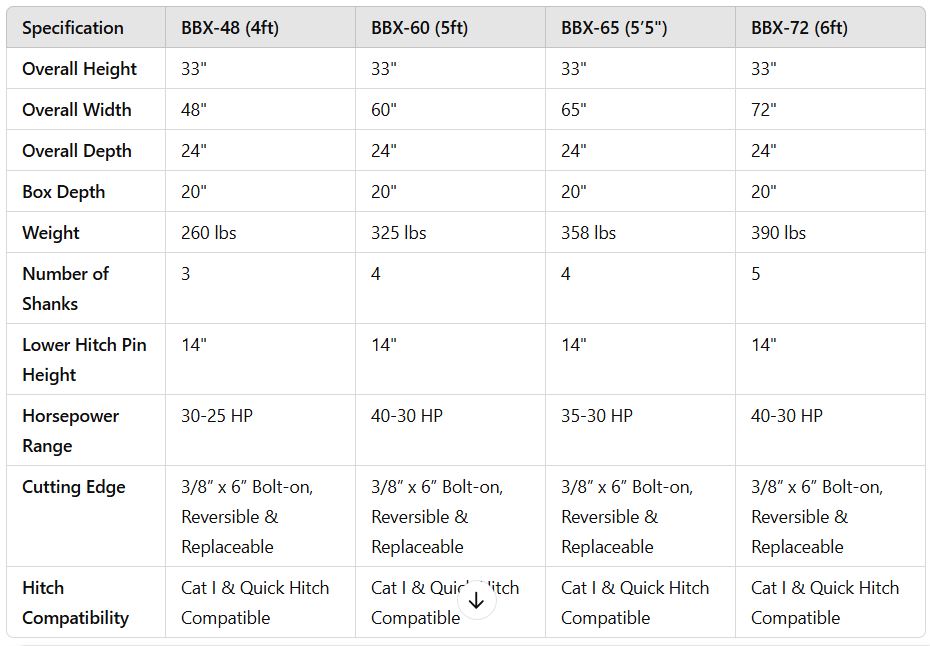

Detailed Specifications
| Feature | BBX 48" | BBX 60" | BBX 65" | BBX 72" |
|---|---|---|---|---|
| Overall Height | 33” | 33” | 33” | 33” |
| Overall Width | 4’ (48") | 5’ | 5'5" (65") | 6’ |
| Overall Depth | 24” | 24” | 24” | 24” |
| Box Depth | 20” | 20” | 20” | 20” |
| Weight | 260 lbs | 325 lbs | 358 lbs | 390 lbs |
| Number of Shanks | 3 | 4 | 4 | 5 |
| Lower Hitch Pin Height | 14” | 14” | 14” | 14” |
| Horse Power (2WD-4WD) | 30-25 | 40-30 | 35-30 | 40-30 |
