Dirt Dog

Dirt Dog Lay Off Plow | Model Compact & Sub-Compact | Cutting Blade Width 12" & 16" inches | Horsepower 15-45 HP | For Tractors

Dirt Dog Lay Off Plow | Model Compact & Sub-Compact | Cutting Blade Width 12" & 16" inches | Horsepower 15-45 HP | For Tractors

$302.50
$302.50
Sale Sold out
Customizable
Fast
24/7 Support
  • Number of Shanks: Equipped with a single 3/4" x 4" shank for targeted soil penetration.
  • Cutting Point: Features a precise 8" x 4.75 mm cutting blade for clean furrows.
  • Blade: Replaceable heat-treated 12-inch cutting blade for superior durability.
  • Finish: High-quality fit and finish, ensuring reliability and performance.
View full details

Product Description

Dirt Dog Lay Off Plow | Model Compact & Sub-Compact | Cutting Blade Width 12" & 16" inches | Horsepower 15-45 HP | For Tractors

Included Options:

Description

Transform your soil preparation with our versatile Layoff Plow Series. Whether you're working on large-scale fields or compact gardens, these plows offer unmatched efficiency and precision. Crafted from high-quality materials and designed to meet various agricultural needs, the Layoff Plow Series ensures your soil is ready for optimal planting. Choose between our robust Layoff Plow and the more targeted Compact Layoff Plow to suit your specific requirements.

Key Features

Layoff Plow

  • Hitch Compatibility: Cat. 1 Quick Hitch compatible for easy attachment and detachment.
  • Overall Height: Stands tall at 38 inches, ensuring effective soil penetration.
  • Overall Width: A wide 32 3/8 inches, perfect for creating expansive planting beds.
  • Horsepower Requirement: Designed for tractors with 25-45 HP, offering versatility in power.
  • Weight: Weighs 75 lbs, providing stability and durability.
  • Number of Shanks: Equipped with a single 3/4" x 4" shank for deep soil penetration.
  • Cutting Point: Features a robust 16" x 4 3/4 mm cutting blade for efficient soil slicing.
  • Blade: Replaceable heat-treated double wing cutting blade for long-lasting performance.
  • Finish: Offers unmatched fit and finish, ensuring high quality and durability.

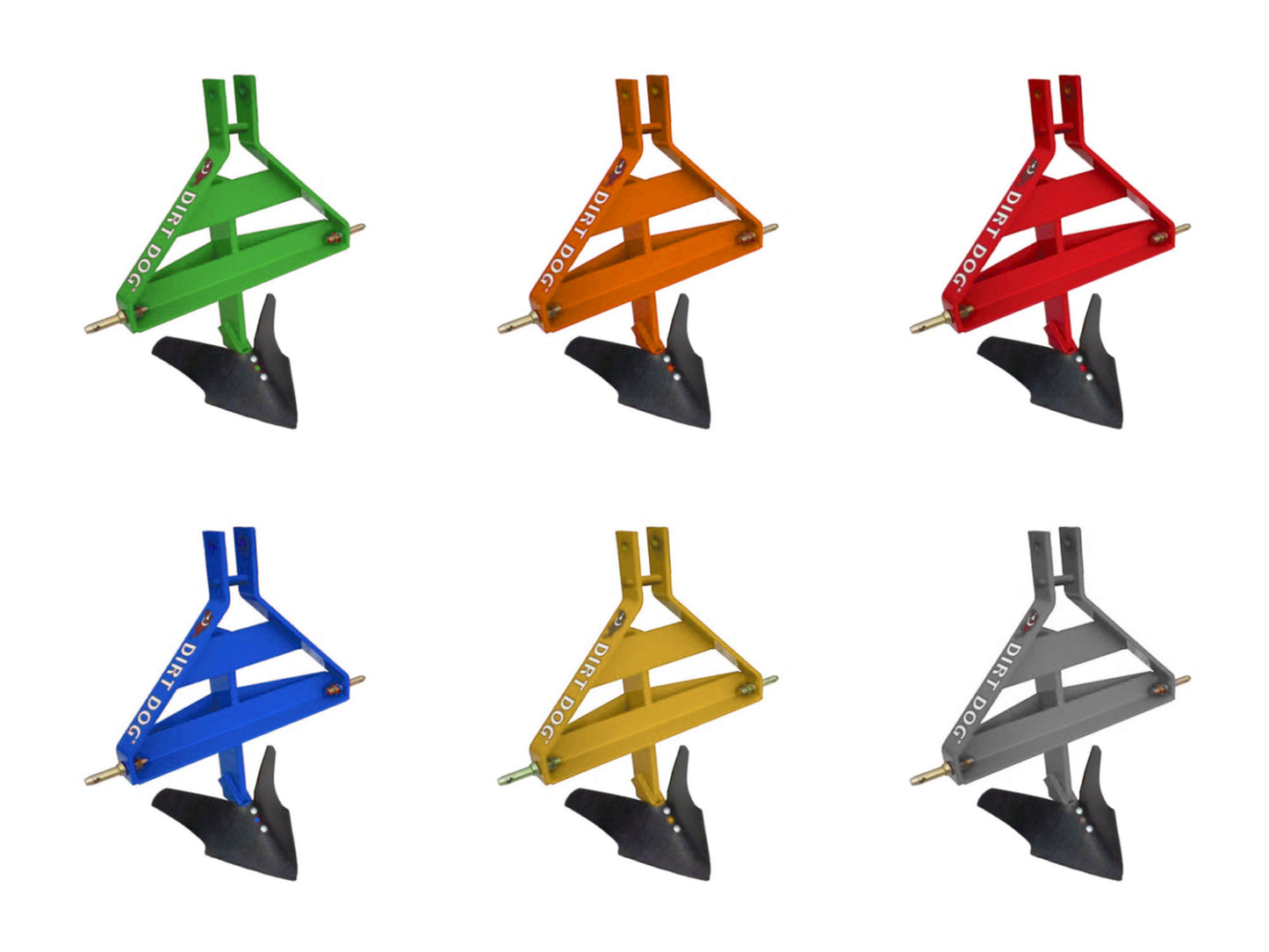

  • Colors Available: Available in Yellow, Red, Orange, Green & Blue to match your preferences.

Compact Layoff Plow

  • Hitch Compatibility: Compatible with both Cat 0 & 1 hitches for maximum versatility.
  • Overall Height: Compact height of 29 5/8 inches for easy handling and maneuverability.
  • Overall Width: A narrow 25 11/16 inches, ideal for precise soil preparation.
  • Horsepower Requirement: Suitable for tractors with 25 HP, making it perfect for smaller tractors.
  • Weight: Lightweight at 52 lbs, easy to manage without compromising on effectiveness.
  • Number of Shanks: Equipped with a single 3/4" x 4" shank for targeted soil penetration.
  • Cutting Point: Features a precise 8" x 4.75 mm cutting blade for clean furrows.
  • Blade: Replaceable heat-treated 12-inch cutting blade for superior durability.
  • Finish: High-quality fit and finish, ensuring reliability and performance.

Detailed Specifications

Feature Layoff Plow Compact Layoff Plow
Hitch Category Cat. 1 Quick Hitch Cat 0
Overall Height 38" 29 5/8"
Overall Width 32 3/8" 25 11/16"
Horsepower 25-45 HP 25 HP
Weight 75 lbs 52 lbs
Number of Shanks 1 1
Shank Size 3/4" x 4" 3/4" x 4"
Cutting Point 16" x 4 3/4 mm 8" x 4.75 mm
Max Cutting Depth N/A N/A
