Product Description
Dirt Dog Heavy-Duty Pulverizer | PVB Series | Overall Width 48" To 84" | Horsepower 30-60 HP | For Tractors
Included Options:
DESCRIPTION

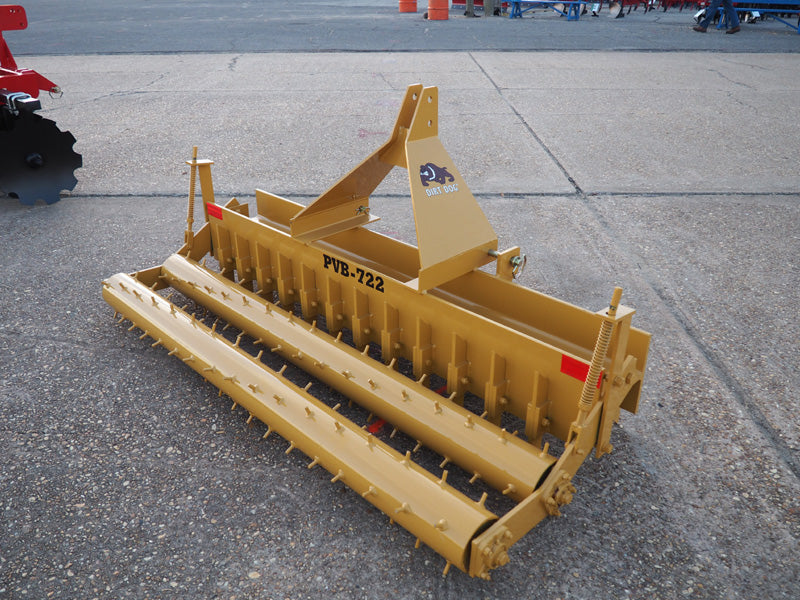

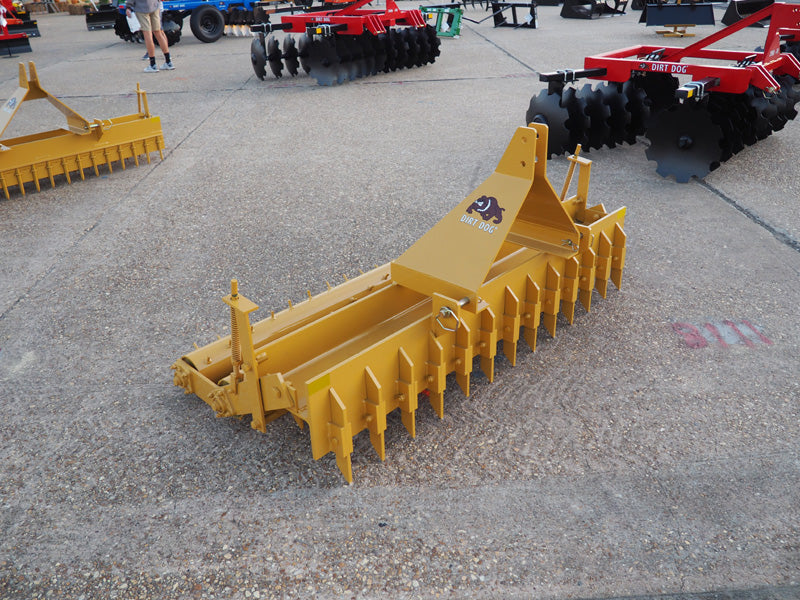

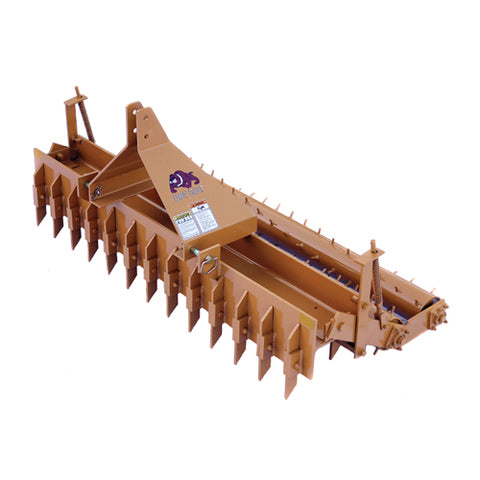

The Dirt Dog PVB Heavy-Duty Pulverizer is essential for professional landscapers and construction projects that require precise soil preparation. Built to break up and level tough soil, this pulverizer ensures a smooth and compact foundation for any landscaping job.
The H-beam construction and fully welded A-frame add weight and durability, making it easy to smooth, level, and move soil. The reversible and replaceable shanks, staggered along the H-beam for optimal coverage, effectively rip through and pulverize compacted ground.
Available in single or double roller configurations, this pulverizer allows for flexible soil preparation and compaction. The Category I & II Quick Hitch compatibility makes it easy to attach and detach, saving time and effort.
With width options ranging from 4 ft to 7 ft, the Dirt Dog PVB pulverizer is a reliable choice for farmers, landscapers, and property owners.
Key Features
- Heavy-Duty Construction: H-beam frame and fully welded A-frame for stability and durability.
- Durable Shanks: 1/2" × 2" × 12 ½" heat-treated, reversible, and replaceable shanks for long-lasting performance.
- Adjustable Roller: Fully welded, adjustable roller for precise soil compaction and finishing.
- Single or Double Roller Models: Available in single or double roller options for versatile soil preparation.
- Quick Hitch Compatible: Category I & II Quick Hitch A-frame for fast and secure attachment.
Detailed Specifications
| Specification | PVB480 | PVB600 | PVB660 | PVB720 | PVB840 |
|---|---|---|---|---|---|
| Overall Width | 4 ft | 5 ft | 5 ½ ft | 6 ft | 7 ft |
| Weight (Single Roller) | 450 lbs | 550 lbs | 580 lbs | 610 lbs | 670 lbs |
| Weight (Double Roller) | 540 lbs | 660 lbs | 700 lbs | 740 lbs | 810 lbs |
| Number of Shanks | 17 | 21 | 23 | 25 | 29 |
| Spike Spacing | 5 ½ inches | 5 ½ inches | 5 ½ inches | 5 ½ inches | 5 ½ inches |
| Horsepower (2WD-4WD) | 30-40 HP | 35-45 HP | 40-50 HP | 45-55 HP | 50-60 HP |
| Lower Hitch Pin Height | 15 ⅜ inches | 15 ⅜ inches | 15 ⅜ inches | 15 ⅜ inches | 15 ⅜ inches |
| Hitch Type | 3-Point Cat. I & II | 3-Point Cat. I & II | 3-Point Cat. I & II | 3-Point Cat. I & II | 3-Point Cat. I & II |
| Paint Options | Yellow Powder Coat Paint | Yellow Powder Coat Paint | Yellow Powder Coat Paint | Yellow Powder Coat Paint | Yellow Powder Coat Paint |
