DJI Agras T10 Agriculture Spraying Drone Robot Bundle

Name: DJI Agras T10 Agriculture Spraying Drone Robot Bundle
Brand: DJI
Price: 15225.0 USD
Availability: InStock

$15,225.00 USD

Sale Sold out

Shipping calculated at checkout.

Choose Your Bundle Standard Kit Productivity Productivity MAX

Product variants

Quantity

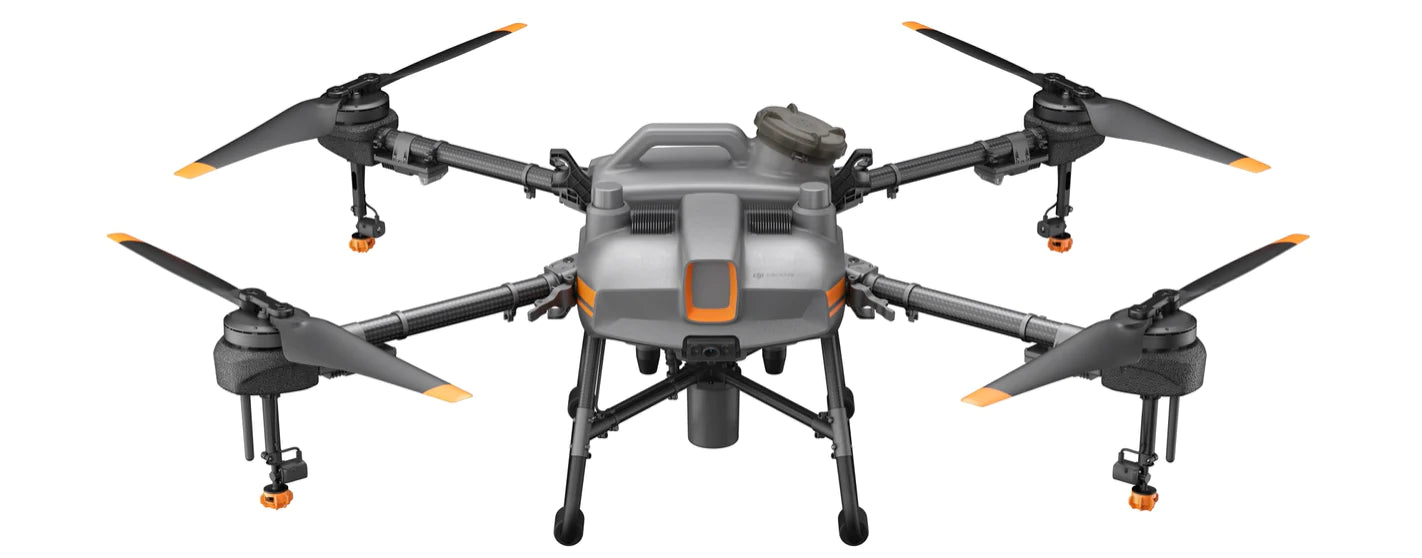

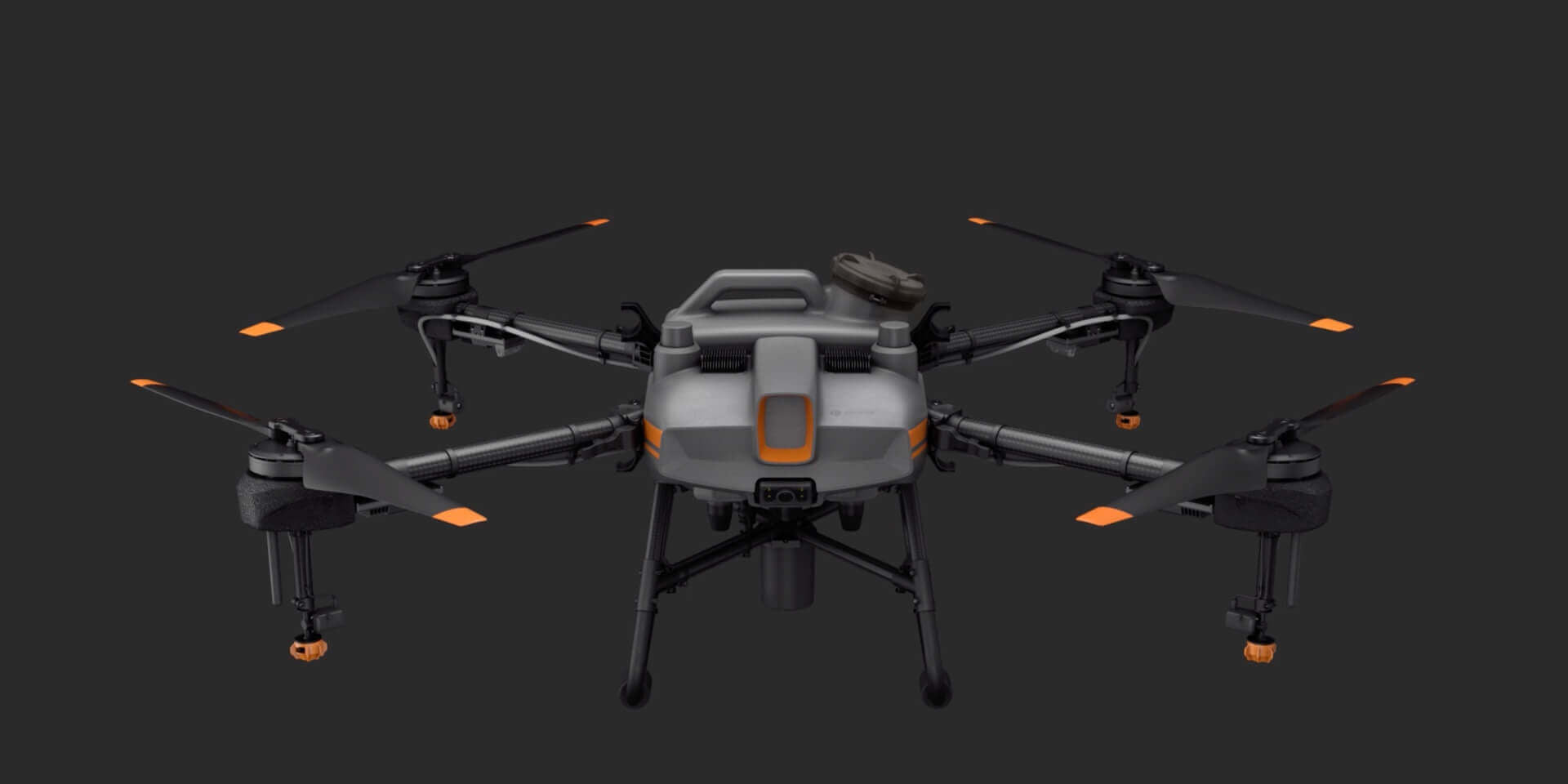

DJI Agras T10 Agriculture Spraying Drone Robot Bundle

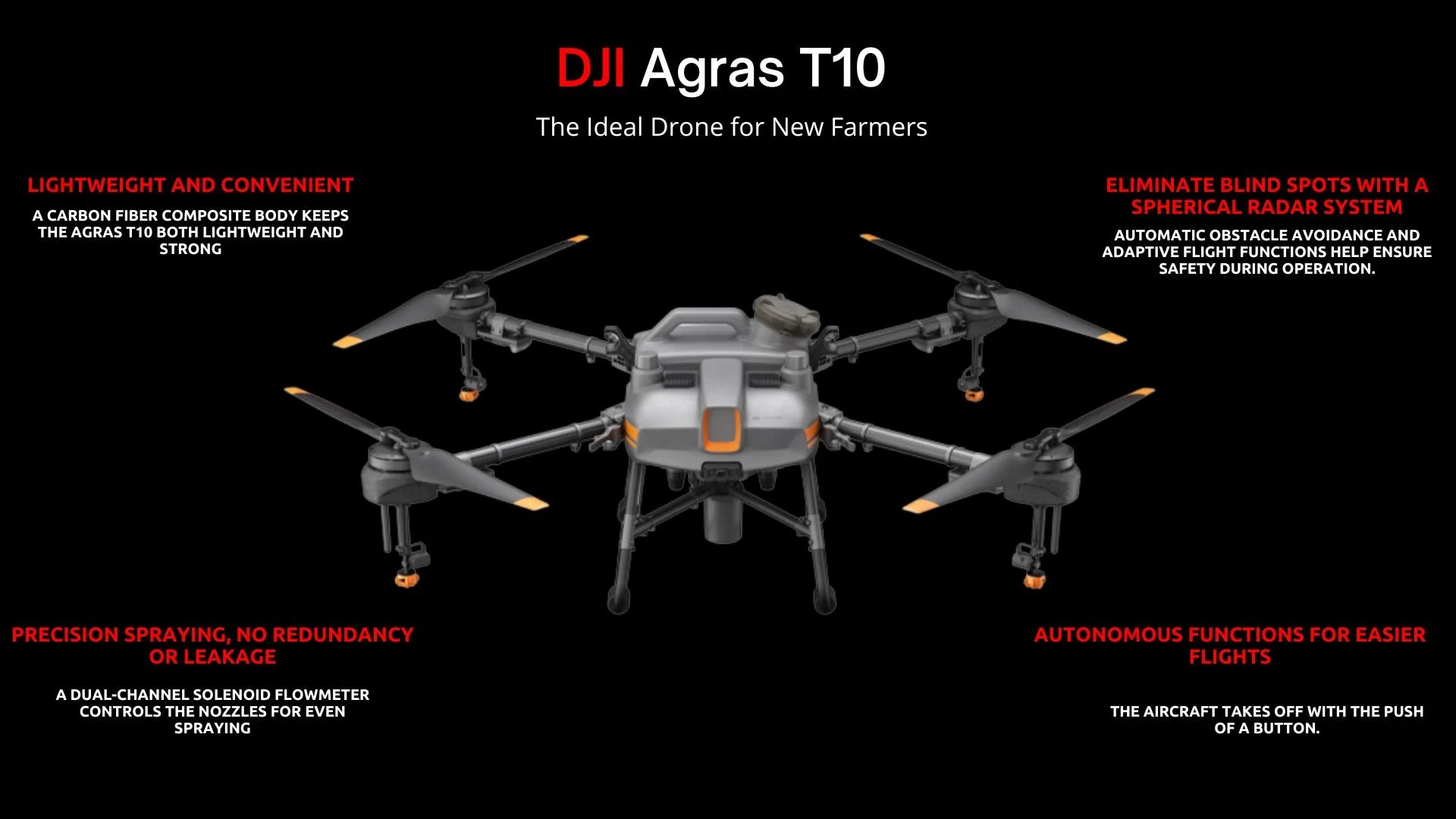

The Ideal Drone for New Farmers

The DJI Agras T10 brings a highly compact-yet-powerful aerial solution to agriculture sites of all sizes and needs. An 8 liter tank and spray width of up to 5 meters allow the aircraft to cover up to 15 acres/hour. ^[1] Its folding truss structure is sturdy and reliable, enabling efficient folding and unfolding, convenient transportation, and easy transitions.

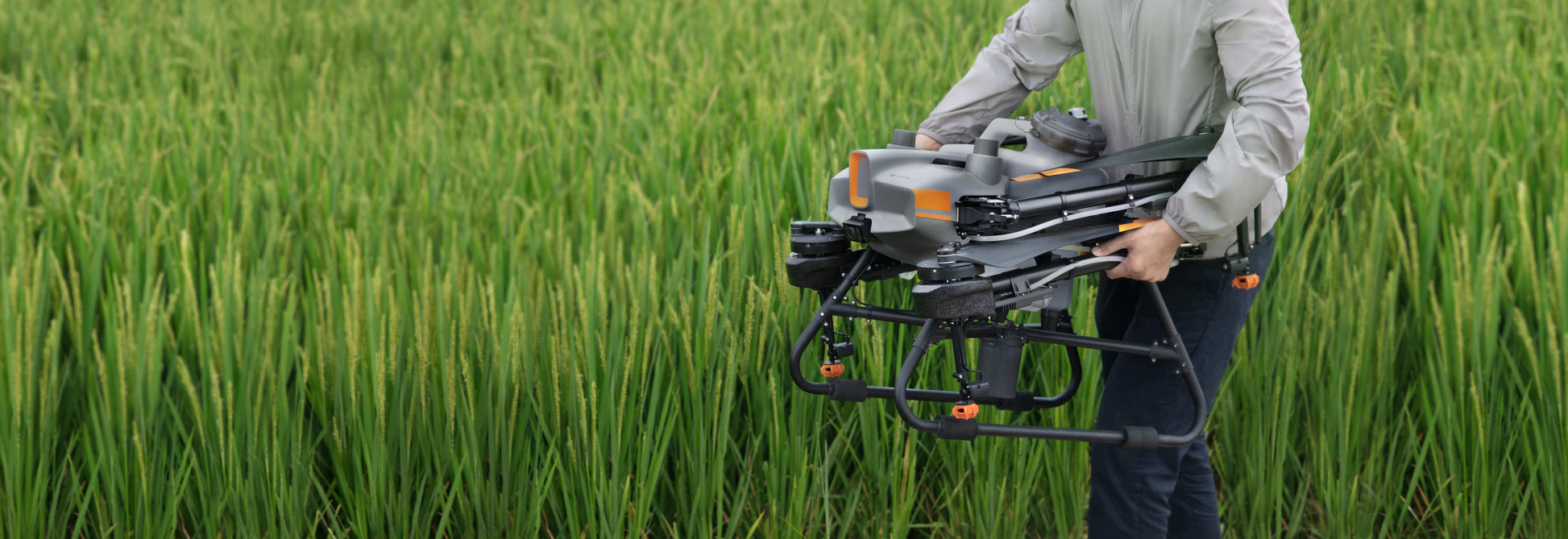

Lightweight and Convenient

A carbon fiber composite body keeps the Agras T10 both lightweight and strong. It can also fold down by 70% for more convenient transportation. The battery and tank can be quickly attached and detached to make refilling more efficient.

Autonomous Functions for Easier Flights

The aircraft takes off with the push of a button. Autonomous planning and automatic edge sweeping offer extensive spray coverage and effortless operation.
The T10 also comes optional with an RTK module with centimeter-precision positioning.
The new DJI Agriculture app enables a smoother system experience and more intuitive operation.

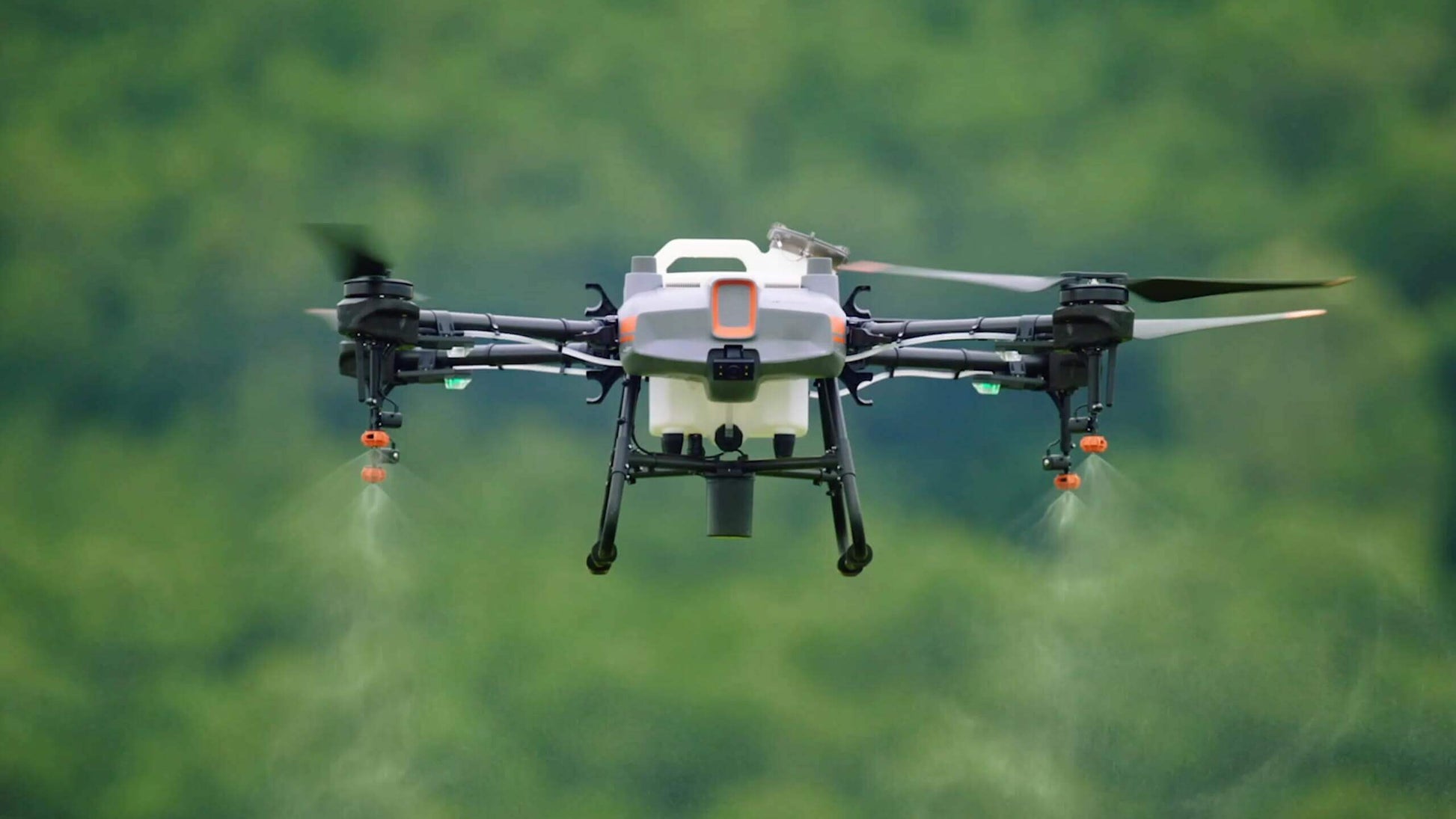

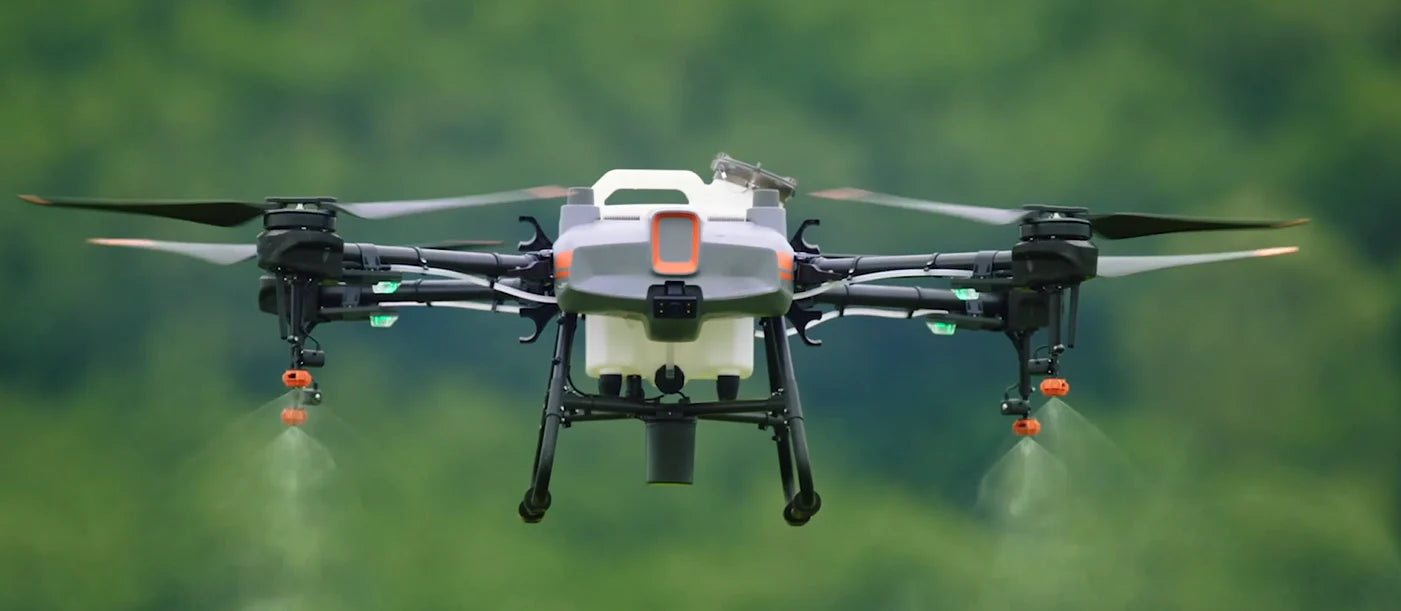

Precision Spraying, No Redundancy or Leakage

The Agras T10 features a four-nozzle design with an output rate of up to 2.4 liters per minute. A dual-channel solenoid flowmeter controls the nozzles for even spraying and precise volume control, critical for pesticide spraying.

Eliminate Blind Spots with a Spherical Radar System

The spherical radar system perceives obstacles and surroundings in all environments, weather conditions, and viewing angles, regardless of dust and light interference. Automatic obstacle avoidance and adaptive flight functions help ensure safety during operation.

Dual FPV Cameras for Improved Awareness

Equipped with dual FPV cameras, the Agras T10 provides clear front and rear views and lets you check flight status without needing to turn the aircraft mid-flight. And a bright searchlight doubles the aircraft's night vision capabilities, creating more nighttime operation possibilities.

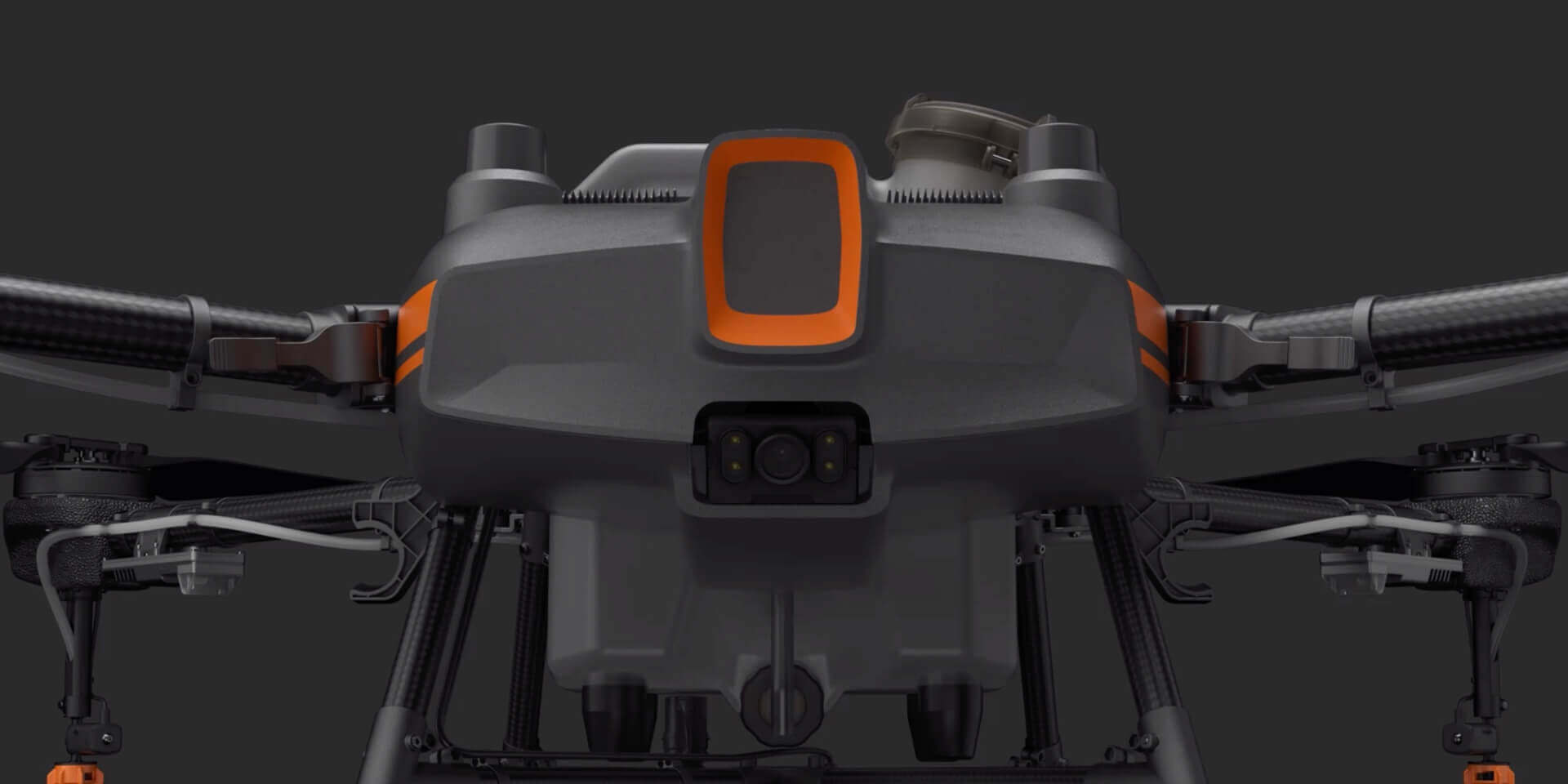

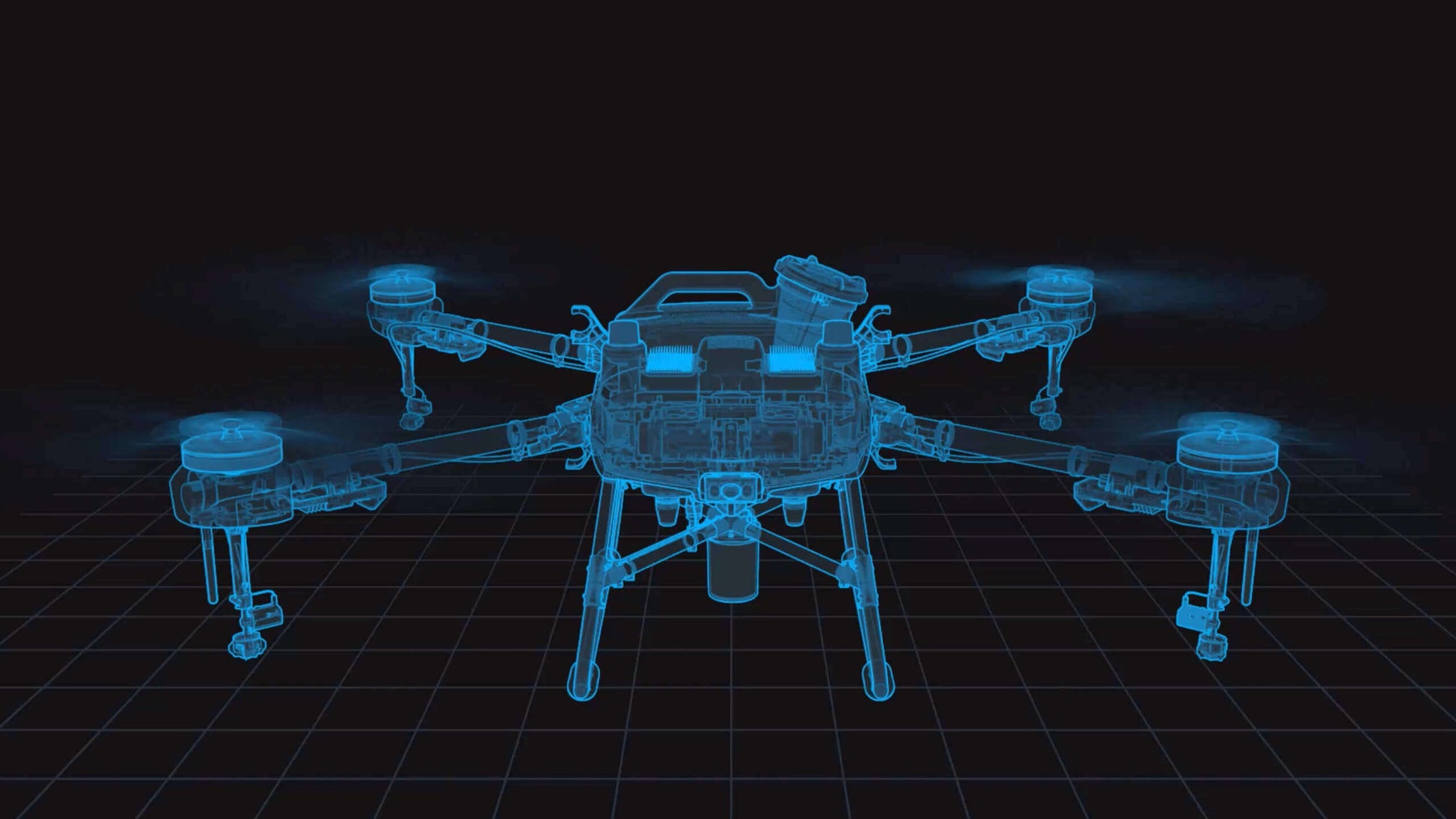

Designed for Long-Term Service

The Agras T10 control module has a fully enclosed structure for added durability. All critical components have three layers of protection and are IP67 rated. Ideal for long term use of pesticides and fertilizers, and to resist dust and corrosion.

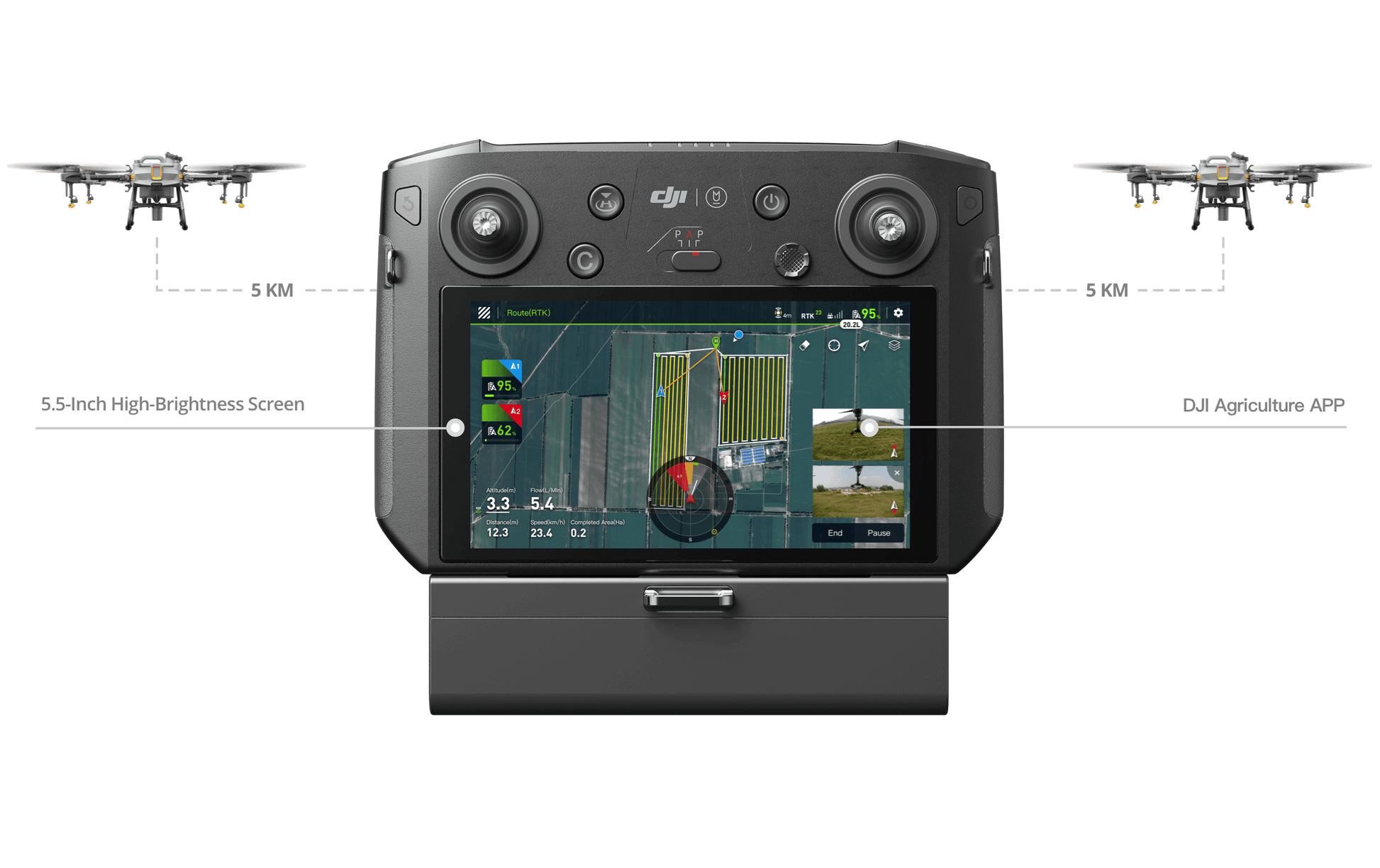

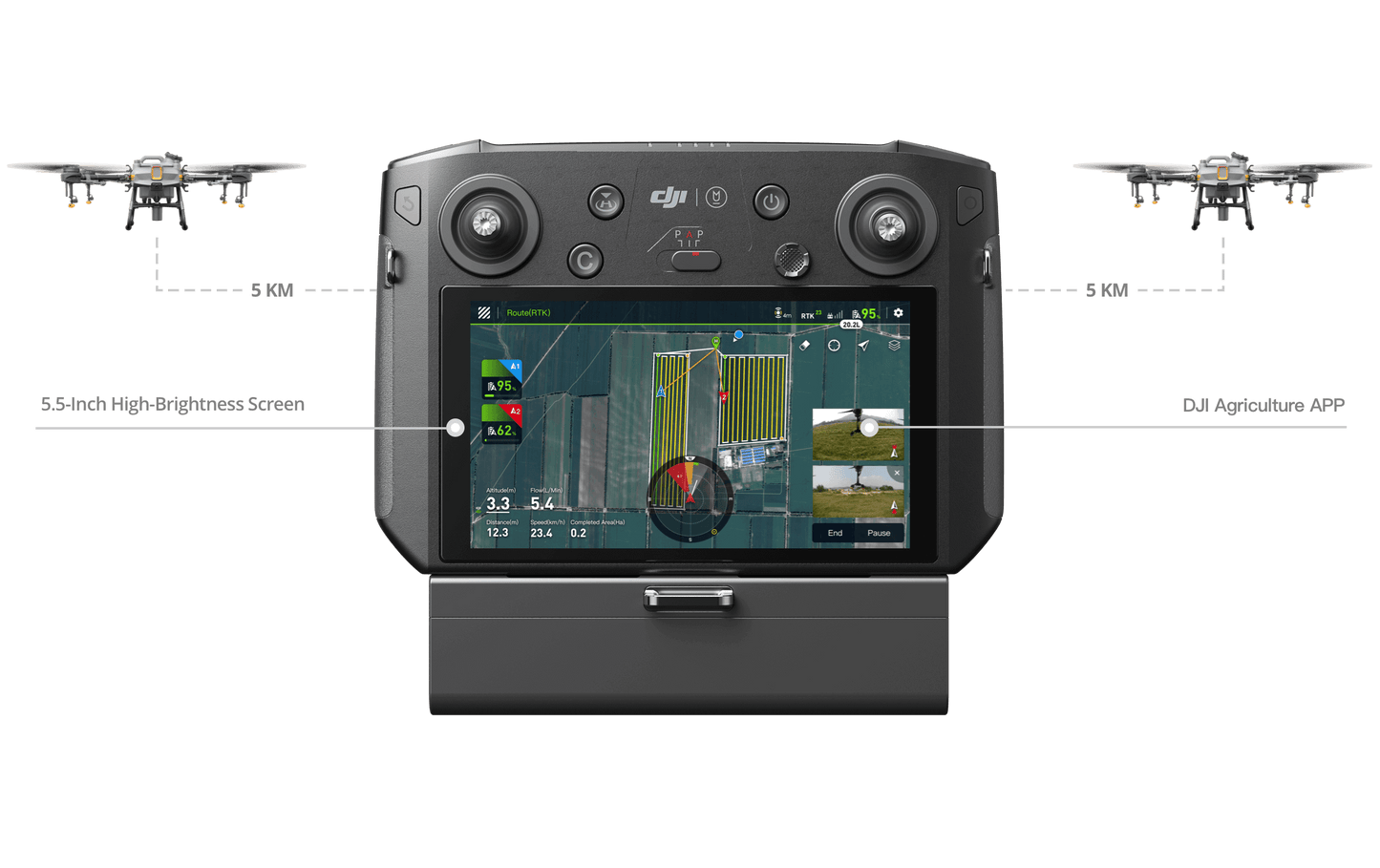

Ultrabright Screen
Ultimate Control

An updated remote controller supports stable image transmission from up to 5 km away, 67% more than the previous generation. ^[3] A bright 5.5-inch screen delivers clear visuals, even in harsh lighting conditions. For increased productivity, one remote controller can operate multiple drones at once. The optional RTK high-precision positioning module enables centimeter-level operation planning. Additional enhancements include stronger signaling, anti-interference, and operational stability. The new DJI Agriculture app provides a smooth user experience and more intuitive operation.

Two Batteries + Charger for Continuous Operation

1,000 cycles for 1,650 acres

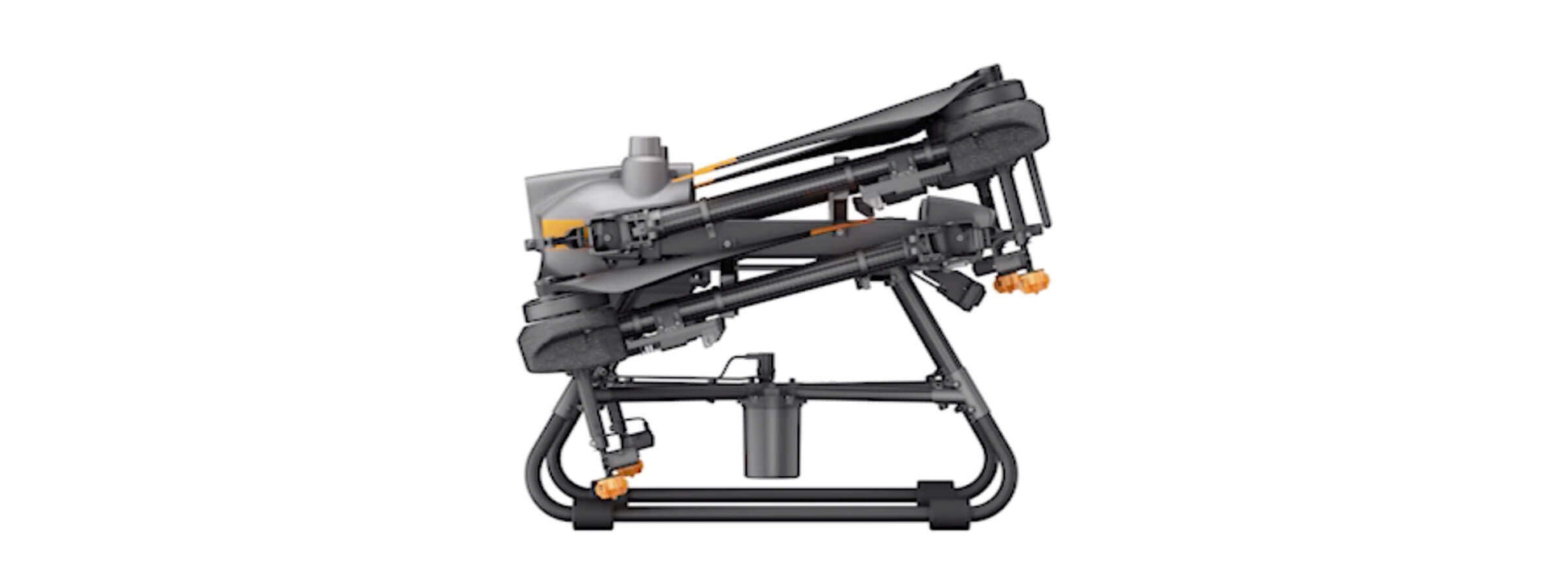

With fewer supporting components needed, the Agras T10 is easier to transport. A newly designed intelligent battery is covered by a 1-year warranty for 1,000 charges and 1,650 acres of flight; this ultra-long service life significantly reduces operating costs. The charging station and smart charging hub can charge a battery in 10 minutes, allowing for continuous operation with just two batteries and one charger.

DJI Agras T10 Intelligent Flight Battery

The 9,500mAh Intelligent Flight Battery has a product guarantee of 1,000 cycles. ^[4]
It supports instant charging without the need for cooldown,
circuit board-level potting protection, and resistance from water and corrosion.

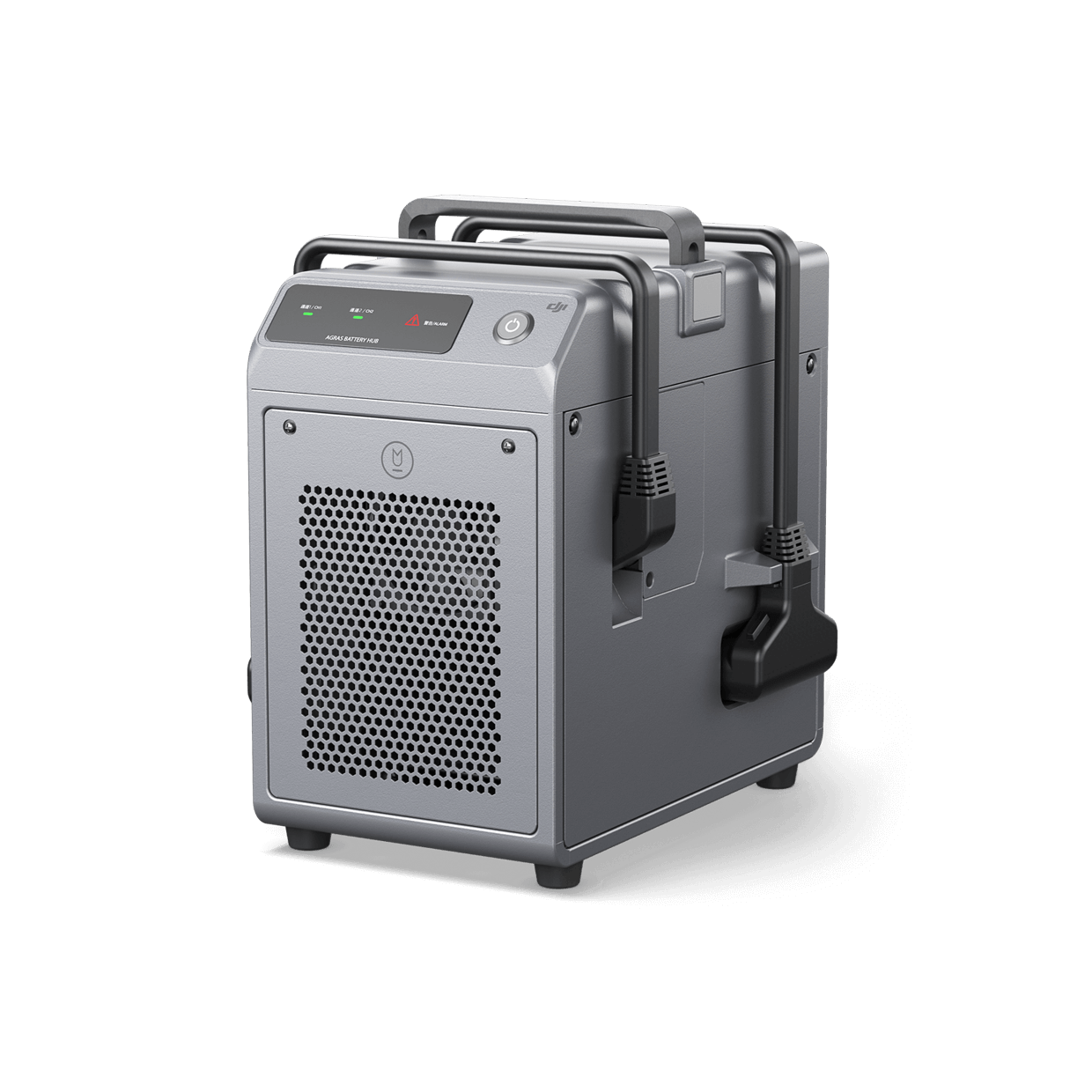

DJI Agras T10 Intelligent Battery Station

The T10 Battery Station provides 3,600 watts of charging power
and can charge a battery in 7 minutes.
It also supports dual-channel alternated charging with
power adaptation for safer operation.

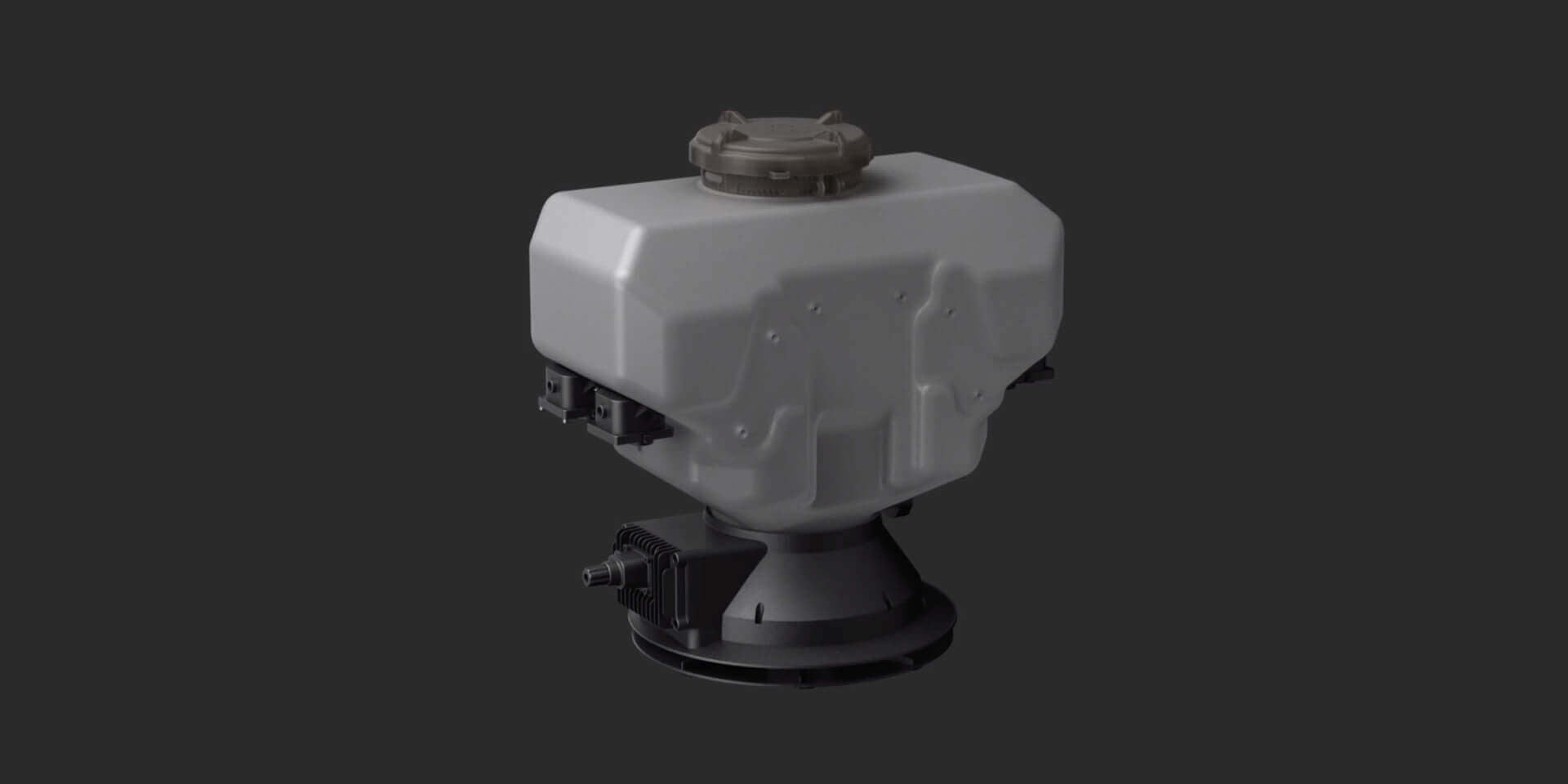

T10 Spreading System 3.0
Fast switching and efficient spreading

The Agras T10 can switch to a spreading system in just three minutes. A capacity of 8kg and spreading width of up to 7 meters^[4] support an hourly productivity of 14 acres. ^[5] It also supports real-time weight monitoring and has an anti-rotation sensor, allowing more accurate refill alerts. This system also supports real-time weight monitoring and has an anti-rotation sensor, allowing more precise refill alerts. The T10's overall water-resistance rating of IP67 makes it washable and corrosion-resistant ideal for spraying of fertilizers, seeds, and feed. When used with digital agriculture solutions, the Agras T10 implements variable spreading, reducing fertilizer use while increasing yield.

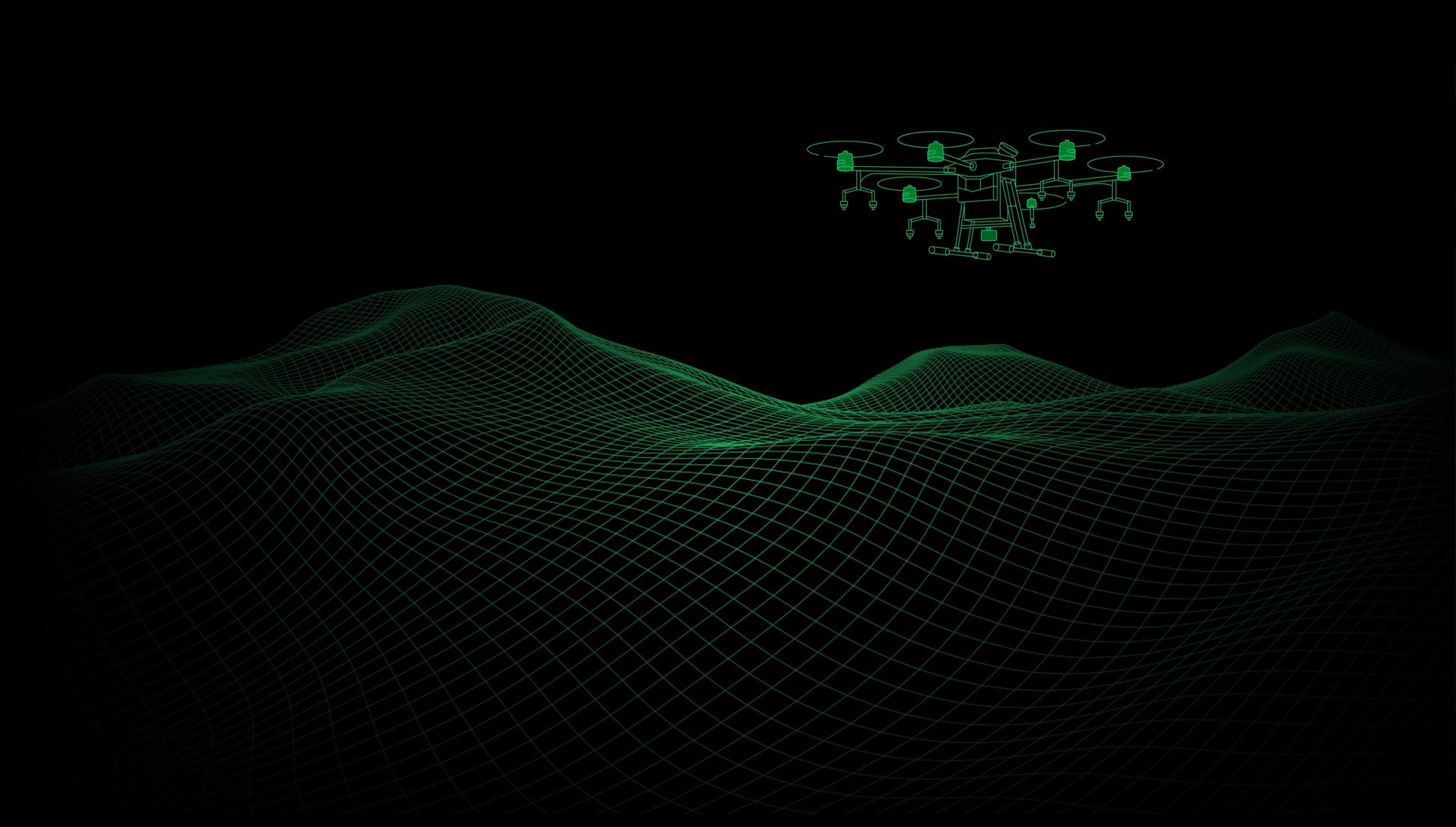

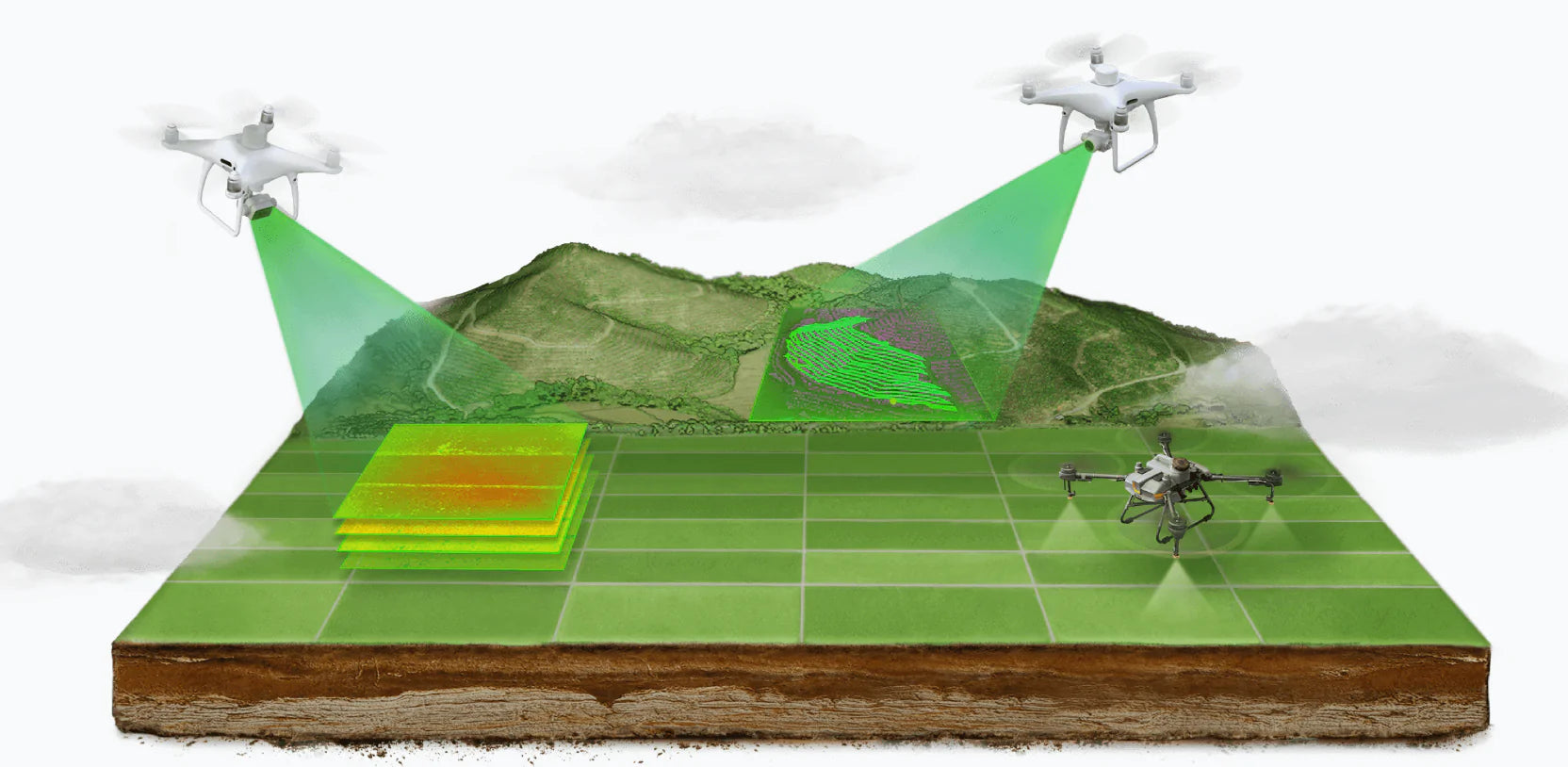

Cloud-Based 3D Farming: Digital Agriculture is Here

With the Smart Agriculture Cloud Platform, users can perform cloud-based mapping of orchard and farmland scenarios to generate smart flightpaths. This platform is equipped with an AI recognition system to patrol fields, identify growth, monitor disease or pests, and monitor agricultural conditions efficiently. Pairing this system with the DJI P4 Multispectral allows users to apply solutions based on specific variables according to an automatically-generated farmland prescription map.

Specifications

Features

Hourly operation efficiency: 15 acres
High-precision radar: √ Spherical Omnidirectional Radar System
Remote control planning precision: √ (RTK/GNSS)
Removing air from pipes: √ One button Air Discharge
3D operation planning of the AI engine: √
High-precision flowmeter: √ (Dual-channel electromagnetic flowmeter with an error of ±2%)
Level gauge: Single-point level gauge
Maximum spray flow: 1.8 L/min (with standard XR11001VS nozzle) 2.4 L/min (with optional XR110015VS nozzle）
Pesticide tank installation method: Quick plugging pesticide tank
Battery installation method: Quick plug-and-play battery
One remote control for multiple drones:√ (one remote control for three drones)
D-RTK technology: √
Up-looking radar module: √
Flight dotting function: √
Smart cruising/return function: √
Intelligent supply-point prediction: x
Coordinated turn function: √
Forward-looking FPV: √
Backward-looking FPV: √
Branch targeting technology: x

Drone parameters

Total weight (without batteries): 13 kg
Rated take-off weight: 24.8 kg (near sea level)
Hovering precision (with good GNSS signal):
With D-RTK enabled: ±10 cm (horizontal) and ±10 cm (vertical)
With D-RTK disabled: ±0.6m (horizontal) and ±0.3m (vertical) (with the radar function enabled: ±0.1 m）
RTK/GNSS frequency bands:
RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1/B2, and Galileo E1/E5
GNSS: GPS L1, GLONASS F1, and Galileo E1
Maximum power consumption: 3,700 W
Hovering power consumption: 3,200 W
Hovering time:
17 min (@9,500 mAh & takeoff weight of 16 kg)
9 min (@9,500 mAh & takeoff weight of 24.8 kg)
Maximum pitch angle: 15°
Maximum operating flight speed: 7 m/s
Maximum level flight speed: 10 m/s (with good GNSS signals)
Maximum endurable wind speed: 8 m/s
Max Take-off Altitude: 4,500m
*Reduce the pesticide amount by 12% with each increase of 1,000 meters of altitude.
Recommended operating ambient humidity: < 93%
Recommended operating ambient temperature: 0℃ to 45℃

Rack parameters

Maximum rotor distance: 1,480 mm

Dimensions:

1,958 mm × 1,833 mm × 553 mm (with arms and blades extended)
1,232 mm × 1,112 mm × 553 mm (with arms extended and blades folded)
600 mm × 665 mm × 580 mm (with arms folded)

Power system - Motor

Stator size: 100×10 mm
KV value: 84 rpm/V
Maximum pulling force: 11.2 kg/rotor
Maximum power: 2,500 W/rotor
Weight: 527 g

Power system - Propellers

Diameter × pitch: 33×9 inch
Weight (a single blade): 92 g

Power system - ESC

Maximum operating current (continuous): 32 A
Maximum operating voltage: 60.9 V (14S LiPo)

FPV camera

FOV: Horizontal: 129°, vertical:82°
Resolution: 1,280×720 15-30 fps

FPV spotlight

Maximum light intensity: 13.2 lux @ 5-meter direct light

Spraying system - Operation tank

Operation tank volume: 8 L at full load
Operating load: 8 kg at full load

Spraying system - Nozzles

Sprayer model:
XR11001VS (standard)
XR110015VS (optional)
XR11002VS (optional)
Number of sprayers: 4
Maximum spray flow:
XR11001VS: 1.8 L/min
XR110015VS: 2.4 L/min
XR11002VS:3 L/min
Diameter of atomized particle:
XR11001VS : 130 - 250 μm
XR110015VS : 170 - 265 μm
XR11002VS: 190 - 300 μm
(depending on the actual operating environment, spraying flow and other factors)
Maximum effective spray width: 3 - 5.5m (with 4 sprayers and a distance of 1.5 - 3 meters to crops)

Spraying system - Water pump

Water pump model: Diaphragm pump
Operating voltage: 15 V
Maximum flow: 1.5 L/min ×1

Spraying system - Flowmeter

Flow measurement range: 0.25 - 20 L/min
Flow measurement error: < ±2%
Measurable liquid: Conductivity > 50 μS/cm. Typical liquid: Tap water, aqueous organic or inorganic pesticides, and the like

Omnidirectional obstacle avoidance radar

Model: RD2424R
Operating frequency:
SRRC/NCC/FCC: 24.05 to 24.25 GHz
MIC/KCC/CE: 24.05 to 24.25 GHz
Operating power consumption: 12 W
Equivalent isotropic radiated power (EIRP):
SRRC: < 13 dBm; NCC/MIC/KCC/CE/
FCC:< 20 dBm
Height hold and terrain following
Height measurement range: 1 - 30m
Height hold range: 1.5 - 15m
Maximum slope in mountain mode:35°
Obstacle avoidance system:
Perceivable distance: 1.5 - 30m
FOV: 360° (horizontal), ±15° (vertical)
Conditions of use: The relative flight height of the drone is above 1.5m and the speed below 7 m/s
Safe distance: 2.5m (the distance between the tip of the blade and the obstacle after the drone is braked and hovering stably)
Obstacle avoidance direction: Horizontally omnidirectional obstacle avoidance
Protection class:IP67

Up-looking radar

Model: RD2414U
Operating frequency:
SRRC/NCC/FCC: 24.05 to 24.25 GHz
MIC/KCC/CE:24.05 to 24.25 GHz
Overhead obstacle avoidance:
Perceivable distance: 1.5 - 10m
FOV: 80°
Conditions of use: The drone flies for a relative distance over 1.5 m in the mode of take-off, landing and route climb mode
Safe distance: 2m (the distance between the obstacle and the highest point on the top of the drone)
Obstacle avoidance direction: Above the drone
Protection class: IP67
Equivalent isotropic radiated power (EIRP)
SRRC:< 13 dBm;NCC/MIC/KCC/CE/
FCC:< 20 dBm
Operating power consumption: 4 W

Battery

Model: BAX501-9500mAh-51.8V
Weight: About 3.8 kg
Discharge rate: 11.5C
Protection class: IP54 + board-level embedment protection
Capacity: 9,500 mAh
Voltage: 51.8 V

Remote control

Model: RM500-ENT
Operating frequency of OcuSync 2.0:
2.4000 to 2.4835 GHz
5.725 to 5.850 GHz
Effective signal distance of OcuSync 2.0 (without interference and blockage)
SRRC: 5 km; MIC/KCC/CE: 4 km; FCC: 7 km (measured at the operating height of 2.5m)
EIRP of OcuSync 2.0
2.4 GHz
SRRC/CE/MIC/KCC: 18.5 dBm;
FCC: 29.5 dBm;
5.8 GHz
SRRC: 28.5 dBm;
FCC: 20.5 dBm
CE:12.5 dBm
Wi-Fi Protocols
Wi-Fi Direct, Wireless Display, and 802.11a/g/n/ac. 2 × 2 MIMO Wi-Fi is supported
Wi-Fi operating frequency
2.4000 to 2.4835 GHz
5.150 to 5.250 GHz
5.725 ~ 5.850 GHz
Wi-Fi EIRP
2.4 GHz
SRRC/CE: 18.5 dBm; FCC/MIC/KCC: 20.5 dBm;
5.2 GHz
SRRC/FCC/CE/MIC: 14 dBm; KCC: 10 dBm;
5.8 GHz
SRRC/FCC: 18 dBm; CE/KCC: 12 dBm;
Bluetooth protocol: Bluetooth 4.2
Bluetooth operating frequency: 2.4000 to 2.4835 GHz
Bluetooth EIRP: SRRC/MIC/FCC/CE/KCC:6.5 dBm
Positioning: GPS + GLONASS
Display:
5.5-inch screen with a resolution of 1,920×1,080 and brightness of 1,000 cd/m², and Android OS
Operating memory (RAM):4GB LPDDR4
Storage space (ROM):
32 GB + scalable storage space, and a microSD card with the capacity up to 128 GB and transfer speed of UHS-I Speed Grade 3 is supported
HDMI: HDMI 1.4
Supported drones: T30 and T10 crop protection drones
Operating power consumption: 18 W
Operating ambient temperature: -10℃ to 40℃
Storage ambient temperature:
-30℃ to 60℃ (within 1 month)
-30℃ to 45℃ (1 to 3 months)
-30℃ to 35℃ (3 to 6 months)
-30℃ to 25℃ (more than 6 months)
(with the capacity of built-in batteries at 40 to 60%)
Charging ambient temperature: 5℃ to 40℃

Built-in battery of remote control

Built-in battery: 18650 lithium ion battery (5,000 mAh at 7.2V)
Battery life: 2 hours
Charging method: Standard 12V/2A USB quick charger
Charging time: 2.5 hours (with the standard 12V/2A USB quick charger and the remote control powered off)
Power supply current/voltage of remote control USB-A port: 5 V / 1.5 A

External smart battery of remote control

Model: WB37-4,920mAh-7.6V
Battery type: 2S LiPo
Capacity: 4,920 mAh
Voltage: 7.6 V
Capacity: 37.39 Wh
Charging ambient temperature: 5℃ to 40℃
Battery life: 2 hours

External smart battery charging manager of remote control

Model: WCH2
Input voltage: 17.3 - 26.2 V
Output voltage and current: 8.7V and 6A
Operating ambient temperature: 5℃ to 40℃

Power adapter of external smart battery charging manager

Model: A14-057N1A
Input voltage: 100 to 240V and 50/60 Hz
Output voltage: 17.4 V
Rated power: 57 W

T-Series Spreading System 3.0 (8kg)

Weight of distribution system: 3.1kg
Maximum opening area: 44.6 cm²
Applicable materials
Dry solid particles with a diameter of 0.5 to 5 mm
Volume of distribution tank: 12L
Maximum internal load of distribution tank: 10kg
Protection class: IP67
Input voltage: Power: 60V
Control:15V
Maximum power
60V@250W
15V@50W
Recommended operating ambient temperature: 0℃ to 40℃
Dimensions: 405×245×375mm
Maximum rotation speed: 1,300 RPM

T10 smart charging manager

Dimensions: 300×280×230 mm
Total weight: 8.1 kg
Input voltage: 100-264 Vac
Output voltage: 40-60 V
Rated power: 3,600 W
Charging current: 50 A
Charging time: 7 to 10 min
Charging voltage precision: +/-0.1 V
Charging current precision: +/-1 A
Number of output channels: 2
Protection functions:
Over-temperature, over-voltage, under-voltage, short-circuit, and fan stall protection
Charging ambient temperature: -20℃ to 45℃
Charging safety:
AC wire protection, power wire protection, and charge connector protection
