DJI Agras T50 PowerMax 10K Intelligent Charger | Model CSX702-9500 | 10,000-Watt Charging Power
DJI Agras T50 PowerMax 10K Intelligent Charger | Model CSX702-9500 | 10,000-Watt Charging Power
Regular price
$1,699.00
Regular price
Sale price
$1,699.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
DJI Agras T50 PowerMax 10K Intelligent Charger | Model CSX702-9500 | 10,000-Watt Charging Power
DESCRIPTION

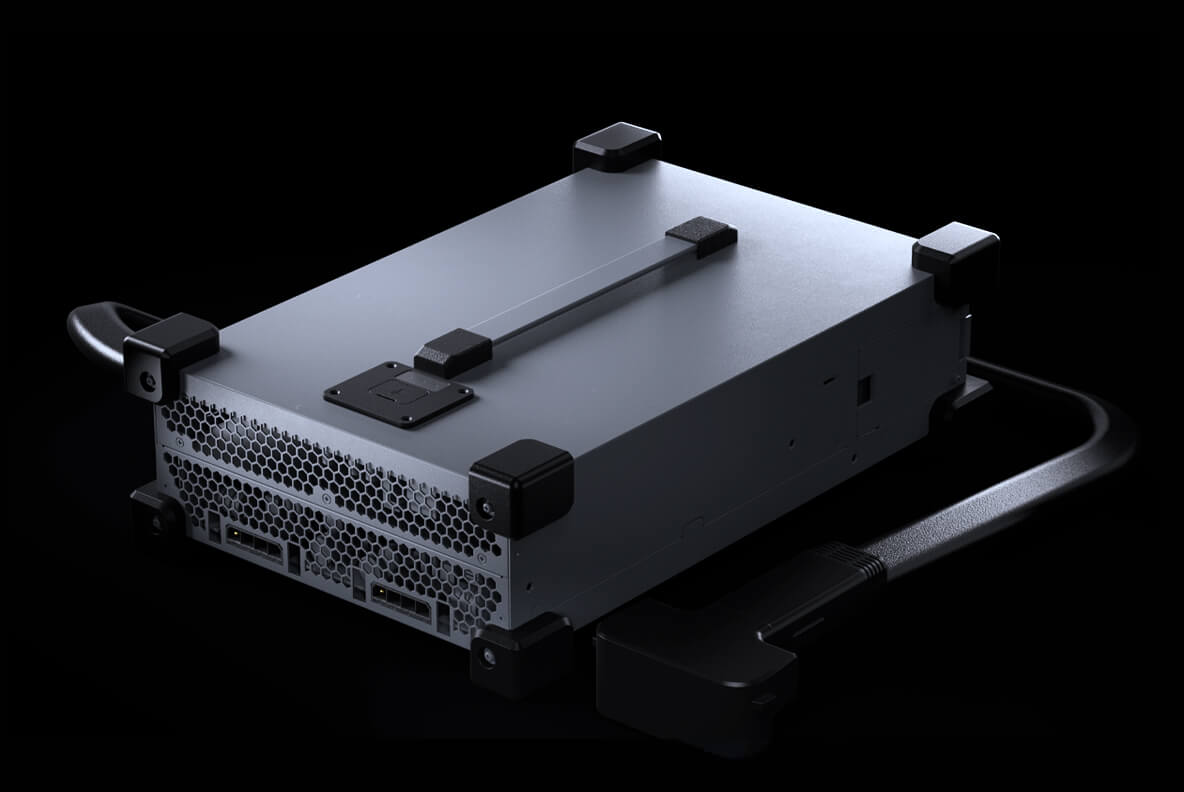

The DJI Agras T50 PowerMax 10K Intelligent Charger is fully compatible with one Intelligent Flight Battery and monitors battery status during charging. It automatically adjusts current as needed, even if ventilation holes are blocked, ensuring uninterrupted power. The power supply offers seamless operation with self-diagnostics via status LEDs and detailed error information accessible through the DJI Agras app via USB-C connection. It includes overcurrent, overcharging, overvoltage, undervoltage, and overheating protection, providing robust safety features and status display.
Upgrade your agricultural drone operations with the DJI Agras T50 PowerMax 10K Intelligent Charger. This powerful 10,000-watt charger is specifically designed for DJI Agras T50 and T40 batteries, delivering a high-efficiency charging solution that significantly reduces downtime. The PowerMax 10K charger supports both fast and slow charging, ensuring flexibility in various operational scenarios. It charges batteries 1 to 2 minutes faster than the DJI Agras T30 or C8000 chargers, achieving a full charge in just 9 to 12 minutes when connected to a 220 volts outlet.
What's in the Box:
-
1x C10000 Intelligent Power Supply
Key Features
- 10,000-Watt Charging Power: Delivers rapid and efficient charging for DJI Agras T50 and T40 batteries.
- Fast & Slow Charging Modes: Supports flexible charging options to suit various operational needs.
- Quick Charge Time: Achieves a full charge in just 9 to 12 minutes with a 220V outlet.
- Battery Monitoring: Continuously monitors battery status and adjusts current as needed.
- Seamless Operation: Features self-diagnostics with status LEDs and error information accessible via the DJI Agras app.
- Robust Safety Features: Includes overcurrent, overcharging, overvoltage, undervoltage, and overheating protection.
- USB-C Connectivity: Allows for easy connection to the DJI Agras app for detailed monitoring and control.
Detailed Specification
| Specification | Details |
|---|---|
| Weight | 11.4 kg |
| Dimensions | 400 × 266 × 120 mm |
| Model Number | CSX702-9500 |
| Operating Temperature | -5° to 40° C (23° to 104° F) |
| Output Channel | 1 |
| Operating Temperature (Output) | -5° to 45° C (23° to 113° F) |
| Input/Output (Main) | 220-240 VAC, 50/60 Hz, 24 A MAX |
| Input/Output (Auxiliary) | 220-240 VAC, 50/60 Hz, 24 A MAX |
| Output (Main) | 59.92 VDC MAX, 175 A MAX, 9000 W MAX |
| Input/Output (Main) | 100-120 VAC, 50/60 Hz, 16 A MAX |
| Input/Output (Auxiliary) | 100-120 VAC, 50/60 Hz, 16 A MAX |
| Output (Auxiliary) | 59.92 VDC MAX, 60 A MAX, 3000 W MAX |
| Compatible Battery | DB1560/DB800/T40/T30/T20P Intelligent Flight Battery |
