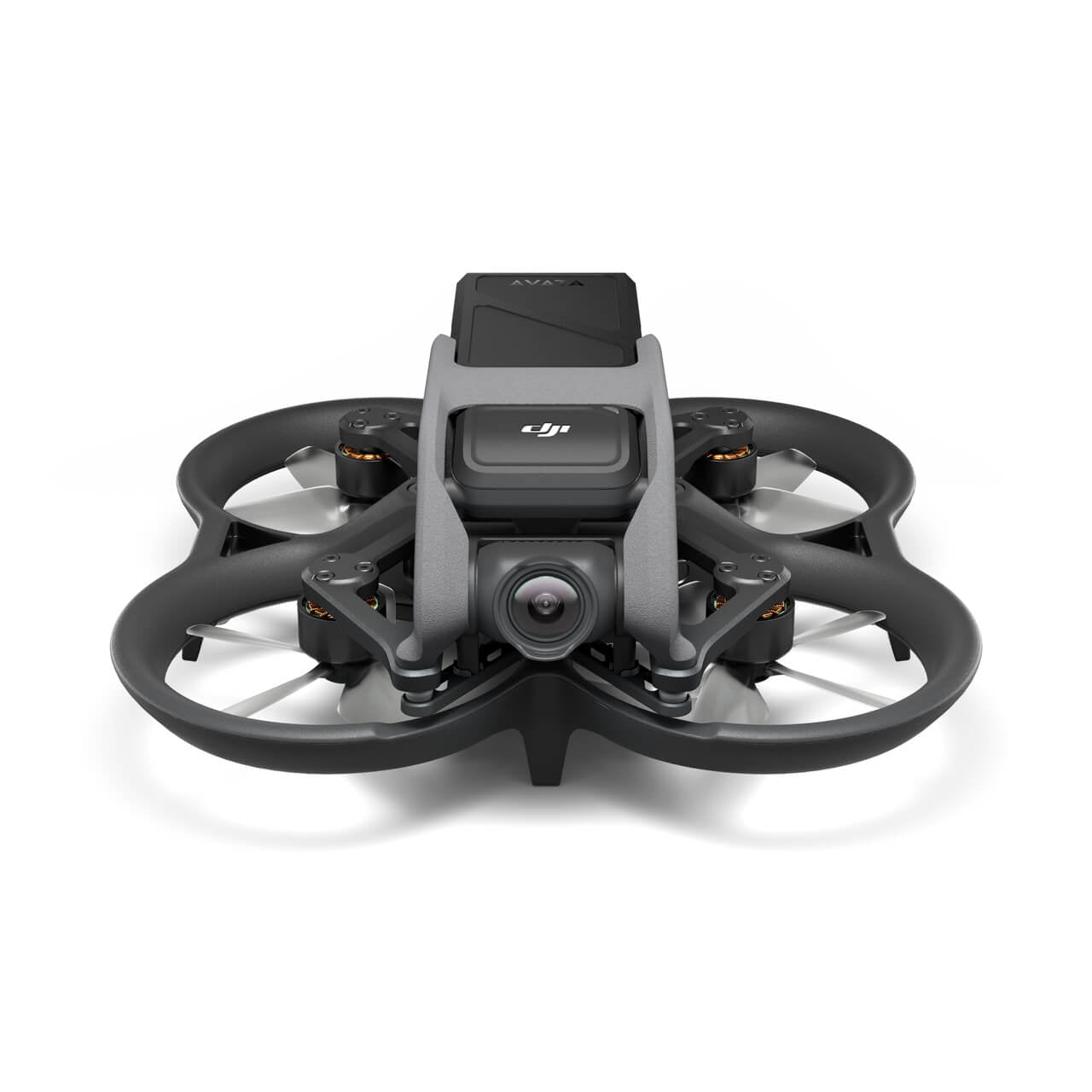

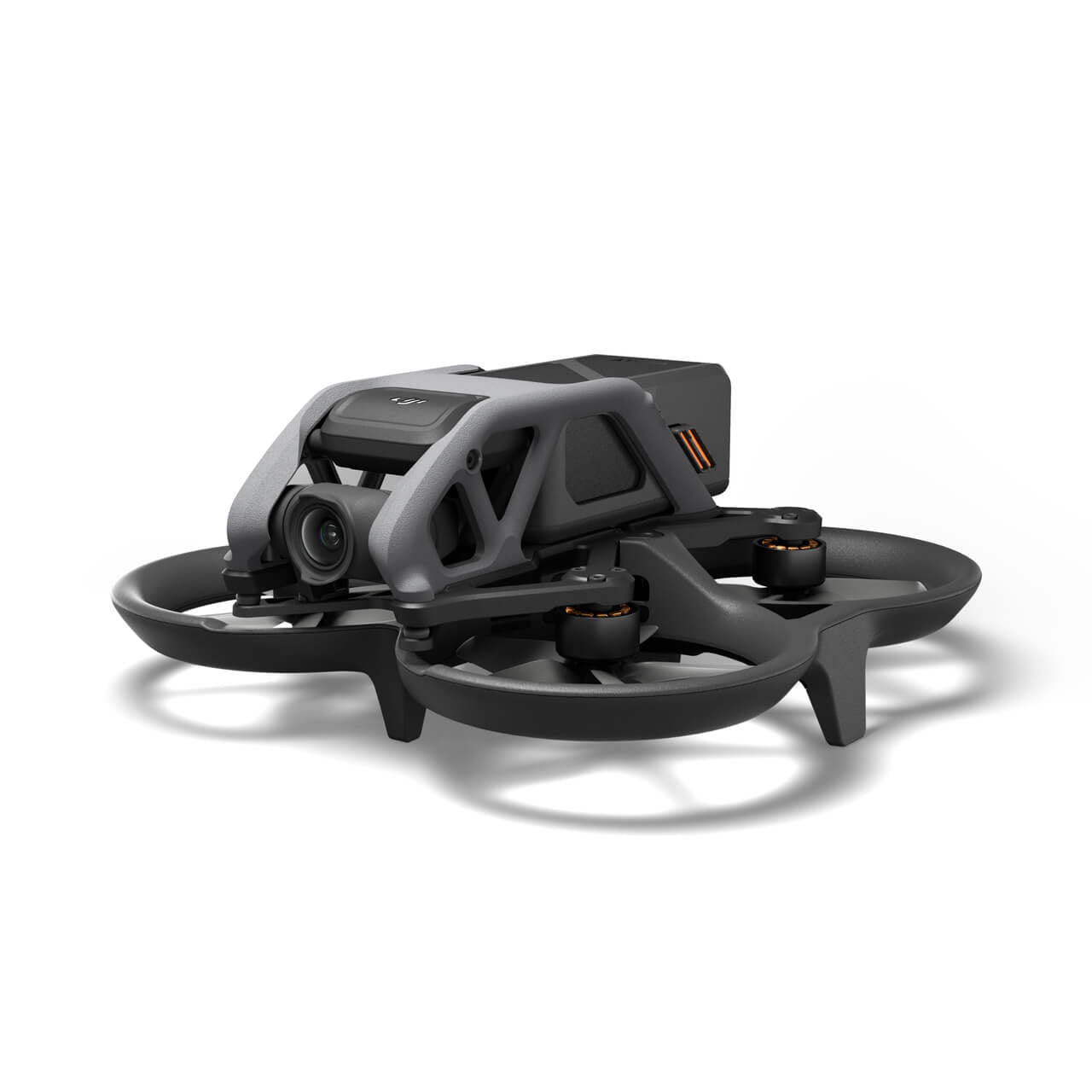

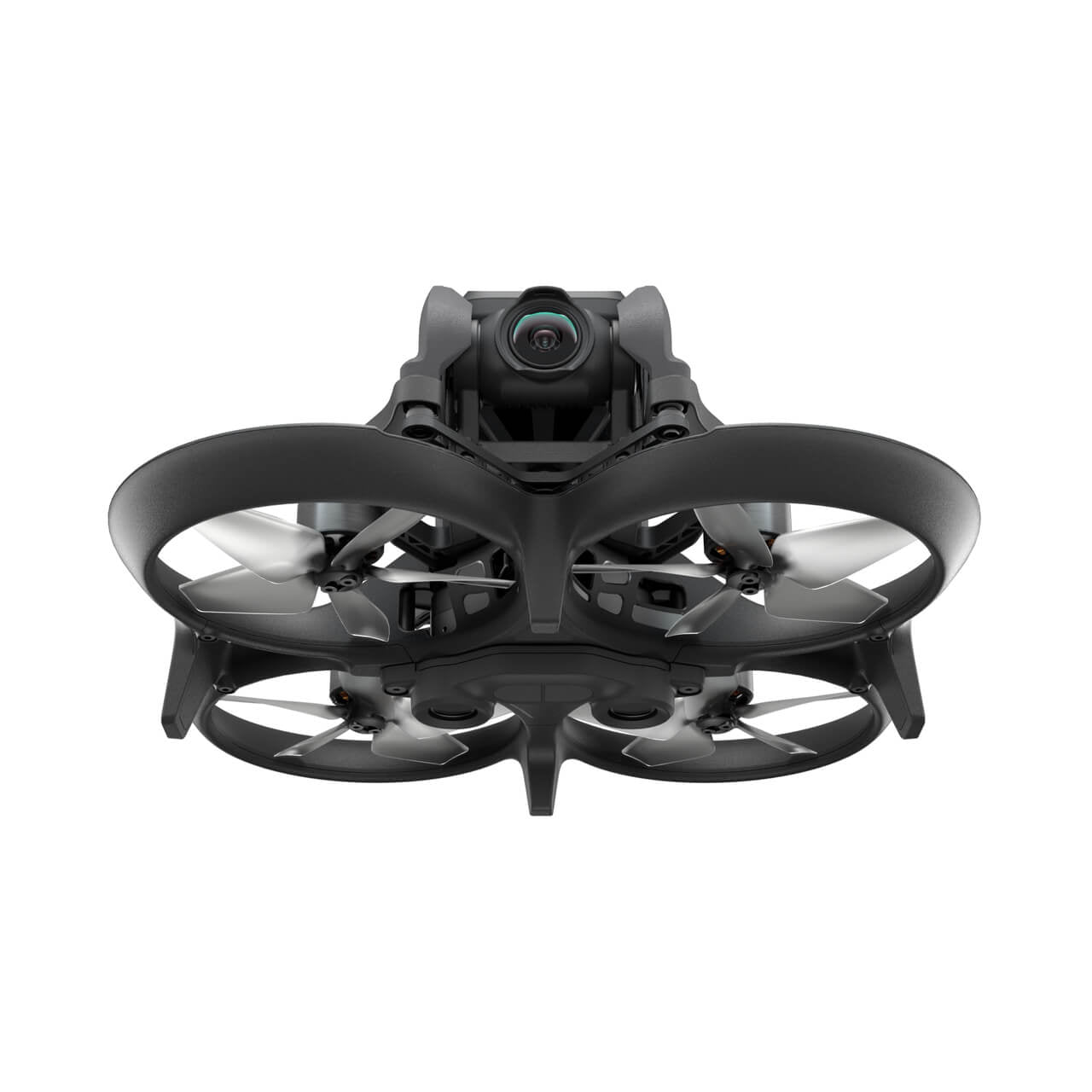

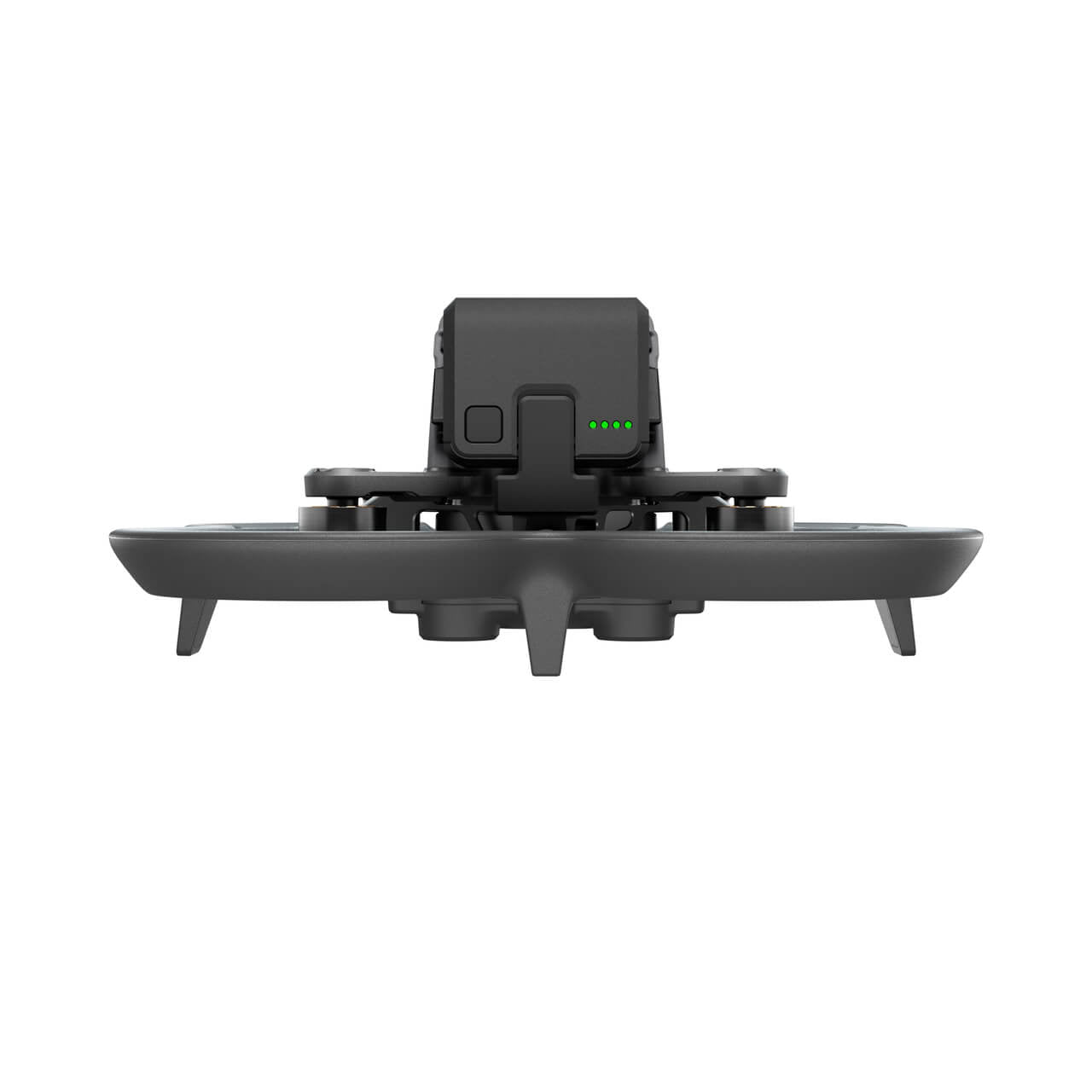

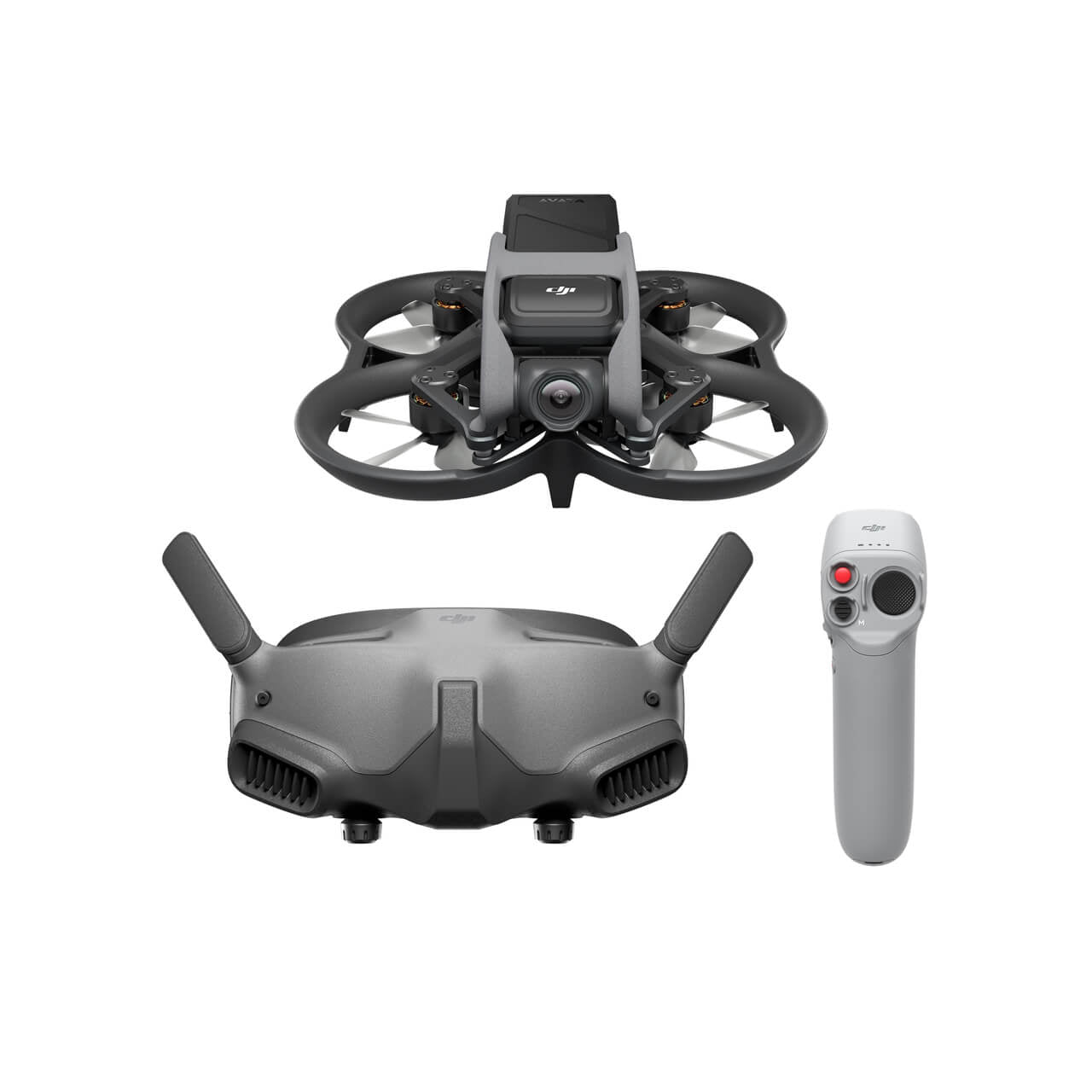

DJI Avata Pro-View Combo and Smart View Combo

Take a Closer Look

Specifications

Camera

Sensor

1/1.7-inch CMOS
Effective Pixels: 48 MP

Lens

FOV: 155°
Equivalent Focal Length: 12.7 mm
Focal Length: 2.34 mm
Aperture: f/2.8
Focus Mode: FF
Focus Range: 0.6 m to ∞

ISO Range

100-6400 (Auto)
100-25600 (Manual)

Shutter Speed

Video: 1/8000-1/50 s
Photo: 1/8000-1/50 s

Still Photography Mode

Single Shot

Max Image Size

4000×3000

Photo Format

JPEG

Video Resolution

With DJI Goggles 2:
4K@30/50/60fps
2.7K@30/50/60/100/120fps
1080p@30/50/60/100/120fps

With DJI FPV Goggles V2:
4K@30/50/60fps
2.7K@30/50/60/100/120fps
1080p@30/50/60/100/120fps

Video Format

MP4

Max Video Bitrate

150 Mbps

Color Mode

Standard
D-Cinelike

EIS

Supports RockSteady and HorizonSteady
Can be disabled

Distortion Correction

Supports Normal Mode, Wide Mode, and Ultra Wide Mode

Supported File System

exFAT (recommended)
FAT32

Gimbal

Mechanical Range

Tilt: -95° to 75°

Controllable Range

Tilt: -80° to +65°

Stabilization

Single-Axis (tilt)

Max Control Speed

60°/s

Angular Vibration Range

±0.01°

Electronic Roll Axis

Real-time screen correction is unavailable during recording, but can be applied to the footage recorded on the drone.

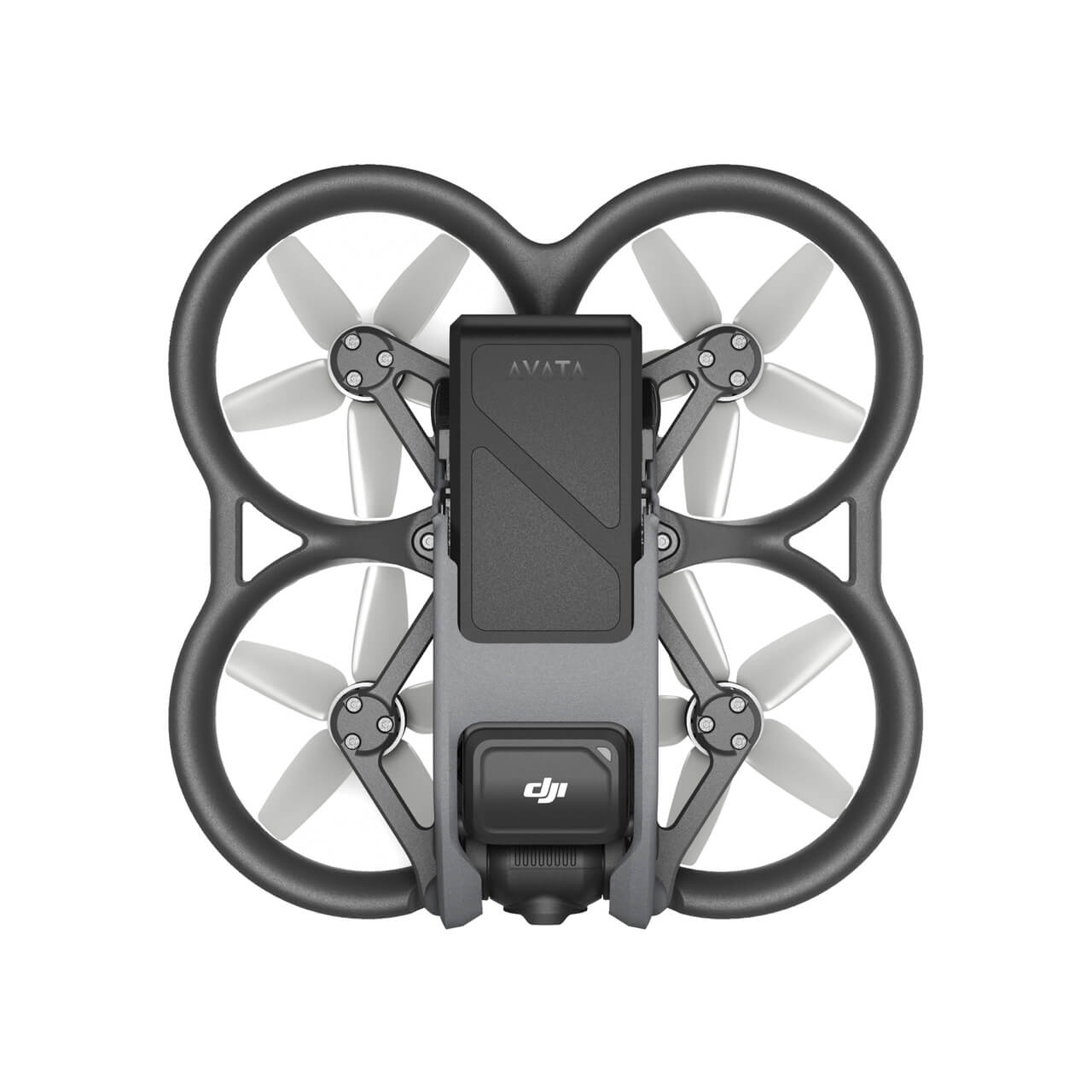

Aircraft

Model

QF2W4K

Takeoff Weight

Approx. 410 g

Dimensions (L×W×H)

180×180×80 mm

Diagonal Distance

120 mm

Max Ascent Speed

6 m/s (Normal Mode, Sport Mode)

Max Descent Speed

6 m/s (Normal Mode, Sport Mode)

Max Speed ^[1]

8 m/s (Normal Mode)
14 m/s (Sport Mode)
27 m/s (Manual Mode)

Maximum Takeoff Altitude

5000 m

Max Hover Time

Approx. 18 mins ^[2]

Max Flight Distance

11.6 km

Max Wind Speed Resistance

10.7 m/s (Level 5)

Operating Temperature Range

-10° to 40° C (14° to 104° F)

Transmission Power (EIRP)

FCC: < 33 dBm
CE: < 14 dBm
SRRC: < 30 dBm

Antennas

Dual Antennas, 2T2R

GNSS

GPS + Galileo + BeiDou

Hovering Accuracy Range

Vertical:
±0.1 m (with Vision Positioning)
±0.5 m (with GNSS Positioning)

Horizontal:
±0.3 m (with Vision Positioning)
±1.5 m (with GNSS Positioning)

Supported SD Cards

microSD (up to 256 GB)

Recommended microSD Cards

SanDisk Extreme U3 V30 A1 32GB microSDXC
SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
Kingston Canvas Go!Plus U3 V30 A2 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
Samsung PRO Plus U3 V30 A2 256GB microSDXC

Internal Storage

20 GB

Sensing System

Downward (Binocular Vision and ToF) ^[3]

ToF Effective Measurement Height: 10 m
Precise Hovering Range: 0.5-10 m
Vision Sensor Hovering Range: 0.5-20 m

Operating Environment

Diffuse reflective surfaces with a clear pattern > 20% (such as walls, trees, or people)
Adequate lighting (lux > 15, normal indoor lighting conditions)

Intelligent Flight Battery

Battery Capacity

2420 mAh

Voltage

14.76 V

Charging Voltage Limit

17 V

Type

Li-ion

Chemical System

LiNiMnCoO2

Energy

35.71 Wh@0.5C

Discharge Rate

Typical: 7C

Weight

Approx. 162 g

Charging Temperature Range

5° to 40° C (41° to 104° F)

Video Transmission

Communication Frequency

2.400-2.4835 GHz (RX only)
5.725-5.850 GHz (RX and TX) ^[4]

Communication Bandwidth

Max 40 MHz

Live View Quality and Latency ^[5]

With DJI FPV Goggles V2:
810p/120fps Video Transmission Quality: The video transmission latency is lower than 28 ms.
810p/60fps Video Transmission Quality: The video transmission latency is lower than 40 ms.

With DJI Goggles 2:
1080p/100fps Video Transmission Quality: The video transmission latency is as low as 30 ms.
1080p/60fps Video Transmission Quality: The video transmission latency is as low as 40 ms.

Max Video Transmission Bitrate ^[6]

50 Mbps

Max Video Transmission Range ^[7]

10 km (FCC), 2 km (CE), 6 km (SRRC)

Audio Transmission

N/A

DJI Goggles 2

Model

RCDS18

Weight

Approx. 290 g (headband included)

Dimensions (L×W×H)

With antennas folded: 167.40×103.90×81.31 mm
With antennas unfolded: 196.69×103.90×104.61 mm

Screen Size (single screen)

0.49-inch

Resolution (single screen)

1920×1080

Refresh Rate

Up to 100 Hz

Interpupillary Distance Range

56-72 mm

Diopter Adjustment Range

-8.0 D to +2.0 D

FOV (single screen)

51°

Communication Frequency

2.400-2.4835 GHz
5.725-5.850 GHz ^[4]

Transmission Power (EIRP)

2.4 GHz: < 30 dBm (FCC), < 20 dBm (CE/SRRC/KC)
5.8 GHz ^[4]: < 30 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE/KC)

Wi-Fi Protocol

Wi-Fi 802.11b/a/g/n/ac

Wi-Fi Communication Frequency

2.400-2.4835 GHz
5.150-5.250 GHz (indoor use only) ^[8]
5.725-5.850 GHz ^[4]

Wi-Fi Transmission Power (EIRP)

2.4 GHz: < 20 dBm (FCC/CE/SRRC/KC)
5.1 GHz ^[8]: < 20 dBm (FCC/CE/KC)
5.8 GHz ^[4]: < 20 dBm (FCC/SRRC/KC), < 14 dBm (CE)

Bluetooth Protocol

Bluetooth 5.2

Bluetooth Communication Frequency

2.400-2.4835 GHz

Bluetooth Transmission Power (EIRP)

< 8 dBm

Max Video Transmission Bitrate ^[6]

50 Mbps

Video Recording Format

MOV

Supported Video and Audio Playback Formats

MP4 and MOV (video coding formats: H.264 and H.265; audio format: ACC, PCM)

Wi-Fi Wireless Streaming

Supports DLNA Protocol

Operating Temperature Range

-10° to 40° C (14° to 104° F)

Power Input

DJI Goggles 2 Battery

Supported SD Cards

microSD (up to 256 GB)

DJI Goggles 2 Battery

Capacity

1800 mAh

Voltage

7-9 V (1.5 A)

Type

Li-ion

Chemical System

LiNiMnCoO2

Energy

18 Wh

Charging Temperature Range

0° to 45° C (32° to 113° F)

Max Charging Power

12.6 W (5 V/2 A, 9 V/1.4 A)

Weight

Approx. 122 g

Dimensions (L×W×H)

73.04×40.96×26 mm

Operating Time

Approx. 2 hours

DJI FPV Goggles V2

Model

FGDB28

Weight

Approx. 420 g (headband and antennas included)

Supported Video and Audio Playback Formats

MP4, MOV, MKV (video coding format: H.264; audio formats: AAC-LC, AAC-HE, AC-3, MP3)

Operating Temperature Range

0° to 40° C (32° to 104° F)

Video Recording Format

MOV (video coding format: H.264)

FOV

30° to 54°, adjustable
Image Size: 50% to 100%

Communication Frequency

2.400-2.4835 GHz
5.725-5.850 GHz ^[4]

Max Video Transmission Bitrate ^[6]

50 Mbps

Dimensions (L×W×H)

Without antennas: 184×122×110 mm
With antennas: 202×126×110 mm

Transmission Power (EIRP)

2.400-2.4835 GHz
FCC: ≤ 28.5 dBm
CE: ≤ 20 dBm
SRRC: ≤ 20 dBm

5.725-5.850 GHz ^[4]
FCC: ≤ 31.5 dBm
CE: ≤ 14 dBm
SRRC: ≤ 19 dBm

Screen Size (single screen)

2-inch

Power Input

Dedicated DJI Goggles batteries

Supported SD Cards

microSD (up to 256 GB)

Communication Bandwidth

Max 40 MHz

Interpupillary Distance Range

58-70 mm

Refresh Rate

144 Hz

Screen Resolution

1440×810

DJI FPV Goggles V2 Battery

Weight

Approx. 119 g

Dimensions (L×W×H)

73.04×40.96×26 mm

Capacity

1800 mAh

Voltage

Max 9 V

Chemical System

LiNiMnCoO2

Type

Li-Po 2S

Energy

18 Wh

Charging Temperature Range

0° to 45° C (32° to 113° F)

Max Charging Power

10 W

Operating Time

Approx. 110 mins

DJI Motion Controller

Model

FC7BMC

Weight

Approx. 167 g

Communication Frequency

2.400-2.4835 GHz
5.725-5.850 GHz ^[4]

Transmission Power (EIRP)

2.4 GHz: ≤ 28.5 dBm (FCC), ≤ 20 dBm (CE/SRRC)
5.8 GHz ^[4]: ≤ 31.5 dBm (FCC), ≤ 19 dBm (SRRC), ≤ 14 dBm (CE)

Operating Temperature Range

-10° to 40° C (14° to 104° F)

Operating Time

Approx. 5 hours

DJI FPV Remote Controller 2

Model

FC7BGC

Weight

Approx. 346 g

Communication Frequency

2.400-2.4835 GHz
5.725-5.850 GHz ^[4]

Transmission Power (EIRP)

2.4 GHz: ≤ 28.5 dBm (FCC), ≤ 20 dBm (CE/SRRC)
5.8 GHz ^[4]: ≤ 31.5 dBm (FCC), ≤ 19 dBm (SRRC), ≤ 14 dBm (CE)

Dimensions (L×W×H)

190×140×51 mm

Operating Time

Approx. 9 hours

Operating Temperature Range

-10° to 40° C (14° to 104° F)

Charging Time

2.5 hours

Other

Footnotes

1. The max flight speed is subject to dynamic local restrictions. Please abide by local laws and regulations when flying.
   2. Tested when hovering in an environment without wind or interference.
   3. DJI Avata only supports downward obstacle sensing when used with DJI FPV Remote Controller 2, or DJI Motion Controller in N Mode and S Mode.
   4. The 5.8 GHz frequency band is currently banned in certain countries or regions. For details, please refer to local laws and regulations.
   5. Tested in an outdoor open environment without interference. The video transmission latency data varies with different models.
   6. Tested in an outdoor open environment without interference. The video transmission bitrate varies with operating environments.
   7. FCC compliant and tested in an outdoor open environment without interference. Data is tested under different standards in an outdoor open environment without interference. Only to serve as a reference for the max one-way communication distance without considering RTH. Please pay attention to the RTH prompts during actual flight. Max one-way communication distance of DJI Avata in countries/regions of different standards:
   FCC: United States, Australia, Canada, Hong Kong, Taiwan, Chile, Colombia, Puerto Rico, and other regions.
   SRRC: Mainland China.
   CE: UK, France, Germany, Portugal, Spain, Switzerland, Macau, New Zealand, UAE, and other regions.
   8. The 5.1 GHz frequency band is currently banned in China and Thailand. For details, please refer to local laws and regulations.

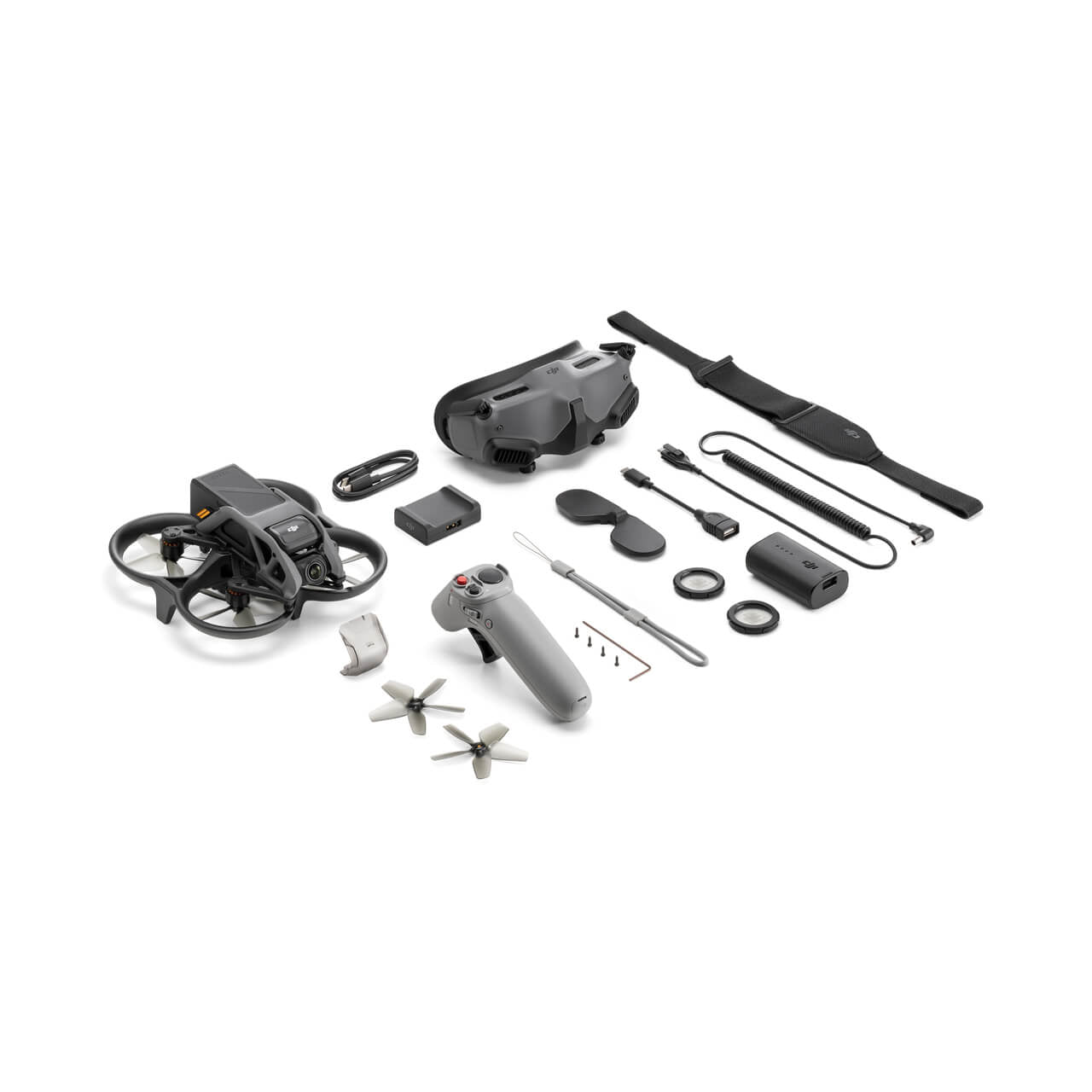

In The Box

Pro-View Combo

• DJI Avata × 1
• DJI Goggles 2 × 1
• DJI Motion Controller × 1
• DJI Avata Intelligent Flight Battery × 1
• DJI Avata Propellers (Pair) × 3
• DJI Avata Power Adapter × 1
• DJI Avata Gimbal Protector × 1
• Type-C to Type-C PD Cable × 1
• Screwdriver × 1
• Screws (M2×7) × 4
• DJI Goggles 2 Battery × 1
• DJI Goggles 2 Eyeglass Frames (Pair) × 1
• DJI Goggles 2 Screen Protector × 1
• DJI Goggles 2 Headband × 1
• DJI Goggles 2 Power Cable × 1
• DJI Goggles 2 Dual-Band Antenna (Pair) × 1
• DJI Goggles 2 OTG Cable × 1
• Lanyard × 1

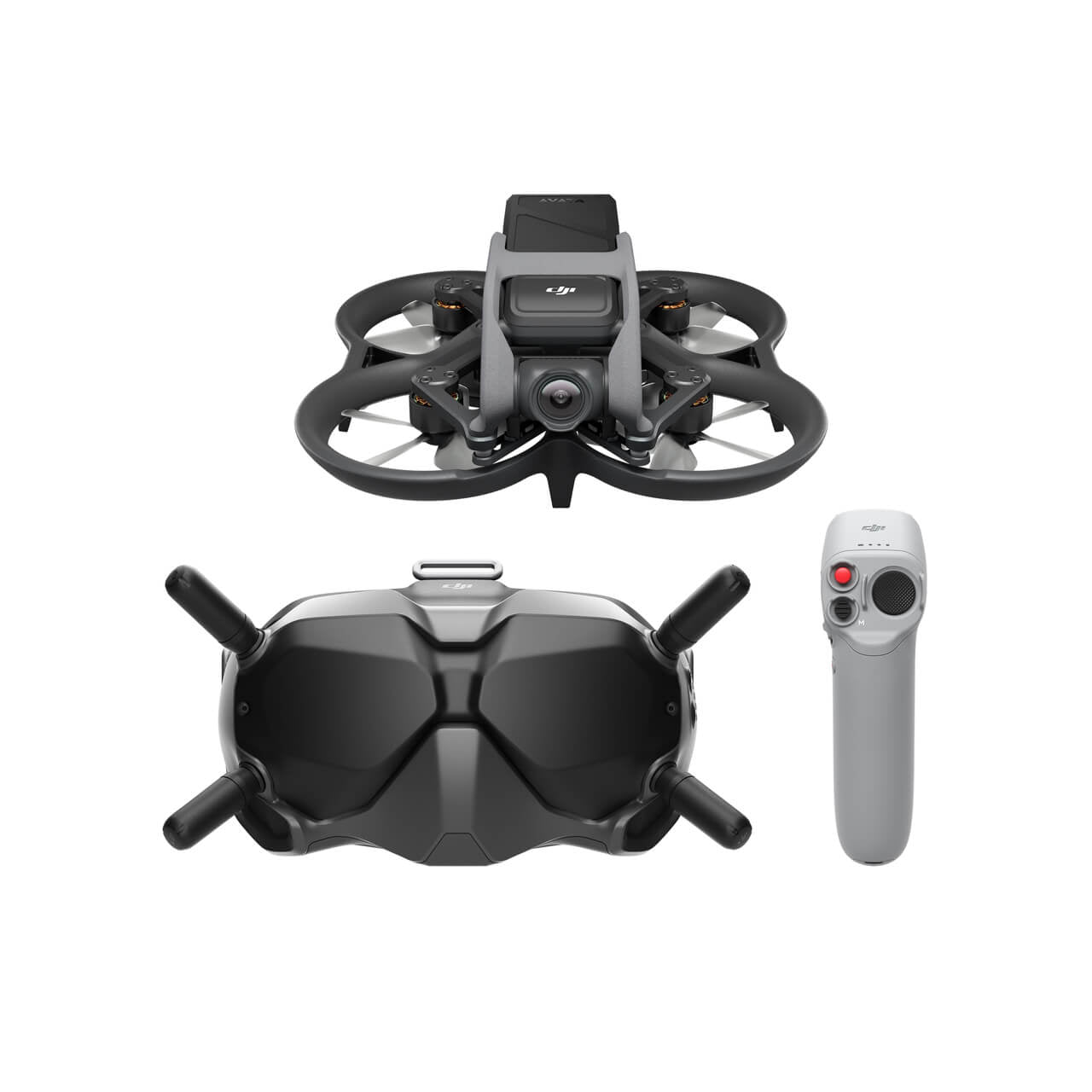

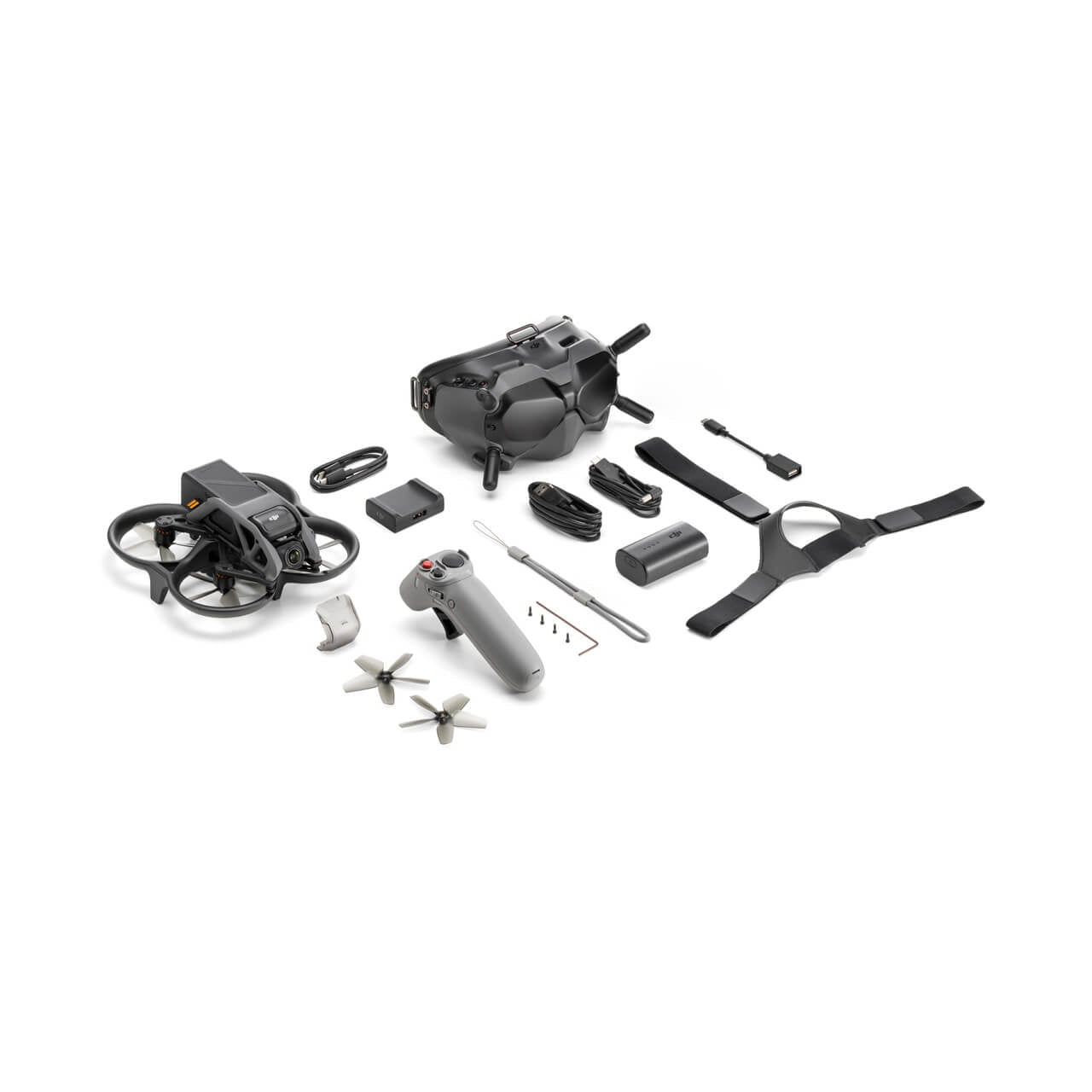

DJI Avata Fly Smart Combo

• DJI Avata × 1
• DJI FPV Goggles V2 × 1
• DJI Motion Controller × 1
• DJI Avata Intelligent Flight Battery × 1
• DJI Avata Propellers (Pair) × 3
• DJI Avata Power Adapter × 1
• DJI Avata Gimbal Protector × 1
• Type-C to Type-C PD Cable × 1
• Screwdriver × 1
• Screws (M2×7) × 4
• DJI FPV Goggles Battery × 1
• DJI FPV Goggles Headband × 1
• DJI FPV Goggles Power Cable (USB-C) × 1
• DJI FPV Goggles Dual-Band Antenna × 4
• DJI FPV Goggles USB-C Cable × 1
• DJI FPV Goggles V2 OTG Cable × 1
• Lanyard × 1

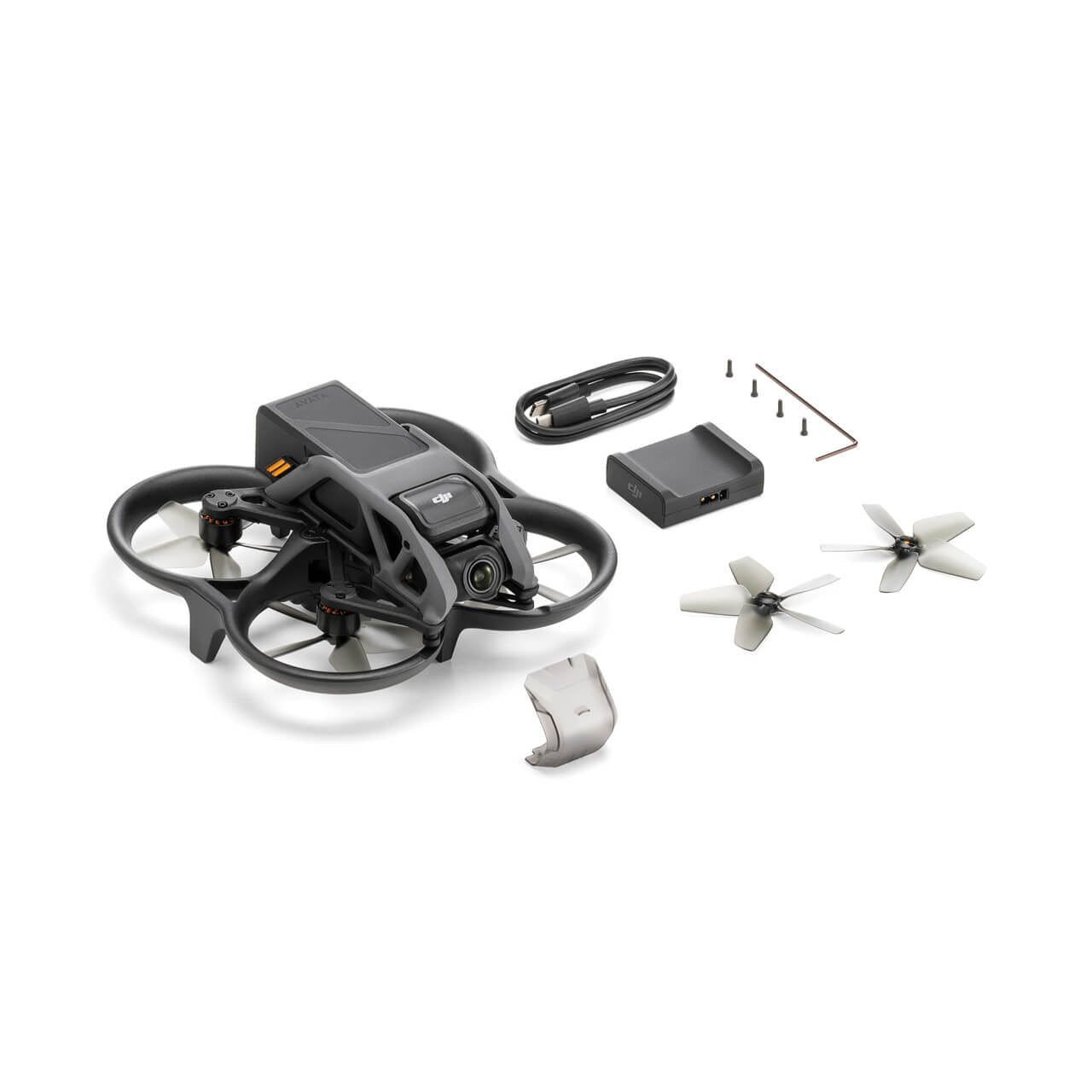

DJI Avata (No RC)

• DJI Avata × 1
• DJI Avata Intelligent Flight Battery × 1
• DJI Avata Propellers (Pair) × 3
• DJI Avata Power Adapter × 1
• DJI Avata Gimbal Protector × 1
• Type-C to Type-C PD Cable × 1
• Screwdriver × 1
• Screws (M2×7) × 4
