Product Description
DJI Dock 3 | Seamless Matrice 4 Compatibility | IP56 Weatherproof Dock | Fast 27-Min Battery Charging
Description

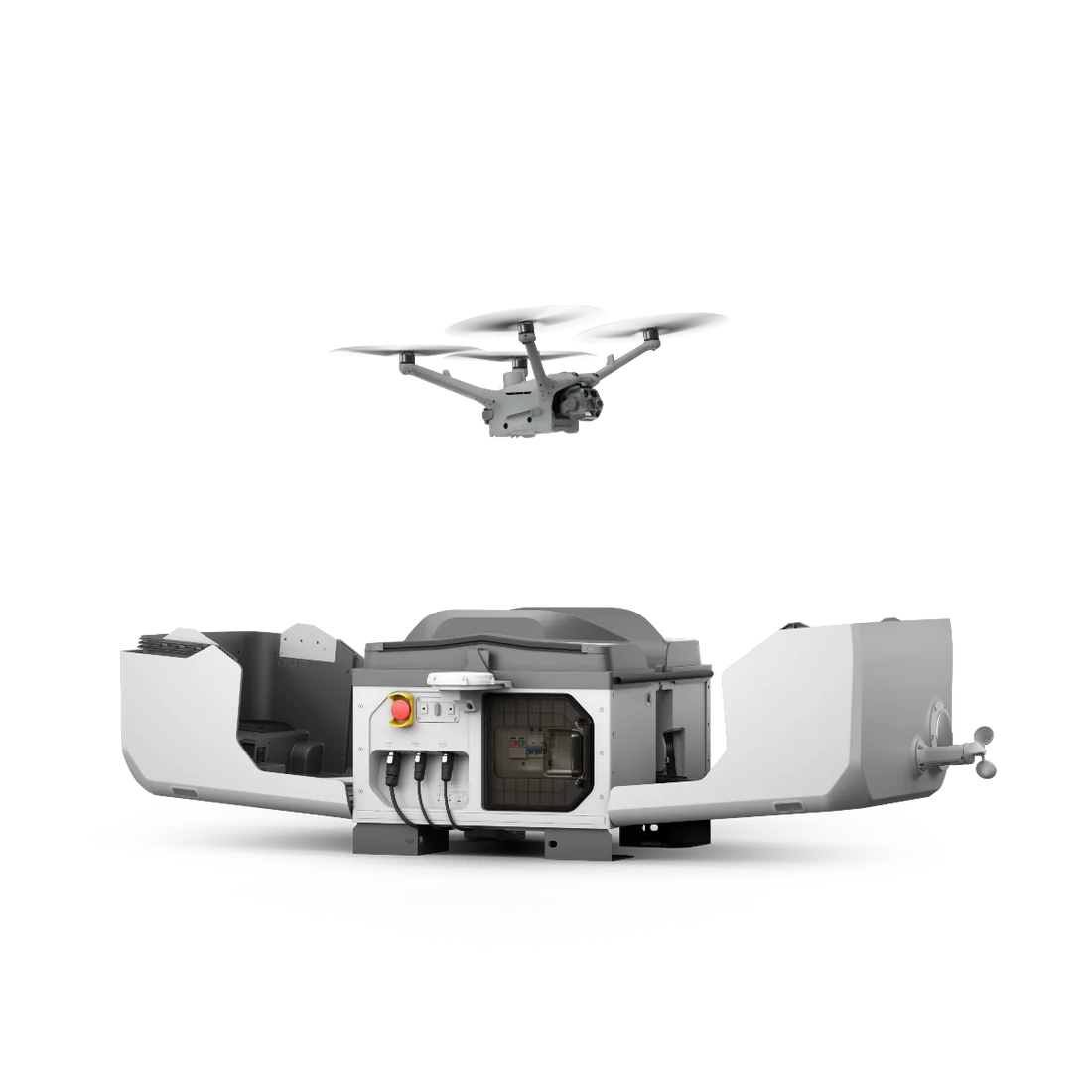

Designed for continuous remote missions, DJI Dock 3 pairs seamlessly with Matrice 4D or Matrice 4TD high-performance drones to bring automated deployments to new heights. Featuring vehicle-mounted support for rapid multi-location tasks, Dock 3 ensures continuous drone readiness with quick charging and robust IP-rated protection. Now you can leverage DJI FlightHub 2's intelligent detection capabilities to streamline operations, reduce labor costs, and maximize efficiency like never before.
Why Buy from DSLRPros?
- Industry-Focused Solutions: We tailor drone kits to meet public safety, industrial, and commercial needs.
- Expert Guidance: Our knowledgeable team ensures you get the most out of advanced DJI tools like Dock 3.
- Proven Track Record: Years of experience equipping professionals with top-tier drone solutions.
- Ongoing Support: From training to troubleshooting, we help you stay mission-ready at all times.
In The Box
- 1x Dock Body (incl. Ground Wire)
- 1x Wind Speed Gauge Module
- 4x Expansion Bolt
- 1x Ethernet Cable Connector
- 1x Power Cable Connector
- 1x Wire Ferrule
- 1x Screws and Tools
- 1x Manuals
Key Features

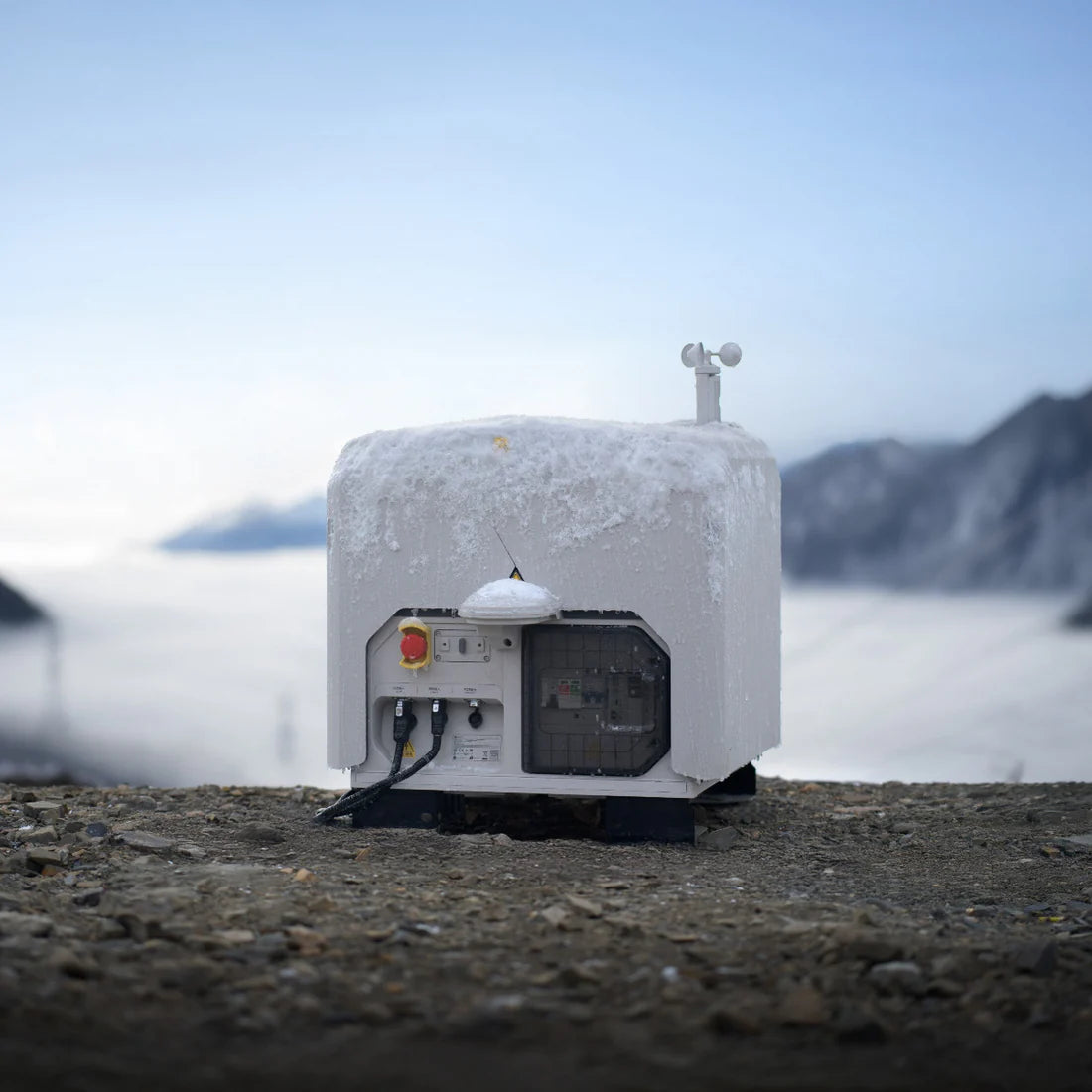

- Outstanding Weather Resistance: IP56-rated dock with an IP55-rated drone, operating in -30°C to 50°C, ready for harsh environments.
- Vehicle-Mounted Deployment: Hardware optimized for in-transit drone charging and data transfer, perfect for emergency or long-distance tasks.
- Unmatched Efficiency: 10 minutes longer flight endurance than Dock 2 and a 27-minute charge time from 15% to 95%.
- Top-Performing Compact Drone: The Matrice 4D series inherits Matrice 4's intelligent features, plus an IP rating and onboard relay for greater transmission range.
- Advanced Obstacle Sensing: Optional module detects 12mm wires at up to 15m/s, avoiding collisions even in pitch-dark environments.Official repair compensation may apply if collision damage occurs due to obstacle avoidance failure.
- Intelligent Operations: Automatic detection routes via DJI FlightHub 2 and the ability to create alerts for temperature anomalies, vehicles, vessels, and more.
- Future-Ready FlightHub 2: Will support on-premises deployment in H2 2025 and introduce an EU-based AWS server for European clients, enabling new third-party integrations.
Detailed Specifications
| Category | Specification |
|---|---|
| Product Name | DJI Dock 3 |
| Weight | 55 kg (without aircraft); variations may occur due to batch materials and external factors. |
| Dimensions | Open: 1760×745×485 mm (L×W×H) / Closed: 640×745×770 mm (L×W×H) |
| Operating Temperature | -30°C to 50°C (-22°F to 122°F) |
| Ingress Protection Rating | IP56 |
| Input Voltage | 100-240 V (AC), 50/60 Hz |
| Input Power | Max 800 W |
| Max Landing Wind Speed | 12 m/s |
| Max Operating Altitude | 4500 m |
| RTK Horizontal Accuracy | 1 cm + 1 ppm (RMS) |
| RTK Vertical Accuracy | 2 cm + 1 ppm (RMS) |
| RTK Satellite Frequencies | GPS: L1 C/A, L2, L5; BeiDou: B1l, B2l, B3l, B2a, B2b, B1C; GLONASS: F1, F2; Galileo: E1, E5a, E5b, E6; QZSS: L1, L2, L5 |
| Battery Charging | 15% to 95% in 27 minutes (at 25°C environment, powered off) |
| Charging Output Voltage | 35 V DC |
| Operating Frequency | 2.400-2.4835 GHz / 5.150-5.250 GHz (CE: 5.170-5.250 GHz) / 5.725-5.850 GHz |
| Antenna | Built-in 9 antennas, 2T4R, with intelligent switching |
| Transmitter Power (EIRP) | 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC); 5.2 GHz: <23 dBm; 5.8 GHz: <33 dBm (FCC), etc. |
| Cooling System Voltage | 48 V DC |
| Cooling Type | Compressor-based air conditioning |
| Backup Battery Capacity | 12 Ah |
| Backup Battery Voltage | 12 V |
| Backup Battery Life | > 4 hours (limited functionality during power outages) |
| Supported Sensors | Wind Speed, Rainfall, Ambient Temperature, Water Immersion, In-Cabin Temperature, In-Cabin Humidity |
| External Camera Resolution | 1920×1080 |
| External Camera FOV | 151° |
| Internal Camera Resolution | 1920×1080 |
| Internal Camera FOV | 151° |
| Lightning Protection | AC Power: 20 kA; Ethernet Port: 10 kA, compliant with EN/IEC standards |
| Software Support | DJI Enterprise app, FlightHub 2 (Cloud & On-Premises), FlightHub Sync, DJI Cloud API |
| Expansion Capability | Edge Computing (supports communication with external switches) |
Applications
- Emergency Response & Security: Enable rapid multi-site deployment with vehicle-mounted docking for continuous vigilance.
- Critical Infrastructure Inspections: Efficiently assess powerlines, pipelines, or telecommunications networks in remote locations.
- Environmental & Wildlife Monitoring: Collect consistent aerial data with minimal manpower, even across challenging terrains.
- Research & Surveying: Gather real-time information on expansive project sites while automating flight, detection, and notifications.
