Product Description
DJI Matrice 30 M30 - Enterprise Drone | TB30 Intelligent Flight Battery
DESCRIPTION

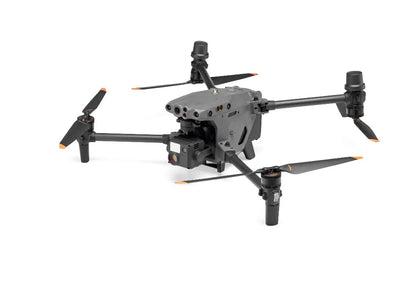

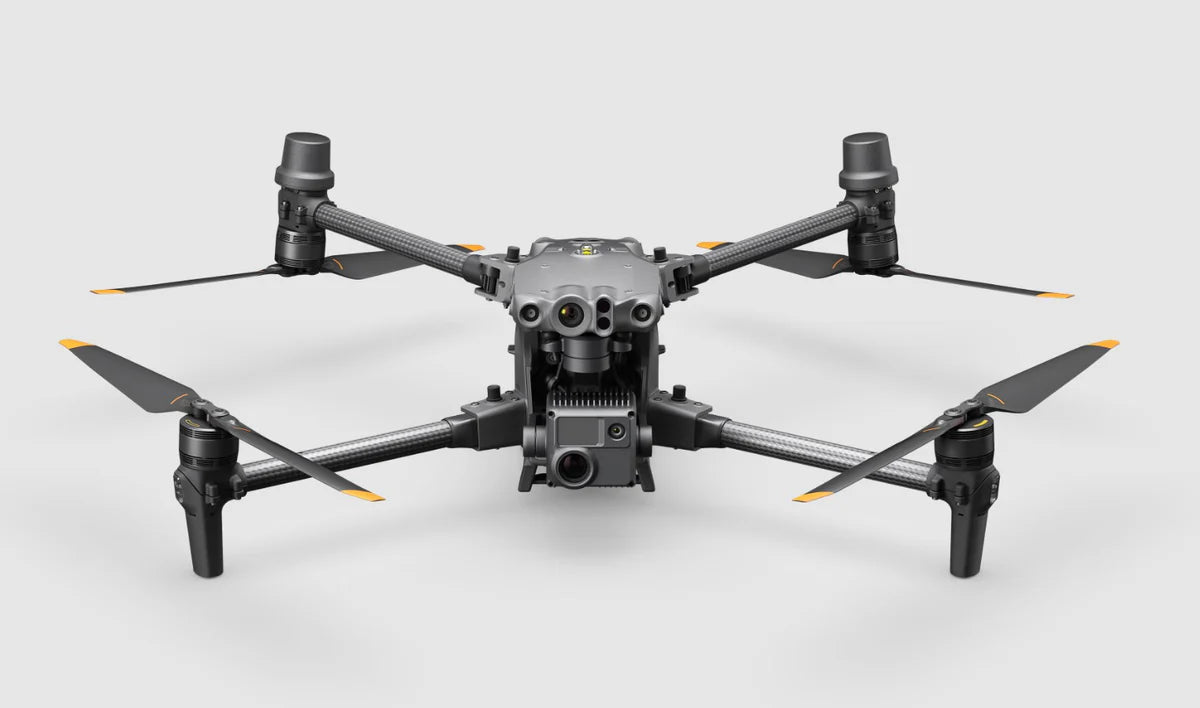

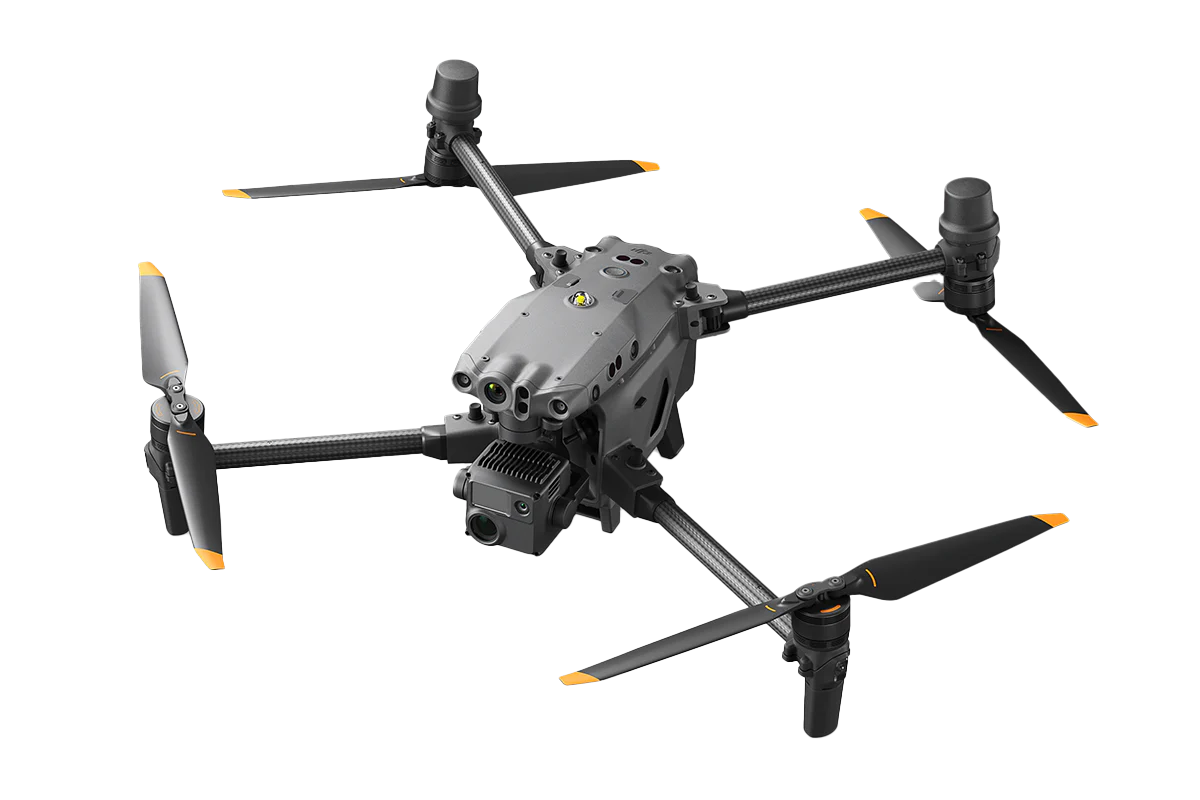

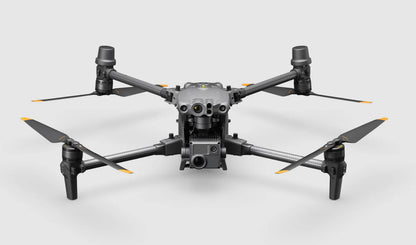

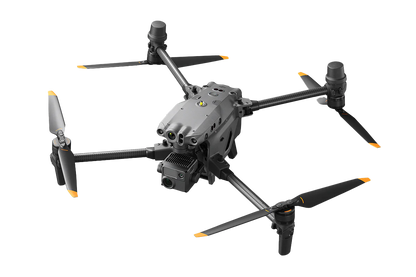

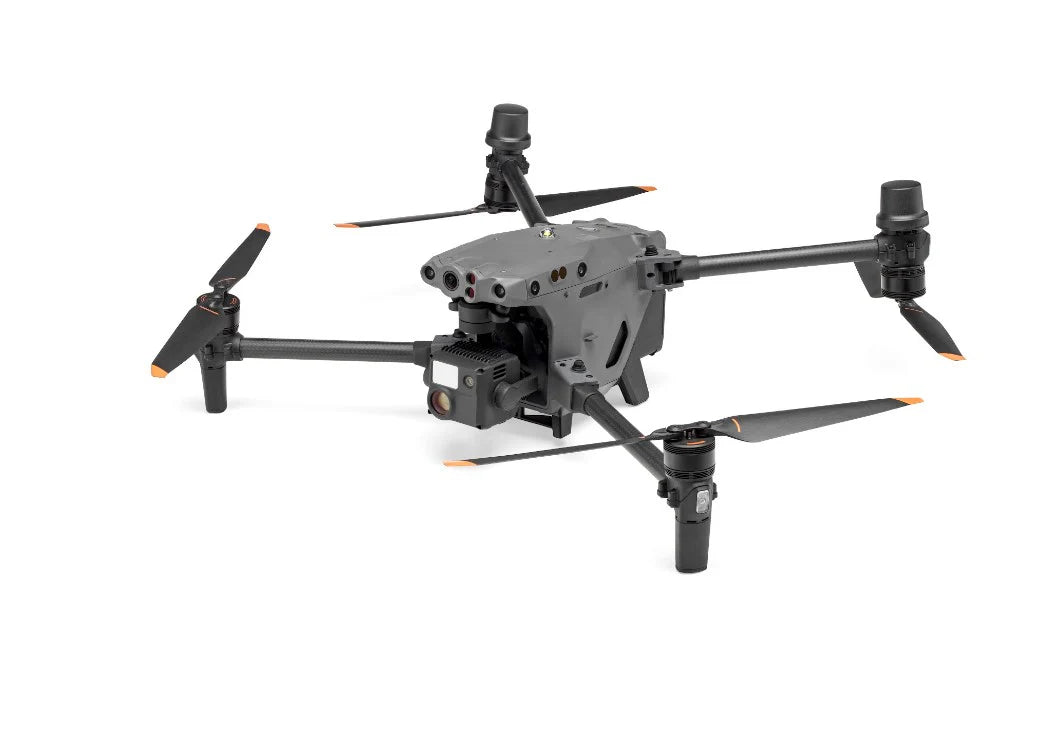

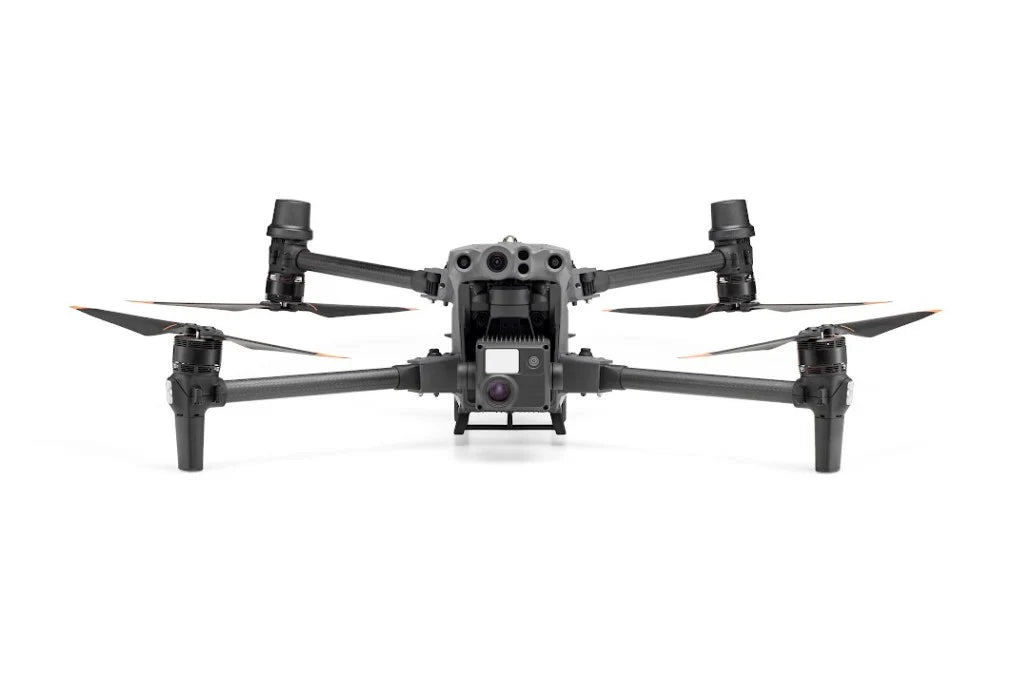

The DJI M30 series of drones feature several high-performance sensors, are lightweight and portable, and are weatherproof. The Matrice 30 Series (M30 or M30T) comes with a DJI RC Plus, two DJI TB30 Intelligent Flight Batteries, one BS30 Intelligent Battery Station, and the aircraft storage case.
Capture everything with unrivaled aerial intelligence
The M30 Series combines a laser rangefinder with wide, zoom, and thermal cameras (M30T only), allowing you to gather the aerial data you need when you need it.
Dependable and secure
Dual-vision and ToF sensors are installed on all six sides of the aircraft, ensuring the safety of the aircraft and your mission. The built-in ADS-B receiver alerts you to any oncoming crewed aircraft in the area.
Transmission Enhancement
OcuSync 3 Enterprise supports triple-channel 1080p video transmission and flawless switching between input sources, even in difficult situations, thanks to four built-in antennae. DJI Cellular Module, an optional 4G dongle that allows steady video transmission in difficult or remote business scenarios, will strengthen your connection.

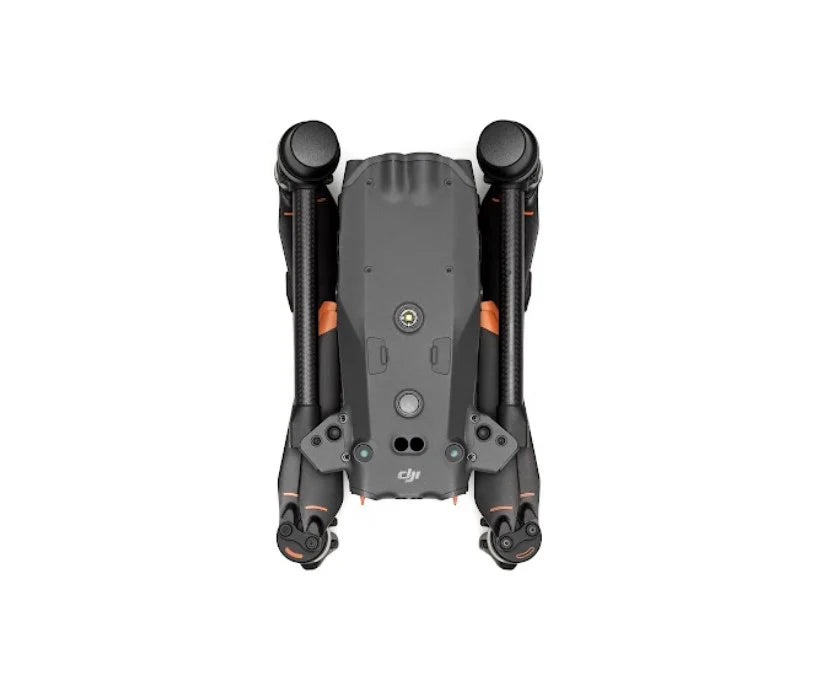

Portable and light-weight
The DJI M30 Series is easy to pack, carry, and deploy because it is compact and collapsible.
Intelligent Battery Station BS30
A smart, portable solution with numerous charging options is available to fulfill your mission demands. The charger can charge four pairs of TB30 Intelligent Flight Batteries and one pair of RC Plus batteries at once, with each pair needing only 30 minutes to charge from 20% to 90%.

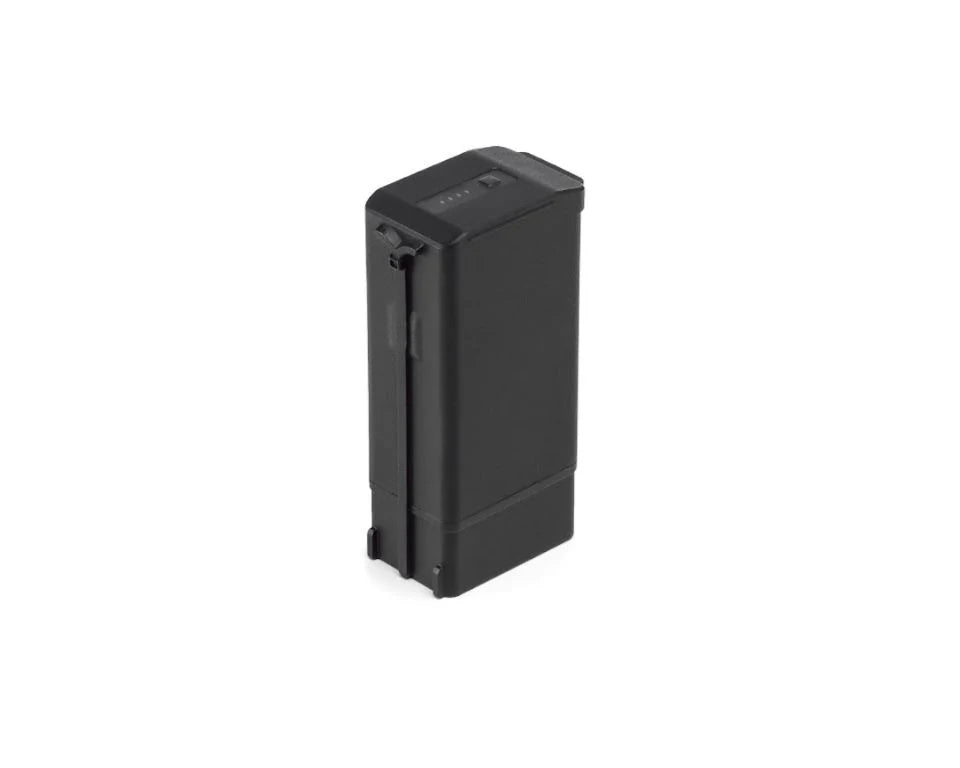

TB30 Intelligent Flight Battery
For greater operational efficiency, each battery features self-heating for cold conditions, hot-swapping for quick turnarounds, and 400 charge cycles.
DJI Cellular Module
Provides a 4G-based transmission link between the drone and the remote controller, as well as allows the remote controller to connect to the internet.
Key Features
- All-in-One Aerial Platform: Combines multiple cameras and sensors for comprehensive aerial data.
- Durable and Weatherproof: Built to withstand harsh environments with IP55 rating.
- Intelligent Battery System: Hot-swappable TB30 batteries ensure extended and uninterrupted missions.
- Advanced Safety Systems: Six-directional obstacle sensing and ADS-B receiver for safer operations.
- Compact and Portable: Collapsible design for easy transport and deployment.
Detailed Specification
Aircraft
| Attribute | Details |
|---|---|
| Dimensions (unfolded) | 470×585×215 mm |
| Dimensions (folded) | 365×215×195 mm |
| Max Takeoff Weight | 4000 g |
| Max Horizontal Speed | 23 m/s |
| Max Flight Time | 41 min |
| GNSS | GPS+Galileo+BeiDou+GLONASS |
| Weatherproofing | IP55 |
Cameras
| Camera Type | Specifications |
|---|---|
| Wide Camera | 1/2" CMOS, 12MP, DFOV: 84°, Aperture: f/2.8 |
| Zoom Camera | 1/2" CMOS, 48MP, 21-75 mm focal length |
| Thermal Camera | 640×512 resolution, ±2°C accuracy (M30T only) |

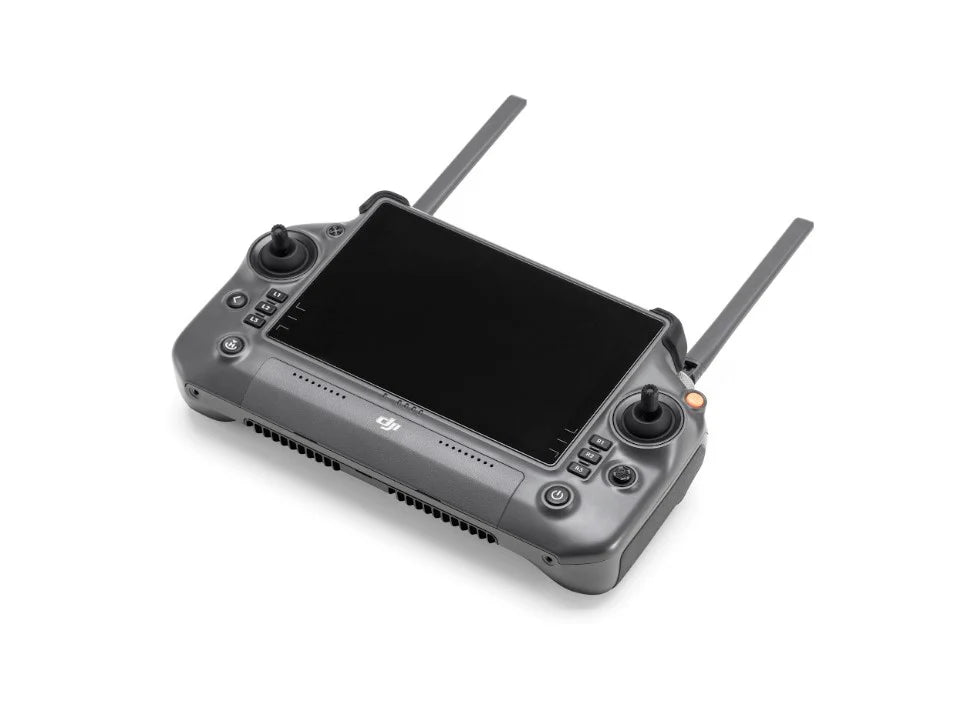

Remote Controller
| Attribute | Details |
|---|---|
| Screen | 7.02" LCD, 1920×1200 resolution |
| Battery Life | Internal: 3 hrs; External: 6 hrs |
| Ingress Protection | IP54 |
Battery and Charging
| Attribute | Details |
|---|---|
| Battery Type | TB30 Intelligent Flight Battery |
| Capacity | 5880 mAh |
| Charge Cycles | 400 |
| Charging Station | BS30 Intelligent Battery Station |
| Charging Time | 20%-90% in 30 mins (two batteries) |
