Product Description
DJI Transmission Combo | Long-Distance HD Video Transmitter
DESCRIPTION
LONG-DISTANCE HD LIVE FEED
DJI Transmission incorporates O3 Pro video transmission technology, which offers an incredible 20,000' on-ground transmission distance. It also supports transmission at 1080p60 with a max bitrate of 50 Mb/s as well as live audio monitoring at 16-bit 48 kHz, providing crews on large sets an excellent remote visual and audio monitoring experience.
END-TO-END ULTRA-LOW LATENCY
The video transmitter and receiver use the same chip solution as Ronin 4D, with every link explicitly optimized to provide end-to-end ultra-low transmission latency when pairing with cinema cameras like the ARRI ALEXA Mini LF.
SEAMLESS AUTO FREQUENCY HOPPING
- O3 Pro adds a DFS band on top of the traditional 2.4 and 5.8 GHz, offering up to 23 channel options that provide professional crews with more compliant and interference-free transmission channels.
- DJI Transmission supports triple-band automatic frequency hopping, which automatically scans the electromagnetic environment for the best wireless channel.
- With a built-in frequency sweeper, users can even manually select a channel to avoid interference between devices.
- By mounting high-gain antennas, transmission capability is further boosted.
ONE TRANSMITTER WITH MULTIPLE RECEIVERS FOR COORDINATED SHOOTING
- Two transmission modes are available.
- In Control mode, DJI Transmission delivers optimal transmission performance. Monitoring can be done from two receivers at the same time, while the gimbal of Ronin 2 and RS 3 Pro and camera can be controlled remotely.
- Broadcast mode can be enabled on top of Control mode to enable an unlimited number of receivers (transmission performance differs from Control mode).
- On larger and more dynamic, DJI Transmission can operate with 20 or more transmitters sending signals to 20 or more devices, resulting in a smooth, coordinated experience that's difficult to get with traditional transmission setups.
ENCRYPTED TRANSMISSION
DJI Transmission supports linking and AES 256-bit encryption to avoid leaks of confidential information. Together with DJI's self-developed chip and transmission protocol, DJI Transmission is able to ensure security of your footage.
Key Features
- Extended Range: Transmit high-definition video up to 20,000 feet for unparalleled reach.
- Enhanced Video Quality: Supports 1080p60 video transmission at 50 Mb/s for superior visuals.
- Live Audio Monitoring: 16-bit/48 kHz audio ensures synced and accurate sound monitoring.
- Low Latency: Optimized for end-to-end ultra-low latency with cinema cameras and Ronin gimbals.
- Robust Frequency Management: Triple-band hopping with manual and automatic channel selection.
- Multiple Device Support: Stream to multiple receivers in Control Mode or unlimited devices in Broadcast Mode.
- Encrypted Data: AES 256-bit encryption ensures the security of your footage.
Detailed Specification
| Feature | Details |
|---|---|
| Transmission Range | Up to 20,000 ft (3+ miles) |
| Video Resolution | 1080p at 60 fps |
| Audio Monitoring | 16-bit, 48 kHz |
| Max Bitrate | 50 Mb/s |
| Transmission Frequency | 2.4 GHz, 5.8 GHz, DFS |
| Transmission Modes | Control Mode and Broadcast Mode |
| Encryption | AES 256-bit |
| Device Compatibility | ARRI ALEXA Mini LF, Ronin 2, RS 3 Pro |
| Multiple Receiver Support | Dual receivers in Control Mode; unlimited in Broadcast Mode |
| Latency | Ultra-low latency for real-time monitoring |
| Channel Selection | Automatic or manual |

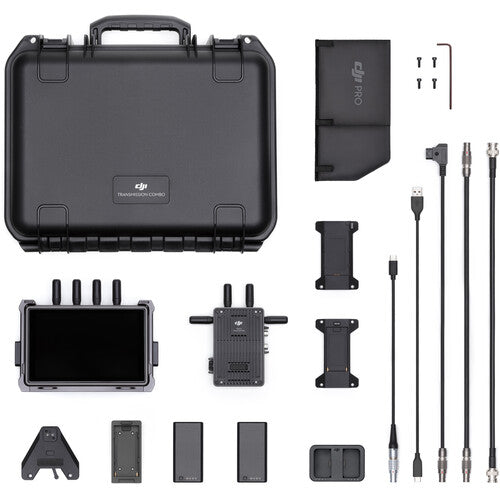

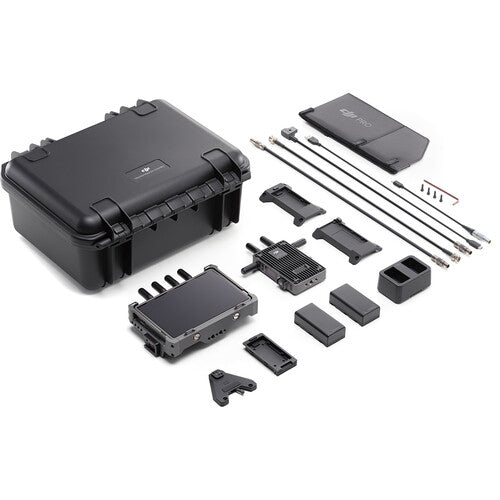

In Package
- 1x Video Transmitter
- 1x Video Receiver
- Antenna Set
- Power Cables
- User Documentation
