Dometic

Dometic CSX150FZ Cold Machine Self-Contained Cooling System f/Volumes Up to 150L - 12/24VDC [9630000215]

Dometic CSX150FZ Cold Machine Self-Contained Cooling System f/Volumes Up to 150L - 12/24VDC [9630000215]

Regular price $1,142.99
Regular price $0.00 Sale price $1,142.99
Sale Sold out
Customizable
Fast
24/7 Support

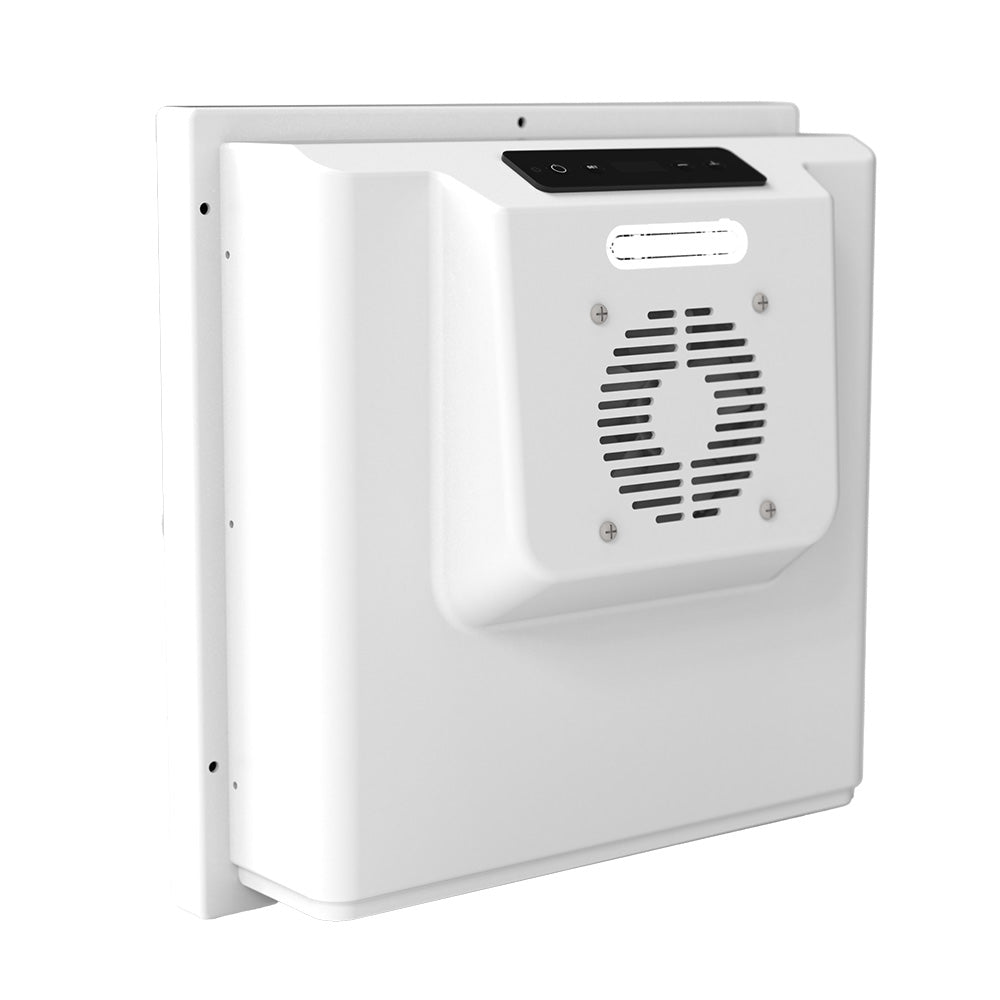

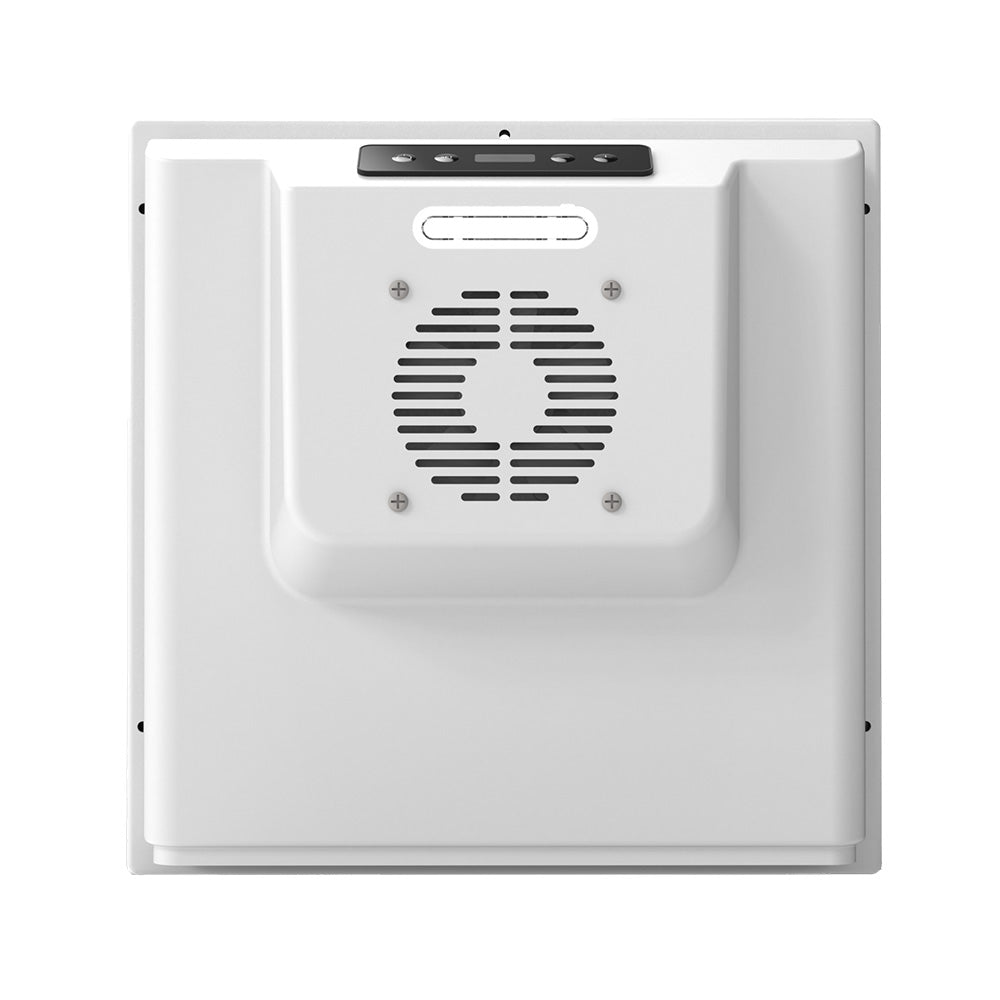

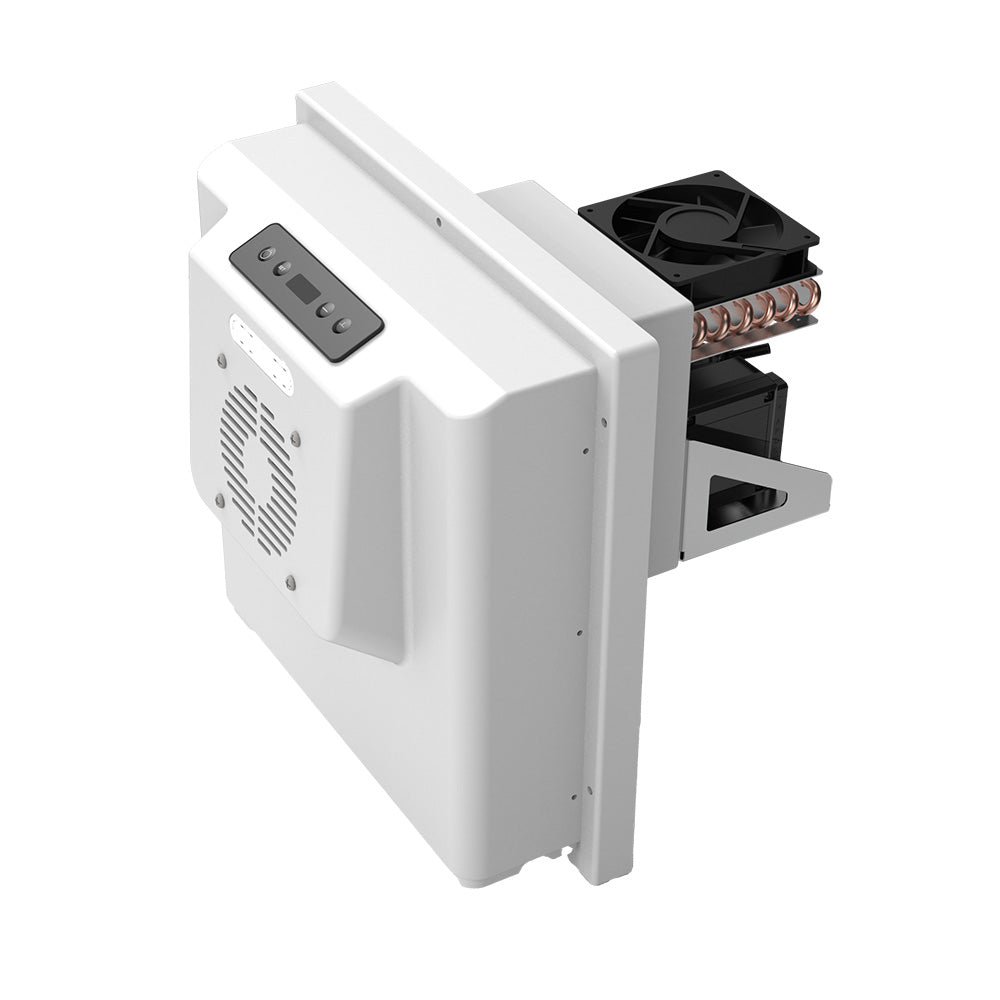

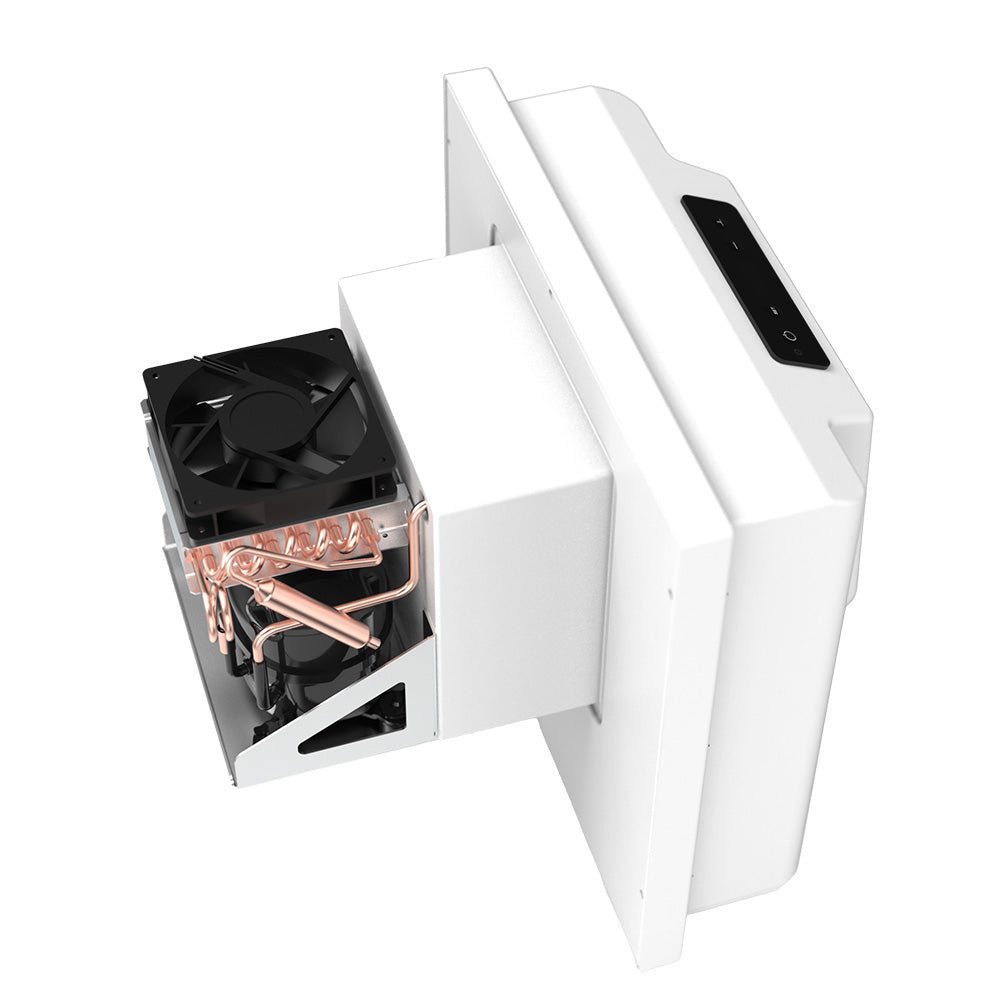

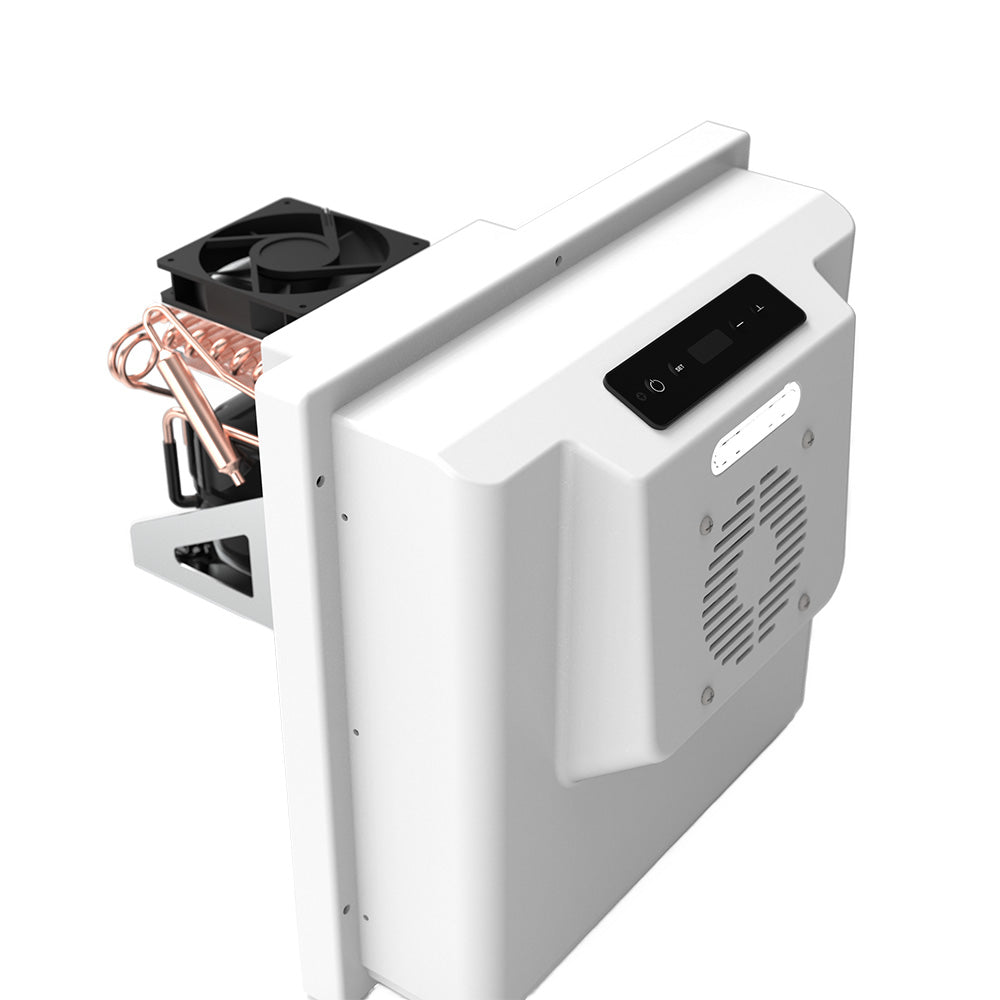

CSX150FZ Cold Machine Self-Contained Cooling System for Volumes Up to 150L - 12/24VDC

The all-in-one upgrade for marine refrigeration. The Dometic CSX delivers next-generation cooling performance in a compact, integrated design. With precision temperature control, fan-assisted cooling and ultra-efficient, low-GWP refrigerant, it’s built to keep food and drinks fresher for longer - no matter where you sail.

The Dometic CSX is a self-contained cooling system engineered for effortless installation and reliable performance. Ideal for volumes between 50 and 400 L, it combines a high-efficiency compressor, fan-cooled evaporator and digital temperature control in one space-saving unit. Simply drop it in, connect power, and enjoy consistent cooling without the complexity of remote couplings. With low-GWP (Global Warming Potential) refrigerant, reduced power draw and a durable marine-ready build, the CSX is the smarter way to keep provisions fresh - whether you’re coastal cruising or voyaging offshore.

Benefits with Dometic CSX Series:

  • Integrated compressor and evaporator for easy drop-in install
  • Fan-assisted airflow reduces cool-down time and maintains even temperature
  • Digital temperature control with high-accuracy NTC sensor
  • Up to 20% lower power consumption vs. previous models
  • Low-GWP (Global Warming Potential) refrigerant (R1234yf) for reduced environmental impact
  • Built-in LED compartment lighting for better visibility
  • Compact footprint for space-restricted galleys or boxes
  • Available in refrigerator or deep-freezer versions
  • Electronic control with automatic defrost logic

Features:

  • 60-150L volume
  • Digital display (internal or external mount) & NTC sensor
  • Fan-cooled evaporator with integrated compressor
  • Built-in LED compartment lighting
  • Drop-in installation, no couplings required

Technical Specifications:

  • Max. Cooling Capacity (L) - 150 (deep freezing)
  • Connection Voltage - 12/24VDC
  • Power Consumption (Rated Max W) - 81
  • Refrigerant Type - R1234yf
  • Global Warming Potential (GWP) - 4
  • Refrigerant Quantity (g) - 65
  • CO2 Equivalent (tCO2) - 0.00026
  • Full Unit Dimensions (W x H x D) (in.) - 16.3 x 16.3 x 15.7
  • Weight (lbs) - 18.7

Owner's Manual (pdf)
Brochure (pdf)
View full details
