Rinieri Double Orchard Pruner CRF 2 | 20" Hydraulic Side Shift | 98"-110" Cutting Width for Tractor
Rinieri Double Orchard Pruner CRF 2 | 20" Hydraulic Side Shift | 98"-110" Cutting Width for Tractor
Couldn't load pickup availability
Couldn't load pickup availability
How To Get A Quote
***Online pricing not available, Please request a quote:***
How To Get A Quote:
Option 1:
“Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
Product Description
Rinieri Double Orchard Pruner CRF 2 | 20" Hydraulic Side Shift | 98"-110" Cutting Width for Tractor
DESCRIPTION

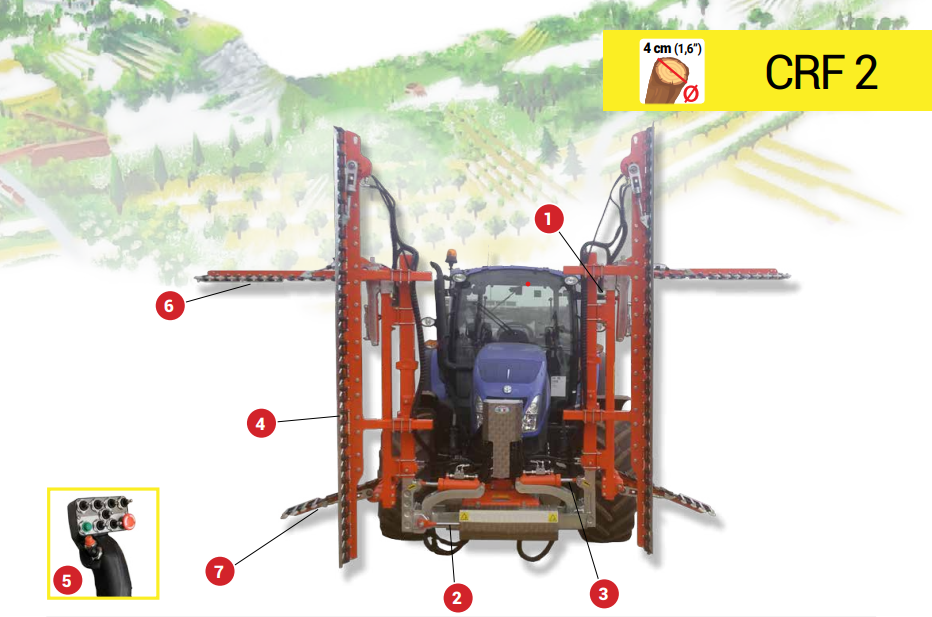

The Double Orchard Pruner CRF 2 is expertly designed for high-density orchards, featuring a high-visibility frame and cutting bars equipped with “SCH” teeth to handle branches up to 1.6 inches in diameter. This versatile pruner offers two cutting lengths for the vertical bar and comes with topping and skirting bars, all controlled via an intuitive joystick system.
Key Features
- High Visibility Frame: Designed to provide clear visibility during operation, ensuring precision in high-density orchards.
- Effective Cutting: Equipped with “SCH” teeth cutting bars for branches up to 1.6 inches in diameter.
- Versatile Cutting Lengths: Available with two different cutting lengths for the vertical bar, suitable for various orchard needs.
- Joystick Controls: Features an electro-hydraulic distributor with a joystick 7+1 for easy and precise control.
- Hydraulic Adjustments: Includes hydraulic lifting, tilting, and side shift for optimal performance and adaptability.
Detailed Specifications
| Component | Details |
|---|---|
| Electro-Hydraulic Distributor | Joystick 7+1 |
| Hydraulic Lifting | 35.4 inches |
| Column Hydraulic Tilting | +/- 5.9 inches |
| Hydraulic Side Shift | 19.7 inches (hydraulic) and 9.8 inches (manual) |
| Tooth Cutting Bars | With "SCH" blades |
| Tractor Requirements | 1 double-acting distributor, 1 pressure-free return, 40-50 liters/min flow, 12V socket |
| Safety | Max pressure valve for motors, Hydraulic stand for storage |

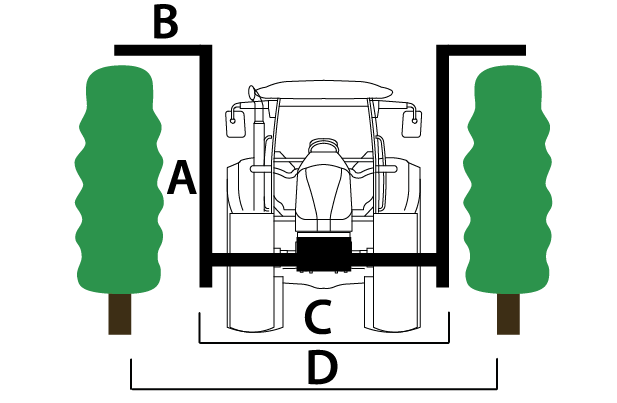

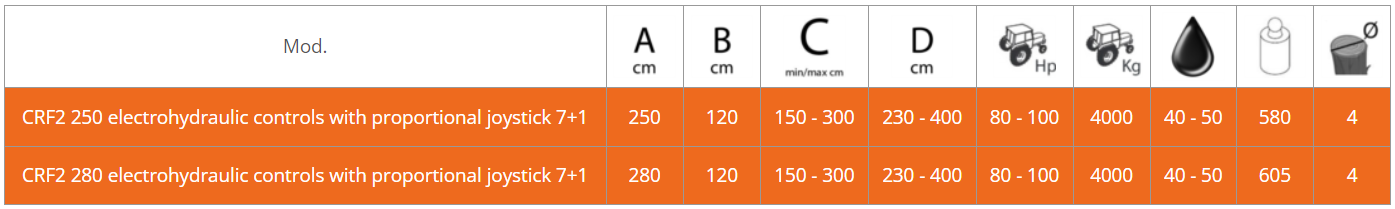

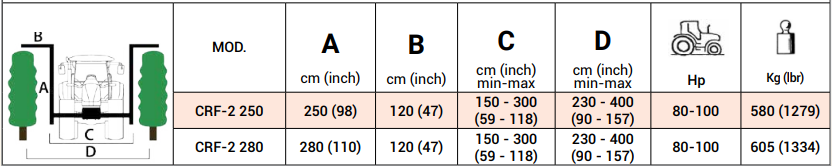

Model & Performance Chart
| Specification | CRF 2 |
|---|---|
| Cutting Lengths | Two lengths available |
| Branch Diameter Capacity | Up to 1.6 inches |
| Hydraulic Lifting (inches) | 35.4 inches |
| Hydraulic Side Shift (inches) | 19.7 inches (hydraulic), 9.8 inches (manual) |
| Oil Demand (Liters/min) | 40 - 50 |
| Cutting Power (kW) | 4 |
In Package
- Double Orchard Pruner CRF 2
- Hydraulic lifting, tilting column, and side shift
- Tooth cutting bars with "SCH" blades
- Electro-hydraulic distributor with joystick 7+1
- Hydraulic stand for safe storage
- User Manual & Setup Guide
Note: Price does not include coupling frame for the tractor.
