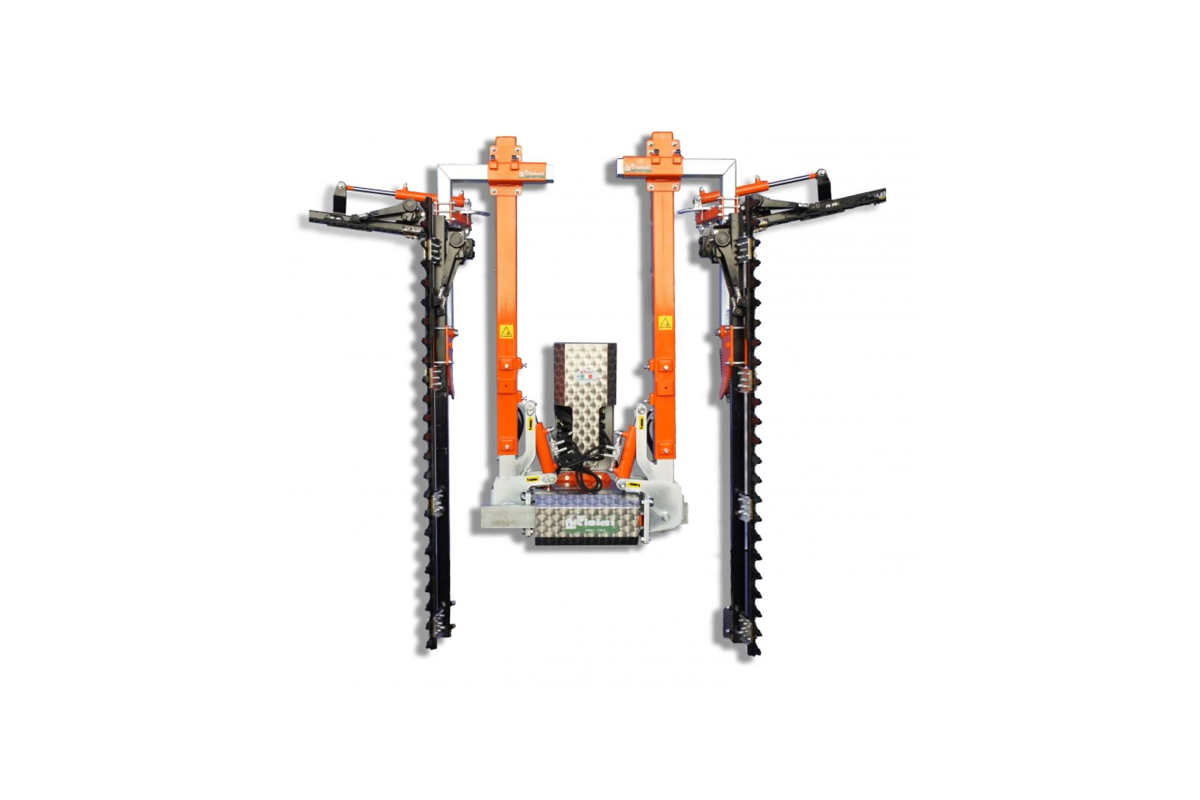

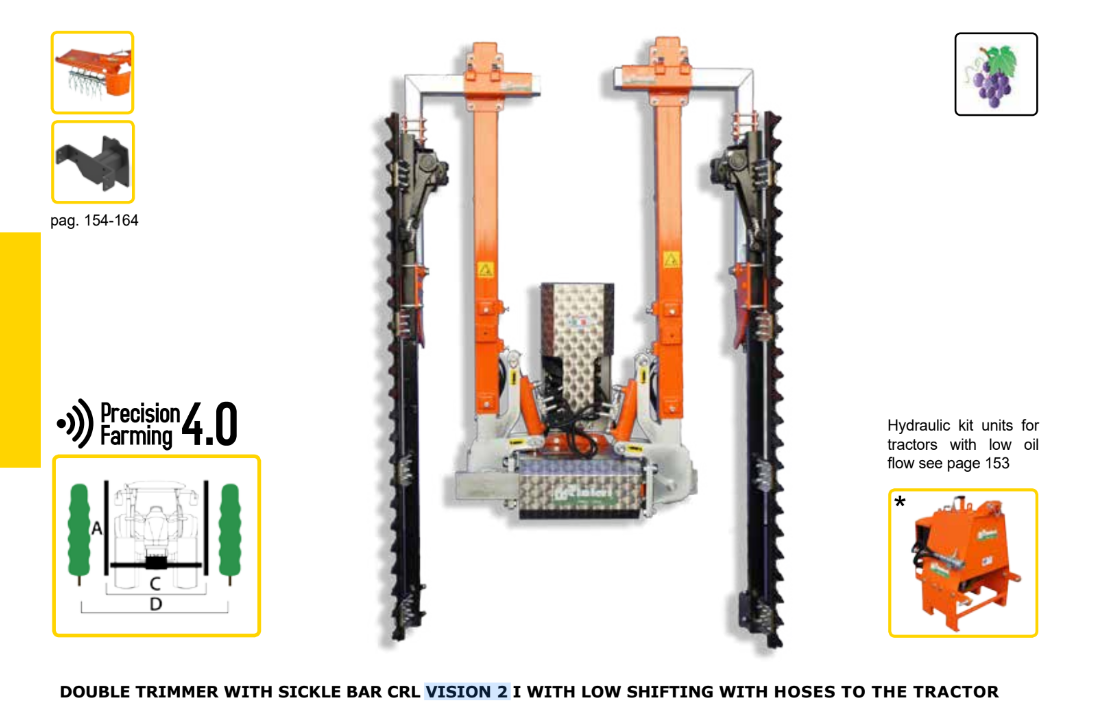

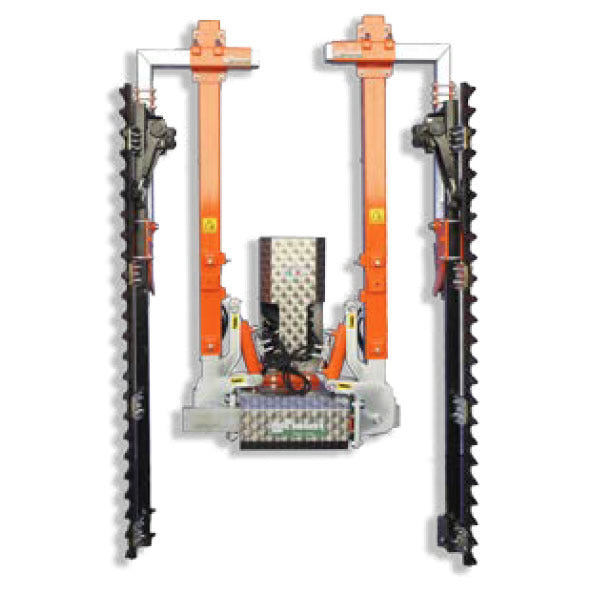

Rinieri Double Sickle Bar Pruning Machine CRL Vision-2 I with Low Shifting | 59"-83" Cutting Width for Tractor

DESCRIPTION

The CRL Vision-2 I Double Sickle Bar Pruning Machine is designed for efficient pruning in large vineyards, especially on hilly terrain. With features such as double height adjustment and compatibility with additional tools, it offers versatility for vineyard management. Equipped with hydraulic systems for precise movement and easy adjustment, it’s ideal for professional use.

Key Features

• V2 Frame Design:

  • Independent hydraulic lifting up to 23.6 inches for accurate height adjustments.
  • Vertical bars with hydraulic tilting of ±15° for precise cutting angles.
  • Hydraulic side shift of 9.8 inches and manual side shift of 7.9 inches for flexibility.

• Safety Features:

  • Maximum pressure valve for motors ensures safe operation.
  • Spring safety mechanism on the vertical bar for added protection.
  • Hydraulic stand for stable and secure storage.

• Hydraulic Control:

  • Requires 5 double-acting hydraulic distributors and 1 pressure-free return for optimal performance.
  • Compatible with 20-30 liters per minute oil flow for efficient operation.

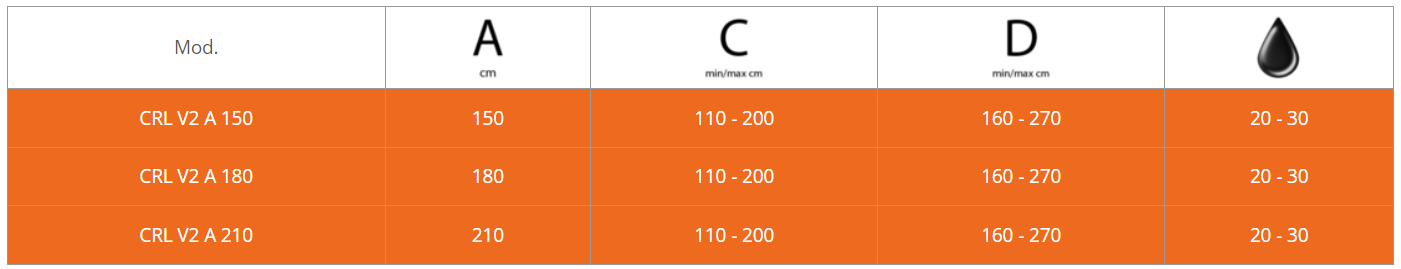

Detailed Specification

In Package

• CRL Vision-2 I Double Sickle Bar Pruning Machine
• V2 Frame with Double Height Adjustment
• Independent Hydraulic Lifting (23.6 inches)
• Hydraulic Tilting Vertical Bars (+/- 15°)
• Hydraulic and Manual Side Shift Mechanisms
• Safety Features:
  • Maximum pressure valve for motors.
  • Spring safety for vertical bar.
  • Hydraulic stand for easy storage.

Available Options

• Kit 4.0 Precision Farming:

  • Upgrade your machine with the latest precision farming technology for improved efficiency and accuracy.

• Joystick 7+1 and Electrovalve:

  • Enhance control with the joystick and electrovalve for smoother operations.

• Shoots Conveyor for Pruning Machine:

  • Add the shoots conveyor for easy handling of pruned material.

• Top Sickle Bar (31.5 inches):

  • Ideal for additional pruning requirements.

• Sucker Remover Head SRV:

  • Optional sucker remover head for more complete vineyard management
