Product Description
Dragon | 130 BBL Vac Trailer | 2012 Model | 5460 Gallons | Heavy-Duty Suspension | 102" Width | USED | For Industrial Fluid Transport
Ripping It is Partnered with Western Truck to provide the best pricing and service for Dragon.
DESCRIPTION

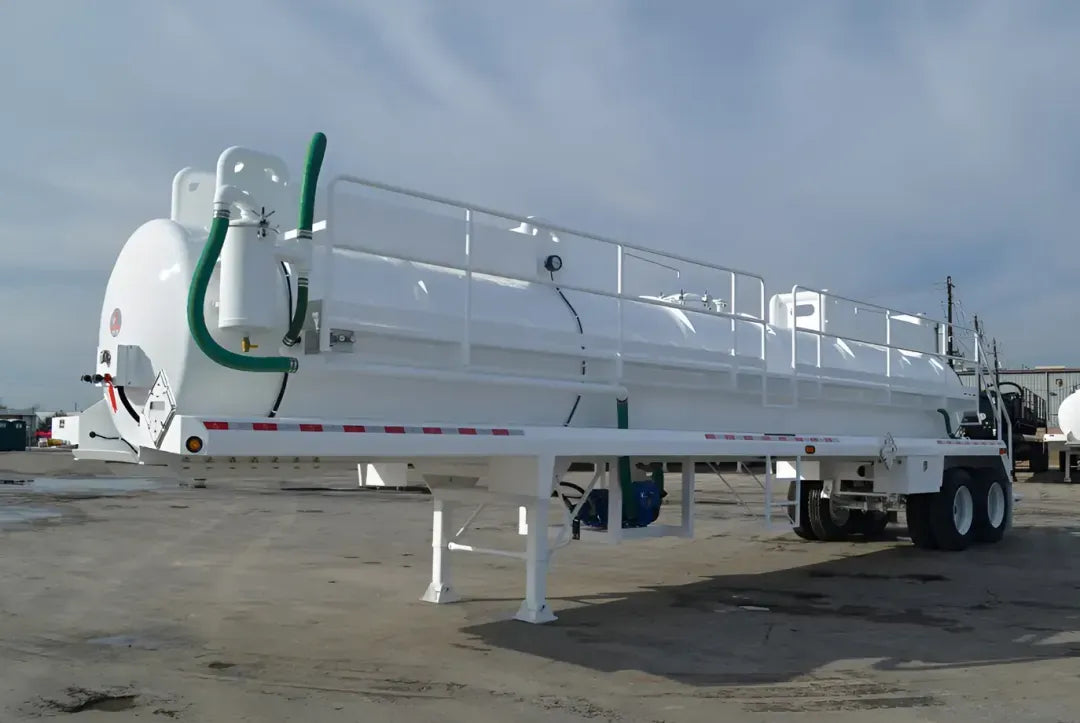

The 2012 Dragon 130 BBL Vac Trailer is a premium heavy-duty vacuum trailer, designed for maximum efficiency, durability, and superior fluid transport performance. Engineered with a reinforced steel frame, advanced suspension system, and precision fluid containment features, this trailer ensures seamless operations for industrial, oilfield, and bulk liquid hauling applications.
With a high-capacity 5,460-gallon tank, the Dragon Vac Trailer is optimized for large-scale fluid transport, making it ideal for demanding applications in crude hauling, chemical transport, and industrial waste management. The standard spring suspension with 8-leaf low arch springs provides enhanced stability and maneuverability, ensuring smooth transport even in challenging terrains.
Designed with power requirements (kW/HP optimized) for seamless pneumatic integration, this trailer includes reinforced steel construction, advanced braking systems, and DOT-approved lighting, ensuring maximum safety and efficiency. Whether handling oilfield fluids or specialized industrial materials, the Dragon 130 BBL Vac Trailer delivers industry-leading reliability.
Key Features
- USED & Reliable: Tested durability for heavy-duty performance.
- Heavy-Duty Steel Frame for Maximum Durability: Corrosion-resistant construction ensures long-lasting resilience.
- Optimized Power Requirements: Designed for efficient pneumatic operation (kW/HP optimized) ensuring seamless fluid transport cycles.
- High-Capacity Fluid Containment System for Precision Handling: Single compartment for optimized cargo distribution.
- Premium Wheels & High-Traction Tires for Long-Haul Reliability: Heavy-duty steel wheels paired with high-performance 11.00 x 24.5 radial tires for maximum stability and traction.
- DOT-Approved Safety & Visibility Enhancements: Sealed LED lighting system, reflective conspicuity tape, and reinforced safety monitoring features.
- Integrated Suspension & Load Securement Enhancements: Standard spring suspension with 8-leaf low arch springs for enhanced maneuverability.
Detailed Specifications
| Category | Details |
|---|---|
| Brand / Model | Dragon / 130 BBL Vac Trailer (2012) |
| Trailer Type | Vacuum Tank Trailer (Non-DOT Spec) |
| Capacity | 5,460 Gallons (+2%) |
| Commodity | Unspecified Oilfield Fluids |
| Shell | 1/4” PL x 60" O.D. |
| Heads | 1/4” PL, Non-Code ASME Shape |
| Baffles | (2) 1/4” FL Flat Flanged & Dished w/ Reinforcement Rings |
| Stiffeners | (8) 3/8" x 2 1/2" Rolled External Rings |
| Welds | Internal Root / External Submerged-Arc |
| Design Pressure | 15 PSI Internal / 22 INHG External / 23 PSIG Hydro Test |
| Compartment | Single |
| Axles | (2) 22,500 lb Round Axles with Outboard Drums |
| Suspension | Standard Spring / 8 Leaf Low Arch Springs |
| Brakes | 16 1/2” x 7” with Spring Parking / Auto Slacks / ABS |
| Tires / Wheels | 11.00 x 24.5 Radials / 10-Hole Steel Disc Hub Pilot |
| Upper Coupler | Bolt-On Adjustable |
| Landing Legs | 2-Speed, Heavy Duty |
| Fenders | Full-Length Formed Hose Pan (10GA) |
| Walkway | Driver-Side Safety Walkway w/ Ladder & Handrails |
| Toolbox | 18" x 18" x 36" Sealed on Driver Side |
| Mud Flaps | Anti-Sail |
| Manways | (4) Top, (1) Rear Head - 21” Domed Style |
| Outlet Valves | (2) 4" Rear Butterfly Valves w/ Wedge Sump |
| Relief Systems | 1 1/2" Vacuum Relief / 2" Pressure Relief / 2" Blow Down Line |
| Shut-Off Valves | Ball Type (Primary & 12-Gallon Secondary with Drain) |
| Sight Glass | 2" Front & Rear Fittings + 1 1/2" Rear Tube with Clean-Out Tees |
| Lighting | Full DOT Lights / Sealed Harness / Rear Work Lights with Switches |
| Interior Coating | Chemical-Resistant Epoxy Liner (10-15 mil dry film thickness) |
| Exterior Coating | Epoxy Primer + Polyurethane Top Coat (4-6 mil dry film thickness) |
| Surface Prep | White Metal Steel Grit Blast / 2.5 mil profile (SP-10) |
