Dronetag

Dronetag Beacon Direct/Broadcast Remote ID Module

Dronetag Beacon Direct/Broadcast Remote ID Module

Regular price $219.00 USD
Regular price Sale price $219.00 USD
Sale Sold out
Shipping calculated at checkout.

Dronetag Beacon Direct/Broadcast Remote ID Module

DESCRIPTION

New regulations are forcing professional pilots to make their drones digitally visible. Attach the Dronetag to your drone and instantly enhance it with DRI capability.

How it Works

The tiny device transmits the drone location via Bluetooth to up to a 1.86 miles range. Up to 16 hours of battery life gives you enough time to accomplish the toughest missions. It has worldwide supported Bluetooth technology and the finest geolocation standards.

Meet Compliance Requirements

  • Secure data
  • Multiple geolocation standards
  • Internal Bluetooth & GNSS antennas
  • Up to 16 hours of battery life
  • Precise sensors onboard
  • MAVlink & DJI A3 support

SPECIFICATION

Short-range radio: Bluetooth 2.4GHz
Sensors: GNSS, barometer, accelerometer
Positioning: GPS L1, GLONASS L1, Galileo E1, SBAS
Built-in Antennas: Bluetooth and GNSS
Optional Antennas: Bluetooth via MMCX plugs
External ports: 3.3V extension connector and 5V Micro USB
Battery: LiPo 3.7V 200 mAh
Battery life: 8-16 hours (depending on the configuration)
Charging: 5V Micro USB
Charging time: 2 hours from a discharged state
Average current consumption: 15mA
Maximum current consumption: 100mA
Enclosure: plastic
Fastening mechanism: 3M Dual-lock SJ4570
IP rating: IP43
Operating temperature: -20 °C to +60 °C (-4 °F to 140 °F)

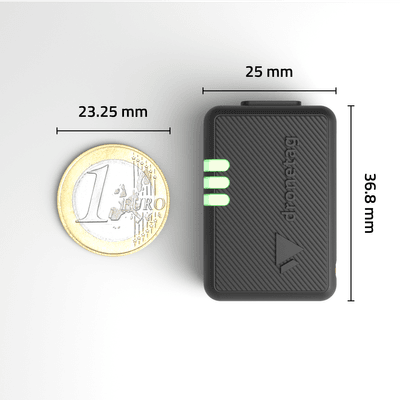

Dimensions: 37×26×16 mm (1.5×1.0×0.6 in)
Weight: 16 grams (0.56 oz)
