Dronetag

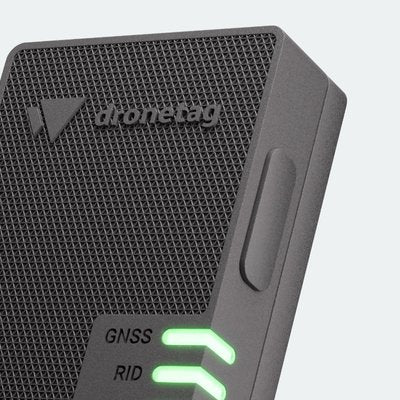

Dronetag Mini Universal Remote ID Module

Dronetag Mini Universal Remote ID Module

Regular price $329.00
Regular price Sale price $329.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Network Remote ID: Transmits drone position and identification to Dronetag’s cloud for advanced operations and traffic coordination.
  • Direct Remote ID: Bluetooth transmission range of up to 1.86 miles for regulatory compliance and safe flights.
  • Extended Battery Life: Operates for up to 14 hours on a single charge, with a quick 2-hour recharge time.
  • Built for Professionals: Multi-constellation GNSS, LTE, and Bluetooth antennas for precise geolocation and reliable connectivity.
  • Universal Compatibility: Easily attachable to any drone using a strong re-closable 3M Dual-lock fastener.
View full details

    Product Description

    Dronetag Mini Universal Remote ID Module

    DESCRIPTION

    The Dronetag Mini Universal Remote ID Module is a professional-grade device designed to meet the latest Remote ID regulations while enhancing drone operations. By integrating both Network and Direct Remote Identification capabilities, the Dronetag Mini ensures compliance and safety during flights.

    Network Remote ID transmits your drone’s position and identification to the Dronetag cloud, enabling advanced drone operations and seamless airspace coordination. Direct Remote ID broadcasts real-time information via Bluetooth up to 1.86 miles, ensuring visibility and compliance with current regulations.

    Equipped with internal GNSS, LTE, and Bluetooth antennas, the Dronetag Mini supports GPS, GLONASS, Galileo, and SBAS for precise geolocation. Its rugged yet lightweight design features a battery life of up to 14 hours and reliable DTLS encryption for enhanced safety.

    Whether you're a professional pilot or operate within a complex airspace, the Dronetag Mini is an essential tool for regulatory compliance and secure operations.

    Key Features

    • Dual Remote ID Capability: Supports both Network and Direct (Bluetooth) ID for comprehensive compliance.
    • Professional-Grade Geolocation: Multi-constellation GNSS receiver ensures precise positioning.
    • Durable & Lightweight: Weighs only 32 grams with an IP43-rated plastic enclosure for durability.
    • Reliable Connectivity: Internal antennas for LTE, Bluetooth, and GNSS; optional external antenna support.
    • Advanced Sensors: Includes barometer, accelerometer, and free-fall detection for flight data accuracy.

    Detailed Specifications

    Feature Specification
    Cellular LTE-M and Narrowband IoT (NB-IoT)
    Cellular Bands EU: Bands 3, 8, 20
    Short-Range Radio Bluetooth 2.4GHz
    Sensors GNSS, Barometer, Accelerometer
    Positioning GPS L1, GLONASS L1, Galileo E1, SBAS
    SIM Card Chip SIM soldered on mainboard
    Antennas Internal LTE, Bluetooth, and GNSS
    Optional Antennas External LTE and Bluetooth via MMCX plugs
    External Ports 3.3V Extension Connector, 5V Micro USB
    Battery LiPo 3.7V, 500 mAh
    Battery Life 8–14 hours (depending on configuration)
    Charging 5V Micro USB (2-hour full charge)
    Current Consumption Average: 50mA
    Enclosure Plastic
    Fastening Mechanism 3M Dual-lock SJ4570
    IP Rating IP43
    Operating Temperature -20 °C to +60 °C (-4 °F to 140 °F)
    Dimensions 54x35x15 mm (2.1x1.3x0.6 in)
    Weight 32 grams (1.1 oz)

    In Package

    • Dronetag Mini Universal Remote ID Module
    • Pre-installed 3M Dual-lock Fastener
    • Micro USB Charging Cable
    • User Manual and Setup Guide
    • 1-Year Limited Warranty
