Product Description
Durabilt Cotton Module Spear - (4) 8' Tines-3 PT CAT II & III Quick Hitch | 1172 lbs | For Tractor
DESCRIPTION

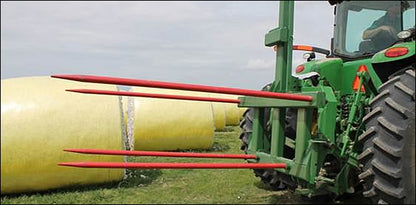

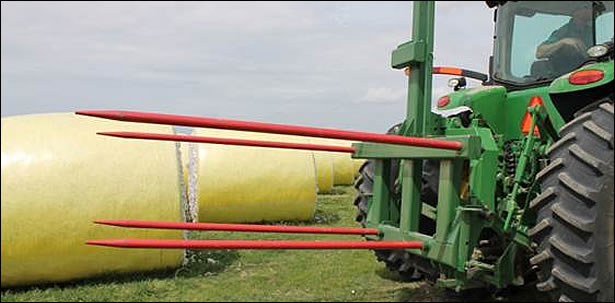

The Durabilt CS-2012 Cotton Module is equipped with four 8 ft. Kverneland Spears which are perfectly located to support the weight of the cotton module and reduce pressure on the plastic wrap during transport. It is designed for use with Cat II and Cat III hitches and front hitches and is quick hitch compatible. The offset frame minimizes standing stalk damage when picking up the module. Self storing parking stands and an SMV emblem are standard. Optional telehandler and front loader mounts are also available.
The Durabilt CS-2012 Cotton Module Spear is engineered for efficient transport and handling of cotton modules. Equipped with four 8 ft. Kverneland spears, this spear arrangement offers maximum support for the module, reducing stress on the plastic wrap. The offset frame design helps protect against standing stalk damage during loading, making it ideal for field use.This model is designed for compatibility with Cat II and Cat III three-point hitches and is also quick hitch compatible, making it versatile and easy to connect. Additionally, it features self-storing parking stands and a Slow Moving Vehicle (SMV) emblem for safe transport. Optional mounts are available for telehandlers and front loaders, along with an optional camera mount for enhanced visibility.
Key Features
- Special Spear Arrangment to support the module weight and take pressure off the plastic wrap.
- Cat II & Cat. III Quick Hitch Compatible
- Offset frame design to minimize damage from stalks when loading
- Storage stands and SMV emblem are standard
- Optional telehandler and loader mounts are available
- Optional camera mount available
- Weight Approx. 1172#
Detailed Specifications
| Feature | Specification |
|---|---|
| Spears | Four 8 ft. Kverneland spears |
| Hitch Compatibility | Cat II & Cat III, Quick Hitch |
| Frame Design | Offset to minimize stalk damage |
| Weight | Approx. 1172 lbs |
| Standard Accessories | Parking stands, SMV emblem |
In Package
- Durabilt CS-2012 Cotton Module Spear
- Four pre-installed 8 ft. Kverneland spears
- Self-storing parking stands for easy storage
- SMV emblem for safe transport
