Durabilt | In-Line Hay Rake | Model IN-9 & RT9 | Width 17' Working | Working Width 17 ft | Wheel Size 55" Diameter with 6.9mm Tines | Horsepower 30–60 HP | For Tractors

Durabilt | In-Line Hay Rake | Model IN-9 & RT9 | Width 17' Working | Working Width 17 ft | Wheel Size 55" Diameter with 6.9mm Tines | Horsepower 30–60 HP | For Tractors

Regular price $10,426.00
Regular price Sale price $10,426.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Horsepower 30–60 HP For Tractors
  • 9-Wheel In-Line Design: Provides a 17' working width for extensive hay gathering.
  • Enhanced Terrain Adaptation: Three ground wheels and independent wheel suspension enhance stability and flexibility.
  • Durable Build: Built with high-strength materials to endure rigorous field conditions.
  • Mechanical Fold-Down System: For easy transportation and efficient storage.
View full details

Product Description

Durabilt | In-Line Hay Rake | Model IN-9 & RT9 | Width 17' Working | Working Width 17 ft | Wheel Size 55" Diameter with 6.9mm Tines | Horsepower 30–60 HP | For Tractors



DESCRIPTION

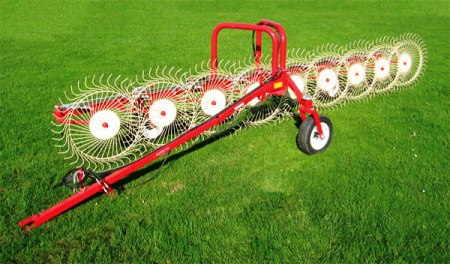

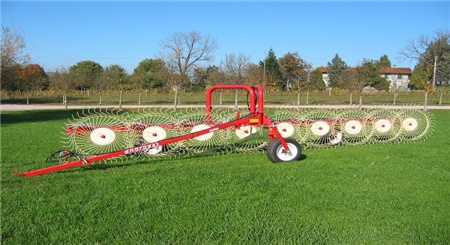

The Durabilt RT9 In-Line Pull-Type Hay Rake is engineered for maximum field efficiency, smooth hay handling, and ease of transport. With a 17-foot working width, nine 55” rake wheels, and a mechanical folding system, this rake is perfect for small to mid-sized operations looking to optimize hay collection without the complexity of larger V-rakes.

Built on a rugged in-line frame with three ground-contact wheels, the RT9 offers excellent stability on uneven or sloped terrain. Each rake wheel is independently suspended, allowing it to closely follow ground contours and gather clean, uniform windrows even in rough fields.

Compatible with tractors in the 30–60 HP range, this pull-type hay rake is easy to operate, quick to transport (folds to 8' wide), and optional upgrades like a hydraulic steering kit or wind guards further enhance functionality.

Key Features

  • 17' Working Width Efficiently rakes wide swaths in fewer passes to save time and fuel
  • 9 Independently-Suspended Rake Wheels Each 55" wheel adapts to field contours for clean windrows
  • Pull-Type Configuration Compatible with a wide range of 30–60 HP tractors with no 3-point hookup needed
  • Three Ground Wheels Provides added flotation and control over varying terrain
  • Mechanical Folding System Quickly transitions between field and road positions with minimal effort
  • Compact Transport Width Folds down to just 8' wide for easy road travel or barn storage
  • Heavy-Duty Frame Built to withstand repeated use in tough hay fields and changing conditions
  • Hydraulic Steering Kit Available Optional add-on for enhanced maneuverability (Part #: HSTEER)
  • Optional Wind Guards Helps control light, fluffy forage and improve raking in windy conditions
  • Simple, Reliable Operation Easy to use for operators of all experience levels

Detailed Specifications

Specification In-Line Hay Rake RT9 In-Line Hay Rake IN-9
Model Name RT9 In-Line Hay Rake IN-9 Pull-Type Rake
Part Number RT9 IN-9
Rake Type In-Line Pull-Type In-Line Pull-Type
Working Width 17 ft 17 ft
Number of Rake Wheels 9 9
Wheel Size 55" Diameter with 6.9mm Tines 55" (Assumed same as RT9)
Ground Contact Wheels Not Specified 3 (for terrain adaptability)
Folding Mechanism Mechanical Fold System Mechanical Fold System
Transport Width 8 ft 8 ft
Hydraulic Requirements Not Required (mechanical folding) Optional Hydraulic Steering Kit (Part #: HSTEER)
Optional Accessories None Listed Hydraulic Steering Kit, Wind Guards Available
Tire Size 205/70-15 15" Tires & Wheels
Unit Weight Not Listed 1,500 lbs
Tractor HP Requirement 30–60 HP (Estimated) 30–60 HP (Estimated)
Compatibility For Tractors with Drawbar Hitch For Tractors with Drawbar Hitch
Primary Applications Hay raking, forage handling Hay raking, forage handling
Manufacturer Durabilt Industries, Inc. Durabilt Industries, Inc.



Manuals & Documents

OPERATION MANUAL RT9

PARTS MANUAL
