Product Description
Durabilt Qrake X "V" Type Wheel Rake | 24'11" - 28' Working Width | 60" & 55" Wheels | 60HP | For Tractor
DESCRIPTION

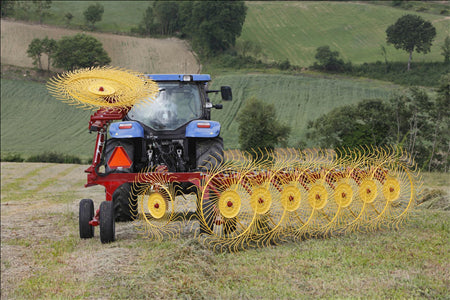

The standard version has rake wheels with a diameter of 55" (1.4m) and tines with a diameter of 0.28" (7mm). As an alternative, and with no changes to the machine structure needed, it is possible to mount optional rake wheels with a diameter of 60" (1.52m) and tines with a diameter of 0.3" (7.5 mm). Each wheel, regardless of the diameter, is equipped with 40 tines made of top-quality spring steel. The machine can be brought from the transport position with the rake arms raised, parallel to the ground and with each other, to the position with the arms lowered and already angled correctly for working (and vice versa) by simply moving a hydraulic control from the tractor cab. This is because the machine is equipped with a special joint system that rotates on two suitably inclined axes
Key Features
- Rake Wheel Sizes: 55" wheels standard with an optional 60" upgrade for improved raking efficiency.
- Spring Steel Tines: Equipped with 40 durable tines per wheel.
- Hydraulic Control: Adjust rake arms from transport to working position with ease using a hydraulic control.
- Working Width: Adjustable between 24'11" and 28'.
- Transport Width: Compact 9'2" width for easy transport.
Detailed Specifications
| Feature | Details |
|---|---|
| Rake Wheel Size | 55" Standard / 60" Optional |
| Tines | 40 per wheel, spring steel |
| Tractor HP Requirement | 60 HP minimum |
| Transport Width | 9'2" |
| Working Width | 24'11" - 28' |
| Minimum Windrow Width | 3' |
| Maximum Windrow Width | 6'7" |
| Weight | 2955 lbs (1340 kg) |
In Package:
- Durabilt Hydraulic-Adjustable Rake
- Pre-installed 55" rake wheels (with optional 60" upgrade available)
- Hydraulic control system for transport and working position adjustments
- Operator’s manual for setup, operation, and maintenance
Manuals & Documents
QUICK RAKE QRX MODELS BROCHURE
