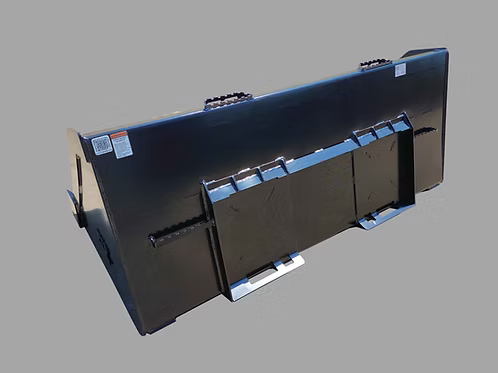

EIP Manufacturing XL High Capacity Bucket | Model FBXLS Series | Widths 66" To 102" | 8 To 30+ GPM | 5 To 35 HP | For Skid Steer & Tractors

EIP Manufacturing XL High Capacity Bucket | Model FBXLS Series | Widths 66" To 102" | 8 To 30+ GPM | 5 To 35 HP | For Skid Steer & Tractors

Regular price $1,905.00
Regular price Sale price $1,905.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Bucket Widths: Available in 66" to 102" sizes.
  • Bucket Dimensions: 30.75" height x 40.125" depth.
  • Power Requirement: 8 To 30+ GPM & 5 To 35 HP.
  • Machine Compatibility: For skid steers and tractors.
  • Capacity Range: 24.2 to 37.4 CuFt heaped load.
  • Construction Strength: 3/16" and 5/16" reinforced steel build.
View full details

Product Description

EIP Manufacturing XL High Capacity Bucket | Model FBXLS Series | Widths 66" To 102" | 8 To 30+ GPM | 5 To 35 HP | For Skid Steer & Tractors


DESCRIPTION

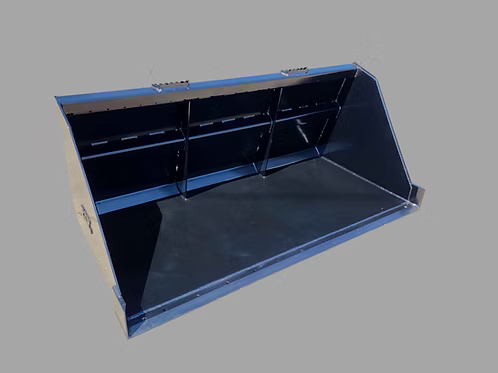

The EIP Manufacturing XL High Capacity Bucket delivers unmatched performance for skid steer loaders and tractors requiring superior strength and efficiency. Built with a solid back design and reinforced steel construction, this bucket is engineered to handle heavy-duty tasks such as moving feed, mulch, firewood, snow, rock, and more. Its extra-large capacity ensures faster cleanouts and improved productivity, while the powder-coated finish provides long-lasting durability against wear and corrosion. Designed with precision, the FBXLS Series offers multiple width options from 66" to 102", making it versatile for a wide range of applications. With formed channel supports, upright braces, and a heavy-duty cutting edge, this bucket is built to withstand demanding environments while maximizing efficiency. Perfect for operators who need reliability, strength, and performance in every load.

Key Features

  • Extra Large Capacity Design Move more material in less time with increased cubic foot capacity for maximum efficiency.
  • Solid Back Construction Provides superior strength and stability for heavy-duty applications.
  • Heavy-Duty Steel Build Crafted with 3/16" and 5/16" reinforced steel components for long-lasting durability.
  • Quick Attach Frame Ensures fast and secure mounting to skid steer loaders and tractors.
  • Power Requirement: 8 To 30+ GPM & 5 To 35 HP.
  • Precision Formed Channel Supports Internal horizontal braces add rigidity and prevent flex under load.
  • Upright Steel Braces Reinforced structure maintains bucket integrity during demanding operations.
  • Square Tube Upper Support 2 1/2" tubing enhances overall strength and load-bearing capacity.
  • Side Stiffener Plates 5/16" steel plates provide additional reinforcement against side stress.
  • Heavy-Duty Cutting Edge 3/4" x 6" steel edge ensures clean cuts and extended wear life.
  • Durable Steel Runners 1/2" x 4" runners improve stability and protect bucket base.
  • Powder-Coated Finish Corrosion-resistant coating extends service life and maintains appearance.
  • Multiple Width Options Available in 66", 72", 78", 84", 90", 96", and 102" sizes for versatile applications.
  • Optimized for Skid Steers & Tractors Designed to handle demanding agricultural, construction, and industrial tasks.
  • High Volume Efficiency Perfect for moving feed, mulch, snow, firewood, and rock with ease.

Detailed Specifications

Specification FBXLS78 FBXLS84
Brand EIP Manufacturing EIP Manufacturing
Model FBXLS78 FBXLS84
Width 78" 84"
Height 30.75" 30.75"
Depth 40.125" 40.125"
Capacity (Heaped) 28.6 CuFt 30.8 CuFt
Capacity (Struck) 38.5 CuFt 41.5 CuFt
Back & Sides 3/16" steel 3/16" steel
Horizontal Brace 3/16" steel 3/16" steel
Upright Braces 5/16" steel 5/16" steel
Horsepower
5 To 35 HP. 5 To 35 HP.
Hydraulic Flow 8 To 30+ GPM 8 To 30+ GPM
Upper Support 2 1/2" square tube 2 1/2" square tube
Side Stiffener Plates 5/16" steel 5/16" steel
Cutting Edge 3/4" x 6" steel 3/4" x 6" steel
Runners 1/2" x 4" steel 1/2" x 4" steel
Finish Powder-coated Powder-coated


Specification FBXLS90 FBXLS96
Brand EIP Manufacturing EIP Manufacturing
Model FBXLS90 FBXLS96
Width 90" 96"
Height 30.75" 30.75"
Depth 40.125" 40.125"
Capacity (Heaped) 33 CuFt 35.2 CuFt
Capacity (Struck) 44.6 CuFt 47.6 CuFt
Back & Sides 3/16" steel 3/16" steel
Horizontal Brace 3/16" steel 3/16" steel
Upright Braces 5/16" steel 5/16" steel
Horsepower
5 To 35 HP. 5 To 35 HP.
Hydraulic Flow 8 To 30+ GPM 8 To 30+ GPM
Upper Support 2 1/2" square tube 2 1/2" square tube
Side Stiffener Plates 5/16" steel 5/16" steel
Cutting Edge 3/4" x 6" steel 3/4" x 6" steel
Runners 1/2" x 4" steel 1/2" x 4" steel
Finish Powder-coated Powder-coated

Β

Specification FBXLS102
Brand EIP Manufacturing
Model FBXLS102
Width 102"
Height 30.75"
Depth 40.125"
Capacity (Heaped) 37.4 CuFt
Capacity (Struck) 50.6 CuFt
Back & Sides 3/16" steel
Horizontal Brace 3/16" steel
Upright Braces 5/16" steel
Horsepower
5 To 35 HP.
Hydraulic Flow 8 To 30+ GPM
Upper Support 2 1/2" square tube
Side Stiffener Plates 5/16" steel
Cutting Edge 3/4" x 6" steel
Runners 1/2" x 4" steel
Finish Powder-coated

Β
