Product Description
Elistair Drone Tethers - LIGH-T 4 Tether Station
DESCRIPTION
Easily increase your drones endurance for overwatch event protection and crisis management missions.
Key Features
- 1200W power
- Power input 110 - 250 VAC, 50 - 60 Hz
- Smart automated winch, 10 pre-set modes, detection laws
- Android app T-Monitor, for live telemetry, monitoring, remote fault detection and alerts.
- Requires Air Unit based on aircraft type (DJI M300 Air Unit Module included)
- 70m hovering altitude
- Automated motorisation
- 10.5g/m tether weight
- New hybrid winch system
- Rapid set-up and deployment
- Compatible with +20 drones, including DJI aircraft
- T-Monitor compatibility for enhanced flight data management
- Thanks to specific air modules, The Elistair Ligh-T 4 is compatible with commercial DJI drones, such as the DJI M300, M200 Series V2, the M200 Series V1, Inspire 2, Inspire 1, and the DJI M100, DJI S900 and more. The Elistair Ligh-T 4 is also compatible with the Yuneec H920 and Acecore Zoe.
Applications
For use in monitoring wildlife from above for expended ranges of time:
For use in Fighting Forestry Fires
Defense Drone Uses
Military Drone Surveillance
Gain 360° situational awareness of your area of operations for 50 hours.
Tactical Communications
Rapidly increase the range and connectivity of a tactical network.
Border Protection
Protect vulnerable border areas against illegal crossings and activities.
Public Safety Drone Uses
Event Protection
Conduct crowd monitoring operations and coordinate responses to any incident.
Traffic Monitoring
Gather and analyse several hours of real time traffic data without interruption.
Security Drone Uses
Industrial Site Surveillance
Conduct continuous general overwatch to better anticipate and manage incidents.

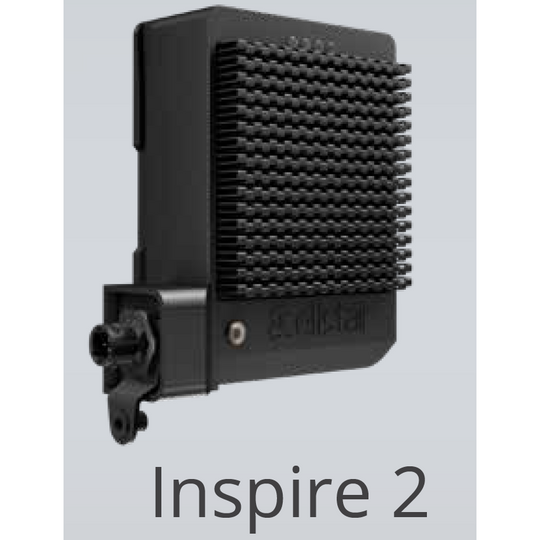

Air Modules
|
Multi-drone compatible, including the DJI M300 One station compatible with multiple drones up to 1500W of power |
Designed for
portability and Switch from a tethered drone to a free-flying drone in less than 1 minute |
Operational with Improvements based on real-world feedback from operational users |

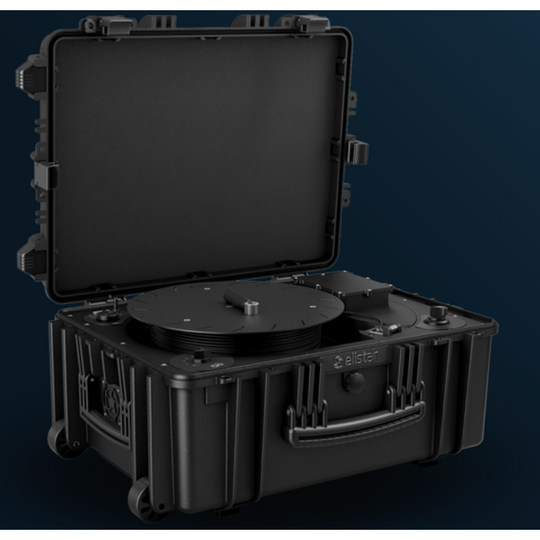

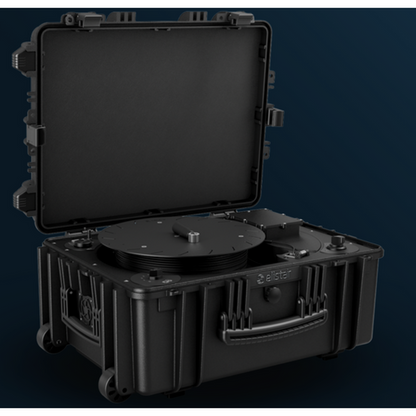

Ready To Use & Rugged
Elistair’s latest drone tether is the perfect plug-and-fly tool to have for fast and safe surveillance, defence, public and private safety, incidents/natural disasters assessment and pop up telecommunication missions.

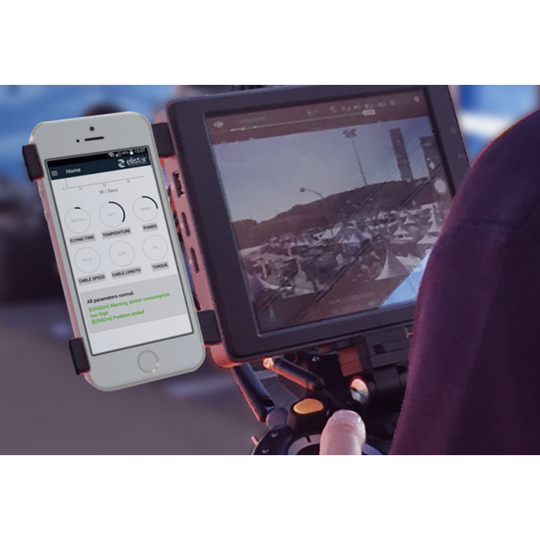

The smart system is completed by the T-Monitor application that allows a full monitoring of the drone tether station’s state during each flight.
The Ligh-T V4 has been designed, manufactured and tested to meet the needs of professional operators seeking a modulable, ready to use tethered solution.
Portable Continual Power
Unlimited Secured PowerT-motor Smart Logs Mobile Application20+ Compatible Drones Plug & FlyUn-Jammable High-Speed DataRuggedized & Compact User FriendlyDual-Mode Tether Management. Motorised Manual Winch OptionDetailed Specifications
| Feature | Details |
|---|---|
| Micro-tether Length | 70m (230 ft) |
| Micro-tether Weight | 16 g/m |
| Output Voltage | 6S or 12S |
| Power Output | 1500W continuous |
| Power Source Requirement | 230 VAC, 50-60 Hz, 4 kW min |
| 120 VAC, 50-60 Hz, 3 kW min, 1.2 kW output | |
| Tensile Strength | 100 daN (224 lbs) |
| Operational Temperatures | -10°C to 40°C (14°F to 95°F) |
| Tether Management System | Electric and manual winch |
| Portability | Telescopic handle and wheels |
| Weight | 20 kg (44 lbs) |
| Dimensions | 627 mm x 475 mm x 292 mm (25" x 19" x 12") |
