Elistair Drone Tethers
Elistair Drone Tethers - Safe - T 2 Drone Tether
Elistair Drone Tethers - Safe - T 2 Drone Tether
Couldn't load pickup availability
Elistair Drone Tethers - Safe-T 2 Tether
To get a quote please:
The best way is to add this to your cart and check out. When checking out please use the address the product is going. An expert will contact you to go over all your options to ensure you’re getting the perfect machine for you!
OR
Email, Text or Call us to get a quote. These are complicated machines and we want to make sure the version you are getting is exactly what you need!
DESCRIPTION
Add a new capability to your drone fleet by providing increased endurance for demanding operations thanks to drone tether power system

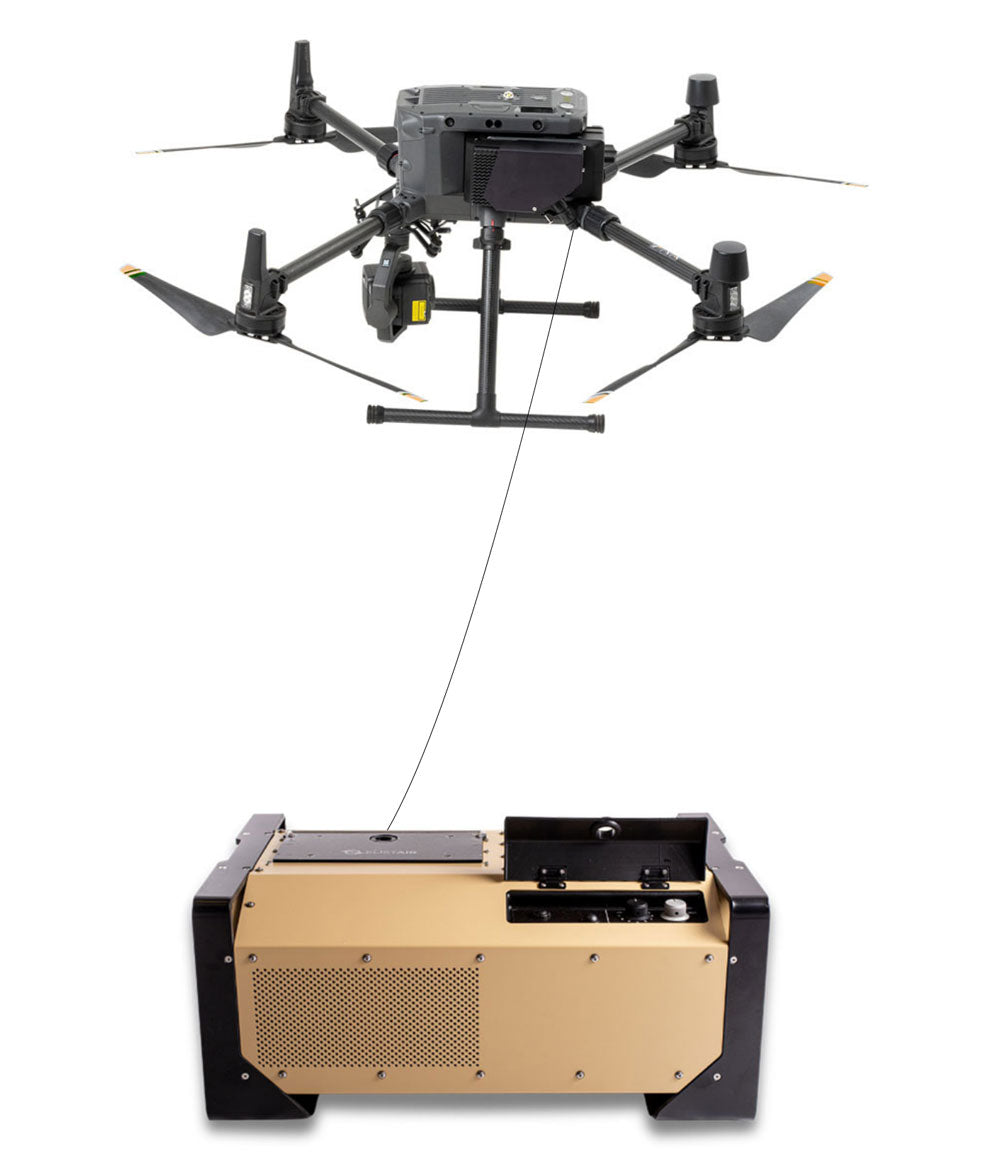

The Safe-T 2 is a rugged tether station compatible with multiple drones on the market, including the DJI Matrice 300. With a 100m micro-tether and resistance to poor weather conditions, it provides an uninterupted overwatch capability for hours. The system is particularly suited for day-night aerial surveillance but also telecommunication applications using our optional fiber optics micro-tether.
|
Designed for the IP54, with a 100m micro-tether, the Safe-T 2 is approved by the French Civil Aviation Authority |
Compatible with One drone power tether station compatible with the widest range of 6S or 12S drones with up to 2200W continuous power |
Already chosen by multiple government agencies Over 650 systems currently used around the world for defense and security operations |
Compatible Drones

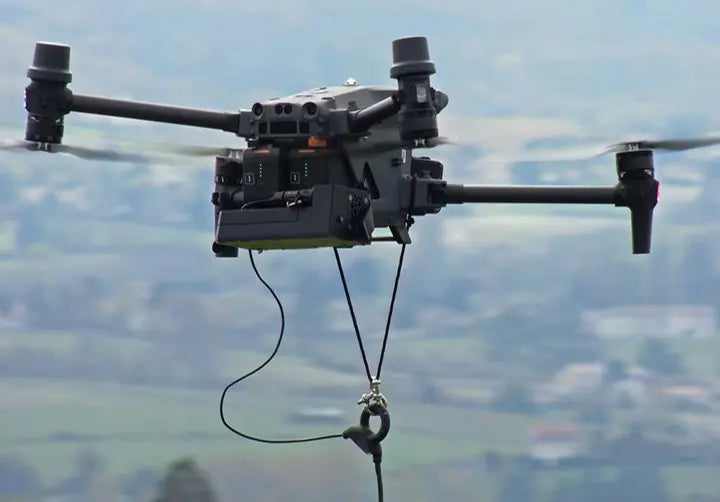

Our range of Air Modules allows compatibility with DJI M300, DJI M200, DJI inspire 2 and a wide range of 6S and 12S drones with up to 2200W continuous power requirement.
SPECIFICATION
| Micro-tether length | Up to 100m - 330 ft. |
| Micro-tether weight | 16g /m. 20,5 g /m. 26 g/m. |
| Tensile strength | 150 daN |
| Operational Temperature | -20 to 50° C (-4° to 120° F) |
| Max continuous power | 2200W cont. / 2500W peak (with 230 V input) |
| Micro-tether management | 10 presets / Smart pre-programmed laws & reset function |
| Secured Dual-Comms | BPL & Fiber Optics (optional) |
| Wi-Fi Connectivity |
Frequency 2.4GHz - 2.5GHz (2400MHz - 2483.5MHz) Encryption WEP/TKIP/AES |
| Power source requirement | 120 VAC, 50 - 60 Hz, 2kW min 230 VAC, 50 - 60 Hz, 4kW min |
| Power supply cable | Type E |
| Built-in protection | Fuse |
| Ingress protection level | IP54 |
| Altitude max | 4000 MSL |
| Vehicle integration kit | Modular metallic structure |
| Dimensions | 603 x 408 x 261 mm (24’’ x 16’’ x 11’’) |
| Weight | 25 kg (57lbs) |
Applications
For use in monitoring wildlife from above for expended ranges of time:
For use in Fighting Forestry Fires:
Defense Drone Uses
Military Drone Surveillance
Gain 360° situational awareness of your area of operations for 50 hours.
Tactical Communications
Rapidly increase the range and connectivity of a tactical network.
Border Protection
Protect vulnerable border areas against illegal crossings and activities.
Public Safety Drone Uses
Event Protection
Conduct crowd monitoring operations and coordinate responses to any incident.
Traffic Monitoring
Gather and analyse several hours of real time traffic data without interruption.
Security Drone Uses
Industrial Site Surveillance
Conduct continuous general overwatch to better anticipate and manage incidents.
Air Modules:
