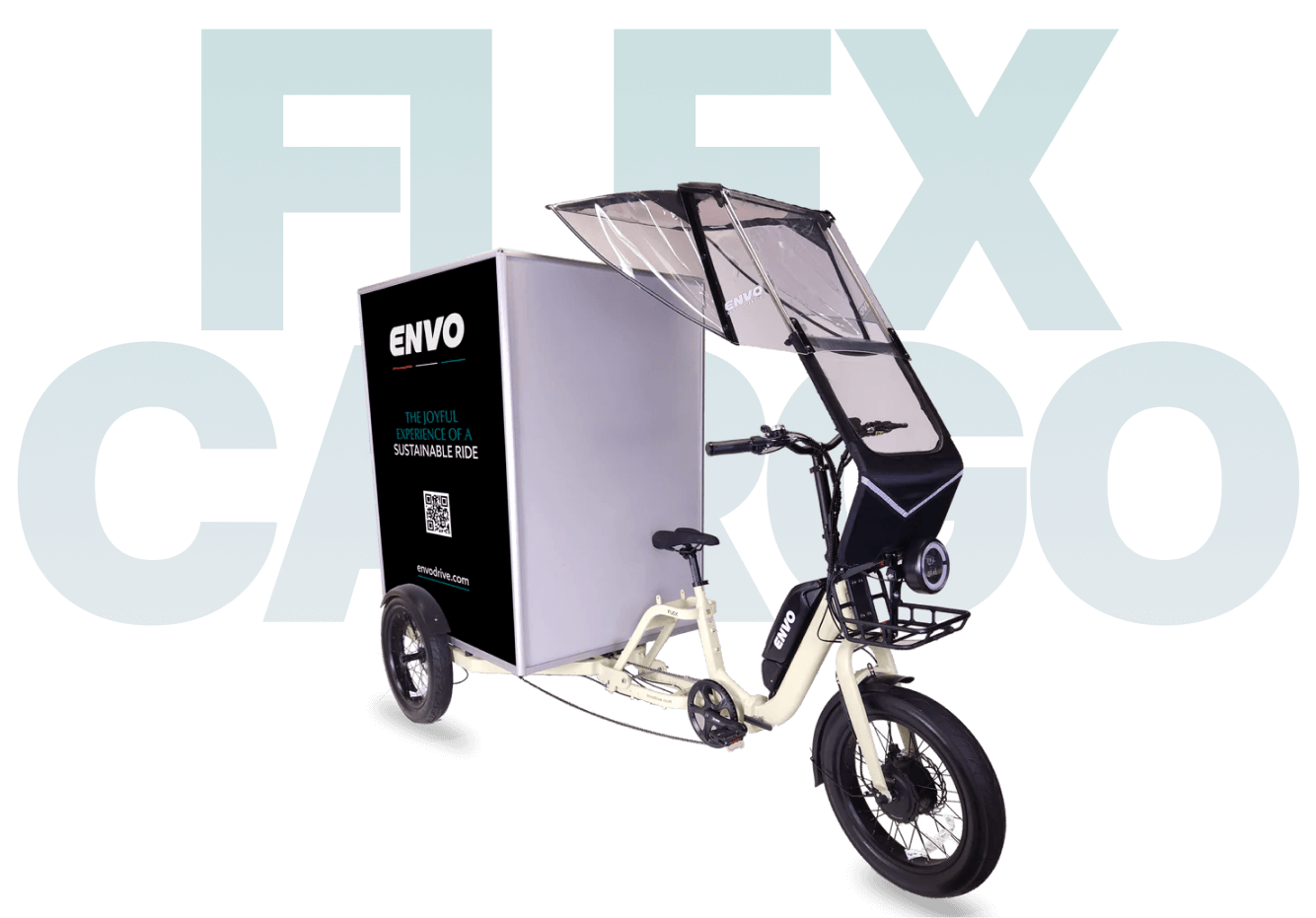

ENVO Cargo Trike 500W Max Power
ENVO Cargo Trike 500W Max Power
Couldn't load pickup availability
ENVO Cargo Trike 500W Max Power
DESCRIPTION
Engineered in Canada, the Flex Trike is a stylish light, and compact 20 inch fat tire electric adult trike with foldable aluminum unisex and unisize step-thru frame
Engineered to be a full-featured, no compromise bicycle first, with the added benefit of power assist when you need it. Switch the power off and experience the unparalleled ride quality of this hybrid bicycle.
ESE – ENVO Sustainable Engineering
Full cargo capacity, with front rack.
Torque emulating smooth PAS, providing incomparable riding experience.
20in off road style fat tires – perfect for low noise and low drag yet provides adequate grip and load capacity
- 25Km/h / 15.5mph Maximum Speed
- 50 Km / 30 miles (Single battery) Maximum Range up to 100 km (62 miles) with dual batteries
- 400 lb Rated for 180Kg payload capacity
- Foldable Step Thru Frame The Only Folding Cargo Bike in Market
- Lightest & Most Compact eTrike
- Lowest Q-factor of Any Fat Trike in Market
- 140x120x90cm (HxLxW) Cargo Volume
- 500W Max Power

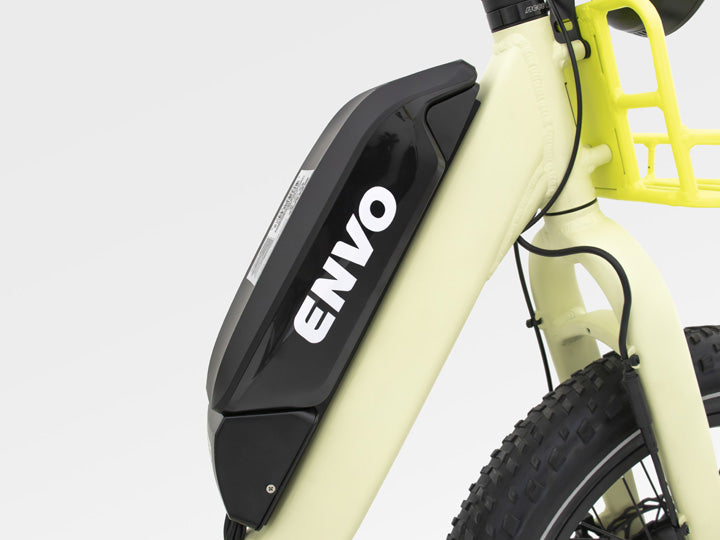

BATTERY PACK
The ENVO Battery powering the Flex Trike is super lightweight, down tube mounting Li-Ion pack in a stylish thin ABS case with an auto-connect socket, a charge indicator, security lock. The battery is removable and can reach a range of up to 50km / 30miles per charge on pedal assist level 1. The battery can be charged on or off the bike frame using the little portable CC-CV smart Li-Ion battery charger. The ENVO Battery is an A-grade branded Li-Ion battery, comprising of LG or Panasonic Li-Ion cells and a BMS that avoids battery from overcharging, overloading, and other hazardous activities, thereby increasing both cyclic and calendar life of the battery. Battery cells have been selected for best operating in freezing temperatures. Flex comes with a dual battery option, allowing you to go twice as far in your travels. Dual batteries on Flex Cargo Trike gives you 920Wh of battery capacity, allowing you to travel up to 100km / 62miles on a single charge.

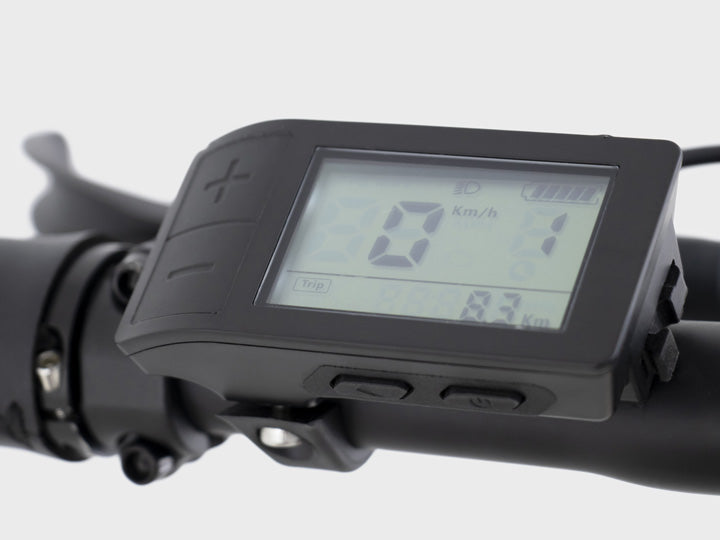

E-ASSIST SYSTEM
The ENVO Flex is equipped with an advanced pedal-assist sensor with an optimized torque emulation software. The advanced torque emulating Pedal Assist Sensor (PAS) signals the controller to run the motor between 5 levels of pedal assist, providing a boost to your pedalling depending on the level of assistance you select while riding. The ENVO Flex is equipped with an on-demand thumb throttle that gives you an extra boost which activates the motor proportionally to the twist, does not matter if you are pedaling, to give you a fully electric ride in case you cannot pedal or need an instant acceleration or uphill push.

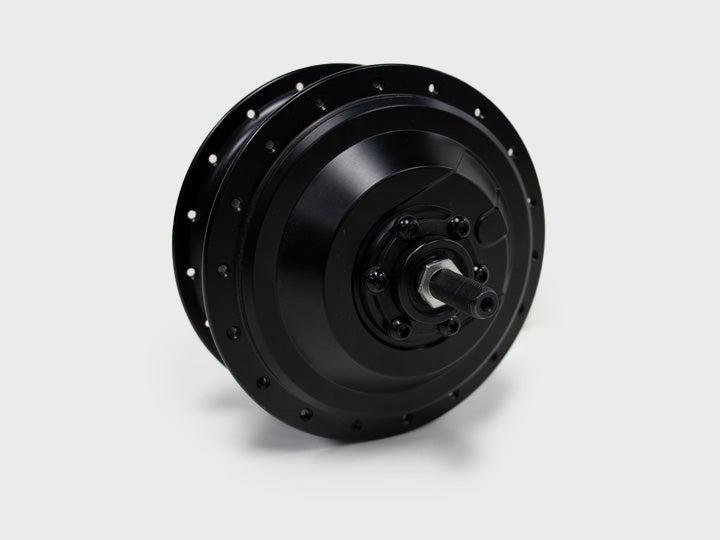

GEARED MOTOR HUB
ENVO FLEX Flex is equipped with a sealed, powerful, upkeep free, geared hub motor that offers 500W power and 60Nm torque. Our motors are designed efficiently and hence are lighter than most powered geared hub motors in Canada, yet they deliver high torque and efficiency. These ENVO motors are developed for over 20,000Km / 12,500miles maintenance-free ride.
ADJUSTABLE STEM
The FLEX Trike comes with an adjustable telescopic handlebar, this lets the rider do the ergonomic fine tuning allowing them to choose efficient pedaling position.

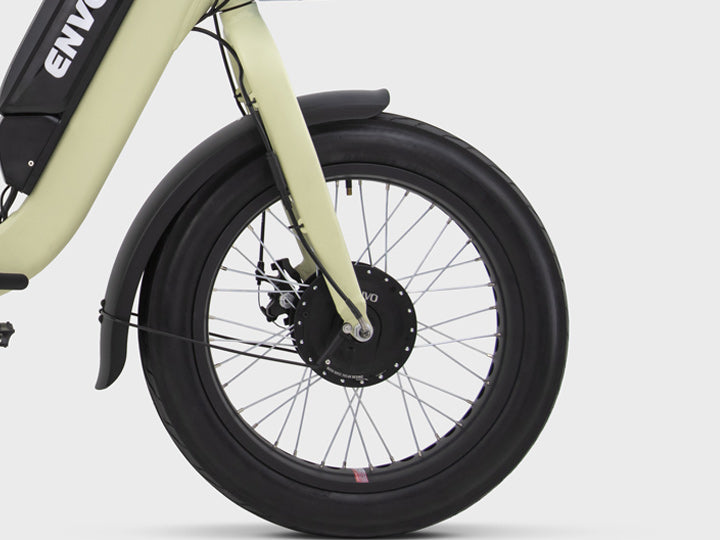

TIRES
Flex Trike comes with 20inch urban style fat tires. These fat tires are cushion enough to improve ride comfort, dynamic maneuverability, and handling in different terrains. Tires are fat and knobby enough for the best grip on wet cement, asphalt paved, dirt or gravel trails which creates minimum noise and drag for normal urban paved rides.

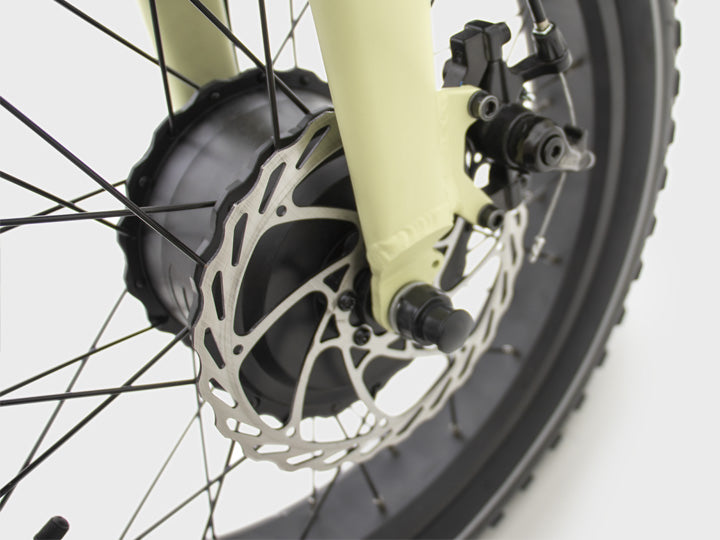

DISK BRAKE
Top of the line mechanical disk brakes equipped with electric cut-off sensors provide more safety to the bike as well as the rider. Flex Trike comes with brakes on all of the wheels, allowing for better handling and safer ride.

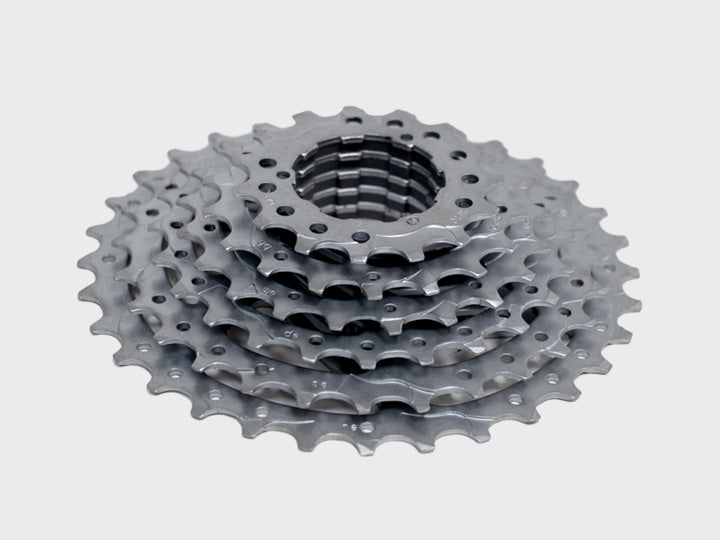

TRANSMISSION SYSTEM
Well-engineered 52T chain ring and 7 speed 11-32 teeth cassette transmission help you overcome up to 25% grade when climbing a hill on gear 1 or 40km/h / 25mph speed on gear 6 with gentle peddling.

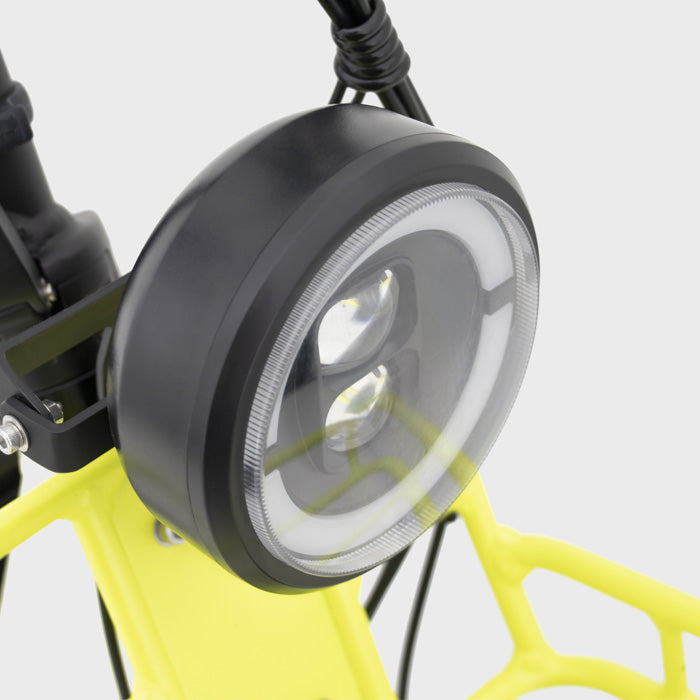

HEADLIGHT
The FLEX Trike is fitted with high efficiency and bright LED headlight powered by the main battery and controlled by a keypad on the handlebar.

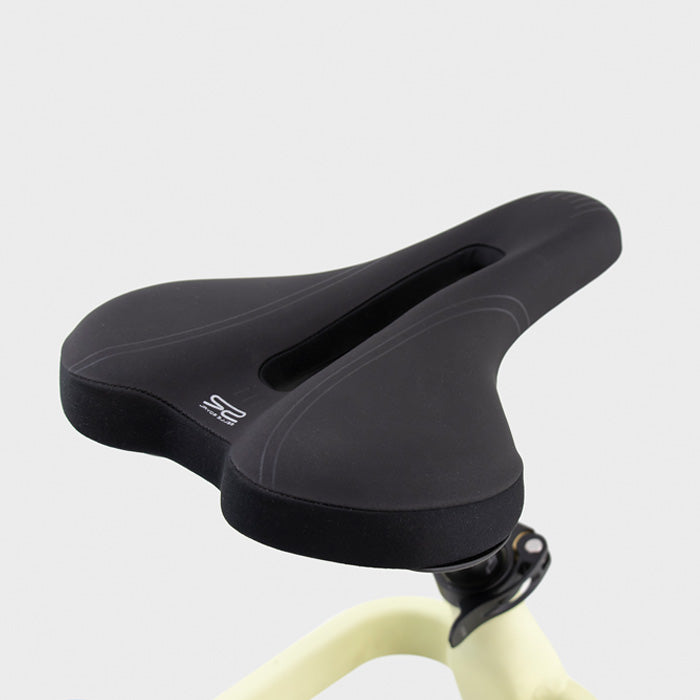

SADDLE
The unisex saddles, professionally designed with cuts and curves for high performance pedaling, and wide enough for long upright cruises, are the most relaxing, cushion saddles with ultimate comfort and style for all riders.
SPECIFICATIONS
Electronics: Trike
Battery: 36V, 12.8Ah
Controller: 36V, 500W
Display: LCD Display with speedometer, odometer, pedal-assist indicator, etc
Hub Motor: 500W
Lights: Brake triggered Backlight
Pedal Assist: 5 Level Pedal assist
Wiring: Water Resistant Wiring
Mechanical Components
Brakes: Mechanical Disc Brake
Brake Pad Material: Ceramic Pad
Brake Rotors: 180mm
Crankset: 52T, 170mm crank
Derailleur: 8 Speed
Fenders: Front and Rear
Frame: 6061 Foldable Aluminum Frame
Fork: Solid Fork
Freewheel: 11-32T
Handlebar: Foldable Telescopic
Racks: Front Rack
Saddle: Ergonomic Saddle with suspension seat post
