XENVO Drive- Electric SnowKart 2000 W Max Power
DESCRIPTION
A fun-filled sustainable go-kart experience for snow lovers of all ages! The ENVO SnowKart is safe, quiet, and easy to use. This electric workhorse is ready for or any snowy adventure, from collecting firewood to full backwoods winter exploration or fun-filled racing on a snow track. With a strong powerplant and beefy treads , the ENVO SnowKart is capable in all winter terrains including ice, hard pack, slush or powder.
- 2000 W Max Power
- 20 Km/h Max Speed
- 120 Nm Max Torque
- 100 lbs Total Weight
- 2 Hour Range per Charge
- 400 lbs Towing Capacity
ELECTRIC SNOW MOBILITY
Equipped with 2 electric snow tracks and a ski at the front your SnowKart provides the best stability, performance and a comfortable ride in the snow, giving a joy that has never been experienced before. Safe and easy to ride for everyone including those with disabilities or adaptive requirements. You have it all without an environmental impact nor noise.
Capable in All Winter Terrain
- Powder
- Hardpack
- Slush
- Ice

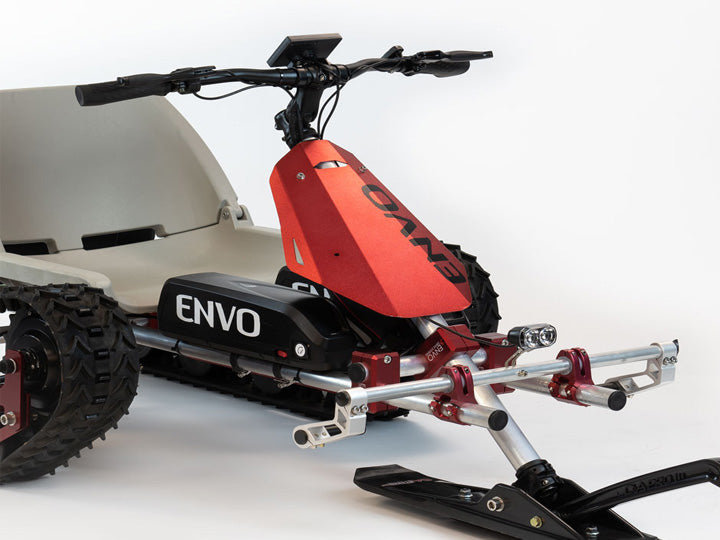

DESIGN
Compact design with easy DIY assembly practices for easy transportation or customize the build.

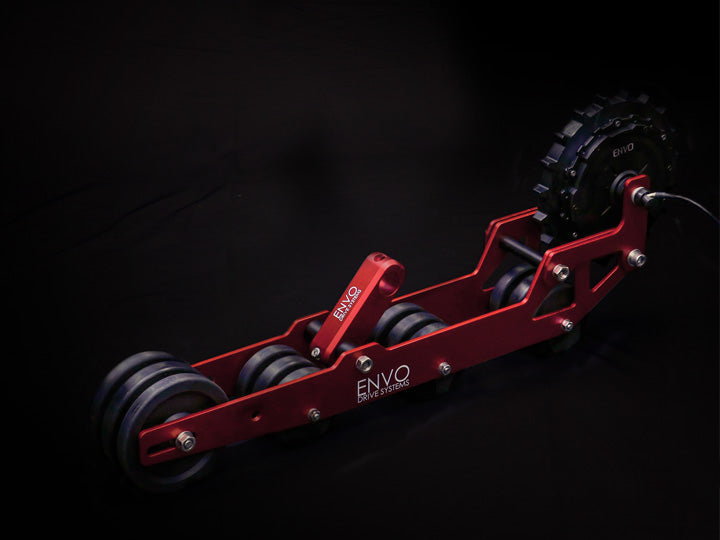

BOGIE
Made from multiple aluminum CNC machined parts, customizable and maintenance-friendly snow track assembly makes it possible to build any electric snow machine to ride or even electric snowplow.

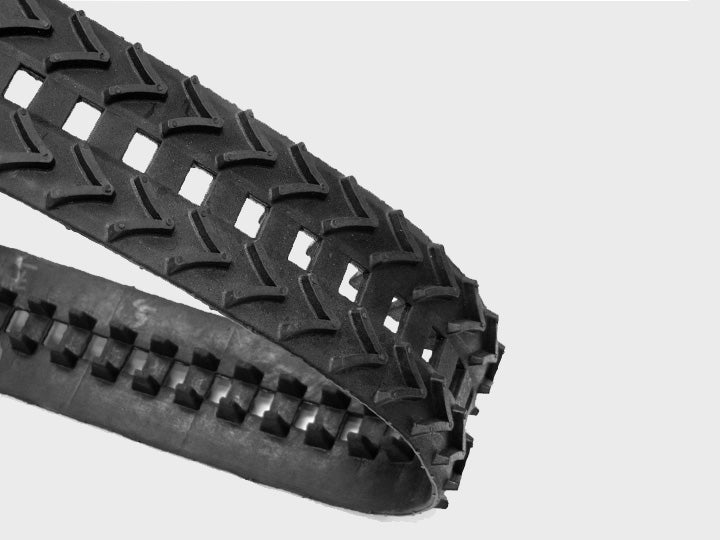

SNOW TRACKS
The V shape knob rubber track creates great traction with almost any type of snow terrain, proven up to a 20% slope. It has a well-thought geometry, secure in track with minimized resistance and energy loss which can generate up to 100KGF (220lbs) of traction. Made from rubber and Kevlar reinforcement, It is relatively light, safe and easy to handle when it comes to adjustment or replacement.

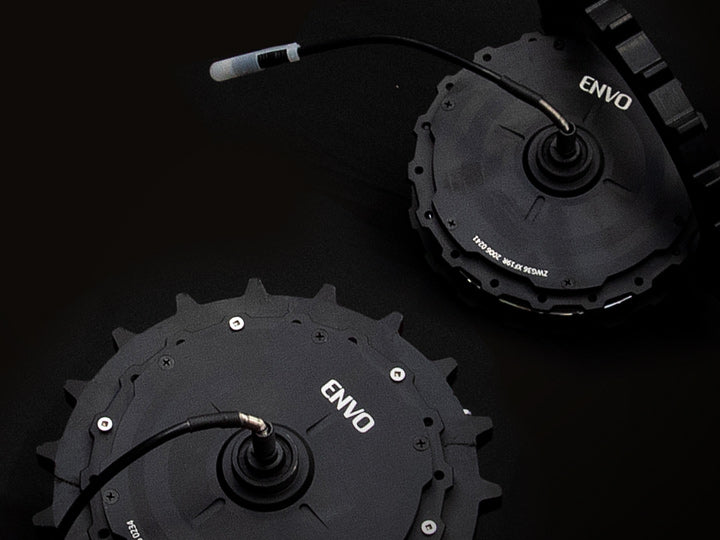

MOTOR
Powerful Integrated BLDC geared hub motor provides up to 1200W of power and 120Nm of torque in a compact, sealed and maintenance-free construction. The motor acts as e-brake when braking via brake lever cut off switch signal.

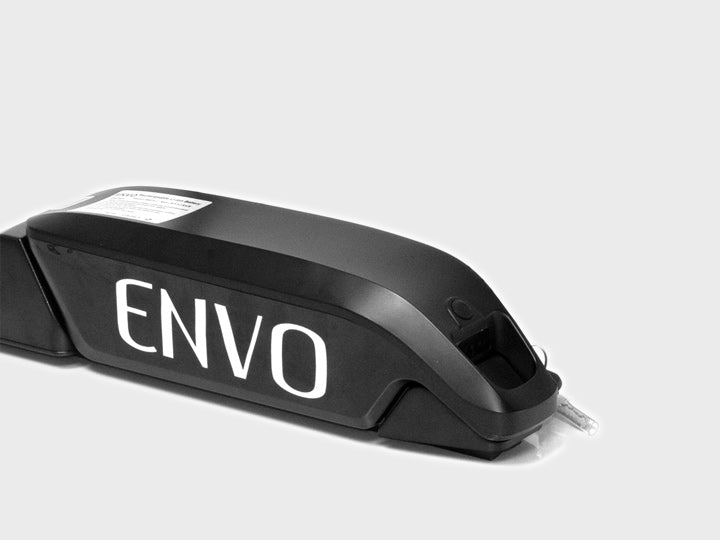

BATTERY
Lizard style 48V/17.5Ah Li-ion battery pack featured with Panasonic/LG cells with a working temperature range of -20 Celsius, provides up to 2000W of output power and 840Wh of energy with the option to double by using 2 packs is enough for up to 2 hours full throttle continuous ride on pedal assist.

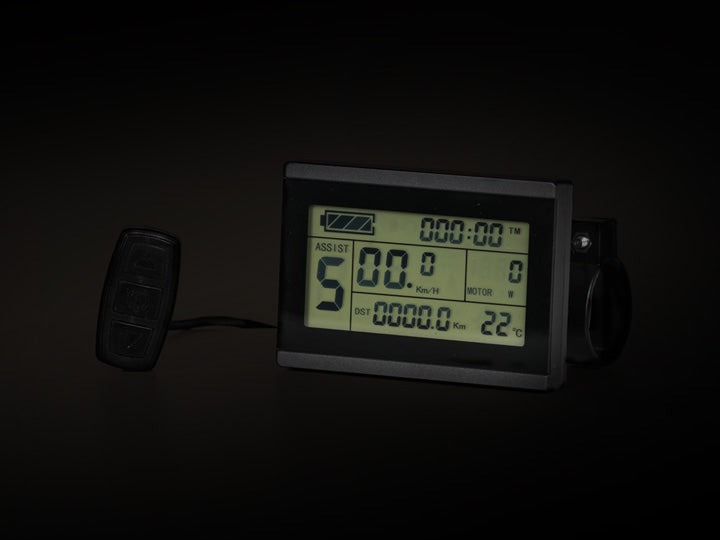

CONTROL SYSTEM
LCD3 meter provides you with a variety of functions such as vehicle controls and vehicle status digitized displays to meet the trip demands.
SKI
Skis and the fully customizable/ adjustable stem assembly attached to the front of the snowkart ensures easy gliding and accurate and sharp turns on snow and ice. It has great floatation on the uneven snow surface. It can be used on snow, as well as off-road on ice.
THUMB THROTTLE
ENVO Snowkart is equipped with a thumb throttle that gives you an extra boost which activates the motor proportionally to the twist no matter you pedal or not to give you a fully electric ride in case you cannot pedal or need an instant acceleration or uphill push.

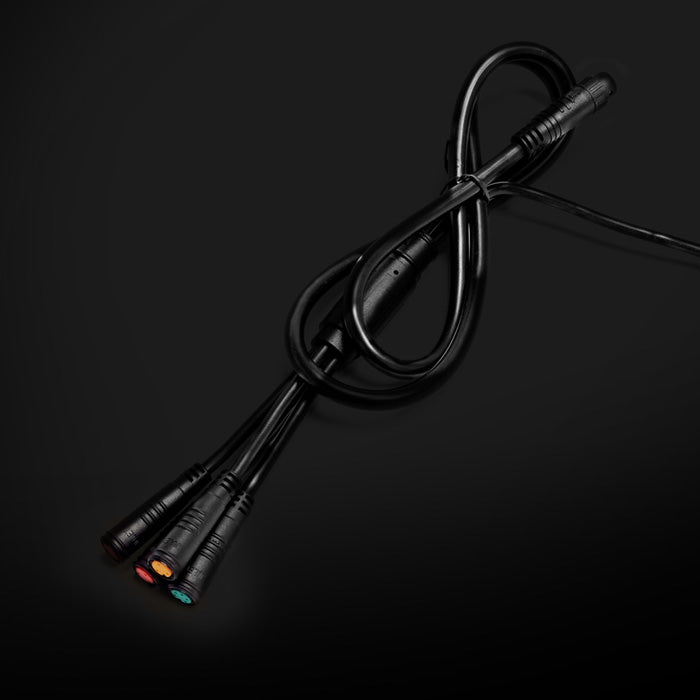

HOUSING CABLES
Waterproof housing with colour coded connections assisting you in properly assembling the Snowkart into proper connections, thereby avoiding errors.

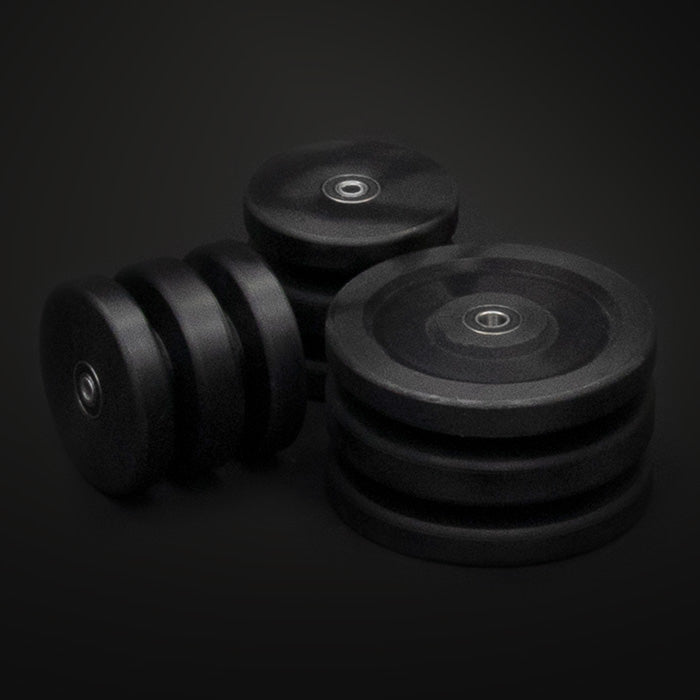

GUIDE ROLLERS
Guide rollers that are made of ultra-high molecular weight polyethylene material, which is strong, light, reliable and maintenance-free with the help of sealed high precision ball bearings.

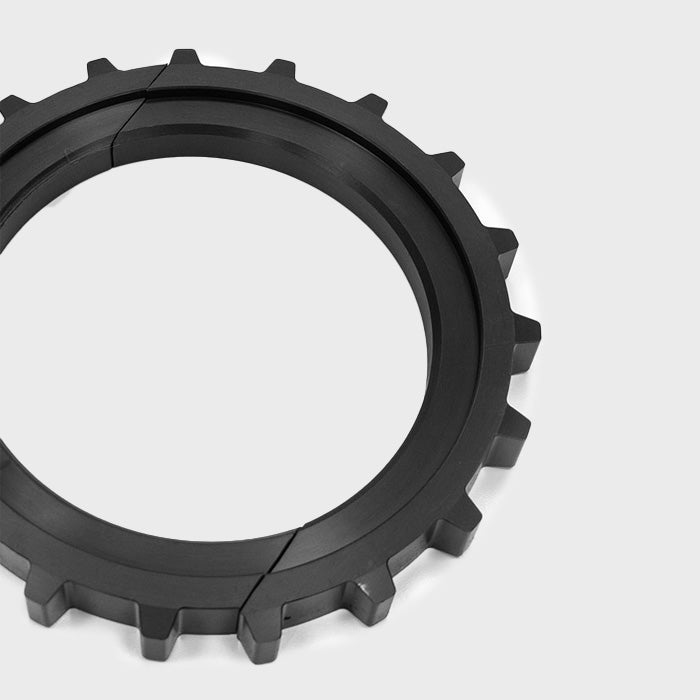

SPROCKET
Easily replaceable UHMWPE sprocket guarantees transfer of over 100KGF of traction to the rubber track with minimal friction and noise.
IMPORTANT NOTE TO BUYERS
This is a DIY product preliminary launch for early adopters. This concept has gone through all major engineering, prototyping, limited production, testing, revisions, and approval to be released for marketing. However, there might be multiple unknown failure scenarios in the actual use of this product as mobility means in various terrains which are assumed the risk by the users. That means the buyer, assembler and users must be mechanically inclined and fully understand the product details and instructions as well as all probable risks of using. DIY installation on a wide range of bicycles requires a creative and a technical mind. Failure to a proper installation may cause serious damage to the bike and or hazard of severe injuries. The buyer assumes the liability for the safe installation and use of this product by signing the Liability Waiver. Before ordering, if you have any questions or need further details, do not hesitate to contact us.
DIMENSIONS AND WEIGHT
LxWxH = 200cm x 85cm x 80cm
Weight = 45kg
SPECIFICATIONS
Motor: Motor Controller: Brushless Motor Controller Display Computer: LCD3 meter provides you with a variety of functions such as vehicle controls and vehicle status digitized displays to meet the trip demands. Battery: |
Battery dimensions: Brake cut-off magnetic switches: Just stick the magnet sensors, no need to disassemble the brake levers. Thumb Throttle: Haul effect sensor, Analogue linear increasing torque Other: Rainproof Controller and tools bag |
