ERSKINE

ERSKINE BACKHOE | BH-780 & BH-1080 MODEL | WITH BUCKET 9" TO 18" | FOR SKID STEER

ERSKINE BACKHOE | BH-780 & BH-1080 MODEL | WITH BUCKET 9" TO 18" | FOR SKID STEER

$16,495.00
$16,495.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Fits Your Machine and Property
  • Rugged Construction
  • Versatile Applications
  • Responsive Controls
  • Feature-Rich
  • Efficient Performance:
View full details

DESCRIPTION

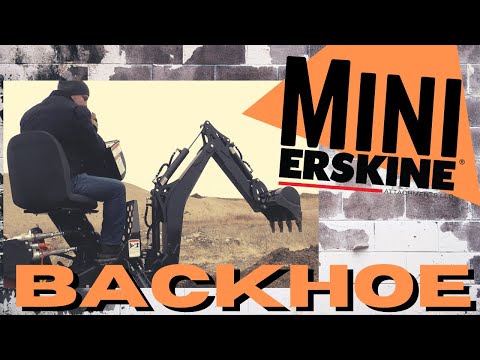

The versatile curved-boom Backhoe attachment fits your machine and your property. This is a rugged backhoe that’s ready to sink its teeth into any task you give it, from landscaping to concrete footings. The responsive controls give you precision and power at your fingertips. Running deep with features, the Backhoe will turn a mountain of a job into a molehill.

  • Fits Your Machine and Property: Designed to be compatible with various machines and suitable for different properties.
  • Rugged Construction: Built to handle tough tasks with durability.
  • Versatile Applications: Ideal for a range of tasks, from landscaping to concrete footings.
  • Responsive Controls: Offers precision and power at your fingertips.
  • Feature-Rich: Equipped with numerous features to make challenging jobs easier.
  • Efficient Performance: Turns large, difficult jobs into manageable tasks.

  • Operator seat swings for better visibility of work area
  • Optimum performance with 5-7 GPM hydraulic system
  • Dual cylinder swing provides maximum swinging power
  • All main pivot points greasable for easy maintenance. Full width replaceable bronze bushings on all wearable pivot points
  • Boom & rotation lock for transport
  • 9”, 12” (3 teeth), 15”, 18” (4 teeth), 24” (5 teeth) and 24” ditching bucket (no teeth)
  • Street pads optional

BH780 and BH1080 models of the versatile curved-boom Backhoe attachment:

BH780

  • Part Number: 901072
  • Transport Height (fully retracted): 68”
  • Transport Width (stabilizers up): 36”
  • Transport Length: 64”
  • Transport Weight: 675 lb.
  • Ground Clearance: 7.5”
  • Digging Depth (2 ft. flat bottom): 78”
  • Overall Operating Height (fully raised): 91”
  • Loading Height (bucket at 60°): 63”
  • Reach from Swing Post: 104”
  • Bucket Rotation: 180°
  • Swing Arc: 180°
  • Stabilizer Width (spread position): 81”
  • Stabilizer Width (transport): 36”
  • Stabilizer (below grade): 10”
  • Operating Pressure: 2,250 psi
  • Dipper Stick Digging Force SAE: 1,890 lb.
  • Bucket Digging Force SAE: 3,450 lb.
  • Boom Lift Capacity: 515 lb.
  • Hydraulic Volume Requirements: 5-7 GPM
  • Main Boom Cylinder Diameter: 2.25”
  • All Other Cylinder Diameter: Dipper 2.25”, Rest 2”

BH1080

  • Part Number: 901073
  • Transport Height (fully retracted): 93”
  • Transport Width (stabilizers up): 45”
  • Transport Length: 81”
  • Transport Weight: 1,200 lb.
  • Ground Clearance: 9.5”
  • Digging Depth (2 ft. flat bottom): 108”
  • Overall Operating Height (fully raised): 128”
  • Loading Height (bucket at 60°): 89”
  • Reach from Swing Post: 145”
  • Bucket Rotation: 180°
  • Swing Arc: 180°
  • Stabilizer Width (spread position): 90”
  • Stabilizer Width (transport): 41”
  • Stabilizer (below grade): 12”
  • Operating Pressure: 2,250 psi
  • Dipper Stick Digging Force SAE: 3,560 lb.
  • Bucket Digging Force SAE: 4,055 lb.
  • Boom Lift Capacity: 795 lb.
  • Hydraulic Volume Requirements: 5-7 GPM
  • Main Boom Cylinder Diameter: 3”
  • All Other Cylinder Diameter: Dipper 3”, Rest 2.5”
