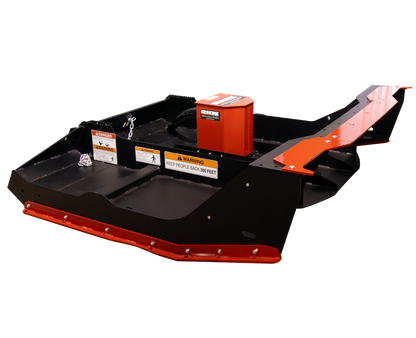

Erskine BCX Open Front Brush Cutter | Model 74” & 80” | 10” Cutting Capacity | 15–41 GPM | For Skid Steer
Erskine BCX Open Front Brush Cutter | Model 74” & 80” | 10” Cutting Capacity | 15–41 GPM | For Skid Steer
Regular price
$11,195.00
Regular price
Sale price
$11,195.00
Unit price
per
Couldn't load pickup availability
Machine Compatibility
Couldn't load pickup availability
Product Description
Erskine BCX Open Front Brush Cutter | Model 74” & 80” | 10” Cutting Capacity | 15–41 GPM | For Skid Steer
DESCRIPTION

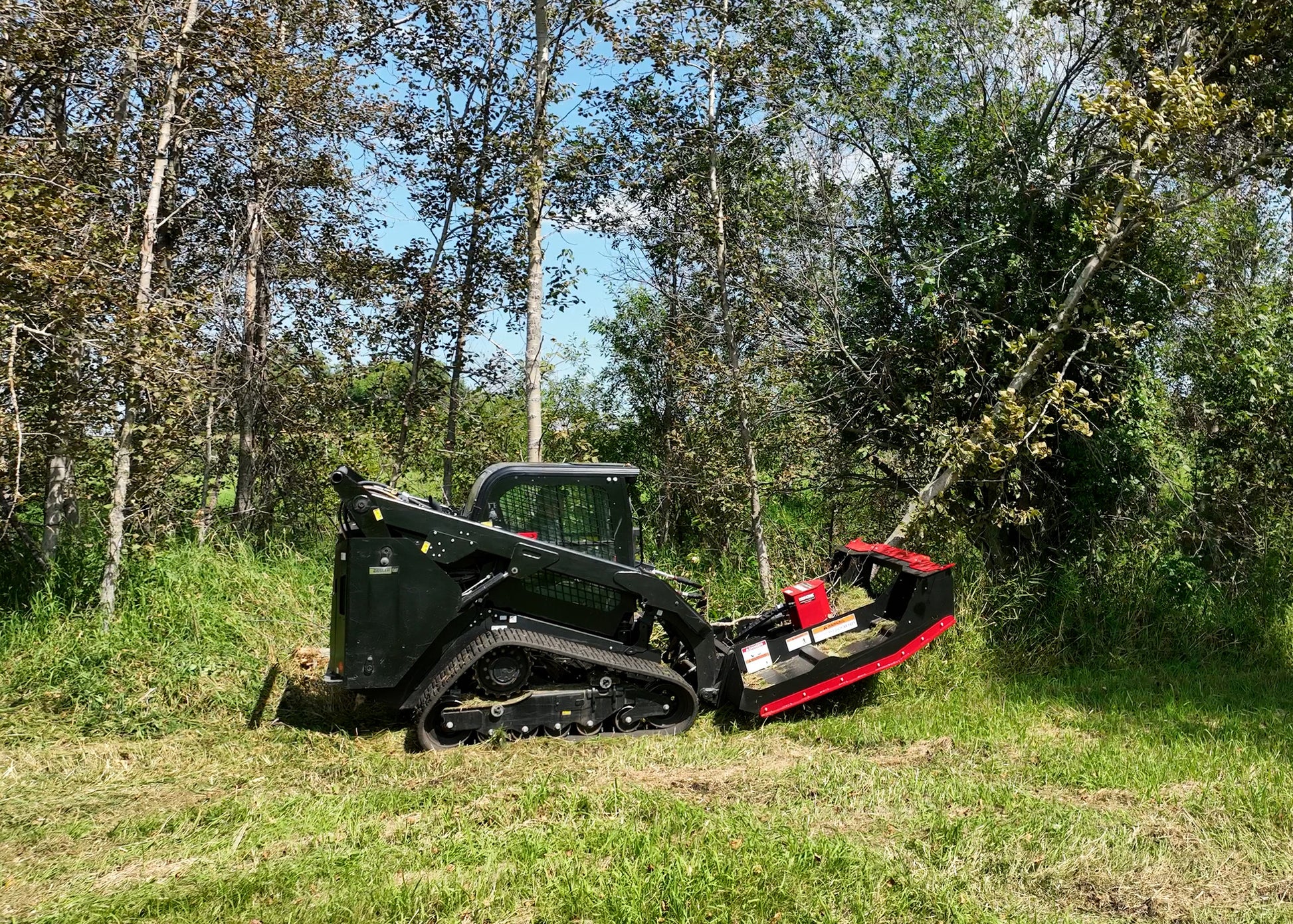

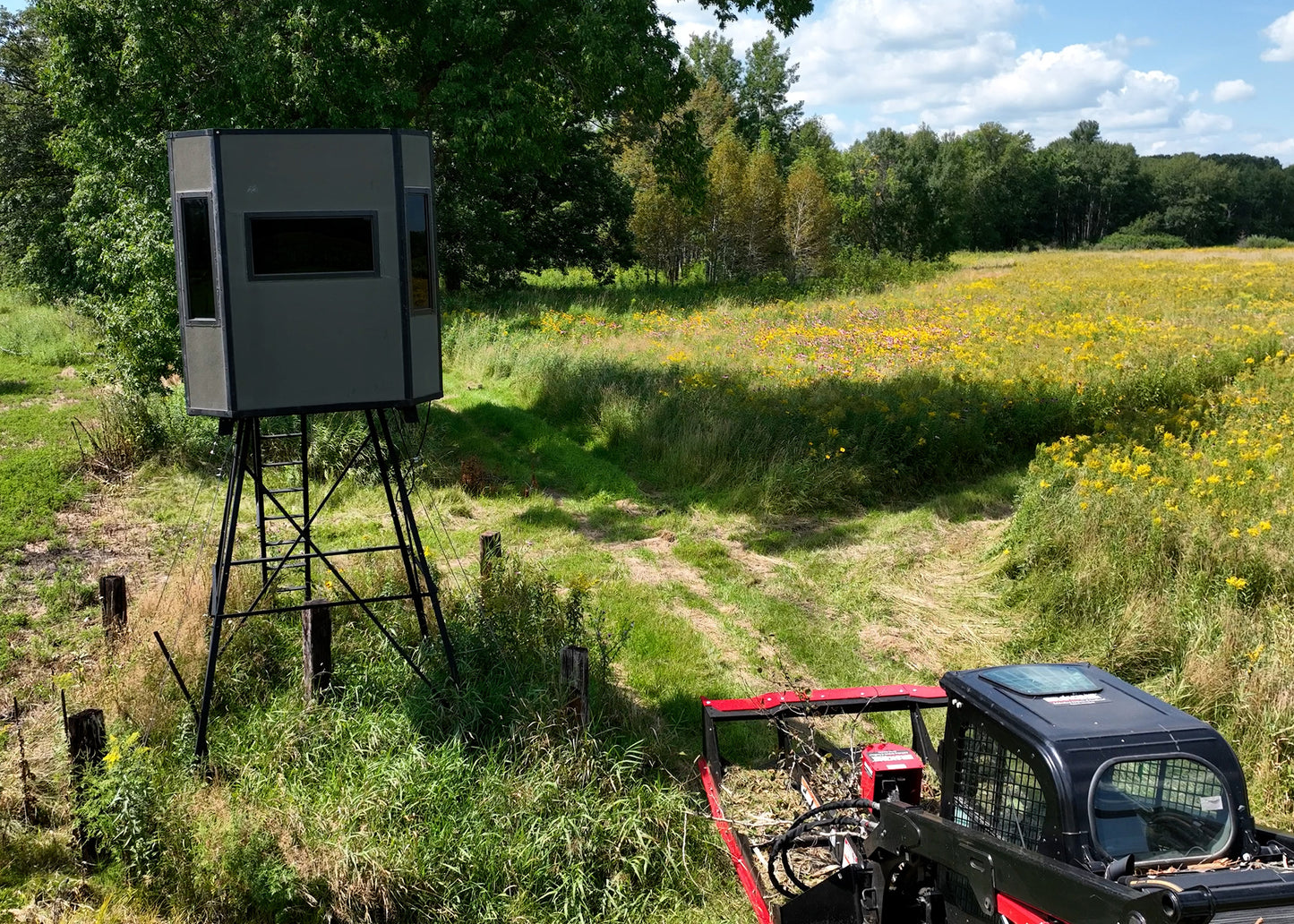

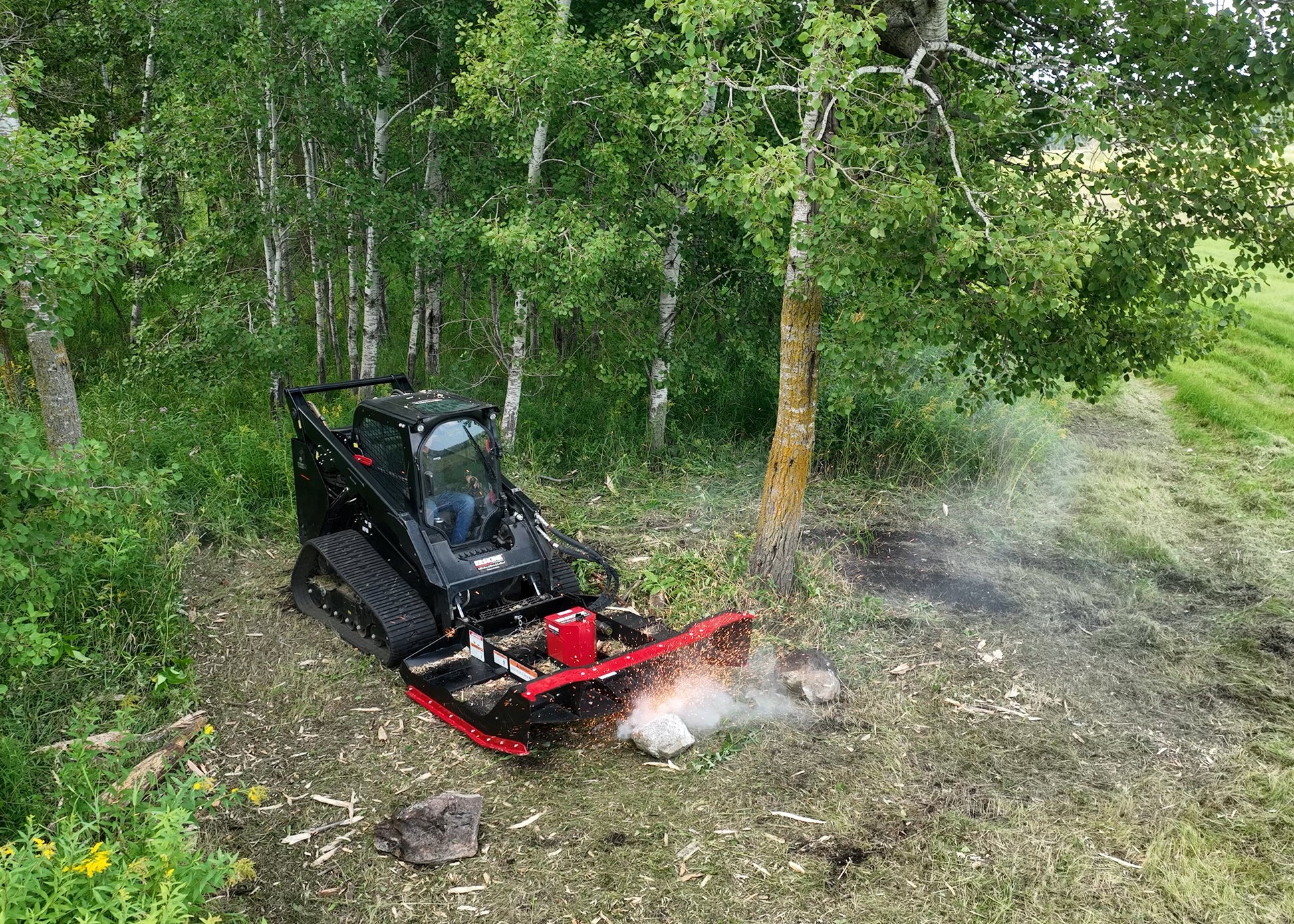

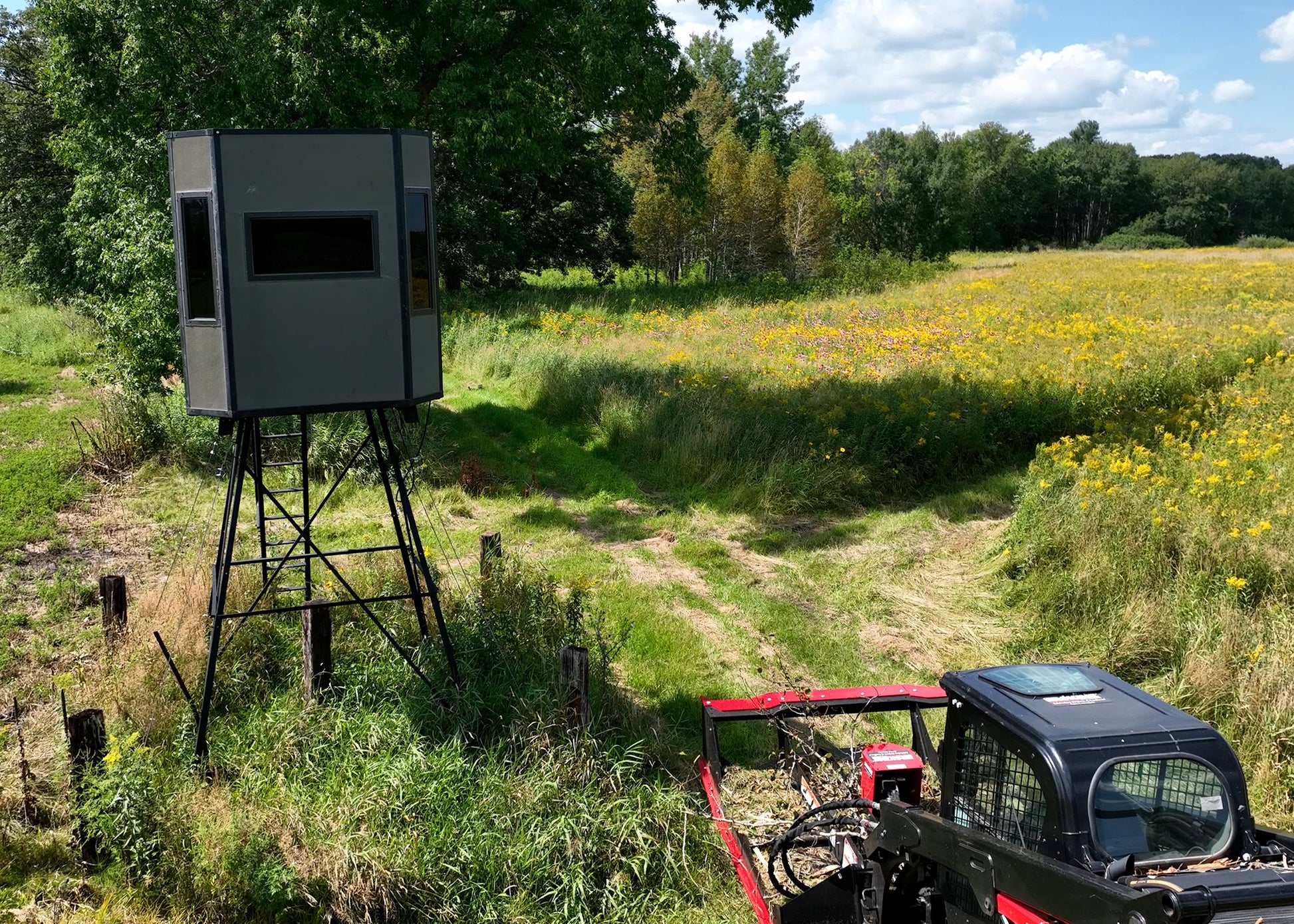

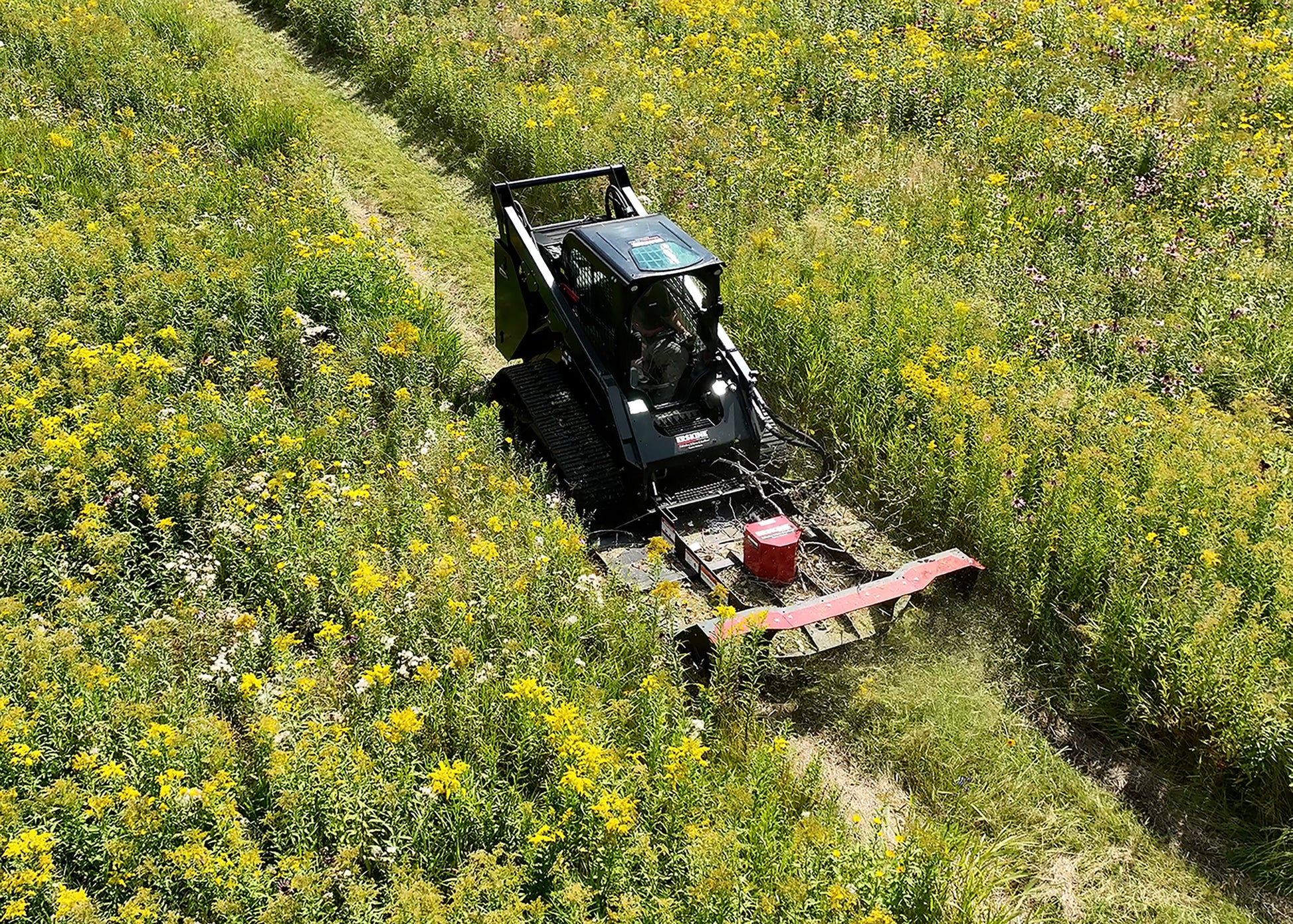

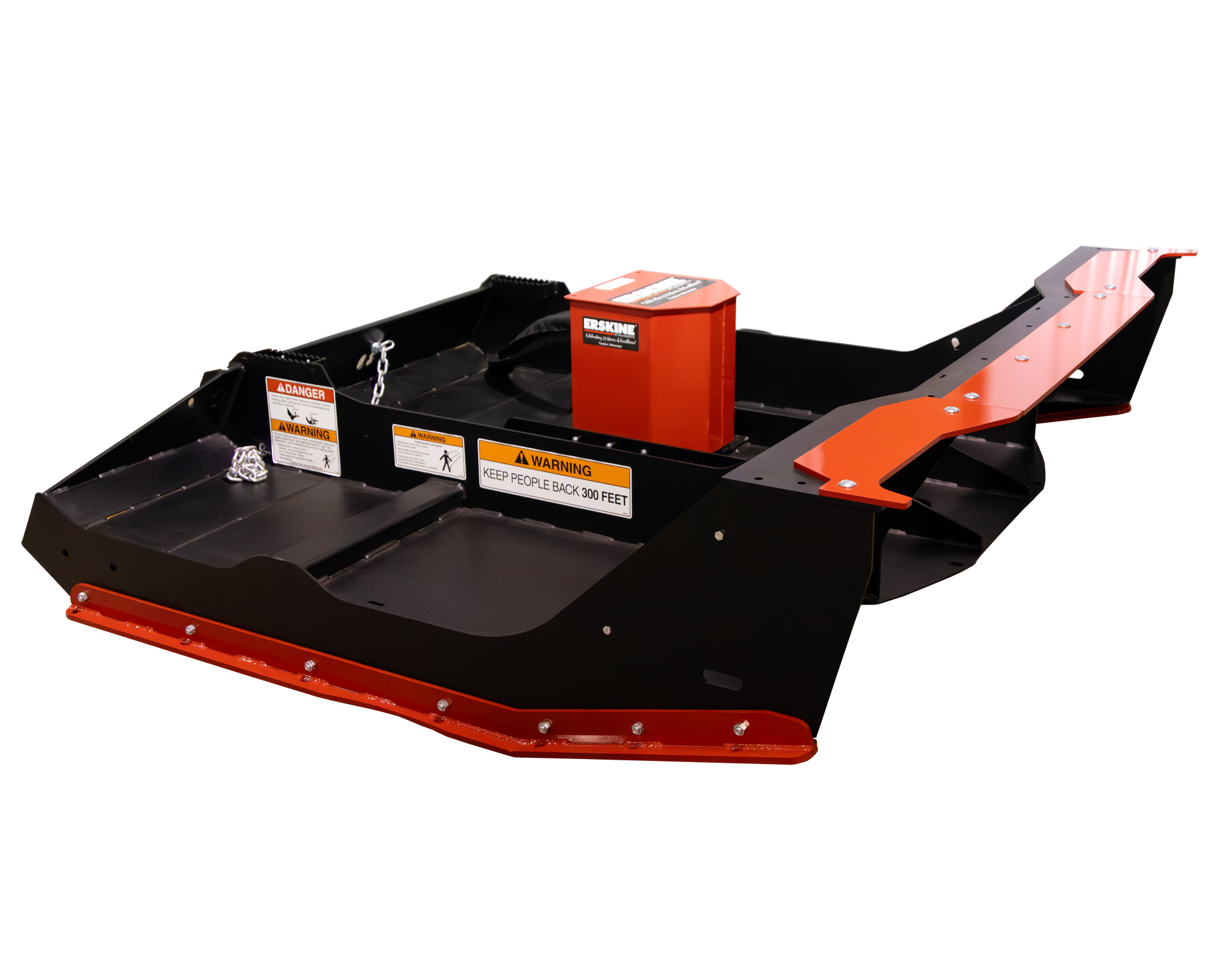

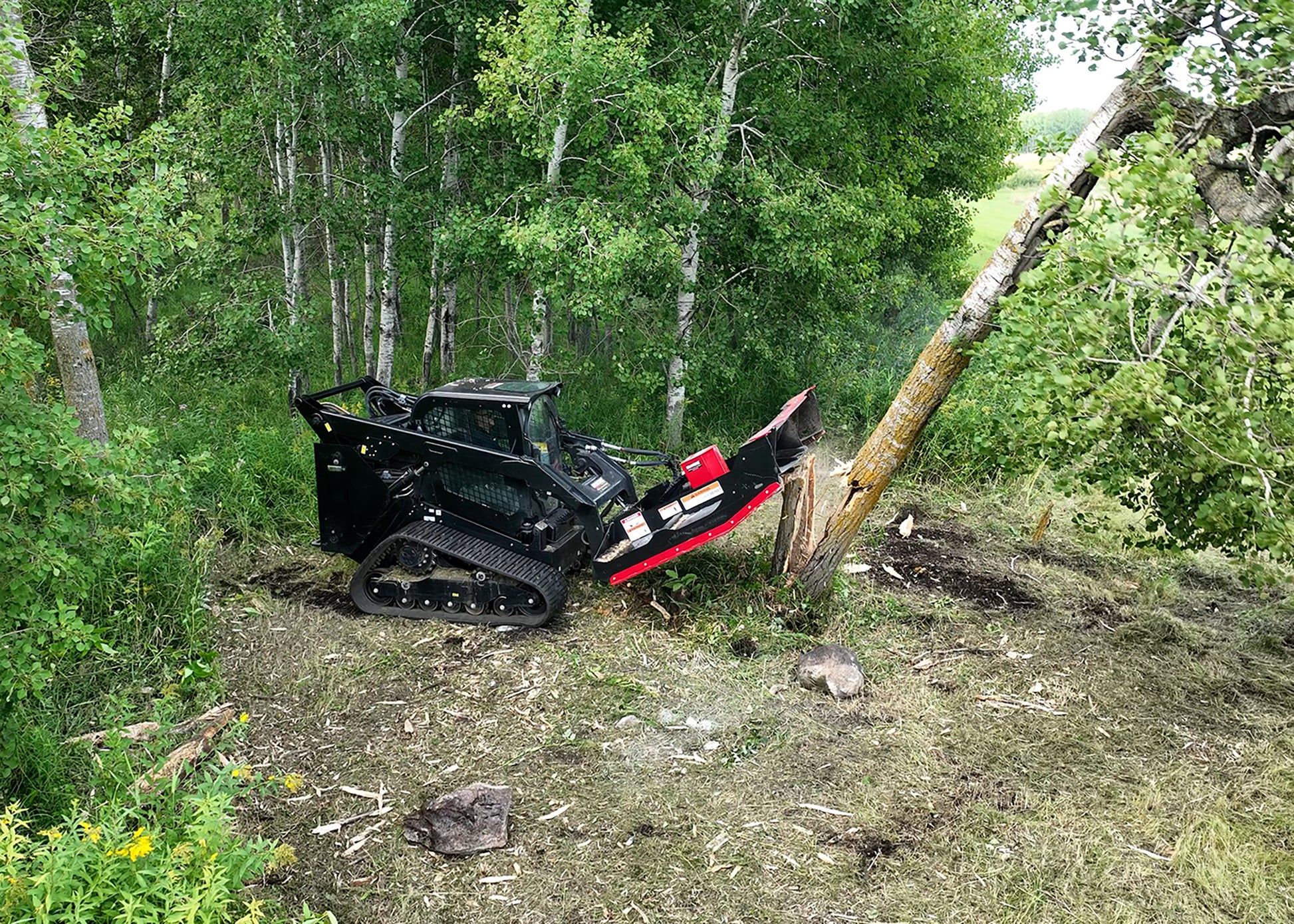

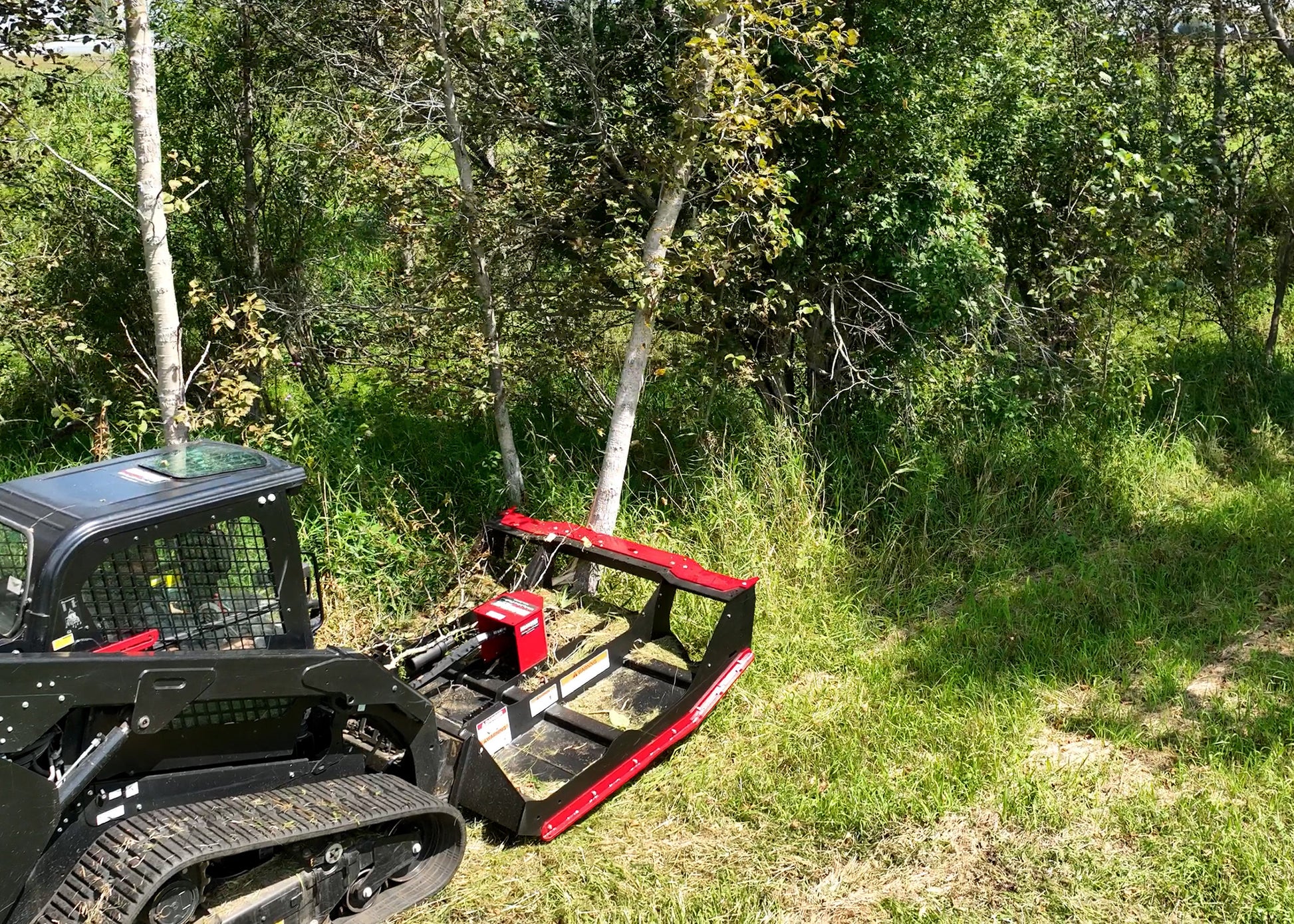

The Erskine BCX Open Front Brush Cutter is built for maximum land-clearing performance. With an industry-leading 10-inch cutting capacity, this rugged attachment powers through brush, saplings, and tall grass with ease. Designed for skid steers operating in standard or high hydraulic flow ranges (15–41 GPM), the BCX delivers unmatched versatility. Its 12 replaceable mulching teeth, heavy-duty Grade 50 steel deck, and adjustable push bar system ensure durability, precision, and operator control. Available in 74-inch and 80-inch cutting widths, the BCX Brush Cutter is the ultimate solution for contractors, farmers, and property owners seeking efficiency, reliability, and universal compatibility.
Key Features
- 10” Cutting Capacity Handles large brush and saplings with ease, maximizing productivity on demanding jobsites.
- 12 Replaceable Mulching Teeth Carbide teeth ensure clean cuts and long-lasting performance in tough conditions.
- Adjustable Push Bar System Provides operator flexibility and enhanced control across different skid steer machines.
- Heavy-Duty Steel Deck 1/4” thick Grade 50 steel construction delivers superior strength and durability.
- Universal Skid Steer Mounting Compatible with all major skid steer brands for quick, tool-free installation.
- Standard & High Flow Options Available in 15–41 GPM hydraulic flow ranges to match machine requirements.
- Optimized Blade Carrier 3/4” thick steel carrier with precision blades for maximum cutting efficiency.
- High Tip Speed Performance Achieves up to 19,700 ft/min tip speed for aggressive cutting action.
- Dual Wire Catchers Protects against debris entanglement, ensuring safe and uninterrupted operation.
- Replaceable Blade Kits Easy maintenance with affordable replacement blade and tooth kits.
- Heavy-Duty Bearing Carrier Designed for durability with 75–80 lb carrier weight and oversized bearings.
- Compact Overall Height 24” profile allows efficient maneuverability in tight or uneven terrain.
- Multiple Cutting Widths Choose between 74” or 80” models to suit property size and machine capacity.
- High PSI Rating Operates at up to 4641 PSI, delivering consistent hydraulic power under demanding loads.
- Professional-Grade Construction Built for contractors, landowners, and municipalities needing reliable brush clearing.
Detailed Specifications
| Specification | BCX 74” Standard Flow (901931) | BCX 80” Standard Flow (901933) |
|---|---|---|
| Hydraulic Flow Range | 15–25 GPM | 15–25 GPM |
| Cutting Capacity | 10” | 10” |
| Operating Weight | 1,600 lb | 1,760 lb |
| Overall Height | 24” | 24” |
| Overall Length | 78.5” | 84.5” |
| Overall Width | 80” | 86” |
| Blade Carrier Thickness | 3/4” Grade 50 steel | 3/4” Grade 50 steel |
| Cutting Width | 74” | 80” |
| Number of Blades | (4) 1/2” x 16” | (4) 1/2” x 17.5” |
| Number of Carbide Teeth | 12 | 12 |
| Maximum PSI | 4500 | 4500 |
| Blade System Mass | 353 lb | 400 lb |
| Tip Speed | 18,000 ft/min (at 25 GPM) | 15,200 ft/min (at 25 GPM) |
| Wire Catchers | Dual | Dual |
| Bearing Carrier Weight | 75 lb | 75 lb |
| Output Bearing Size | 2.625” | 2.625” |
| Case Drain | Yes | Yes |
| Specification | BCX 74” Standard Flow (902223) | BCX 80” Standard Flow (902224) |
|---|---|---|
| Hydraulic Flow Range | 20–32 GPM | 20–32 GPM |
| Cutting Capacity | 10” | 10” |
| Operating Weight | 1,610 lb | 1,765 lb |
| Overall Height | 24” | 24” |
| Overall Length | 78.5” | 84.5” |
| Overall Width | 80” | 86” |
| Blade Carrier Thickness | 3/4” Grade 50 steel | 3/4” Grade 50 steel |
| Cutting Width | 74” | 80” |
| Number of Blades | (4) 1/2” x 16” | (4) 1/2” x 17.5” |
| Number of Carbide Teeth | 12 | 12 |
| Maximum PSI | 4500 | 4500 |
| Blade System Mass | 353 lb | 400 lb |
| Tip Speed | 14,000 ft/min (at 25 GPM) | 12,500 ft/min (at 25 GPM) |
| Wire Catchers | Dual | Dual |
| Bearing Carrier Weight | 75 lb | 75 lb |
| Output Bearing Size | 2.625” | 2.625” |
| Case Drain | Yes | Yes |
| Specification | BCX 74” High Flow (901932) | BCX 80” High Flow (901934) |
|---|---|---|
| Hydraulic Flow Range | 25–41 GPM | 25–41 GPM |
| Cutting Capacity | 10” | 10” |
| Operating Weight | 1,660 lb | 1,813 lb |
| Overall Height | 24” | 24” |
| Overall Length | 78.5” | 84.5” |
| Overall Width | 80” | 86” |
| Blade Carrier Thickness | 3/4” Grade 50 steel | 3/4” Grade 50 steel |
| Cutting Width | 74” | 80” |
| Number of Blades | (4) 1/2” x 16” | (4) 1/2” x 17.5” |
| Number of Carbide Teeth | 12 | 12 |
| Maximum PSI | 4641 | 4641 |
| Blade System Mass | 353 lb | 400 lb |
| Tip Speed | 12,300 ft/min (25 GPM) / 19,700 ft/min (40 GPM) | 12,000 ft/min (25 GPM) / 19,200 ft/min (40 GPM) |
| Wire Catchers | Dual | Dual |
| Bearing Carrier Weight | 80 lb | 80 lb |
| Output Bearing Size | 2.875” | 2.875” |
| Case Drain | Yes | Yes |
